| Alarm input channels: | 8 |
|---|---|
| Alarm input/output: | Yes |
| Alarm inputs: | 8 |
| Alarm output channels: | 1 |
| Alarm outputs: | 2 |
| Built-in microphone: | Yes |
| Built-in speaker(s): | Yes |
| Colour: | white |
| Compatibility: | Hikvision IP video door phones |
| Control: | Capacitive touch screen |
| Dc input voltage: | 12 V |
| Dc-in jack: | Yes |
| Depth: | 137 mm |
| Dimensions: | 187 x 137 x 26 mm |
| Display diagonal: | 17.8 cm (7") |
| Display resolution: | 1024 x 600 pixels |
| Display type: | TFT |
| Ethernet lan data rates: | 100, 10 |
| Height: | 25.7 mm |
| Internal memory: | 8 GB eMMC (built-in) |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature: | -10 °C ... 50 °C |
| Operating temperature (t-t): | -10 - 50 °C |
| Package weight: | 694 g |
| Power: | 12 VDC PoE (802.3af) |
| Power consumption: | ≤ 8 watts |
| Power over ethernet (poe): | Yes |
| Producer / brand: | Hikvision |
| Product colour: | White |
| Quantity per pack: | 1 pc(s) |
| Resolution: | 1024 x 600 |
| Rj-45 ports quantity: | 1 |
| Sap code: | 305303165 |
| Scales: | 0.43 kg |
| Screen: | 7" - capacitive touch screen |

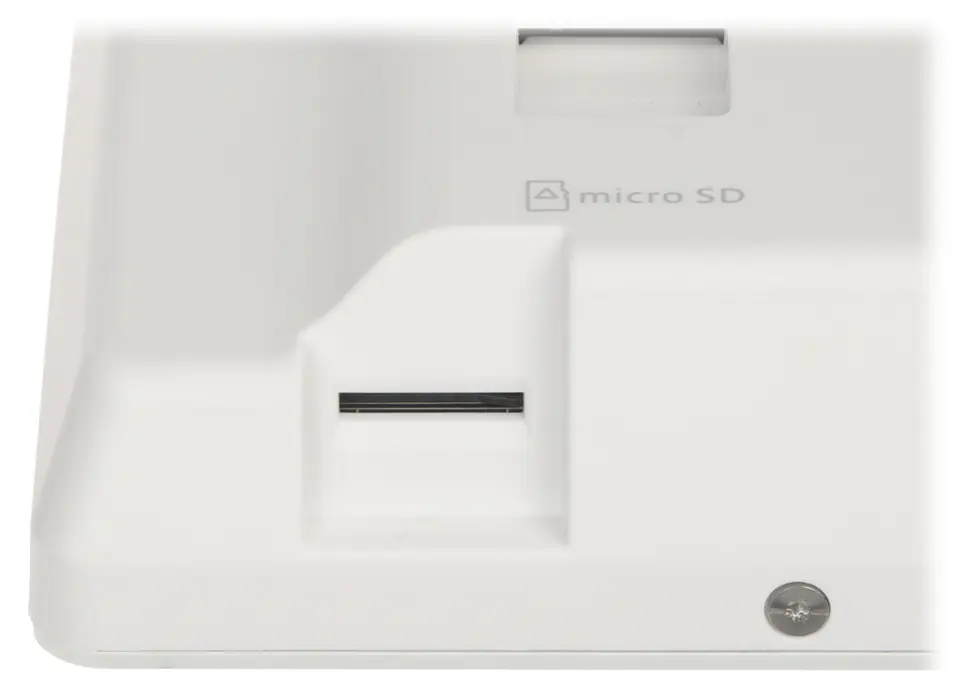

| Selected features: | Wi-Fi - IEEE 802.11 b/g/n module, Built-in microphone, Built-in speakers, Two-way communication, Echo attenuation and reduction / digital noise reduction, Smooth adjustment of monitor parameters: image brightness, ringer and call volume, Automatic shooting and saving in case of no response to the ringtone button, Cooperation with Hikvision IP cameras, Possibility of direct communication between two or more panels, Recording a short voice message in the case of no response to ringtone button, Support capturing photos during video calls, User-friendly graphical interface, Support microSD cards (not included) The device is fully configurable using iVMS4200 software. In addition, the device has the ability to work with the Hik-Connect application for mobile devices |
| Supported languages: | Polish, Bulgarian, Czech, English, French, Hungarian, Italian, Portuguese, Romanian, Russian, Spanish, Turkish, Ukrainian |
| Touchscreen: | Yes |
| Warranty: | 3 years |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11g, Wi-Fi 4 (802.11n), 802.11b |
| Width: | 187 mm |

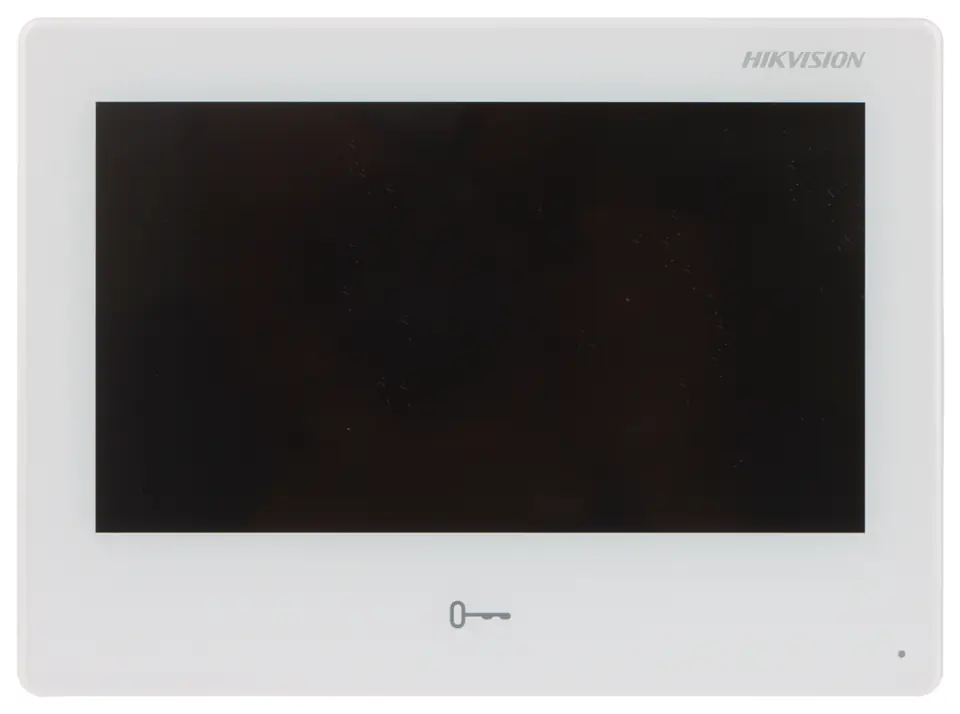

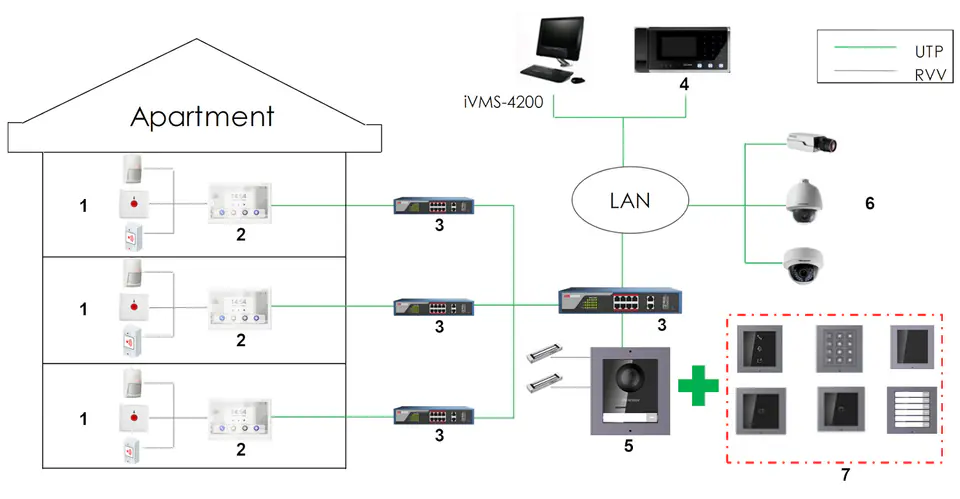

DS-KH9310-WTE1(B) is designed to create a simple and efficient local communication system
The device dedicated to work with Hikvision IPMomit can also act as a simplified alarm control panel or notification module by operating 8 alarm inputs
The device is fully configurable using iVMS4200 software. In addition, the device has the ability to work with the Hik-Connect application for mobile devices
