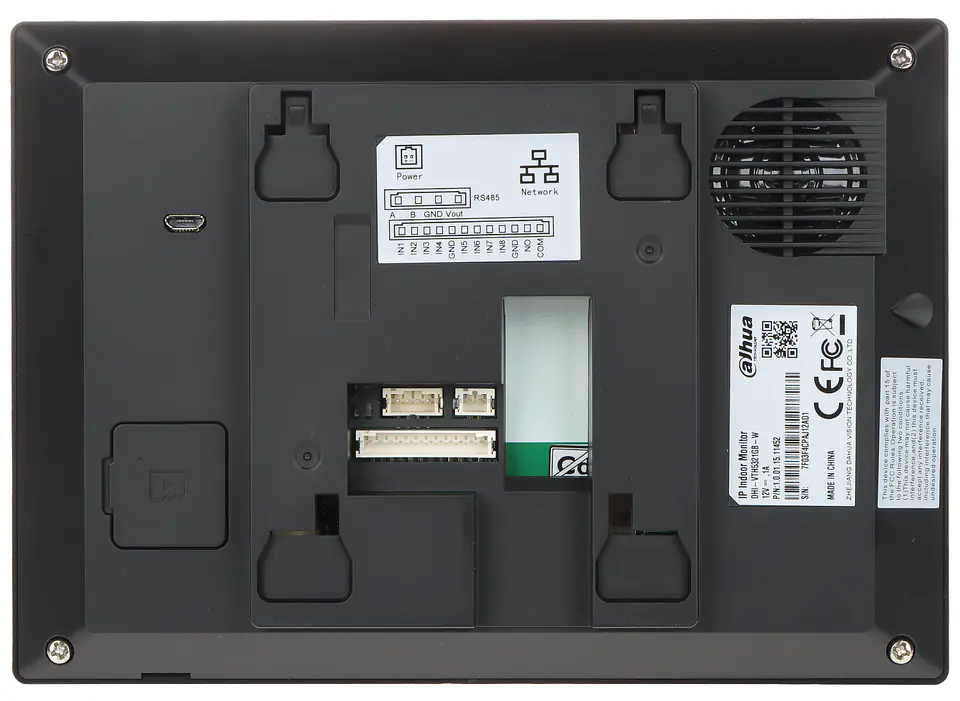

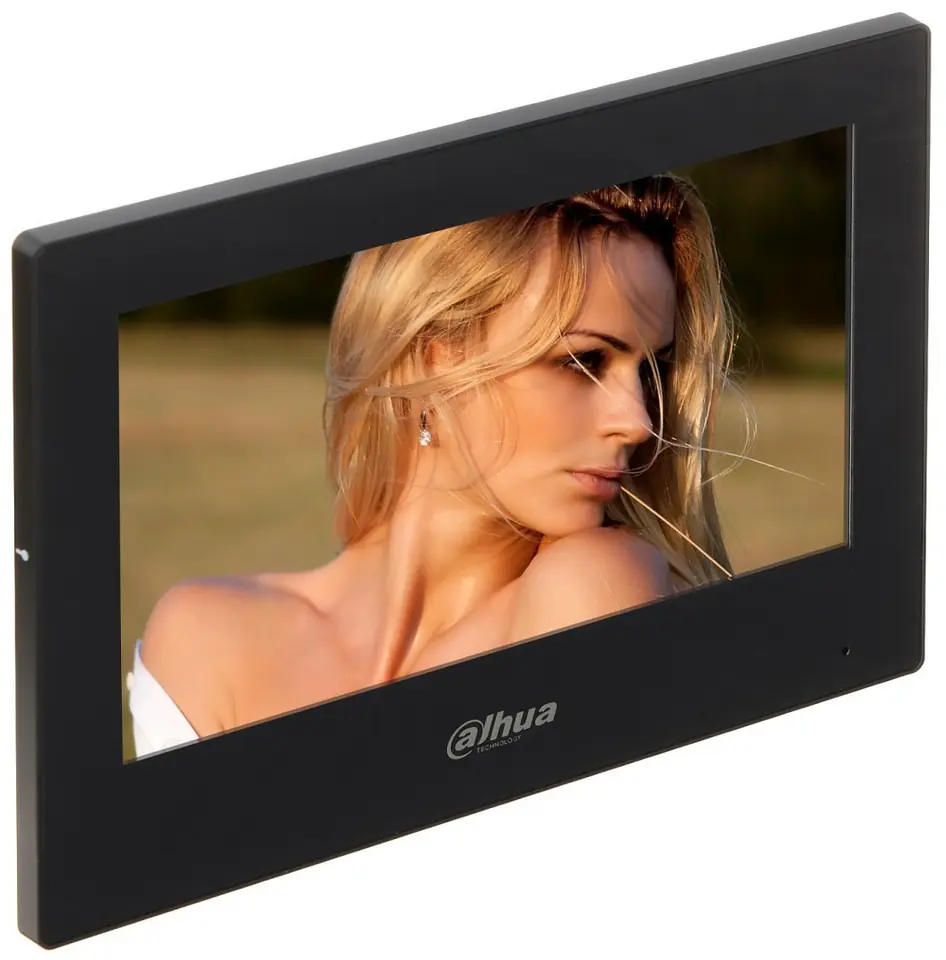

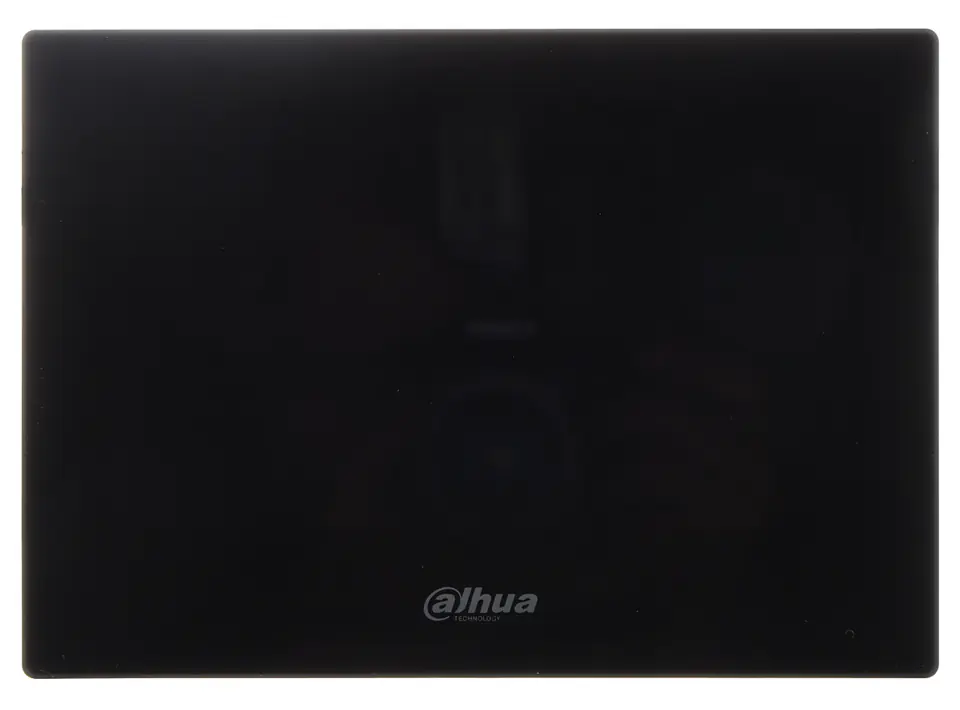

<strong>INTERNAL PANEL </strong> VTH5321GB-W Wi-Fi / IP DAHUA

Name: INTERNAL PANEL VTH5321GB-W Wi-Fi / IP DAHUA
Brand: Dahua
SKU: 515811
Price: 190.69 EUR
Availability: InStock

€190.69

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: Dahua
Product code:: VTH5321GB-W / 6939554995156

Specification

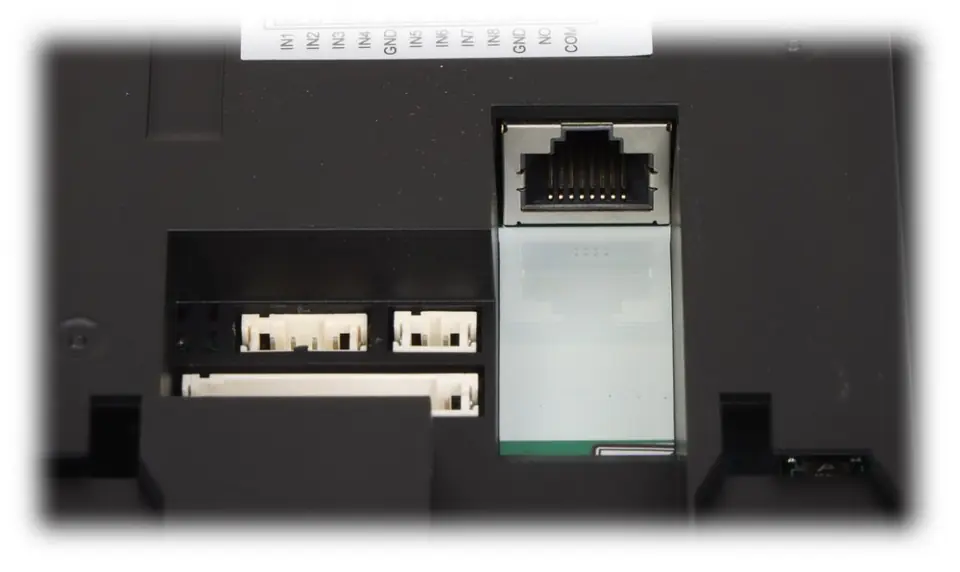

Alarm input channels:	8
Alarm inputs::	8 ( 1 - as a bell )
Alarm output channels:	1
Alarm outputs::	1
Amd freesync:	No
Built-in camera:	No
Built-in microphone:	Yes
Built-in processor:	Yes
Built-in speaker(s):	Yes
Colour::	Black
Compatibility::	Intercom installation - DAHUA IP
Control::	capacitive touch screen
Depth:	26 mm

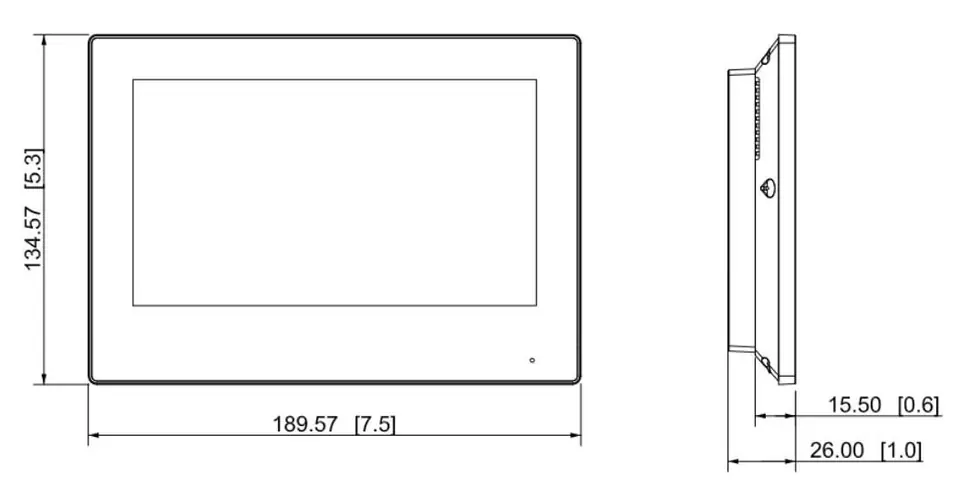

Dimensions::	190 x 135 x 26 mm
Display diagonal:	17.8 cm (7")
Display resolution:	1024 x 600 pixels
Display technology:	LCD
Display type:	TFT
Ethernet lan:	Yes
Ethernet lan data rates:	100, 10
Height:	134.6 mm
Manufacturer / brand::	DAHUA
Material:	ABS, PC
Maximum memory card size:	256 GB

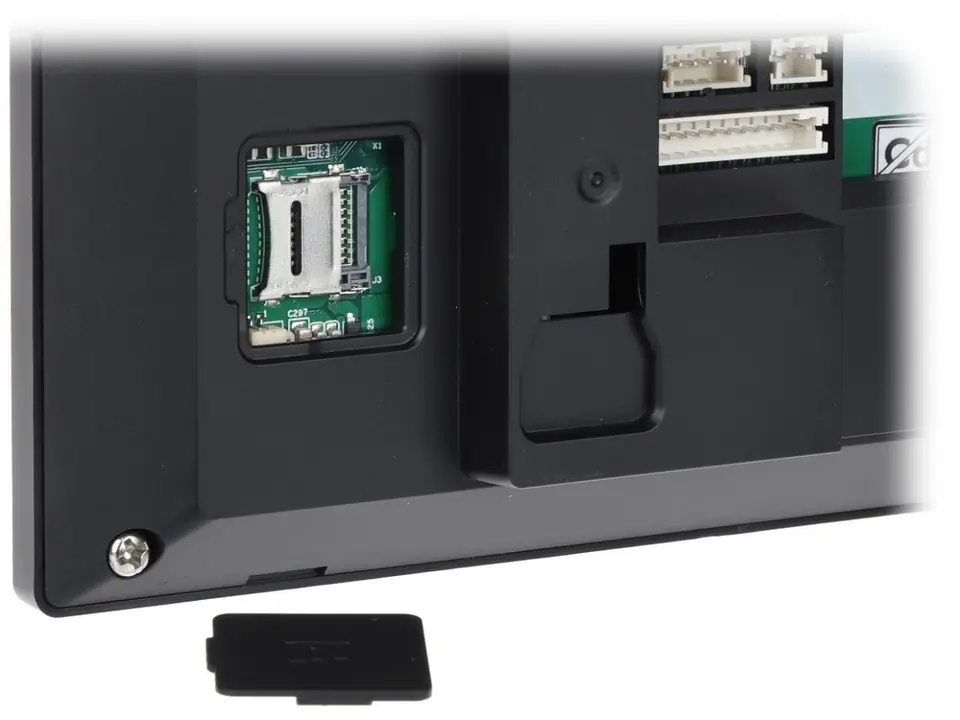

Memory card slot::	Supports Micro SD cards up to 256GB (local write possible)
Microphone in:	Yes
Microsd:	Yes
Native aspect ratio:	16:9
Nvidia g-sync:	No
Operating relative humidity (h-h):	10 - 95%
Operating system installed:	Android 8.1
Operating temperature (t-t):	-10 - 55 °C
Operating temperature::	-10 °C ... 55 °C
Output power:	12V/100mA
Power consumption (standby):	1.5 W
Power consumption (typical):	7 W
Power consumption::	≤ 7 W (operating)≤ 1.5 W (standby)
Power over ethernet (poe):	Yes
Power::	12 V DC / 1 A, PoE (802.3af)
Product colour:	Black
Resolution::	1024 x 600 mm
Rs-485 port:	Yes
Scales::	0.38 kg
Screen shape:	Flat

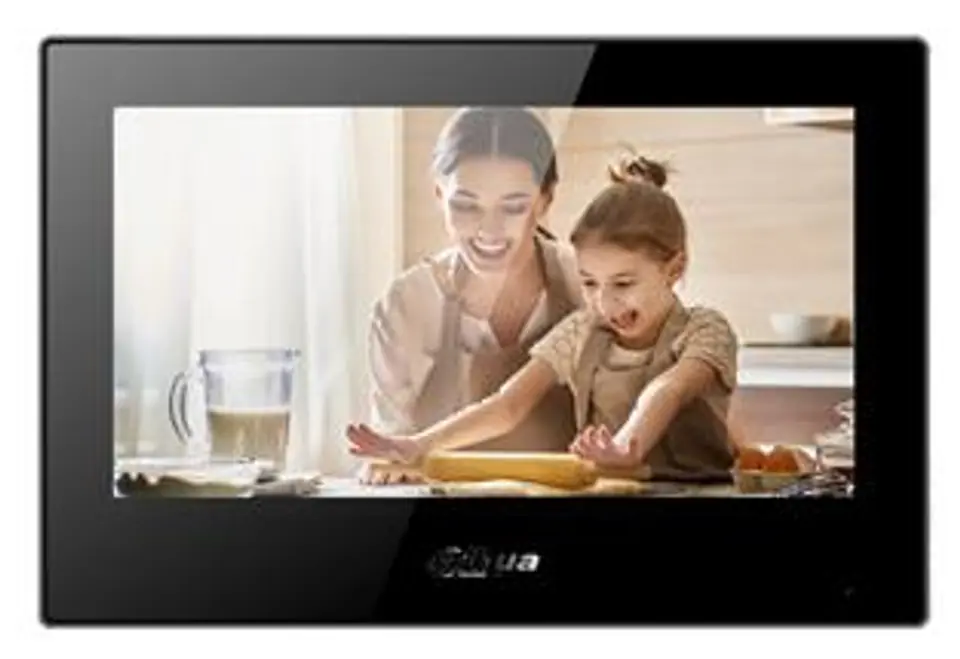

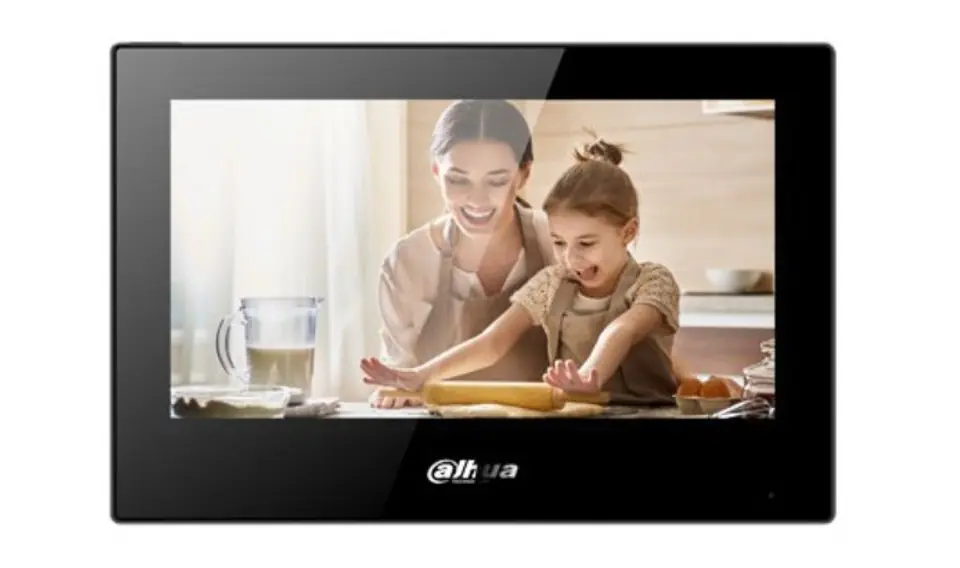

Screen::	7" capacitive touch screen
Security algorithms:	128-bit WEP, 64-bit WEP, WPS, WPA2-PSK, WPA-PSK, WPA, WPA2
Selected features::	Wi-Fi module - 2.4 GHz IEEE 802.11 b/g/n, Security : WEP 64/128-bit, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS, Built-in microphone, Built-in speaker, Echo cancellation and digital noise reduction/ digital noise reduction, Two-way communication, Smooth adjustment of monitor parameters: image brightness, ringtone volume and conversation, Ability to automatically take and save photos in case of missed ringtone, Ability to record a short video message in case of no response to the button Doorbell, Possibility of direct communication between two or more panels, Cooperation with Dahua IP cameras, RS-485 interface, Power output: 12 V DC / 100 mA, DND mode, SOS support, Android 8.1 system,
Supported languages::	English
Touch technology:	Single-touch
Touchscreen:	Yes
Touchscreen technology:	Capacitive
Video formats supported:	H.264
Wall mountable:	Yes
Warranty::	3 years
Weight:	385 g
Wi-fi:	Yes
Wi-fi band:	Single-band (2.4 GHz)
Wi-fi standards:	IEEE 802.11b, IEEE 802.11n, IEEE 802.11g
Width:	189.6 mm

The VTH5321GB-W panel is designed to create a simple and efficient local communication system

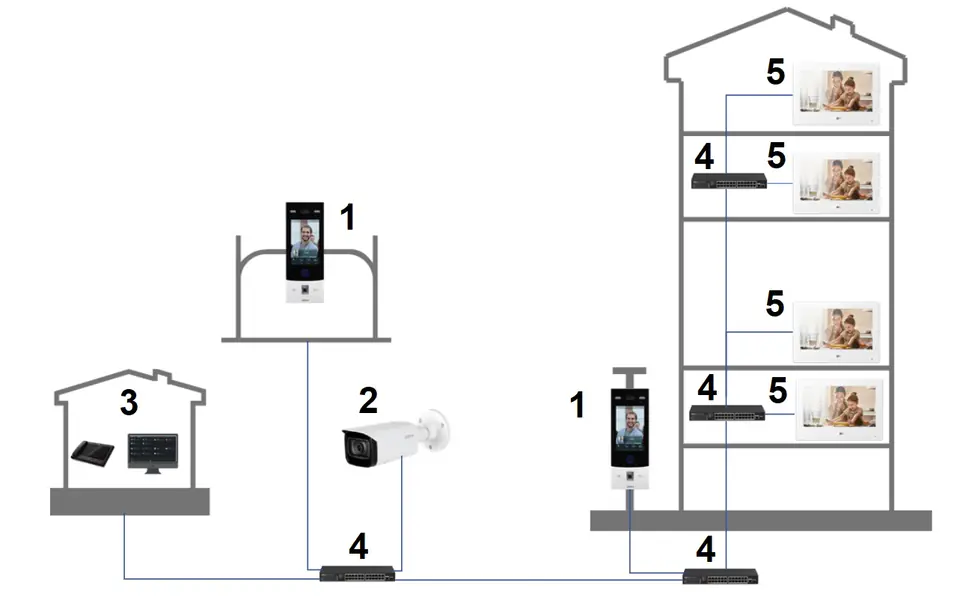

The device works with video intercoms and other panels in the DAHUA IP / SIPPanel standard enables ongoing communication with the gate station, recording photos and recordings of callersAllows also allows remote viewing of images from connected IP camerasIt can also act as a simplified alarm control panel, or notification module by operating 8 alarm inputsControl of the device is carried out using the Android 8.1 system available directly via the touch screen and 7" diagonal

REMARK! The device does not work with the analog Dahua system

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
