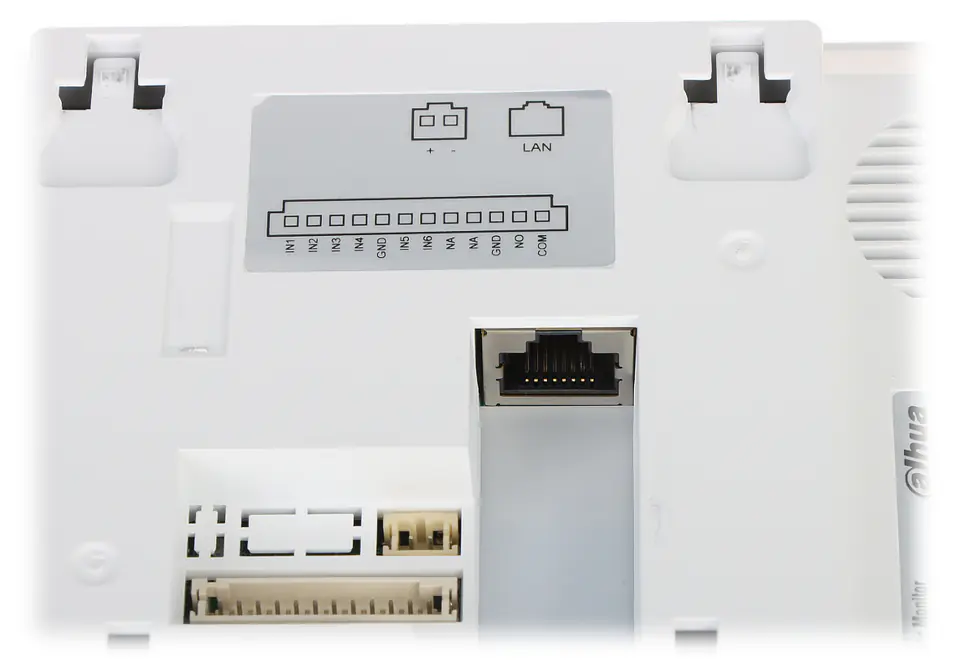

| Alarm input channels: | 6 |
|---|---|
| Alarm input/output: | Yes |
| Alarm inputs:: | 6 ( 1 - as a bell ) |
| Alarm output channels: | 1 |
| Alarm outputs:: | 1 |
| Brand compatibility: | Dahua Europe |
| Built-in speaker(s): | Yes |
| Colour:: | white |
| Compatibility:: | DAHUA |
| Compliance certificates: | Federal Communications Commission (FCC), CE |
| Control:: | capacitive touch screen |
| Dc input voltage: | 12 V |
| Depth: | 26 mm |

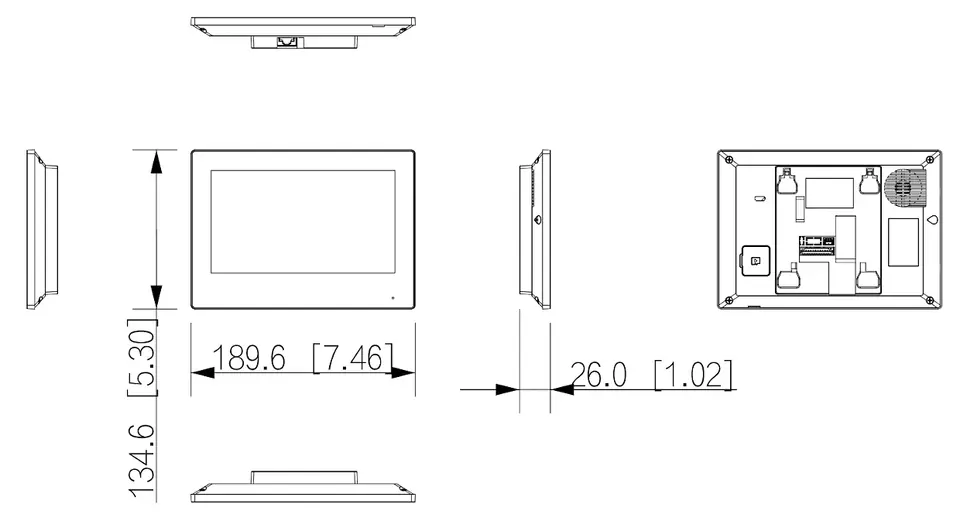

| Dimensions:: | 190 x 135 x 26 mm |
| Display diagonal: | 17.8 cm (7") |
| Display resolution: | 1024 x 600 pixels |
| Display type: | TFT |
| Ethernet lan data rates: | 10, 100 |
| Height: | 134.6 mm |
| Manufacturer / brand:: | DAHUA |
| Material: | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Mounting type: | Surface |
| Operating relative humidity (h-h): | 10 - 95% |
| Operating temperature (t-t): | -10 - 55 °C |
| Operating temperature:: | -10 °C ... 55 °C |
| Package type: | Box |
| Package weight: | 580 g |
| Power consumption (typical): | 6 W |
| Power consumption:: | ≤ 6 W (operating) ≤ 2 W (standby) |
| Power over ethernet (poe): | Yes |
| Power:: | PoE: 36 V ... 57 V DC / 350 mA, 12 V DC / 1 A |
| Product colour: | Black |
| Product type: | Display |
| Quantity per pack: | 1 pc(s) |
| Resolution:: | 1024 x 600 mm |
| Rj-45 ports quantity: | 1 |
| Scales:: | 0.33 kg |
| Screen:: | 7" capacitive touch screen |
| Selected features:: | Wi-Fi module - 2.4 GHz IEEE 802.11 b/g/n, Security : WPA/WPA2, WPA-PSK/WPA2-PSK, Echo cancellation and reduction / digital noise reduction, Cooperation with Dahua IP cameras, SOS support, Built-in microphone, Built-in speakers, Two-way communication, Volume control, Receiving and displaying information published from the management center, DND mode, Possibility of direct communication between two or more panels , |
| Supported languages:: | Polish, English |
| Sustainability certificates: | Federal Communications Commission (FCC), CE |
| Sustainability compliance: | Yes |
| Touchscreen: | Yes |
| Warranty:: | 3 years |
| Weight: | 340 g |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11b, Wi-Fi 4 (802.11n), 802.11g |
| Width: | 189.6 mm |

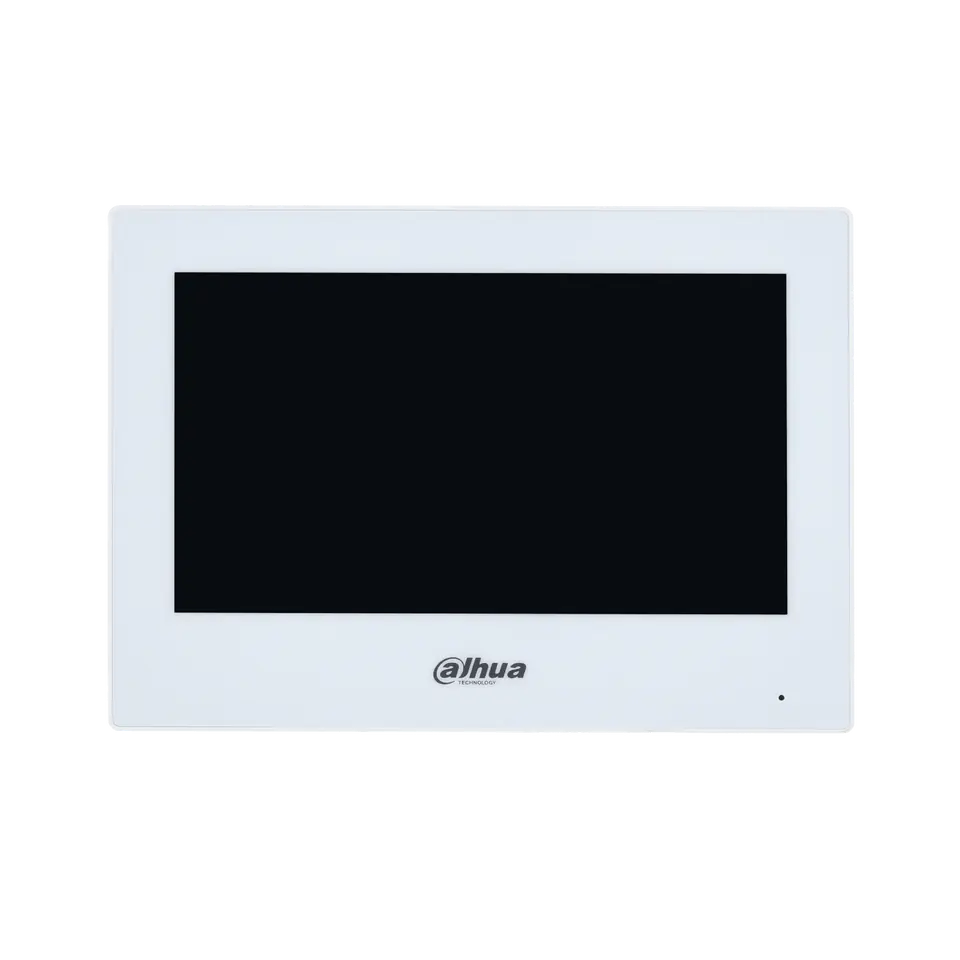

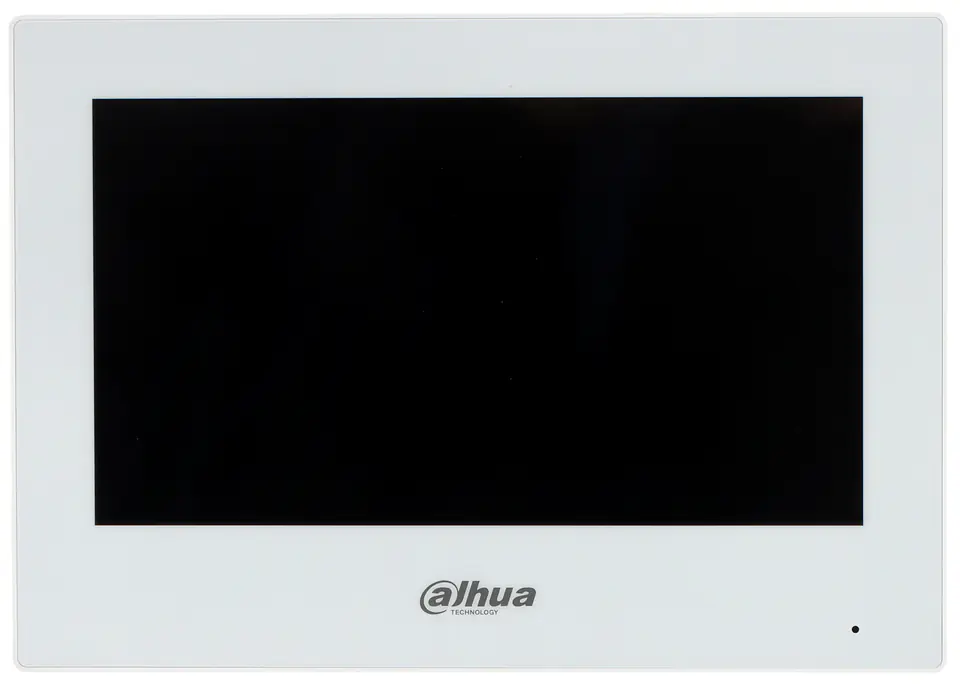

VTH2621GW-WP panel is designed to create a simple and effective local communication system

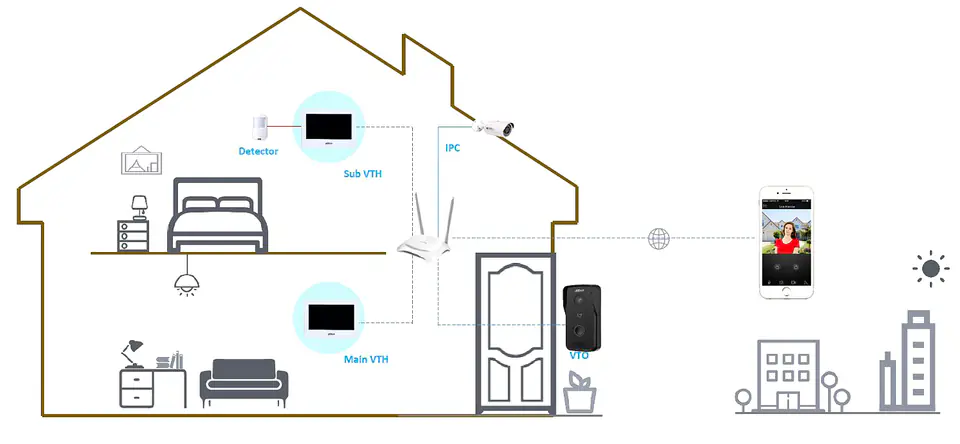

The device works with video intercoms and other DAHUA panelsIt can also act as a simplified alarm control panel or notification module by operating 6 alarm inputs
