VTH1020J-T is dedicated to work with video door phones and panels compatible with the analog DAHUAI systemInstallation requires the use of a 4-wire cable
REMARK! The device does not work with the DAHUA IP system
<strong>INTERNAL PANEL </strong> VTH1020J-T DAHUA
€109.10
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- VTH1020J-T / 6923172506771
Share this product:
Specification
| Case: | Plastic (PC + ABS) |
|---|---|
| Colour: | white |
| Compatibility: | compatibility with DAHUA analog video door phone system |

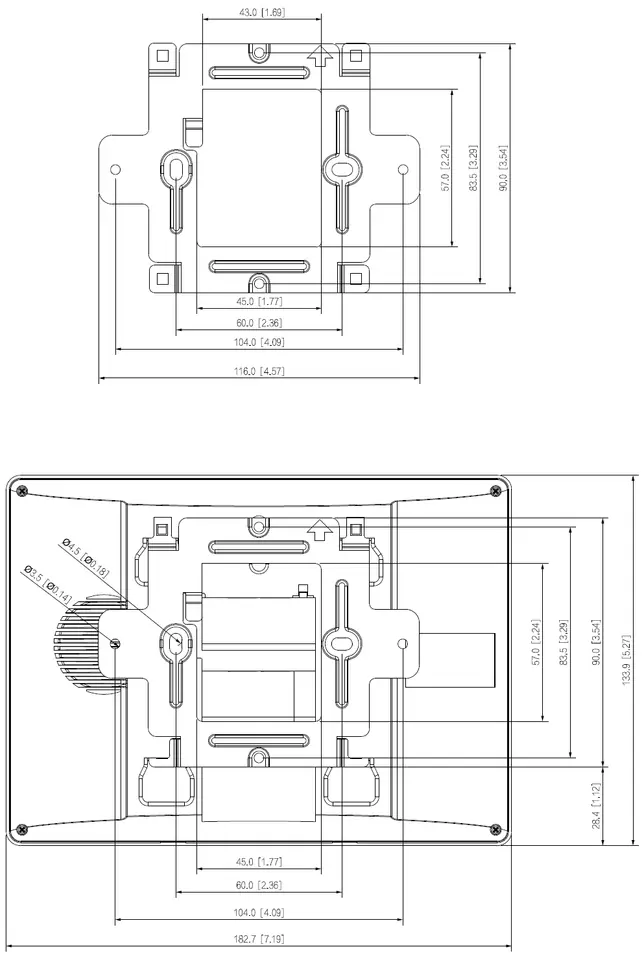

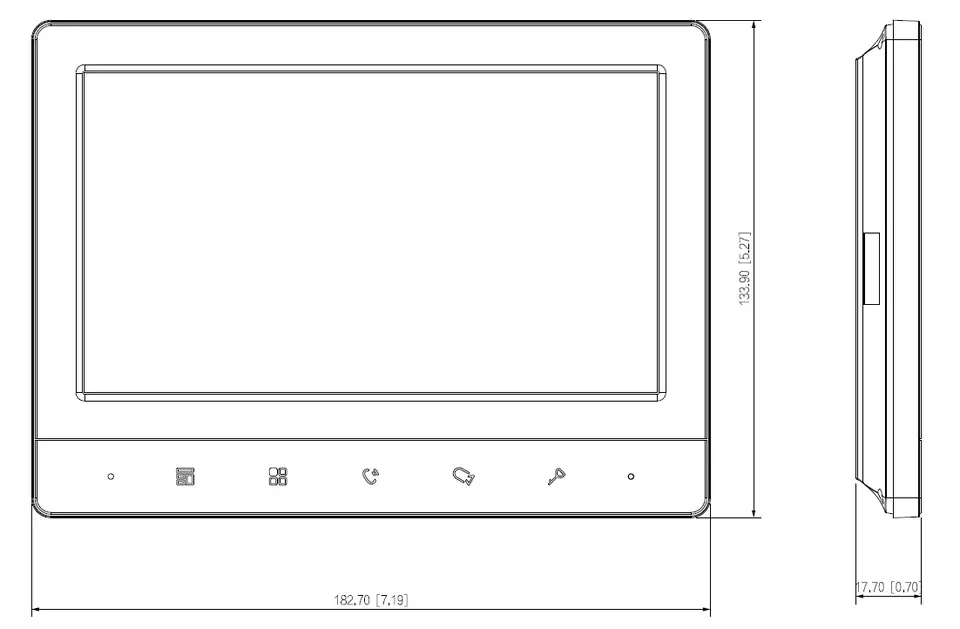

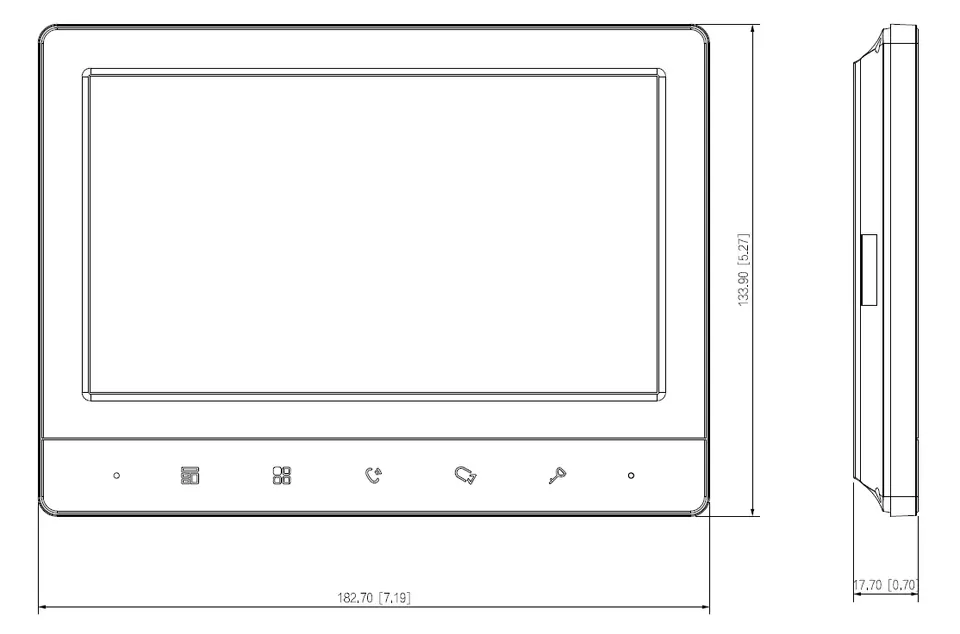

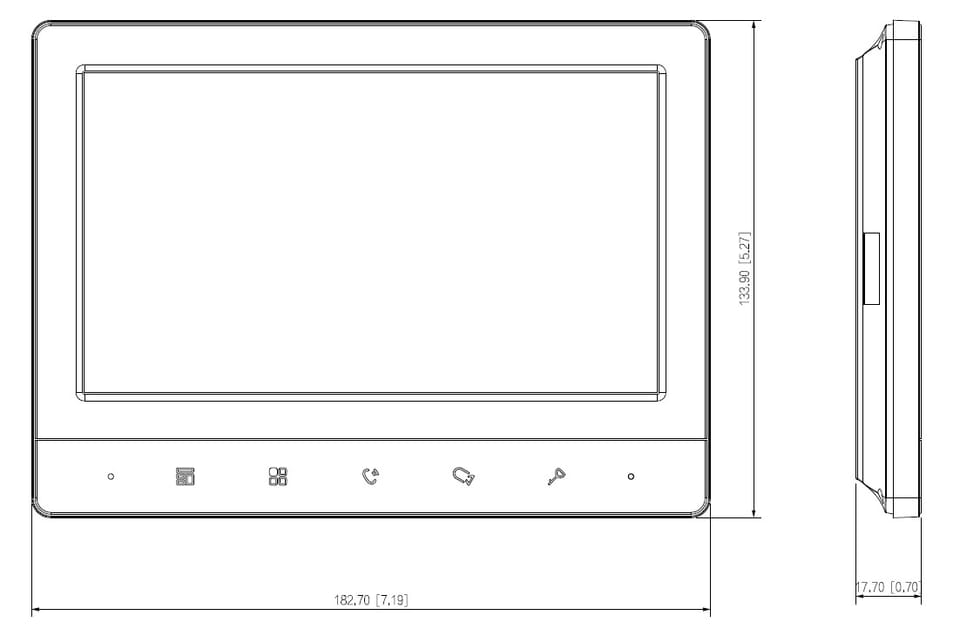

| Dimensions: | 183 x 134 x 18 mm |
| Operating temperature: | -10 °C ... 55 °C |
| Power: | 12 V DC / 1 A |
| Power consumption: | ≤ 2W Standby≤ 5W Active |
| Producer / brand: | DAHUA |
| Resolution: | 1024 x 600 |
| Scales: | 0.25 kg |

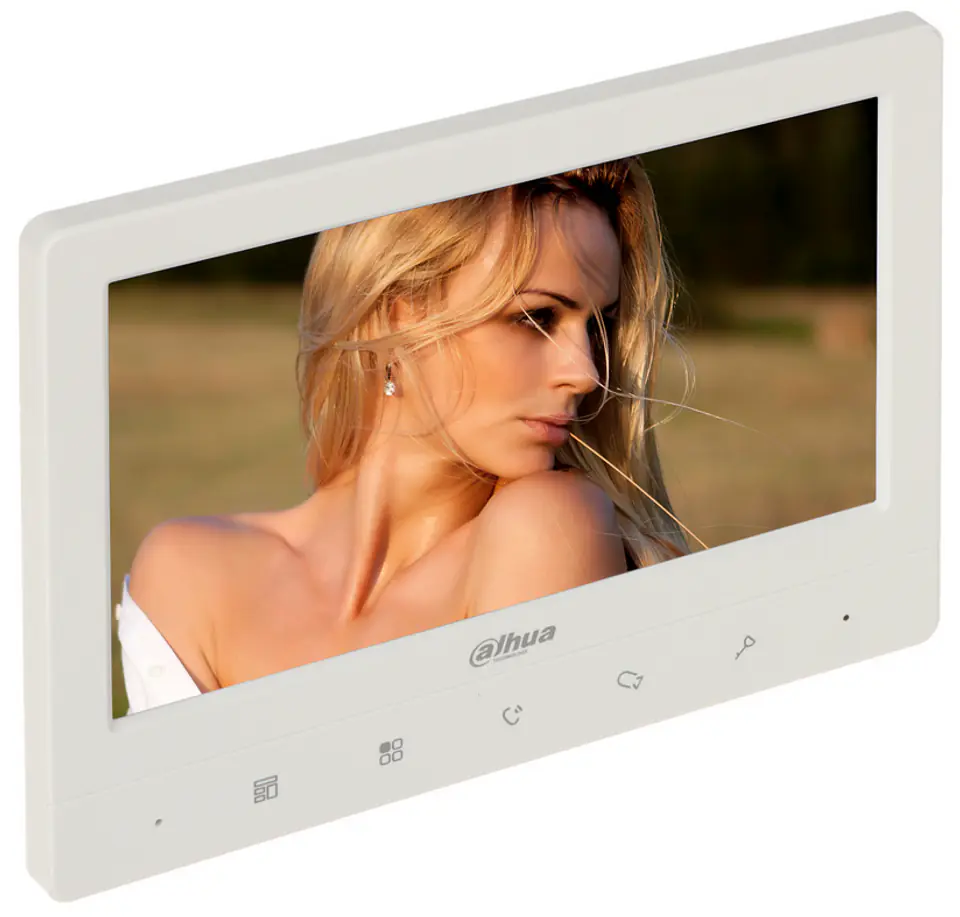

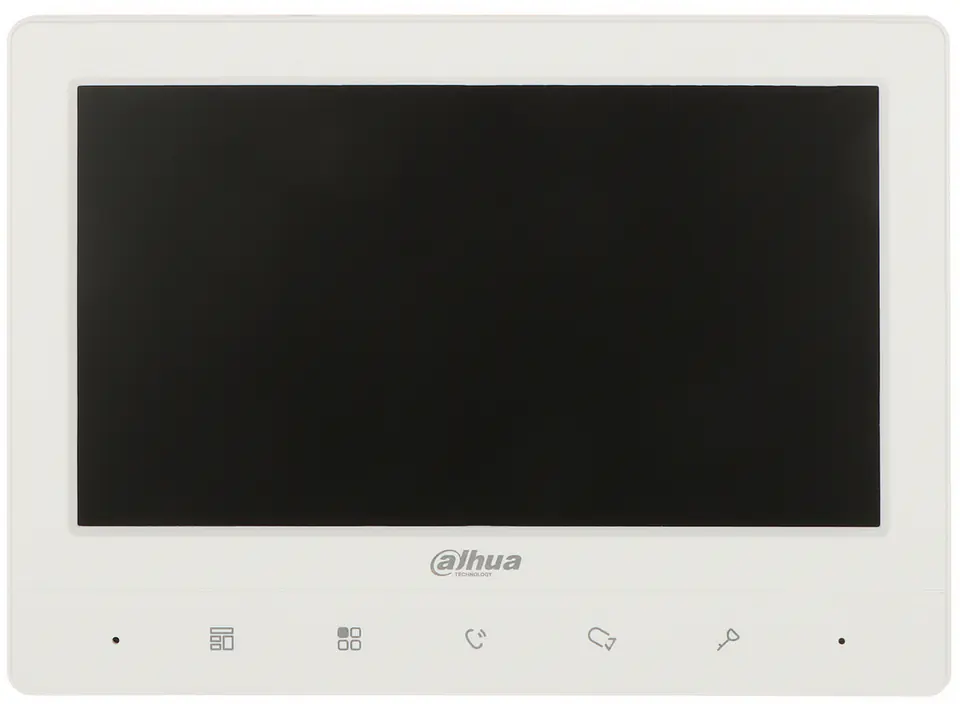

| Screen: | 7" TFT-LCD color matrix |

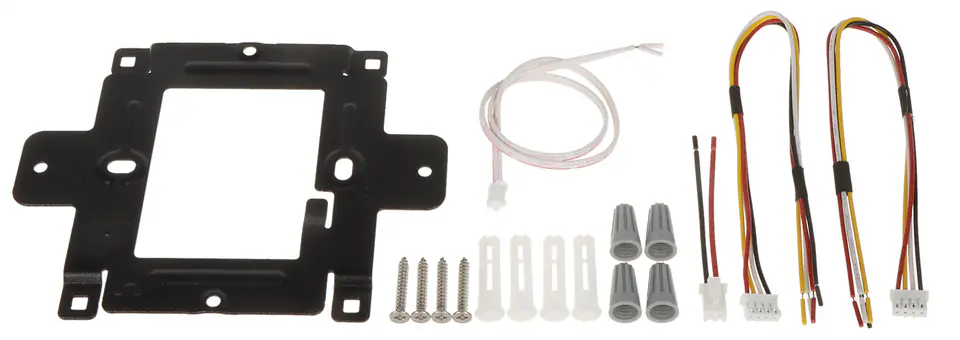

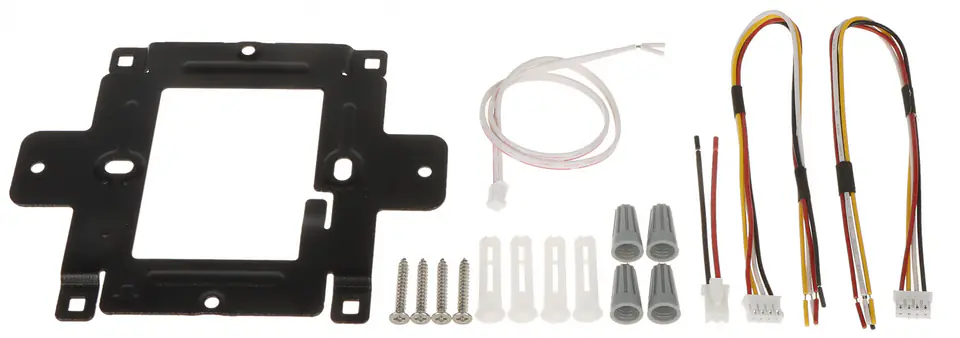

| Selected features: | Touch control buttons, LED indicator indicating operating status - LED green - power signal, Maximum number of door stations in the system: 2, Maximum number of internal panels in the system: 3, Selection of ringtone melody, Smooth adjustment of monitor parameters: image brightness, ringer and call volume, Preview of the image from the door station with the possibility of turning on the sound and opening the gate, Support for capturing photos during video calls, Installation on four-core cable, Communication : compatibility with analog video door entry system DAHUA Surface mounting, Included : Bracket |
| Warranty: | 3 years |
