| Alarm inputs: | 6 |
|---|---|
| Alarm outputs: | 1 |
| Colour: | Black |
| Compatibility: | Intercom installation - DAHUA IP |

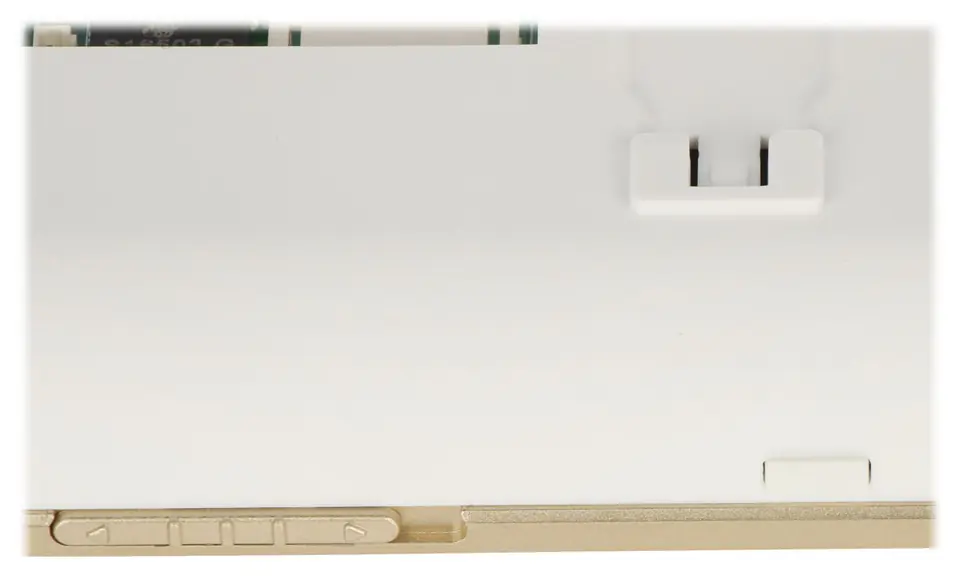

| Control: | Quick function buttons + capacitive touch screen |
| Dimensions: | 215 x 140 x 21 mm |

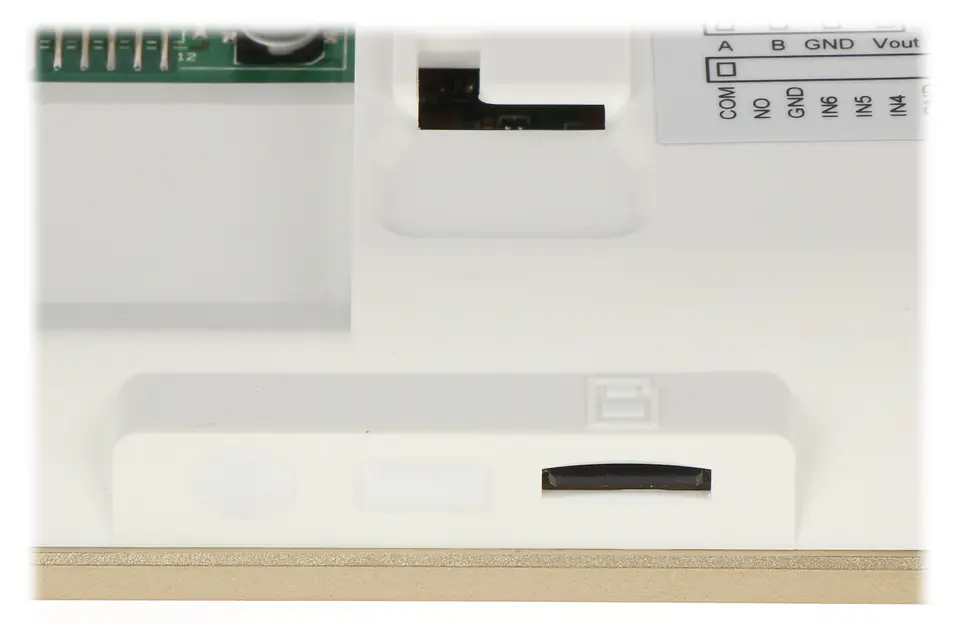

| Memory card slot: | Micro SD card support up to 32GB (local recording possible), 8GB included |
| Operating temperature: | -10 °C ... 60 °C |
| Power: | 12 V DC / 580 mA, PoE (802.3af) |
| Power consumption: | ≤ 7 W (operating)≤ 1 W (standby) |
| Producer / brand: | DAHUA |
| Resolution: | 1024 x 600 |
| Scales: | 0.4 kg |

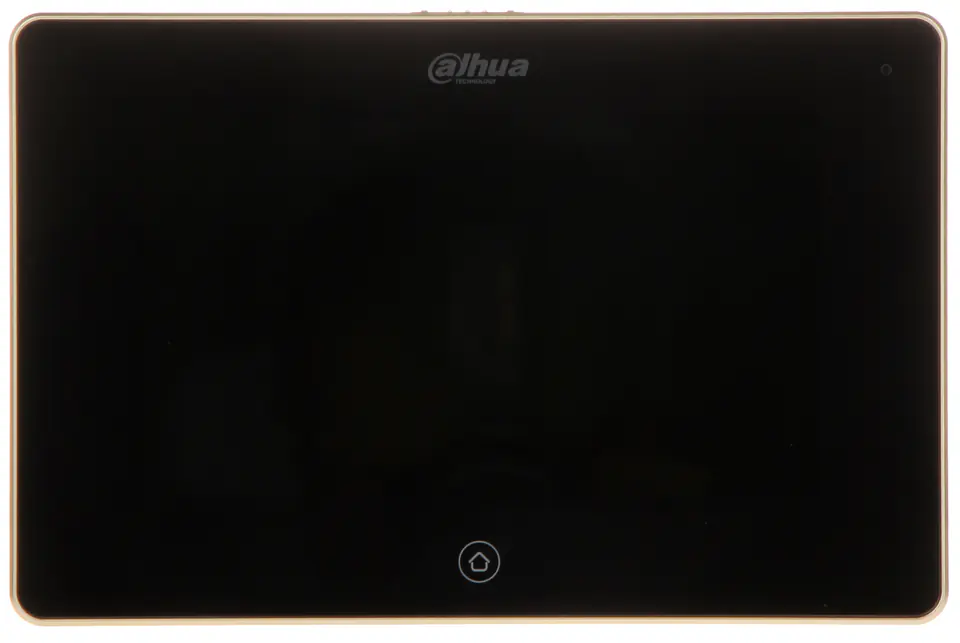

| Screen: | 7" capacitive touch screen |
| Selected features: | Wi-Fi module, Built-in microphone, Built-in speakers, Two-way communication, Smooth adjustment of monitor parameters: image brightness, ringer and call volume, Ability to automatically take and save photos in case of missed ringtone, Ability to record a short video message in case of no response to the ringtone button, Cooperation with Dahua IP cameras, RS-485 interface, Possibility of direct communication between two or more panels, |
| Supported languages: | Polish, Bulgarian, Czech, English, Finnish, Slovak, Turkish, Hungarian |
| Warranty: | 3 years |
VTH5221D-S2 is designed to create a simple and effective local communication system
The device works with video door phones and other DAHUA panelsIt can also act as a simplified alarm control panel or notification module by operating 6 alarm inputs
REMARK! The device does not work with the Dahua analog system
