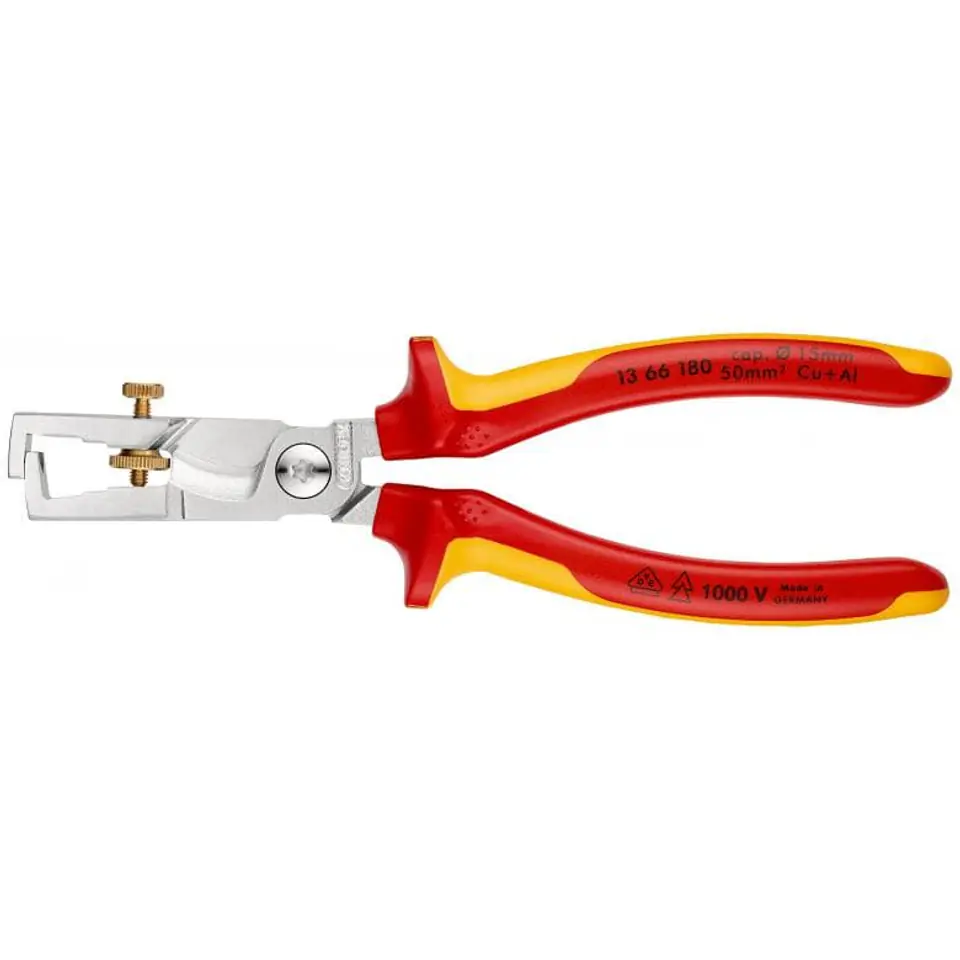

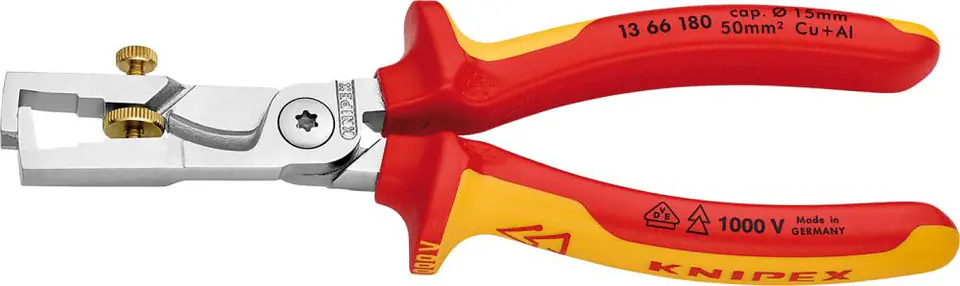

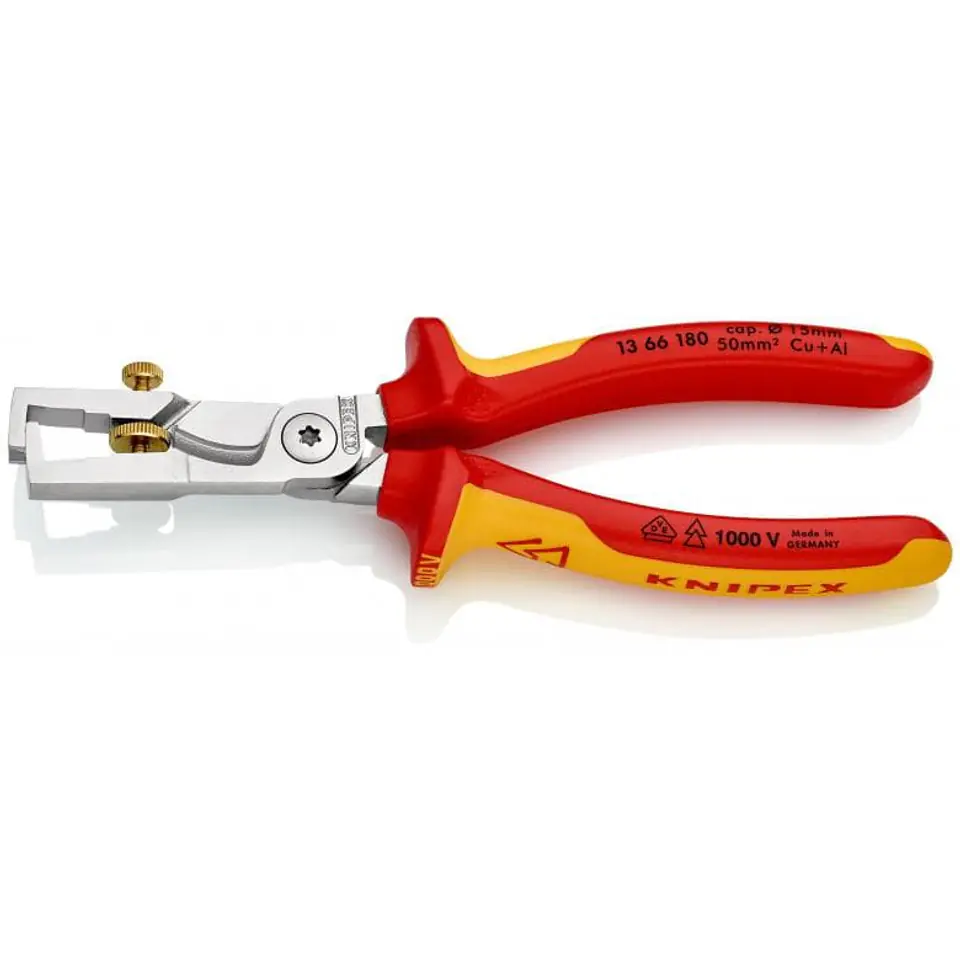

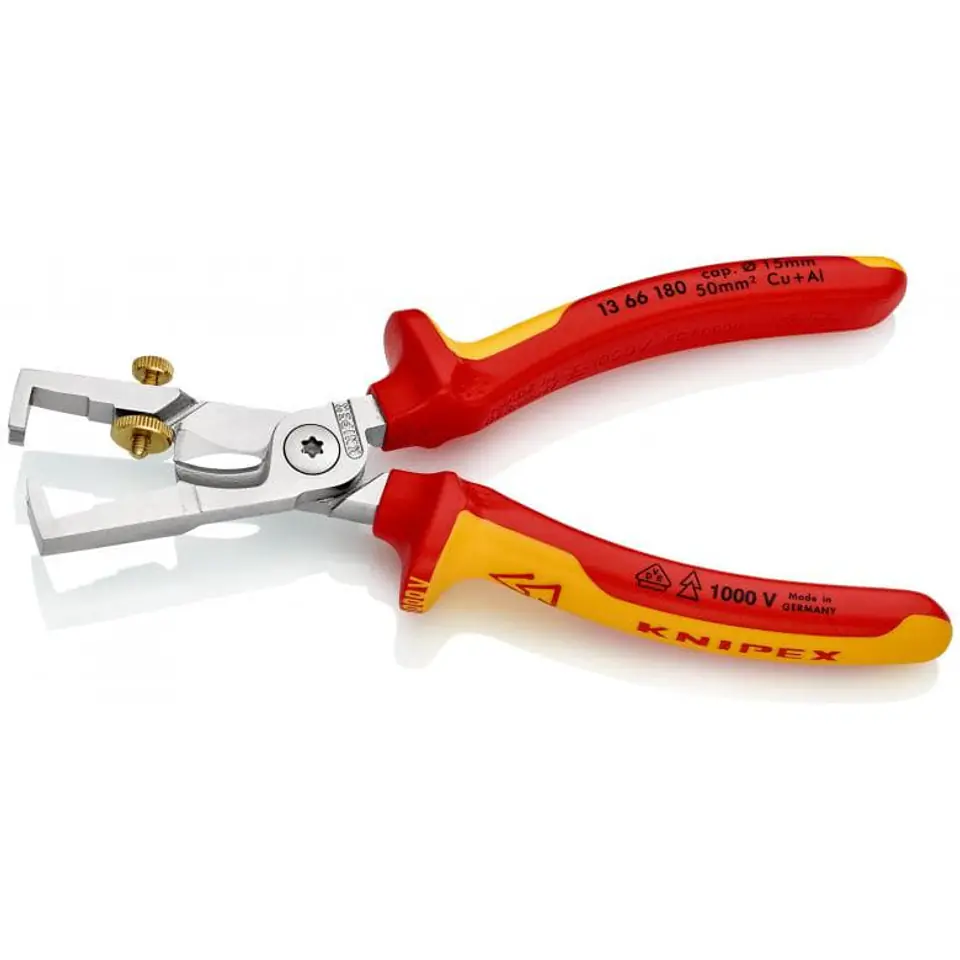

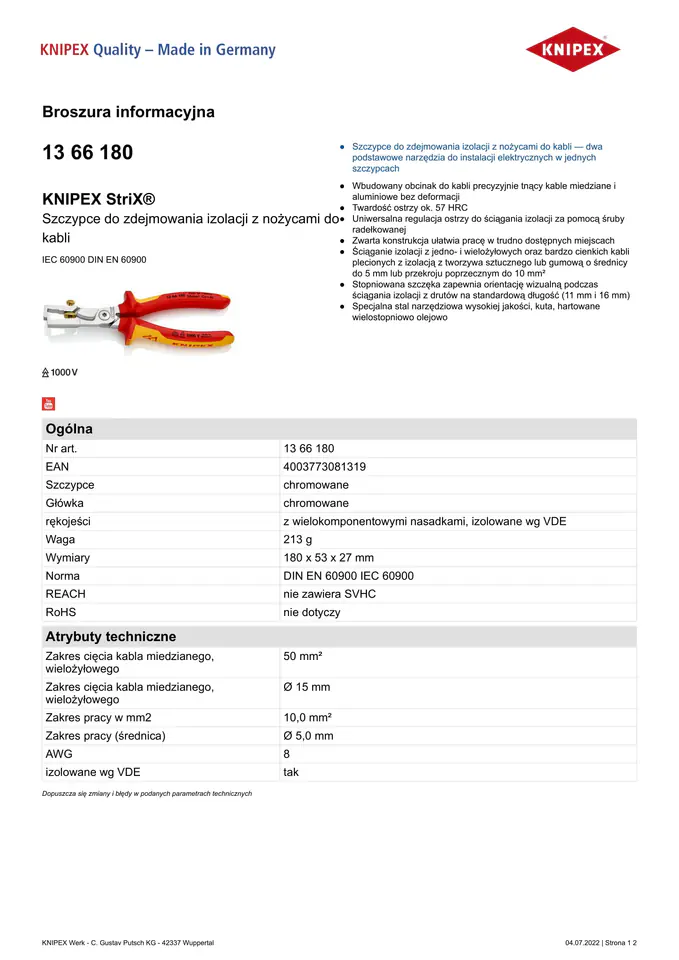

STRIPPING PLIERS WITH 180MM CABLE SHEARS

Specifications:


Item no.: 13 66 180
EAN: 4003773081319
Pliers: chrome plated
Head: chrome plated
handles: with multi-component caps, insulated according to VDE
Weight: 213 g
Dimensions: 180 x 53 x 27 mm
Standard: DIN EN 60900 IEC 60900
REACH: does not contain SVHC
RoHS: not applicable
Cutting range of copper, multicore cable: 50 mm2
Cutting range of copper, multicore cable: 15 mm
Operating range in mm2: 10.0 mm2
Working range (diameter): 5.0 mm
AWG: 8
isolated according to VDE: yes



De-stripping pliers with cable shears – two essential tools for electrical installations in one pliers

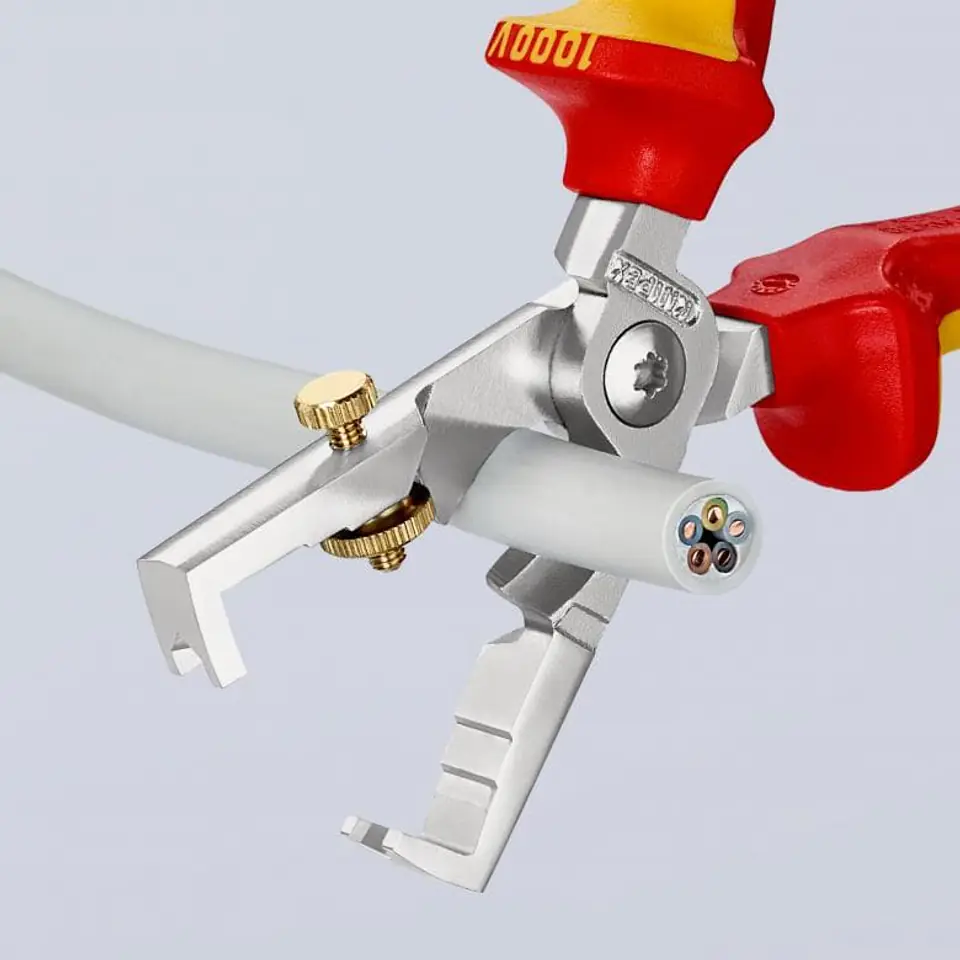

Built-in cable cutter for precise cutting of copper and aluminium cables without deformation
Blade hardness approx. 57 HRC
Universal blade adjustment for stripping insulation with knurled screw
Compact design makes it easy to work in hard-to-reach places

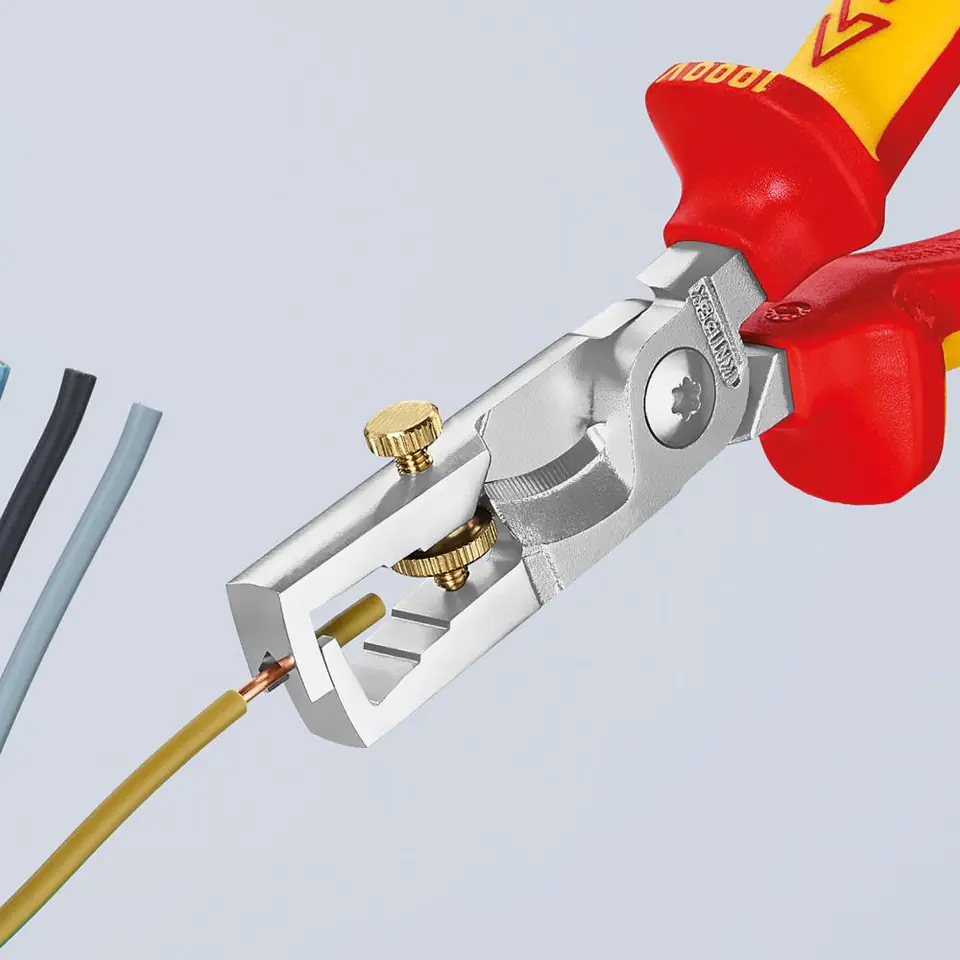

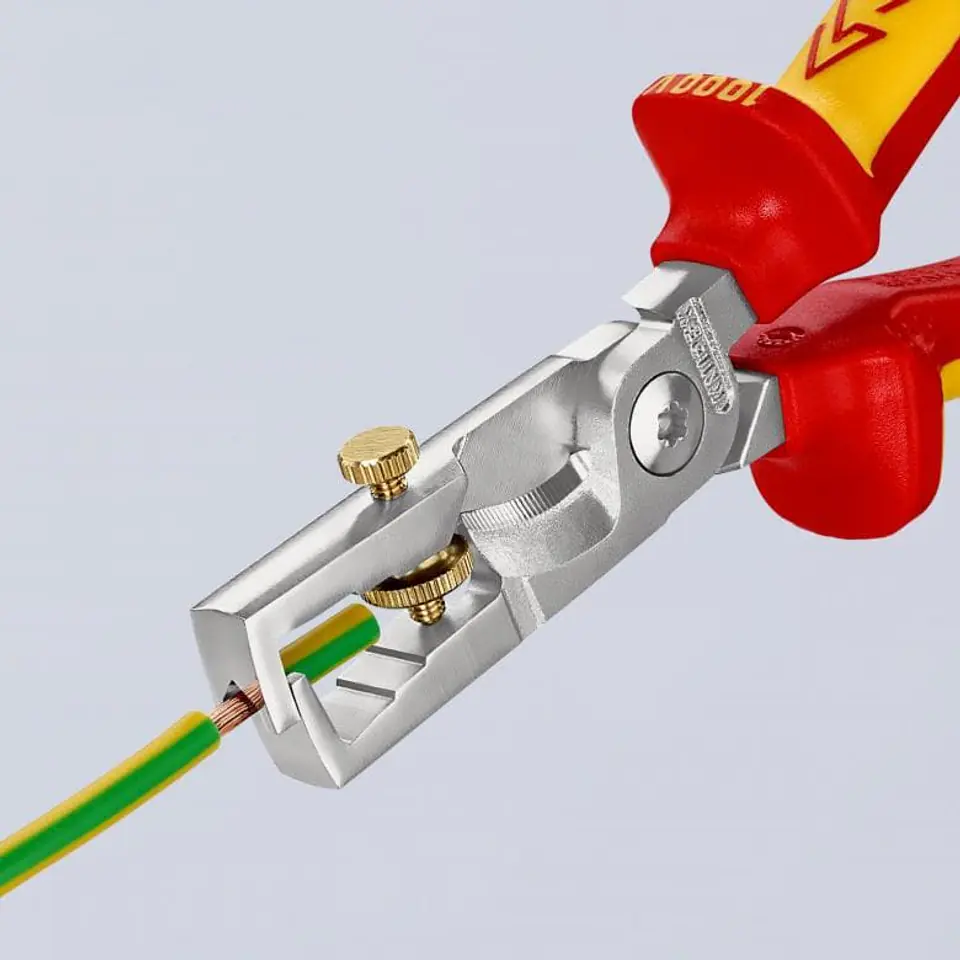

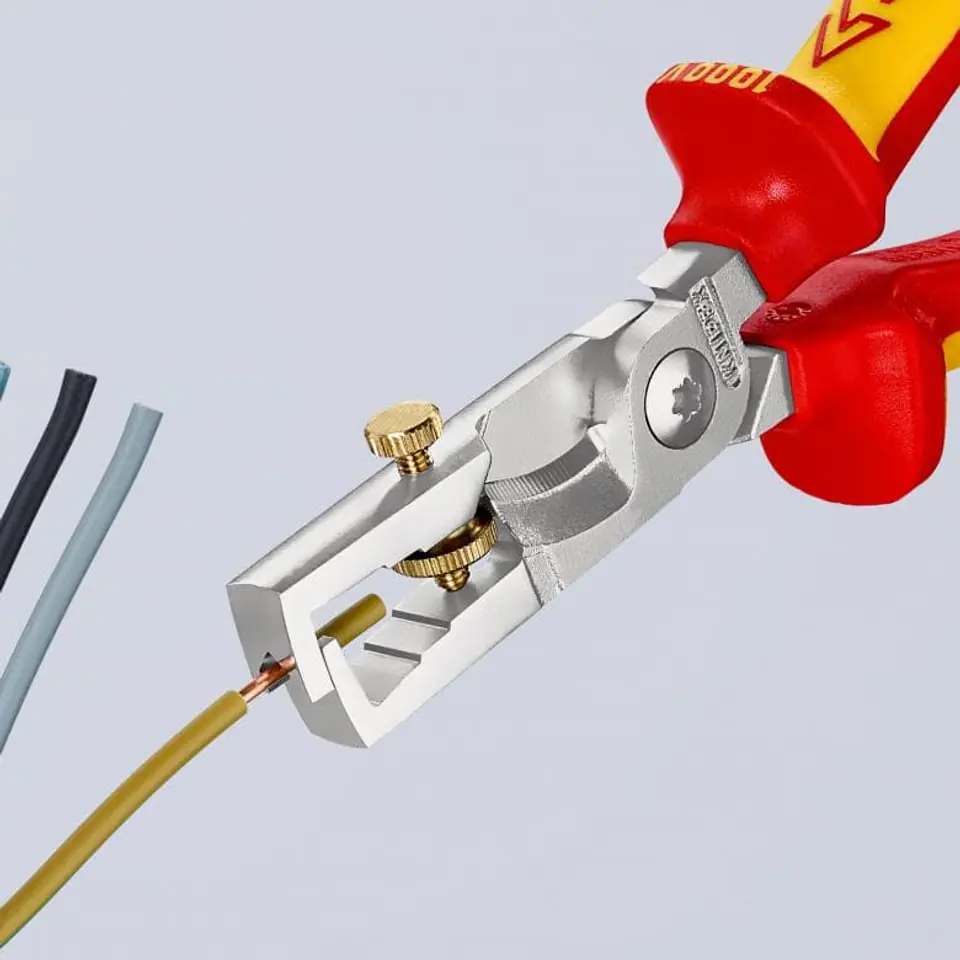

Stripping insulation from single, multicore and very thin braided cables with plastic or rubber insulation up to 5 mm in diameter or 10 mm in cross-section2
Stepped jaw provides visual orientation when stripping the insulation from the wires to the standard length (11 mm and 16 mm)
Special high-quality tool steel, forged, multi-stage oil-hardened


**

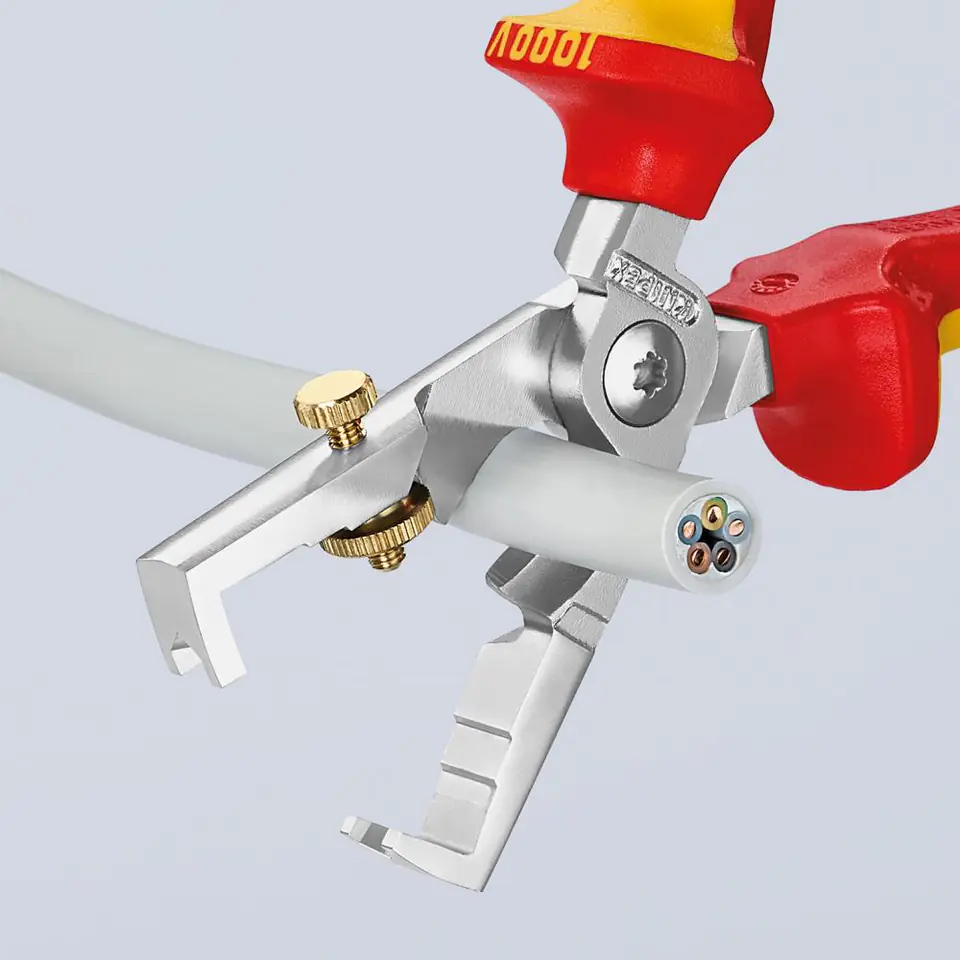

Illustrative photo.
