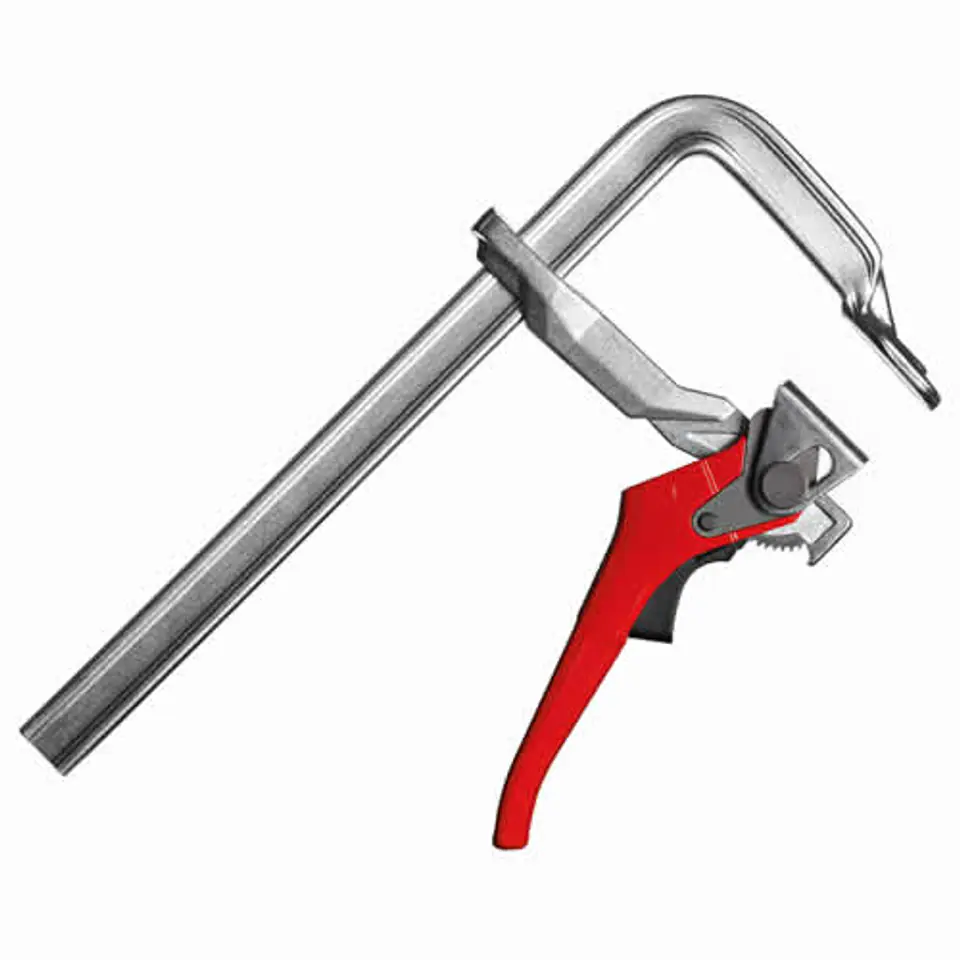

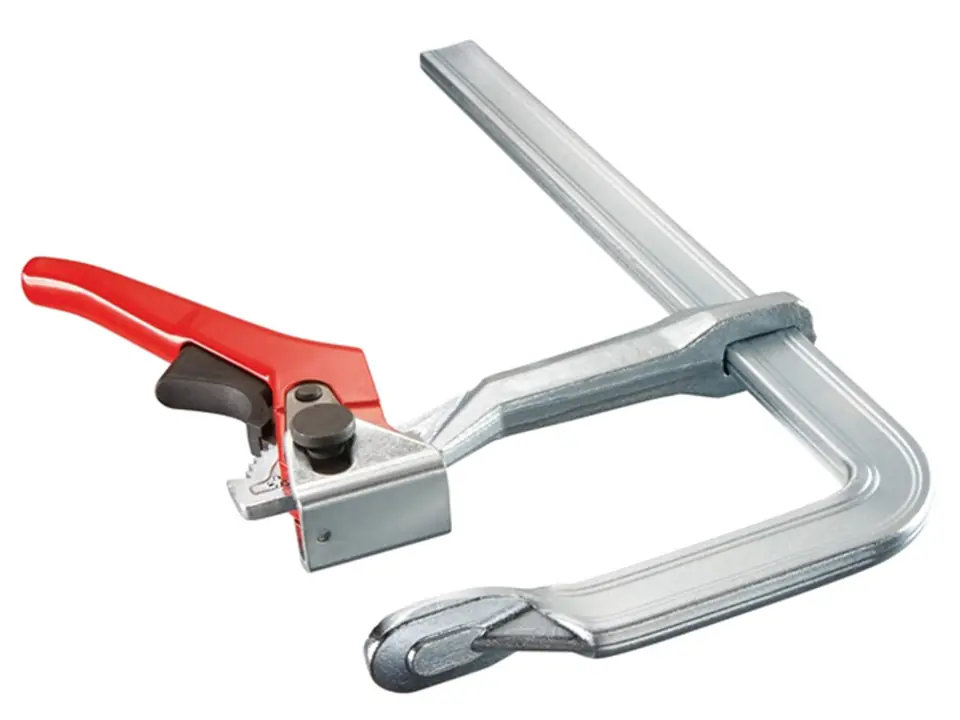

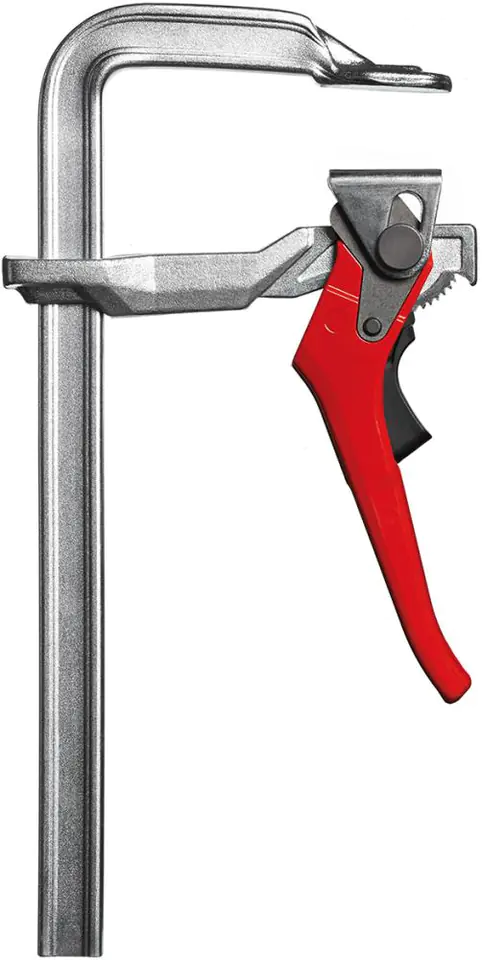

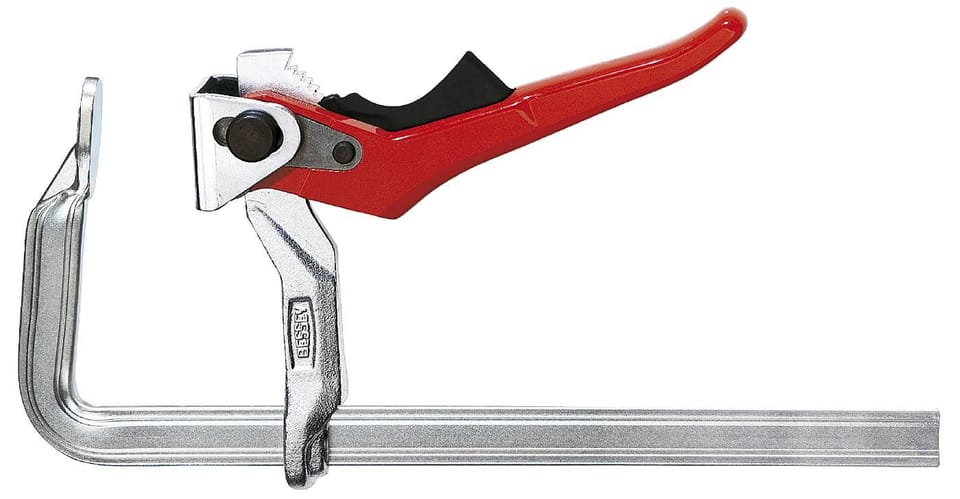

Technical data:
- range - 250 mm
- outreach - 120 mm
- rail - 24.5 x 9.5 mm
- weight - 1,44 kg
- model - GH25
Features:
- Rail with optimized profile allows even generation of clamping force, especially when fixing elements
located far from the edge, while offering an increased reserve of force
- Release button with protection against hand slipping
- The sintered steel eccentric mechanism is characterized by particularly high wear resistance, and increased surface hardness
provides little friction
- Speed – 5 x faster clamping than traditional screw clamps
- Reliability – resistant to vibration
- Force – mounting with a force of up to 8 500 N
Description:
- Reliable latching mechanism:
The latching mechanism provides a gradual, fast and vibration-resistant fastening. Eccentricity, characterized by a particularly high
wear resistance, guarantees a long service life.
- Maximum stability:
Improved profile for greater force reserve enables even force generation, especially when fully utilized
mounting width. The fixed arm with pressure foot was made as a single element, heat-improved and then galvanized, so that
provides high strength and torsion resistance.
- Movable arm with teeth:
The movable arm has teeth and has been forged matrix from heat-improved steel, guaranteeing a particularly long service life.
- Ergonomic mounting and loosening lever:
The powder-coated mounting and loosening lever has a particularly ergonomic shape.
Plastic-coated release button has a hand slip protection, guaranteeing safety
when loosening the squeeze.
