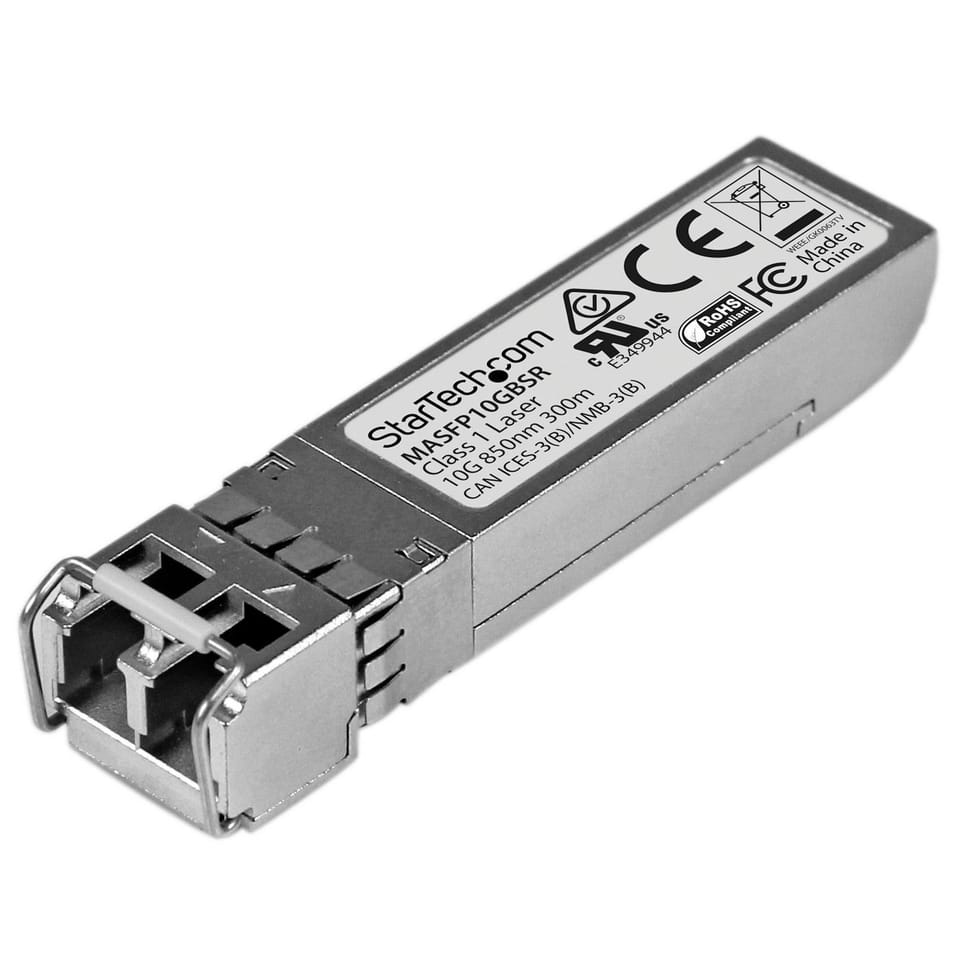

StarTech.com MASFP10GBSR Network Relay Module Fiber Optic 10000 Mbit/s SFP+ 850 nm
€68.27
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Allied Telesis
- Product code:
- MASFP10GBSR / 0065030869966
Share this product:
Specification
| Compliance certificates: | RoHS, CE |
|---|---|
| Depth: | 54 mm |
| Digital diagnostics monitoring (ddm): | Yes |
| Duplex system: | Full |
| Fiber optic connector: | LC |
| Harmonized system (hs) code: | 85369010 |
| Height: | 12.6 mm |
| Hot-swap: | Yes |
| Housing material: | Aluminium |
| Interface type: | SFP+ |
| Master (outer) case height: | 355 mm |
| Master (outer) case length: | 410 mm |
| Master (outer) case width: | 350 mm |
| Maximum data transfer rate: | 10000 Mbit/s |
| Maximum transfer distance: | 300 m |
| Mean time between failures (mtbf): | 1967709 h |
| Multi-mode fiber (mmf) supported: | Yes |
| Networking standards: | IEEE 802.3ae |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | 0 - 70 °C |
| Package depth: | 93 mm |
| Package height: | 34 mm |
| Package weight: | 47 g |
| Package width: | 117 mm |
| Power consumption (typical): | 1.2 W |
| Product colour: | Silver |
| Products per master (outer) case: | 100 pc(s) |
| Quantity per pack: | 1 pc(s) |
| Sfp transceiver standard: | SR |
| Sfp transceiver type: | Fiber optic |
| Storage temperature (t-t): | -40 - 85 °C |
| Wavelength: | 850 nm |
| Wavelength-division multiplexing (wdm): | No |
| Weight: | 18 g |
| Width: | 13.9 mm |
