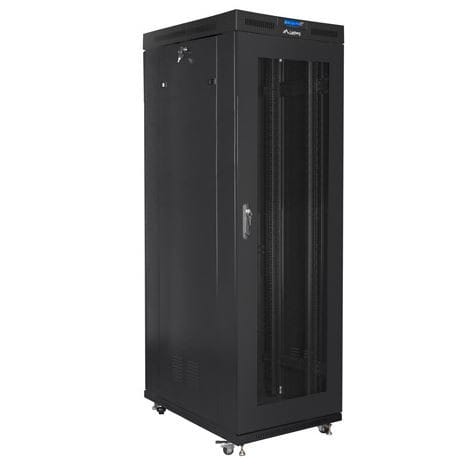

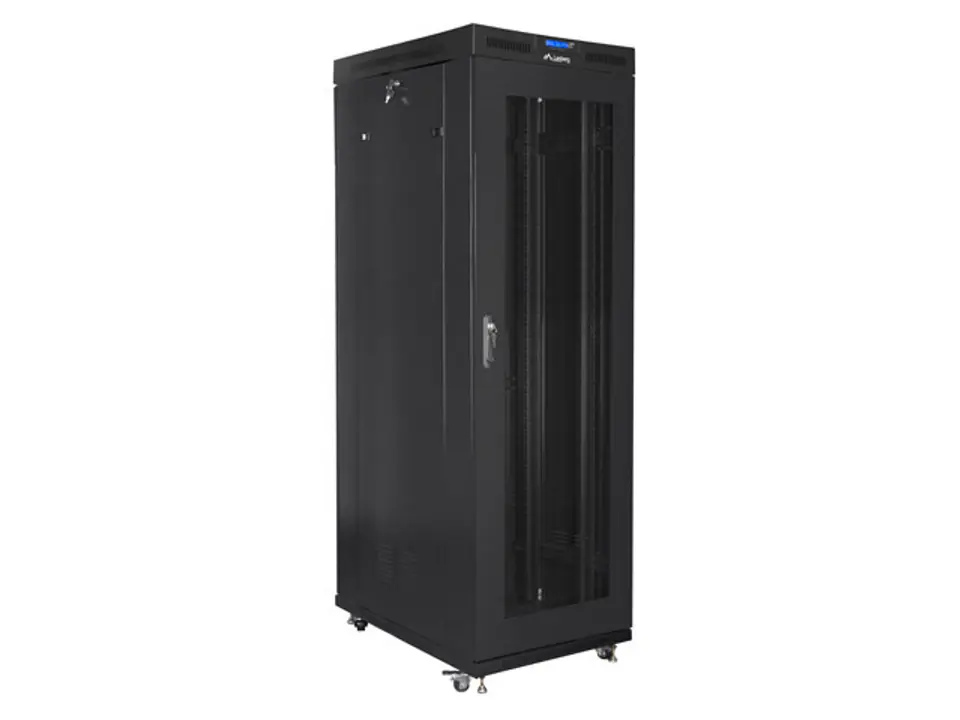

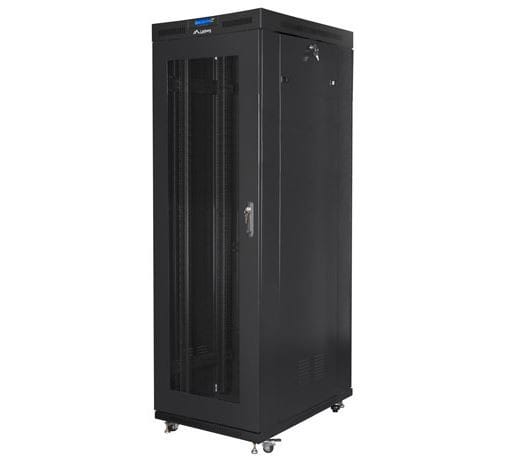

The Lanberg FF01-8227-23BL single-section standing cabinet is a solution designed for network construction, cabling and equipment installation in 19-inch size with a maximum total load capacity of up to 800 kg.
It can be used in data centers that require a large amount of space in equipment cabinets. The cabinet will successfully fulfill its role in large, extensive networks and server rooms, both in small, medium and large companies and corporations. It will also work well in low-voltage installations such as cable TV networks, alarm systems, fire protection systems, access control systems as well as CCTV and IP monitoring systems.
The construction is made using high quality rolled steel, it is characterized by excellent design and workmanship.

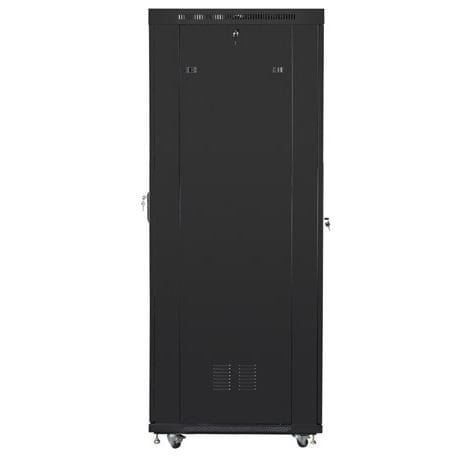

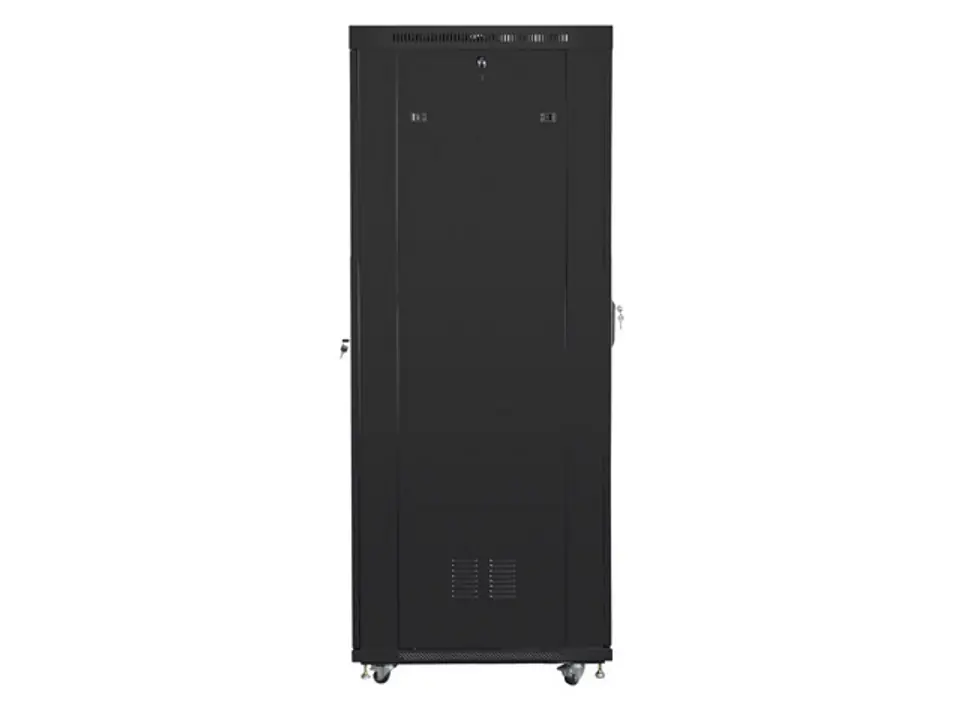

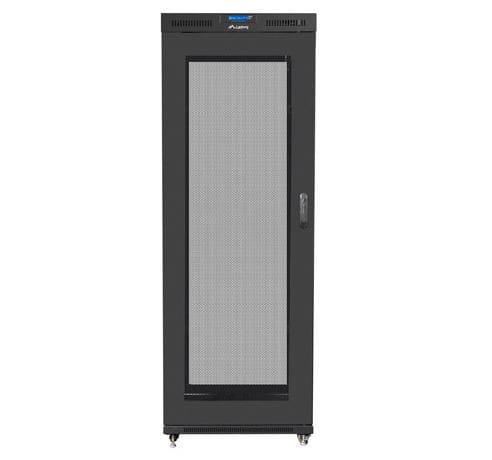

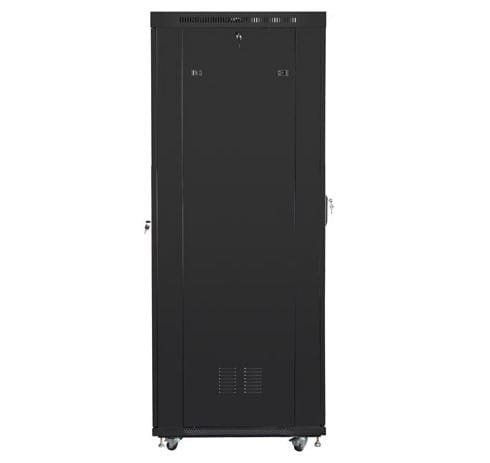

The cabinet enables full adjustment of the depth of the vertical mounting rails. It is equipped with a perforated front door with a lock, which can be mounted on the right or left side. It has removable side panels (with locks included) and a rear perforated door with a lock. Grounding pins are located on the three cabinet components, bottom panel, front door, and rear door. It is possible to introduce wiring through the lockable upper and lower panels (with plugs in the set).
The cabinet has an LCD display mounted on the front, displaying basic information (e.g. temperature inside the cabinet, current time and current status of fans) about the status of the device.
The set includes a ventilation panel with 4 fans 230V, equipped with a thermostat. In addition, the set includes accessories for mounting the mounting rails, M6 screws and plugs for entry panels, and thanks to the construction for self-assembly (flat pack), the whole thing is in 4 flat packages, which facilitates transport.
