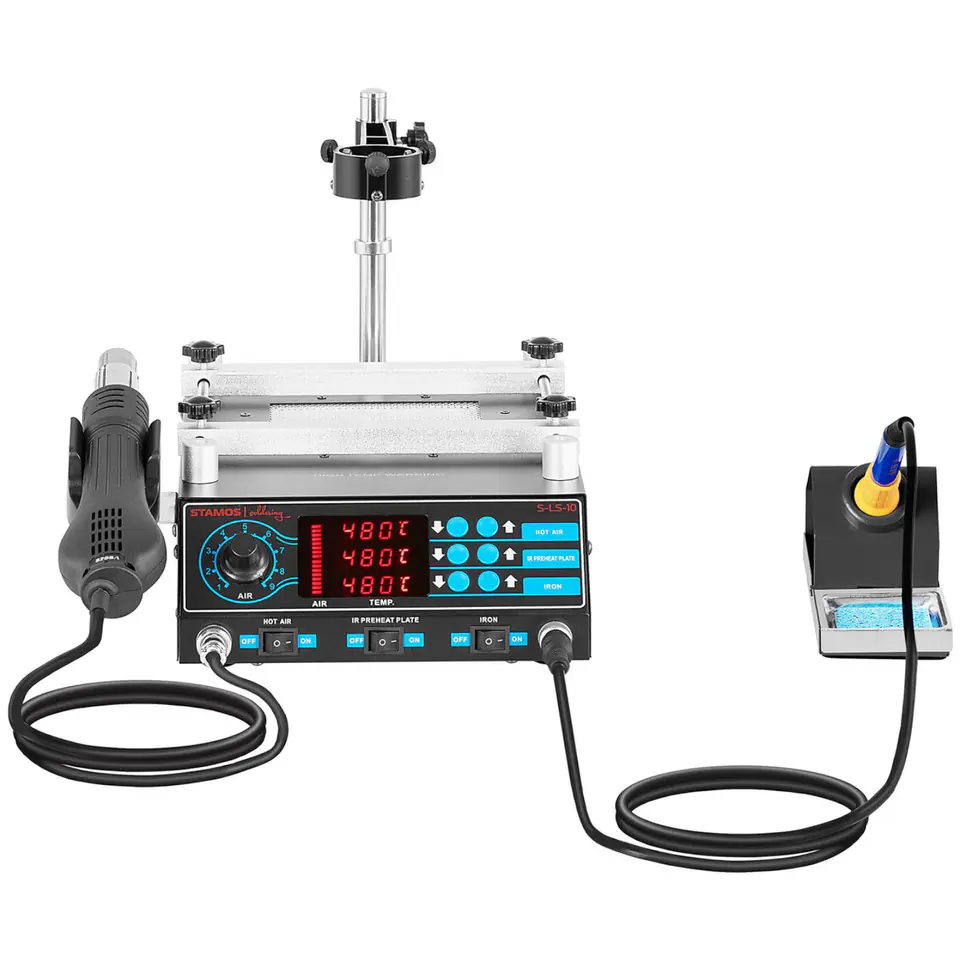

S-LS-10 BasicSTAMOS SOLDERINGprofessional soldering worksSOIC, QFP, PLCC, BGA, SMDstepped is fully digitalPID

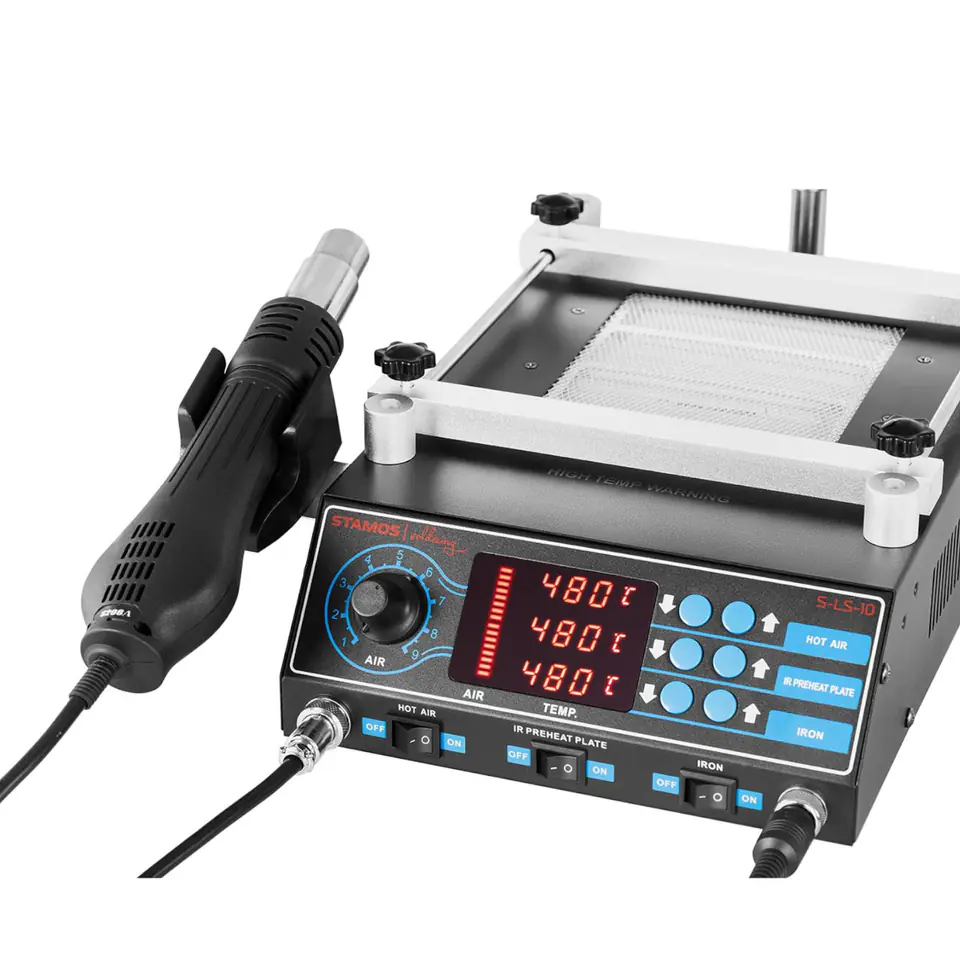

- ADVANCED CONTROL UNIT allows precise determination of all parameters of the tip stock and the HOT AIR stock. It has a large, legible LED display that gives the temperature of two flasks: soldering and hot air. Buttons on the control panel allow you to control:
- - the temperature of the soldering flask
- - temperature of the HOT AIR flask
- - preheater plate temperature
- The soldering station has a convenient hot AIR stock gripper that increases the convenience and efficiency of soldering work and a heating plate for preheating integrated circuits, the so-called PREHEATER.
- SOLDERING IRON - TIP FLASK with a power of 75W with protection protecting ESD Safe electronic systems.
- HOT AIR MODULE with efficient 650W heater and fan providing air flow of 130 l/min. The flask with hot air blowing has many applications, including:
- - soldering and desoldering of surface-mounted components (SMD)
- - heating and defrosting
- - shrinking shrink sleeves
- - dissolution of adhesives
- - tanning paints
- - plastic welding
- - many other applications where a temperature of 100 to 480 C is necessary
- - Model - S-LS-10 Basic
- - Catalogue number - 6125
- - Article status - New
- - Voltage - 230 V / 50 Hz
- - Power - 1270 W
- - Rated current - 15 A
- - Display - LED
- - Power - 75 W
- - Temperature control range - from 200 to 480C
- - Tip resistance - < 2 Ω
- - Tip voltage - < 2 m V
- - Power - 650 W
- - Temperature control range - from 100 to 480C
- - Air flow velocity - 130 l / min
- - Temperature control range - from 50 to 400C
- - Plate area (LxW) - 120 x 120 mm
- - Dimensions (LxWxH) - 32.5 x 27.5 x 11 cm
- - Weight - 4.15 kg
- - Shipping dimensions (LxWxH) - 38 x 37 x 19 cm
- - Shipping weight - 5.2 kg

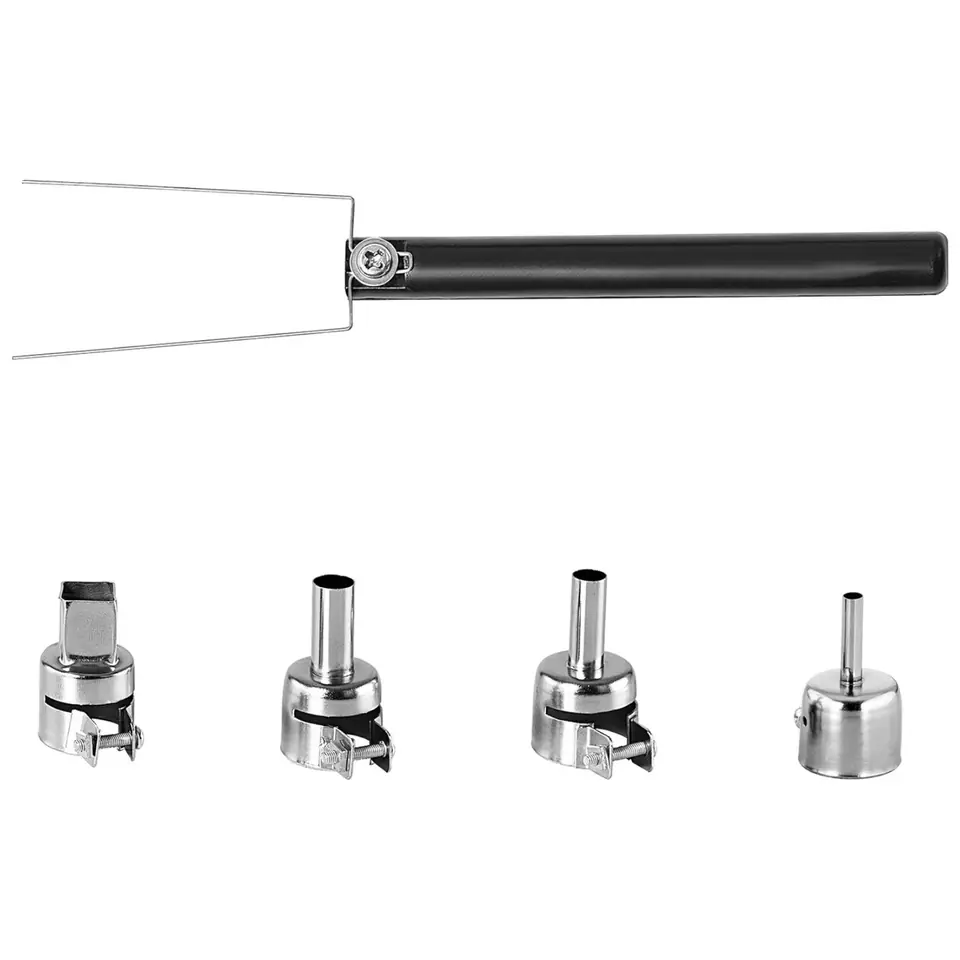

- - Hot air stock holder
- - 4x HOT AIR nozzles of various sizes and shapes
- - Sponge stand for soldering flask
- - Component lift (so-called IC popper)
- - Manual EN
