| Certificates:: | CE |
|---|---|
| Dimensions:: | 94 x 35 x 27 mm |
| Input socket:: | RJ-45 |
| Input voltage:: | 44 - 57 V PoE |
| Maximum transmission range:: | 100 m (DATA) |
| Number of inputs:: | 1 x RJ-45 Socket - PoE |

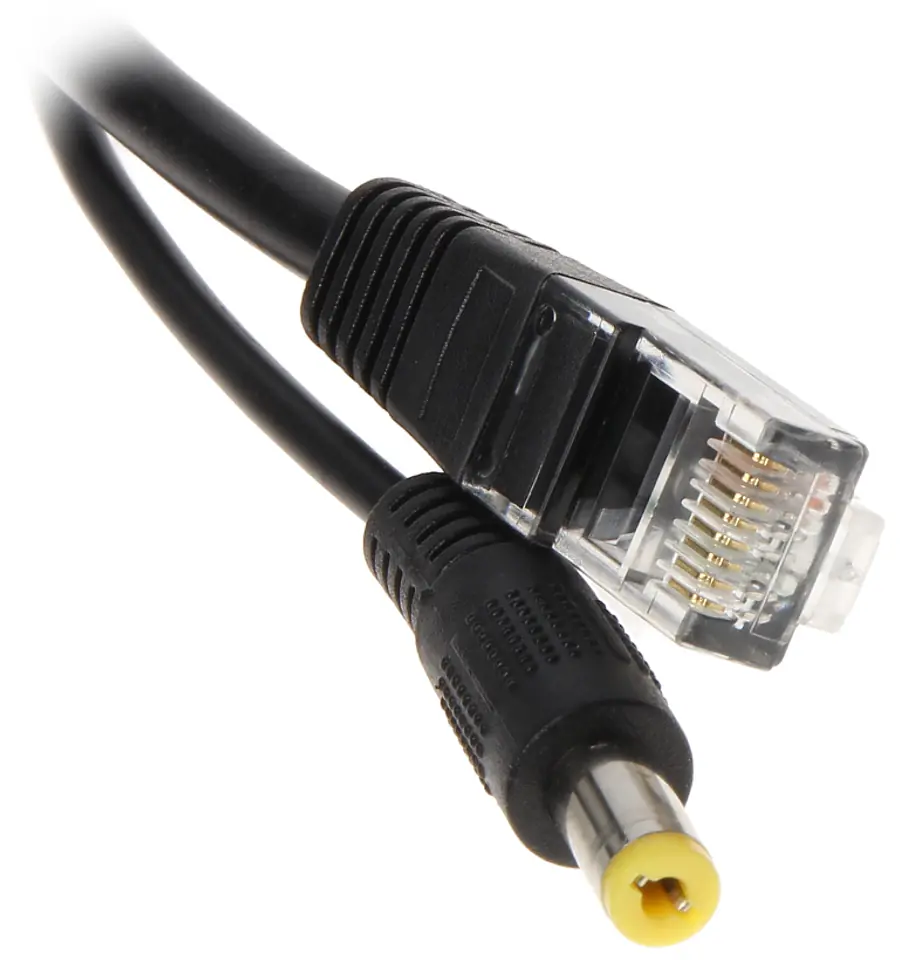

| Number of outputs:: | 1 x RJ-45 plug - on cable1 x 2.1/5.5 mm plug on cable |
| Output voltage:: | 12 VDC +/- 10% |
| Output:: | 1.6 A (continuous operation) 2 A (instantaneous operation) |

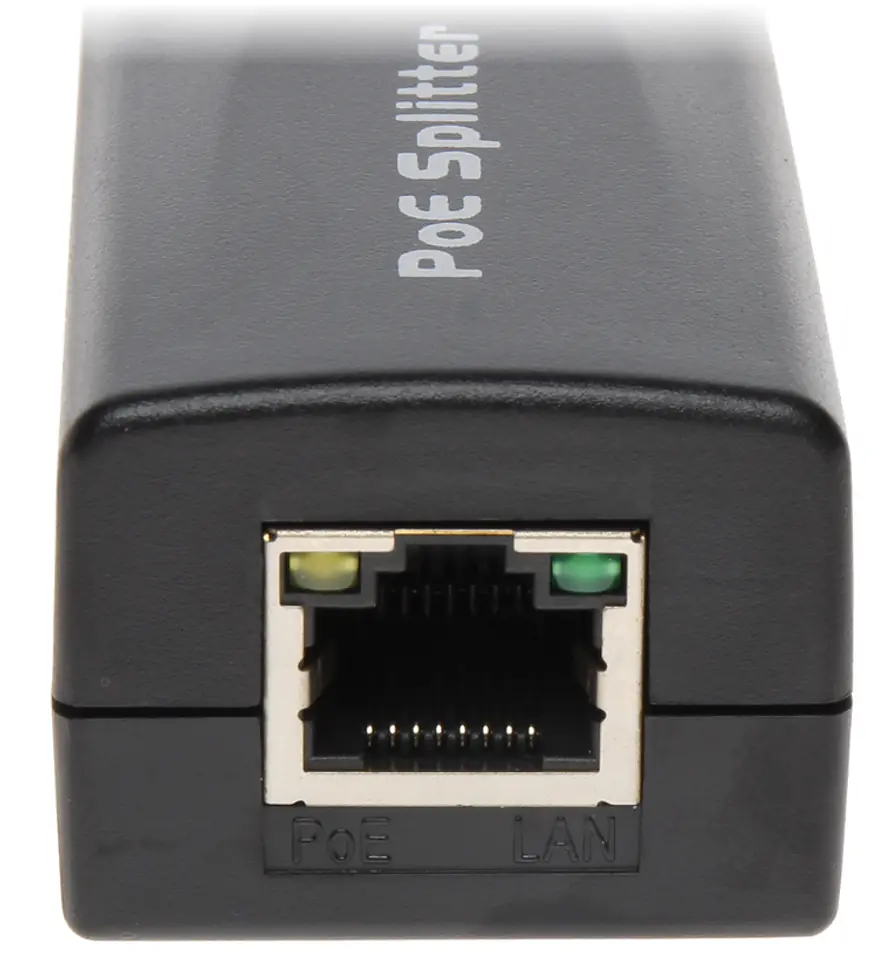

| Purpose of leds:: | PoE power supply - yellow |
| Scales:: | 0.068 kg |
| Standards:: | PoE (802.3af), PoE (802.3at) |
| Supported baud rate:: | Ethernet - 10 Mbps Half Duplex Fast Ethernet - 100 Mbps Full Duplex |
| Warranty:: | 2 years |

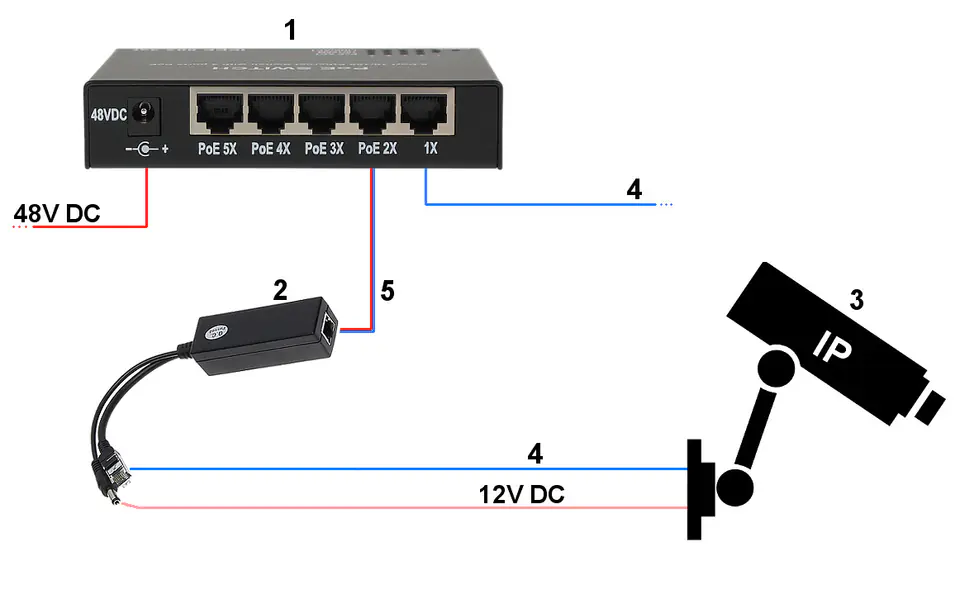

POE-802.3AT/24 allows devices to be powered by DC 12V
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Special attention should be paid to the proper cooling of the power supply during operation!
