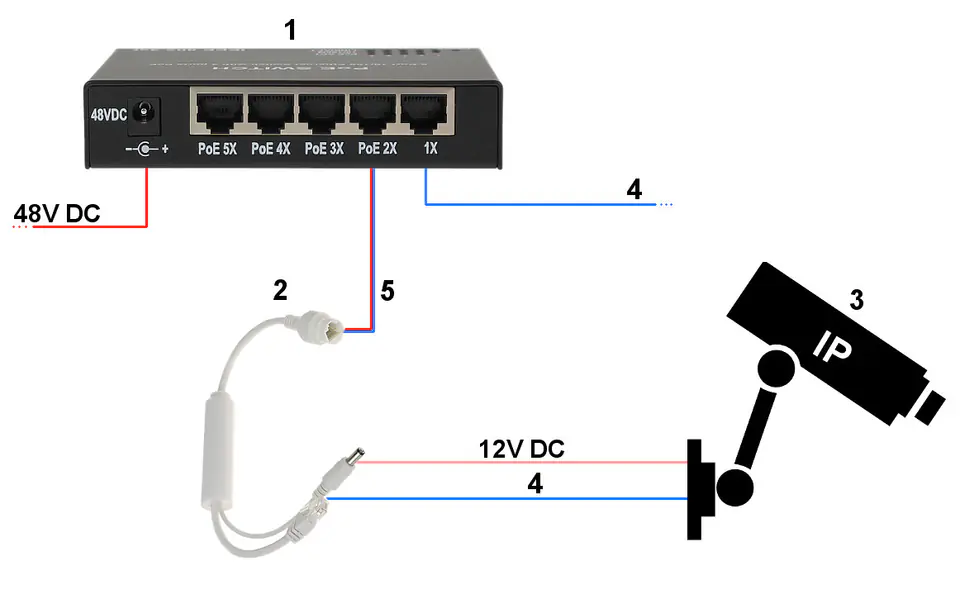

POE-802.3AF allows devices to be powered by DC 12V
STABILIZER 48V/12V POE-802.3AF
€16.28
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- POE-802.3AF / 5902887009853
Share this product:
Specification
| Certificates:: | CE, FCC Class B |
|---|---|
| Dimensions:: | 78 x 20 x 20 mm |
| Input socket:: | RJ-45 (T568B, T568A) |
| Input voltage:: | 44 - 57 V PoE |
| Maximum transmission range:: | 100 m (DATA) |

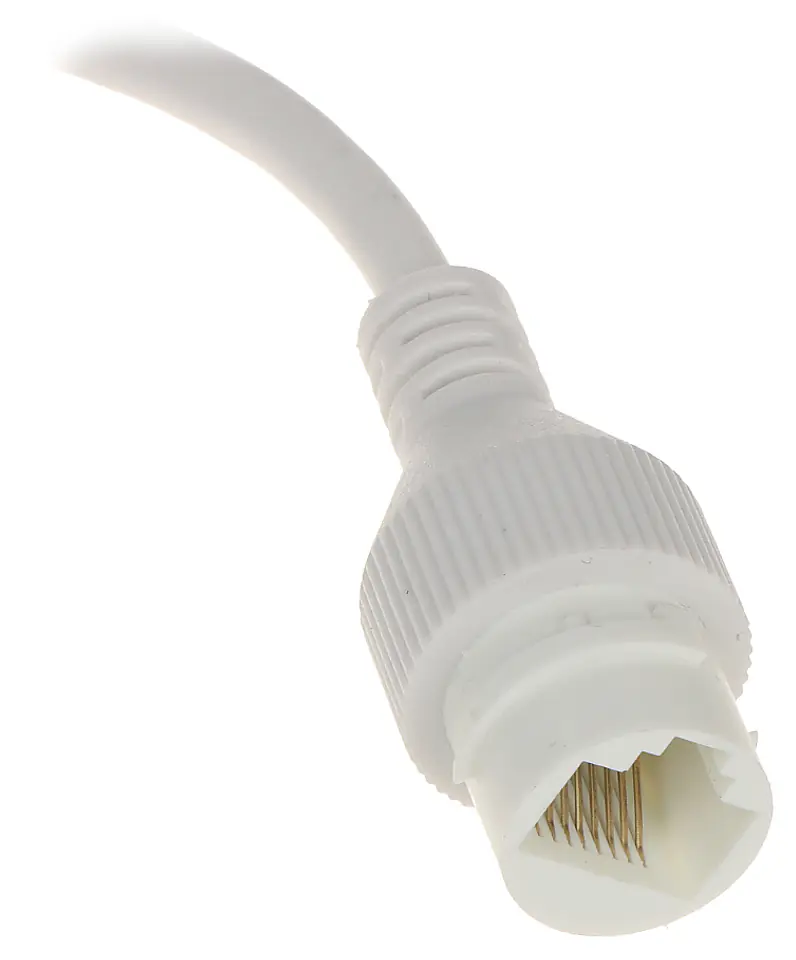

| Number of inputs:: | 1 x RJ-45 Socket - PoE |

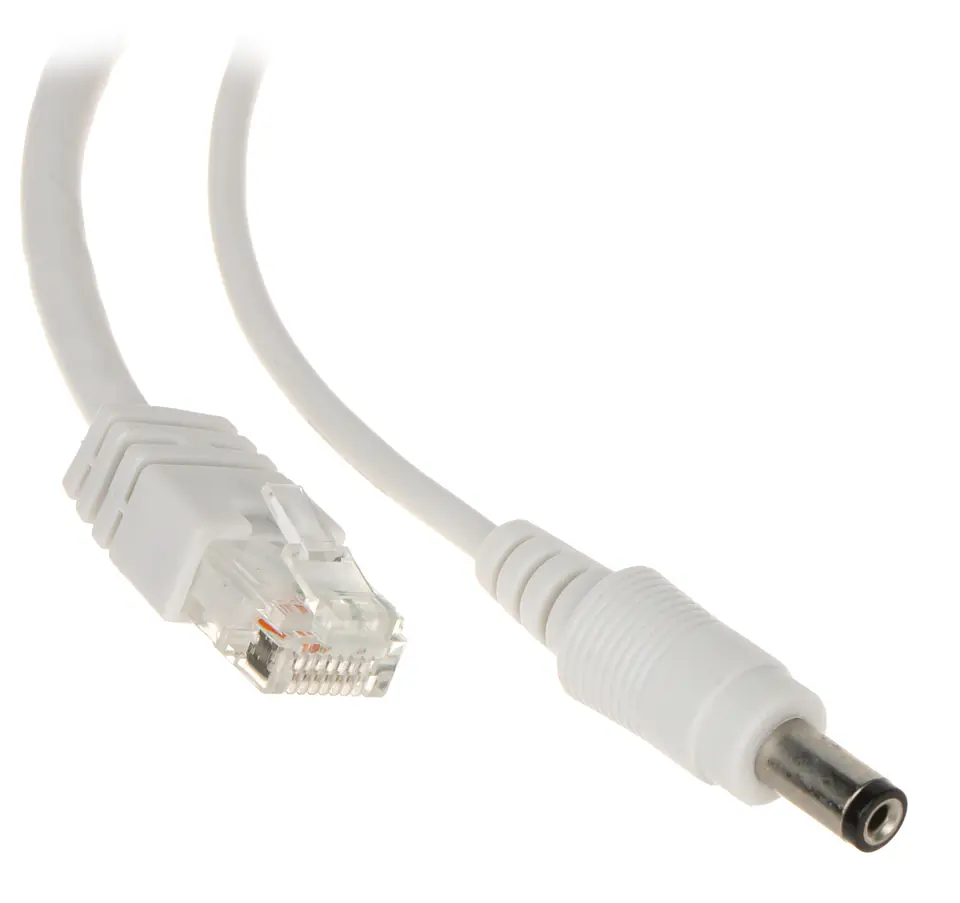

| Number of outputs:: | 1 x RJ-451 plug x 2.1/5.5 mm plug on the cable |
| Output voltage:: | 12 VDC +/- 5% |
| Output:: | Max. 1A/12V DC @ 48V PoEmax. 0.8A / 12V DC @ 57V PoE |
| Scales:: | 0.04 kg |
| Standards:: | PoE (802.3af), PoE (802.3at) |
| Supported baud rate:: | Ethernet - 10 Mbps Half Duplex Fast Ethernet - 100 Mbps Full Duplex |
| Warranty:: | 2 years |
