| ∅ from the forehead: | 1.5 mm |
|---|---|
| Aluminium > 8% silicon: | 250 |
| Always < 1000 n/mm²: | 180 |
| Always < 700 n/mm²: | 190 |
| Always < 700 n/mm² fz: | 0.053 mm |
| Cast iron gg/gts: | 140 |
| Cutting part length: | 2.25 mm |
| Ggg cast iron: | 40 |
| Grip ø = h 6: | 6 mm |
| Inox austenite.: | 80 |
| Inox ferrite./martenz.: | 110 |
| No: | 9069930060000 |
| Ø = js9: | 6 mm |
| Overall length: | 57 mm |
| Shell: | TiAlN |
| Titanium > 850 n/mm²: | 300 |

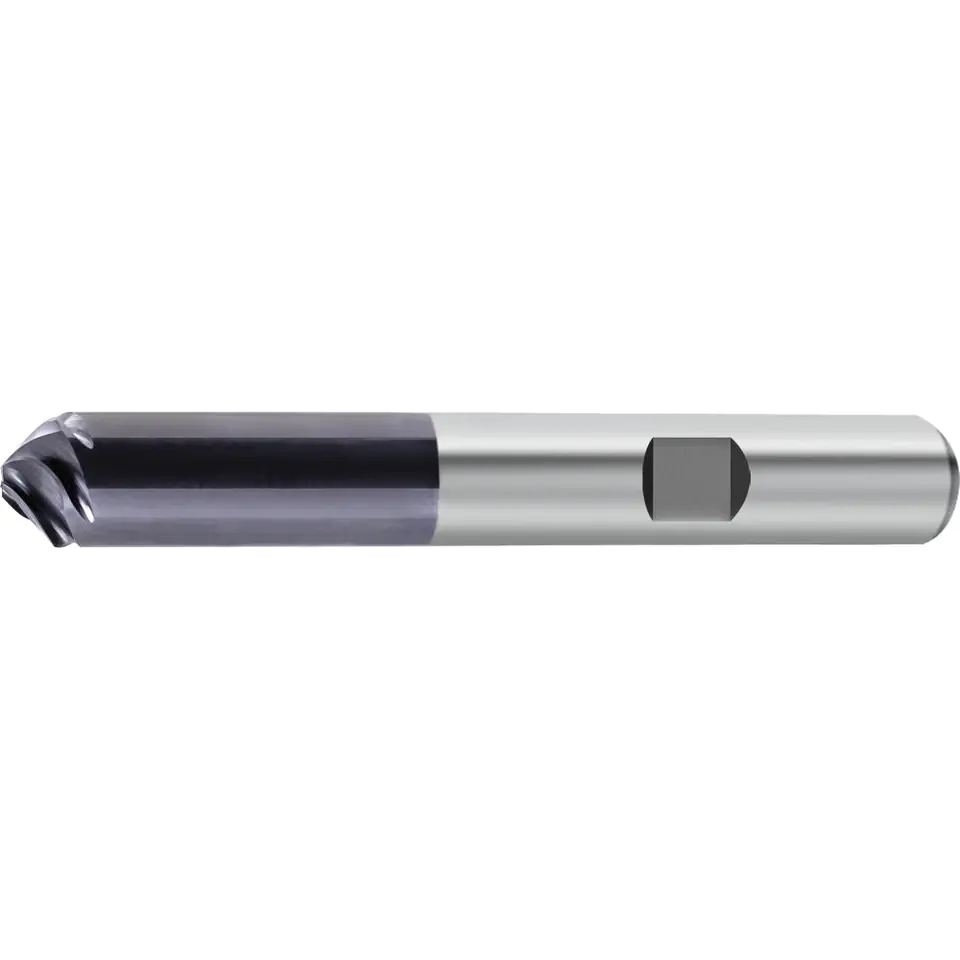

SpyroTec chamfer cutter
Design: with face cut to use the entire length of the cutting edge up to the base, 5 different helix angles (20 to 24°) and uneven cutting edge graduation, spiral cutting edge geometry with positive rake angle for soft cutting, quiet operation and high surface quality at large phases.
