Manufacturer Name: S-SPOTTER 4000

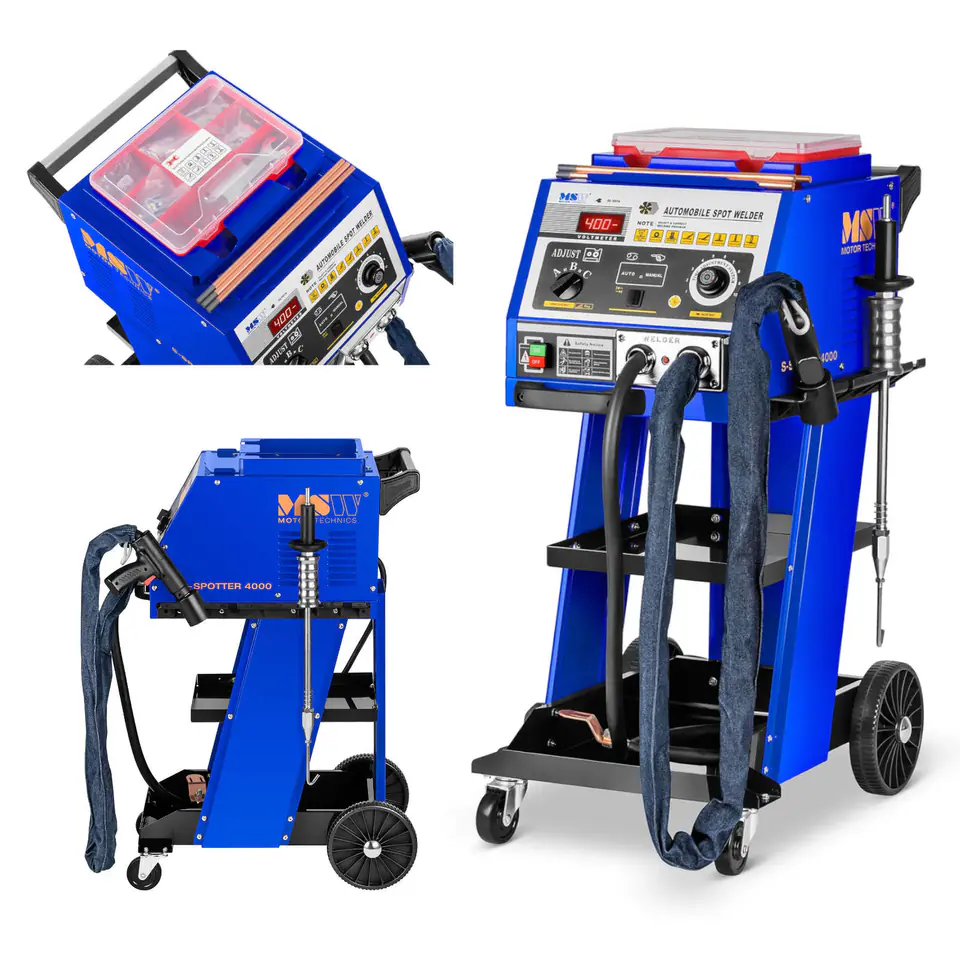

Spotter welding machine is a device created for effective straightening and smoothing of car body elements. The equipment is equipped with an intuitive control panel, on which there is a switch of operating modes (auto and manual), as well as two knobs for determining operating parameters. The first of them allows you to set the current intensity to a maximum of 4000 A. The second one can determine the machining time in the range from 0.2 to 2 seconds. Fast and precise signal transmission is thanks to microchips and sensors of the latest generation. Safety is ensured by an overheating protection system and a fuse of 42 A. The S-SPOTTER 4000 model has a functional trolley with four wheels. Together with the machine, we offer a rich set of accessories.
Features and functions:
- Versatility – the device copes with straightening and smoothing various elements of car bodies
- Efficiency – modern microchips and sensors ensure fast and precise transmission of signals from the control panel
- Ergonomics - a switch that allows you to choose the mode of operation, as well as knobs for adjusting the time and welding current allow you to choose parameters to your needs
- Safety – the proper operation of the equipment is supervised by an integrated overheating protection system
- Mobility – a trolley with four wheels allows you to freely move the welding machine to any place
- Gratis – a set of pads and tools for pulling out dents
Technical parameters:
- - Model - S-SPOTTER 4000
- - Catalog no. - 10060442
- - Article status - New
- - Voltage - 400 V / 50 Hz
- - Rated input power - 16 kVA
- - Output voltage - 13 V
- - Rated input current - 42 A
- - Maximum output current - 4000 A
- - Current regulation - Low/Mid/High
- - Weld thickness - 0.8 + 0.8 mm
- - Time adjustment - 0.2 – 2 s
- - Fuse - 42 A
- - Gun cable - 1.75 m
- - Ground wire - 1.6
- - Dimensions - 48 x 61 x 94 cm
- - Weight - 51 kg
- - Shipping dimensions (LxWxH) - 61.5 x 53.5 x 87.5 cm
- - Shipping weight - 70 kg
