Manufacturer Number: 10060443
The S-SPOTTER 5000 sheet metal welding machine will be used to straighten dents in the body of various vehicles. The device is easy to use, thanks to the touch control panel, which is responsible for setting the parameters of the spotter. It allows you to specify the output current value (up to 5000 A), set the timer (range from 0.01 s to 999s) and select one of ten automatic functions:
- - Welding of triangular washers
- - Welding of washers
- - Welding of dowels, screws, etc.
- - Welding screws
- - Corrugated wire welding
- - One-sided welding
- - Swelling – heating of sheet metal using a carbon electrode
- - Heating and shrinking with carbon wire
- - Carbon wire cutting
- Versatility - capable of straightening and smoothing the body of various vehicles
- Efficiency - fast and precise signal transmission provided by modern microchips and sensors

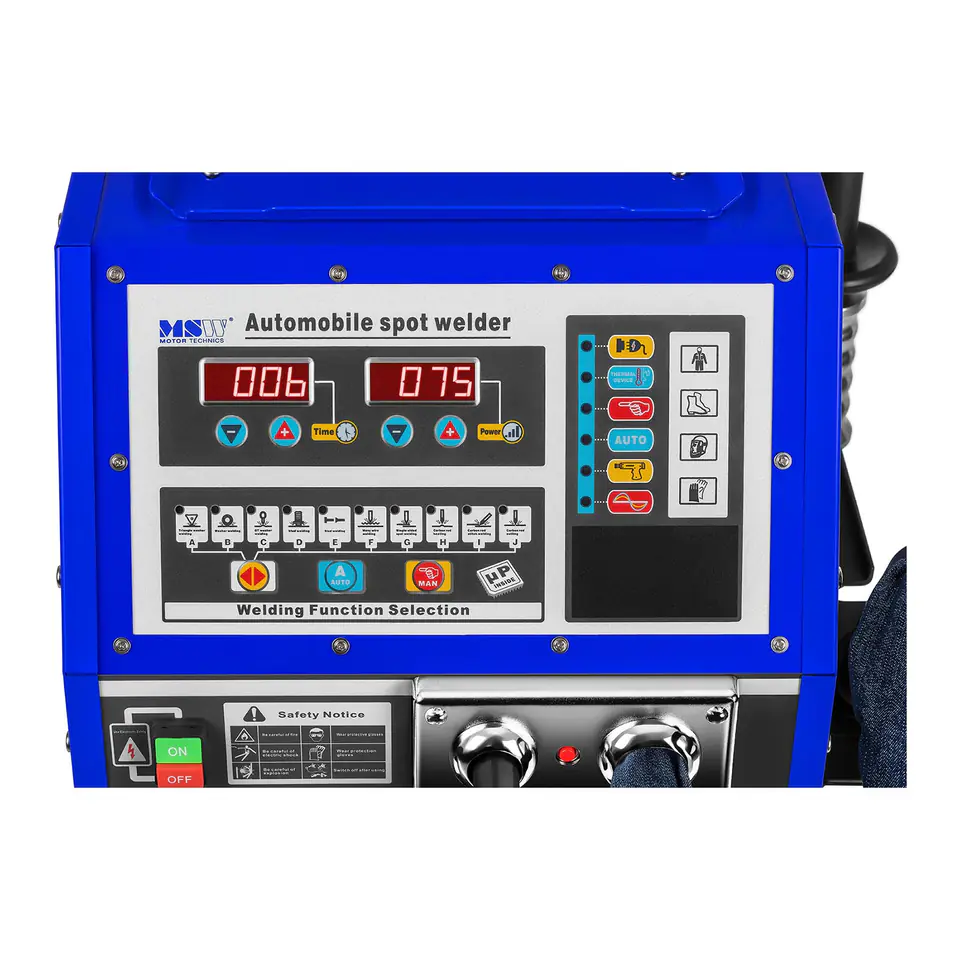

- Ergonomics - touch control panel for easy adjustment of the device
- Safety - built-in fuse and overheating protection system

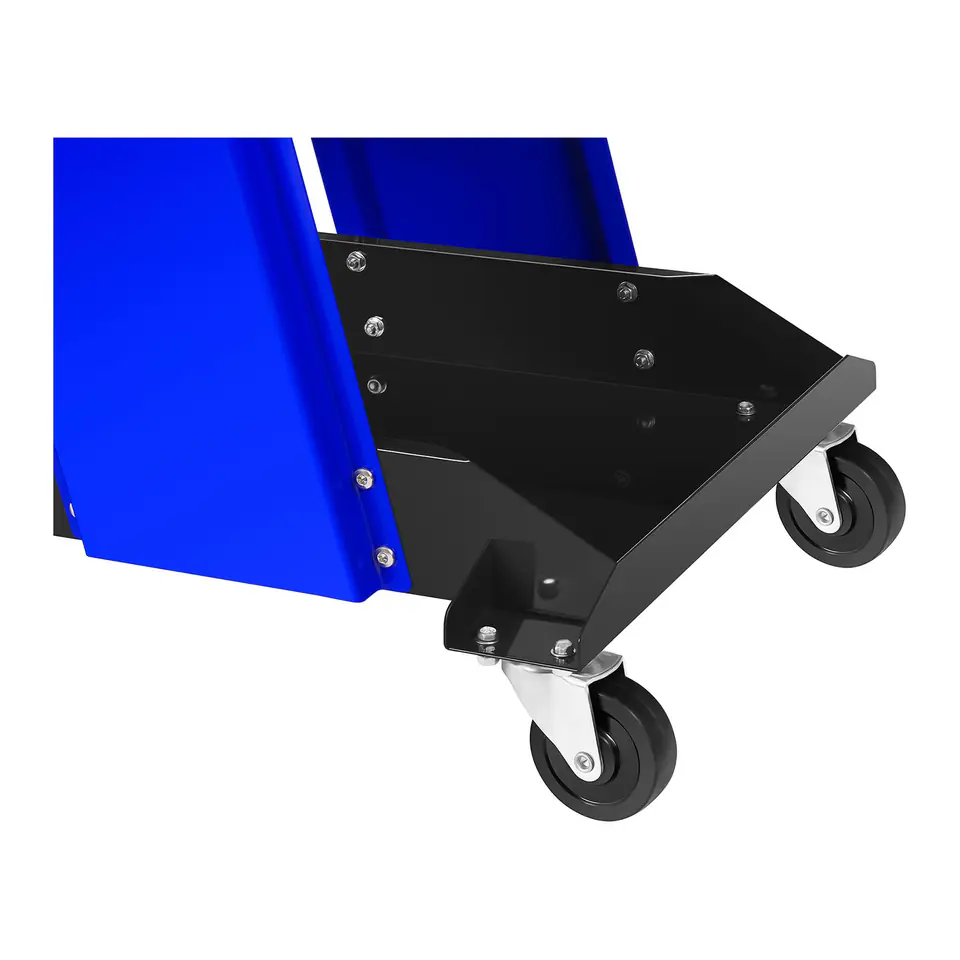

- Mobility - four wheels mounted
- Accessories - a set of pads and accessories for pulling out dents
- - Model - S-SPOTTER 5000
- - Catalog no. - 10060443
- - Article status - New
- - Voltage - 400 V / 50 Hz
- - Rated input power - 19 kVA
- - Output voltage - 13 V
- - Rated input current - 50 A
- - Maximum output current - 5000 A
- - Weld thickness - 0.8 + 0.8 mm
- - Time adjustment - 0.01 – 999 s
- - Fuse - 42 A
- - Gun cable - 1.75 m
- - Ground wire - 1.6
- - Dimensions - 62 x 47 x 96 cm
- - Weight - 56.85 kg
- - Shipping dimensions (LxWxH) - 62 x 54 x 88 cm
- - Shipping weight - 68,85 kg
- Welding machine S-SPOTTER 5000
- Pistol cable – 1.75 m
- Ground wire – 1.6 m
- Point hammer
- 3 x Carbon Rods
- Rod adapter
- Washer adapter
- Triangular washer adapter
- 10 x Triangular washers
- 15 x washers 10 mm
- 15 x washers 12 mm
- Key
- Pulling hook
- Toolbox
- Instruction manual
