Antenna splitter 1/2 5-2150 MHz Spacetronik SPS-RS02M
High-quality low-loss shielded splitter, (TV signal splitter), having 1 input and 2 outputs.

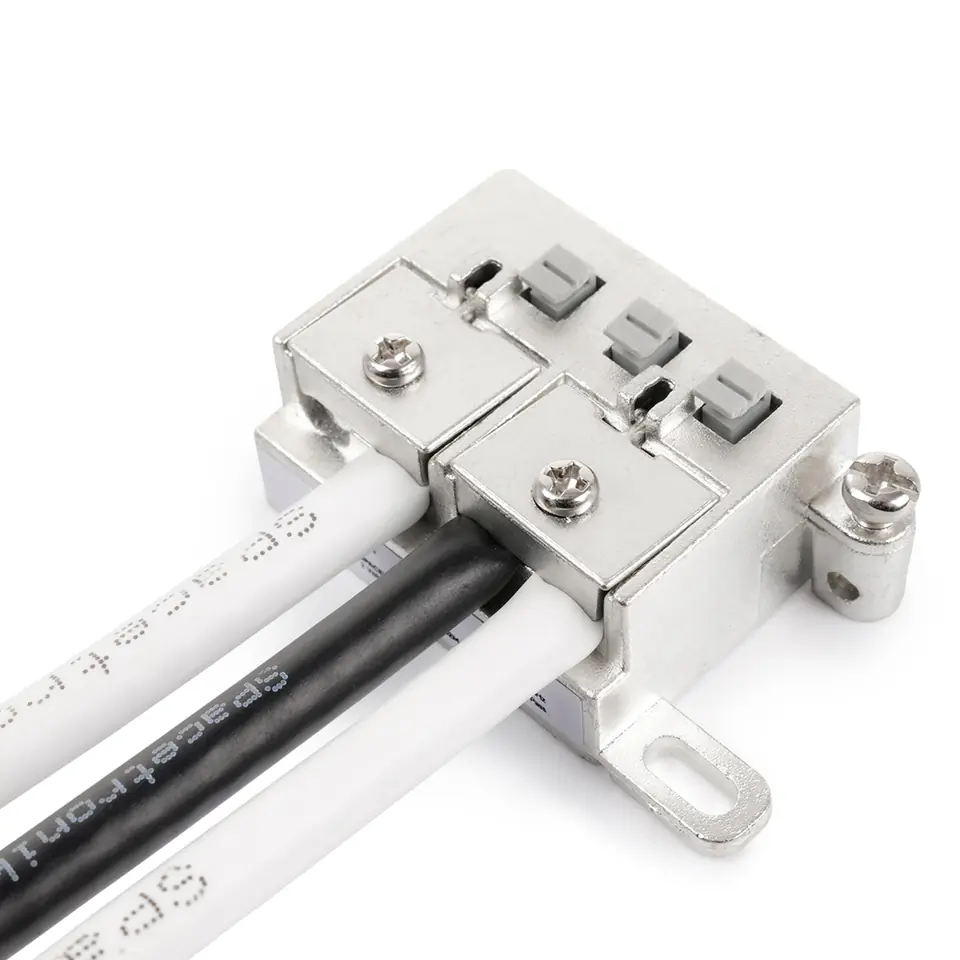

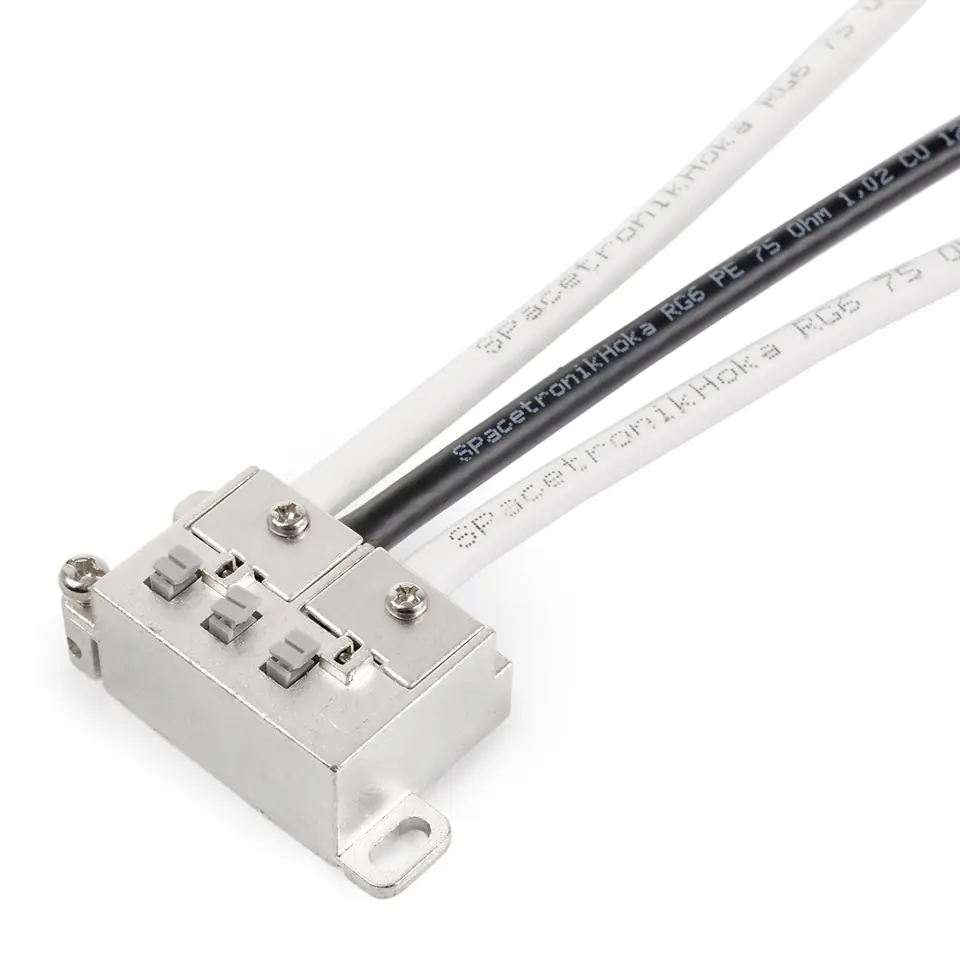

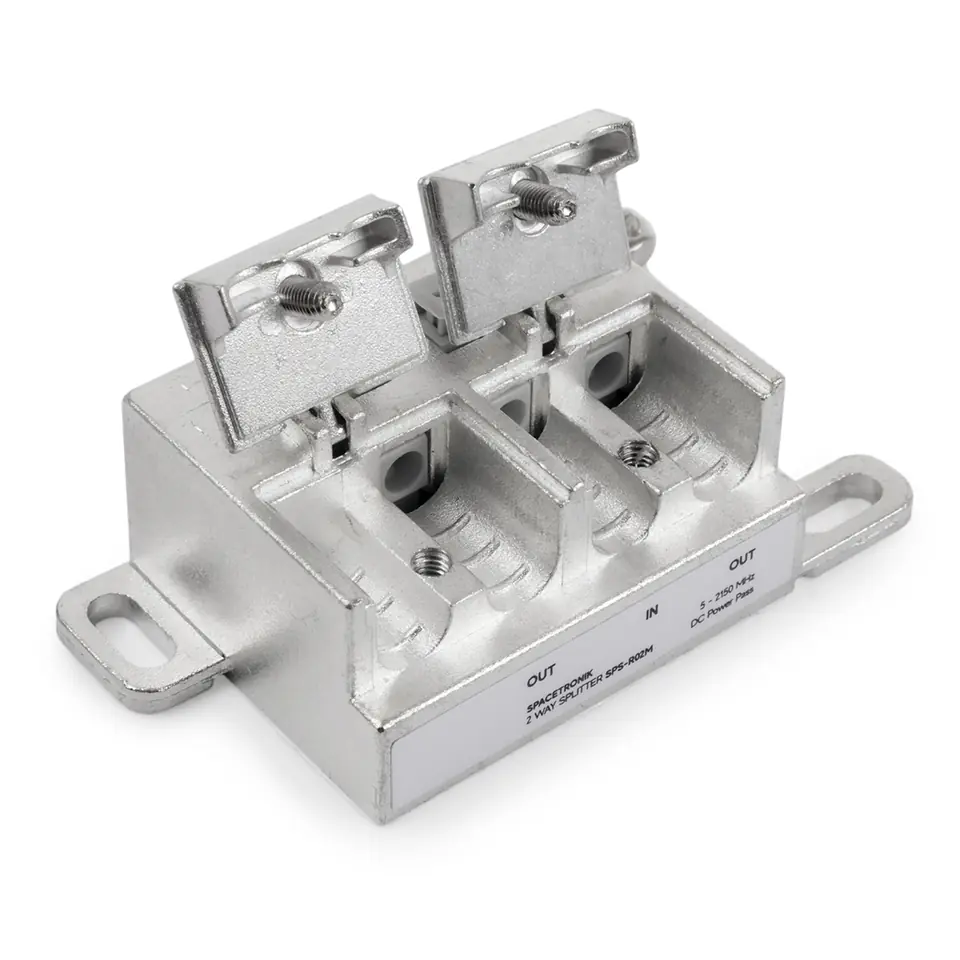

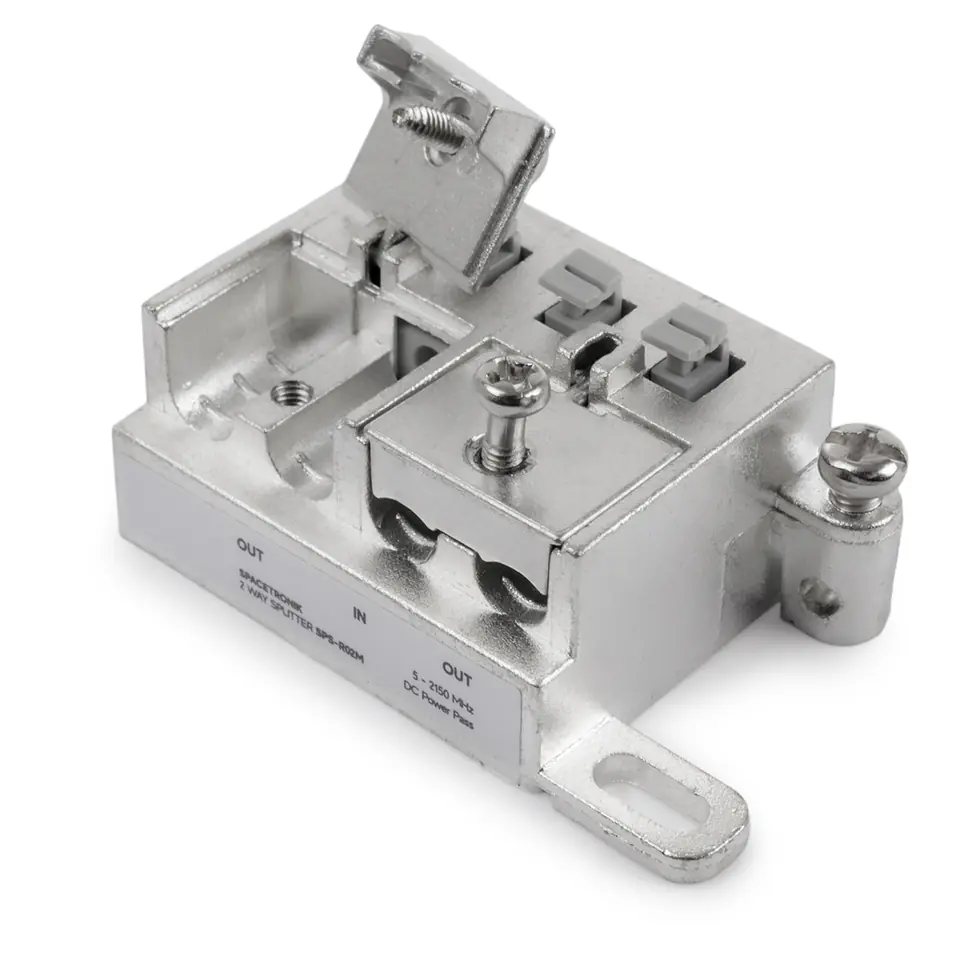

Innovative connection system Theantenna cable conductor is inserted directly into the splitter, the braid of the wires is screwed with screws with a cover to the housing.

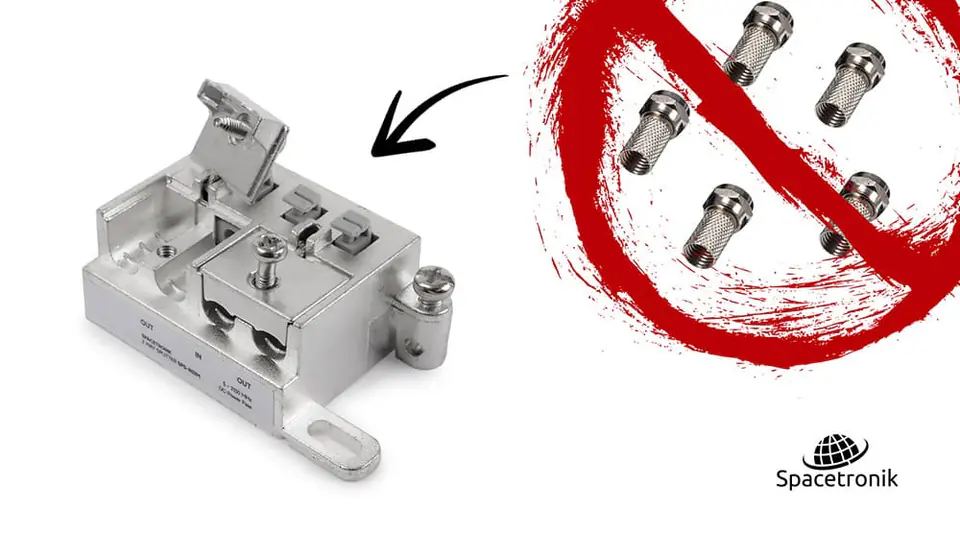

Connecting the splitter in this way increases the reliability of the connection. The lack of F-sockets allows to reduce the dimensions of the splitter.
Technical data:
- Number of inputs: 1
- Number of outputs: 2
- Operating frequency: 5...2150 Mhz
- Shielding ratio: 5-2150MHz ≥100dB
- High insulation, excellent performance indicator
- Easy and fast connection system
- Solid housing made of cast
- Small signal losses
- DC Power Pass
- Designed for SATV/CATV systems
- Housing equipped with grounding
