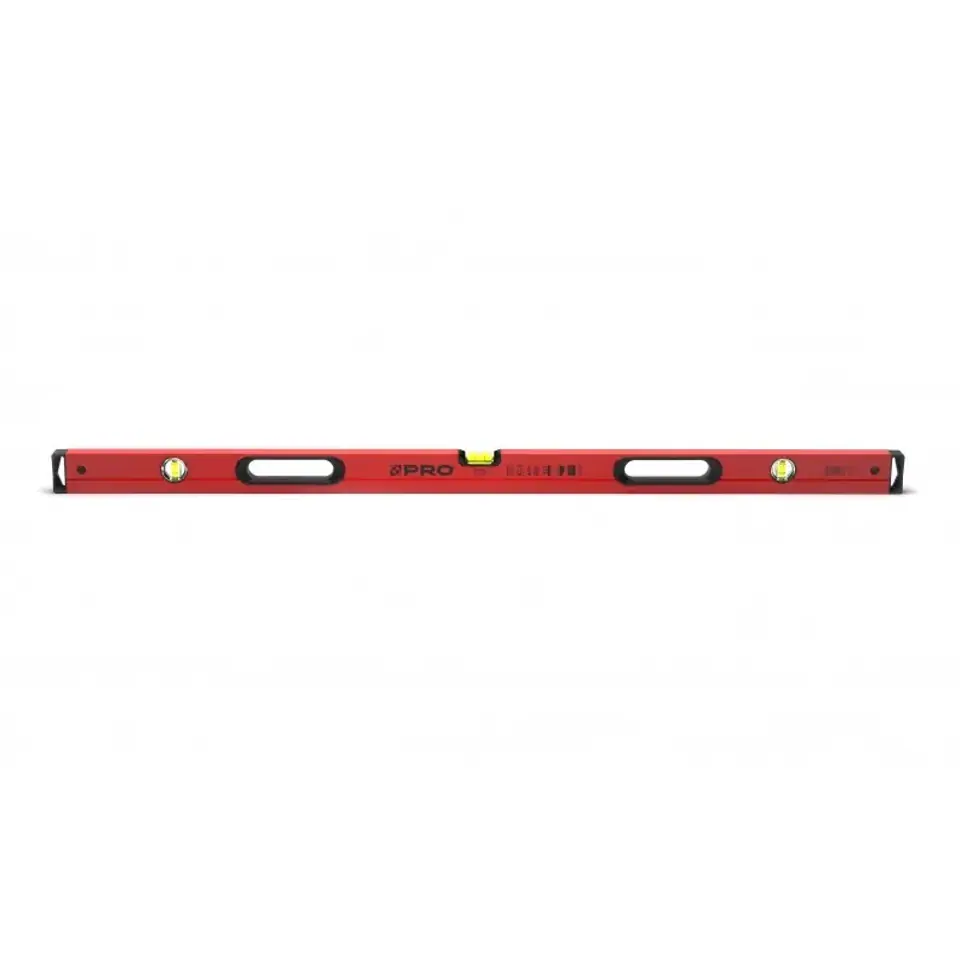

SPIRIT LEVEL PAINTED LEVEL AND VERTICAL INDICATOR SERIES 800 150CM

Technical Specifications

Manufacturer: Pro
Manufacturer's code: 3-01-01-BE-150
Length: 150cm



Painted level indicator level and vertical series 800 150cm

PRO800 series spirit levels are equipped with a specially designed rounded shape,
enabling easy reading, the so-called ERS (easy reading system).
Thanks to the use of such a solution, the angle at which the measurement reading is made,
becomes completely irrelevant. Libella does not have any sharp edges,
on which the refraction of light would occur.
In addition, it uses a magnifying glass effect, allowing to enlarge the bladder image by 30%,
which at the same time has also become much more pronounced
Libella for level determination has been designed in a way that allows level measurement
in two positions – normal and reverse – while maintaining measurement accuracy.
This property is particularly useful when measuring the level of ceilings or beams at height,
when reading the indication of the libella from above is impossible.
The accuracy of the libella is 0.5 mm/m = 0.029°. New libella made of high quality acrylic glass
in the shape of a semicircle is additionally very well lit,
which makes it easier to work in poorer lighting conditions. It uses modern
(smooth and round) libella mounting. The edges do not accumulate any dirt, which eliminates the problems associated with
with cleaning spirit levels from adhesive residues or masonry mortars.


**

Illustrative photos
