Countertop socket ERGOLINE SPS-S27B (black)

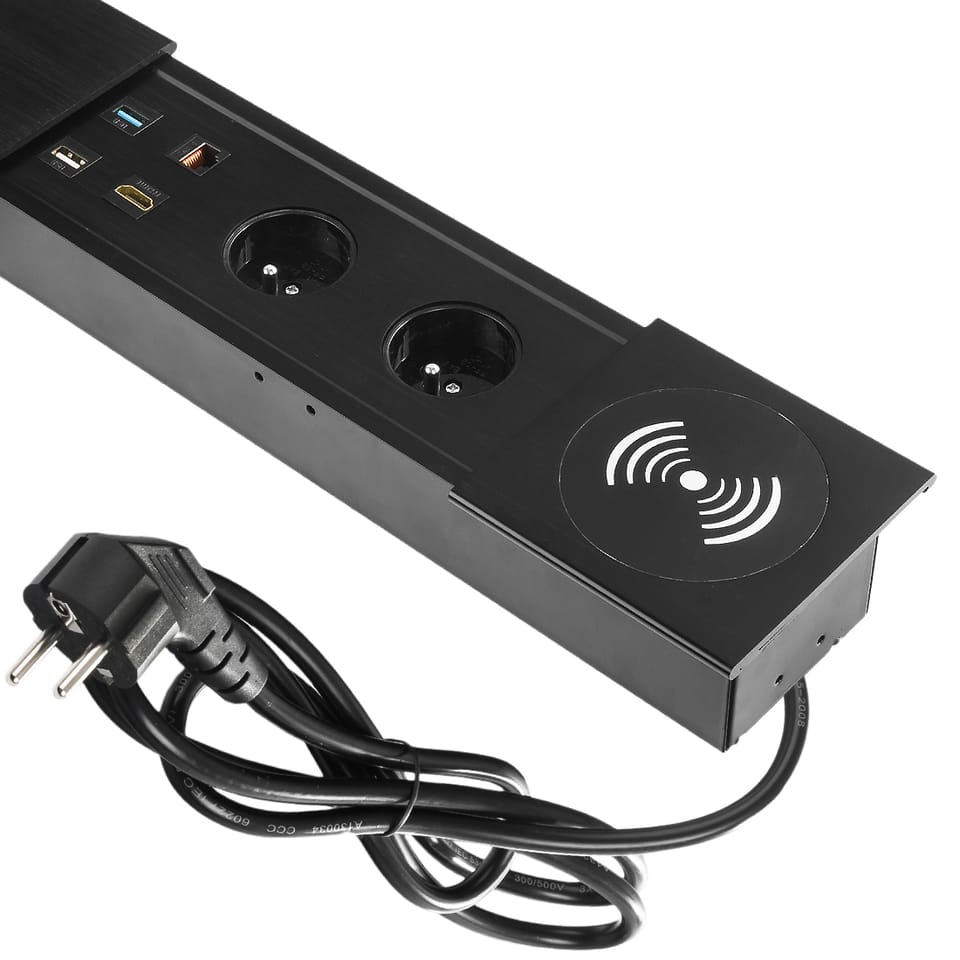

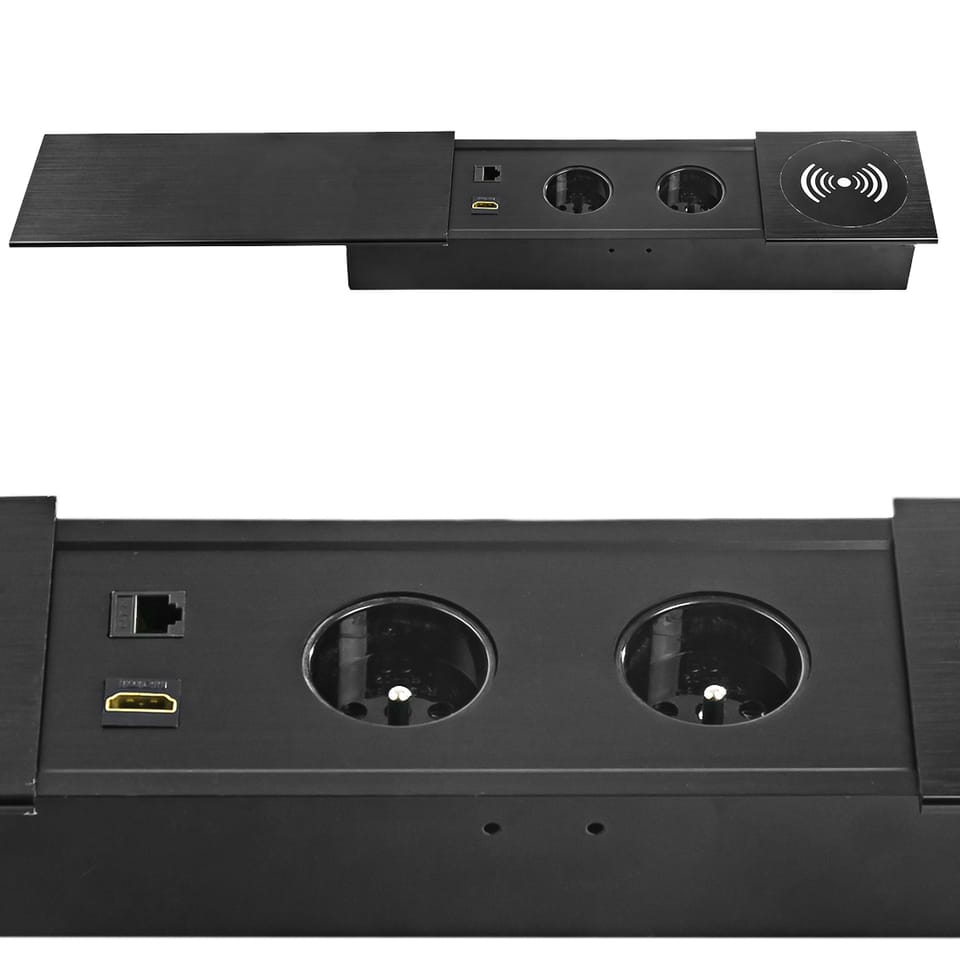

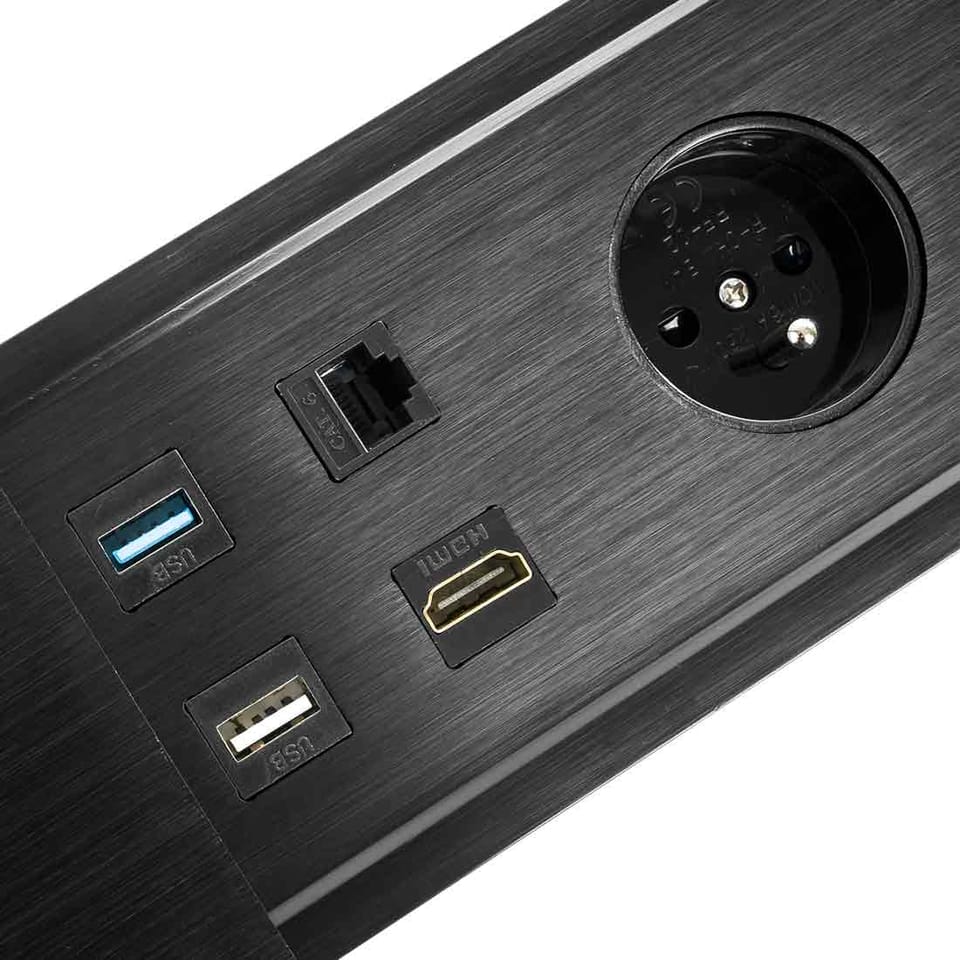

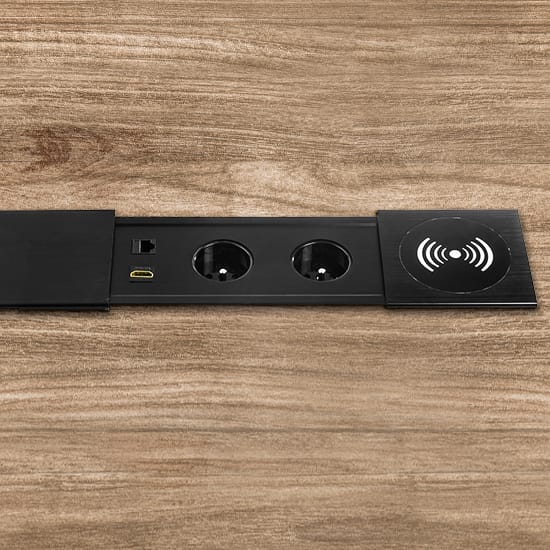

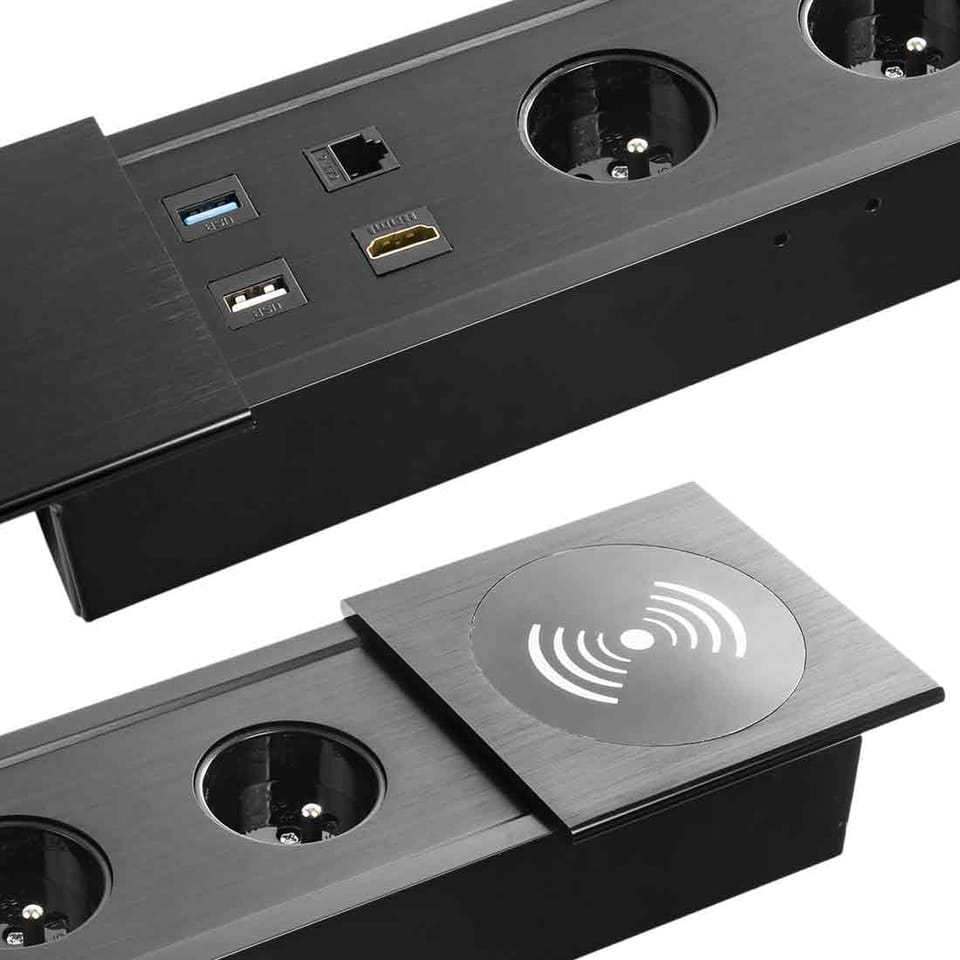

Mediaport Spacetronik ERGOLINE SPS-S27B is a modern solution that is used in stores, showrooms, conference rooms, offices and at home. Made of aluminum and high quality components. The product is designed for indoor installation in desks, countertops and tables. In addition to the standard power sockets, it also has USB 3.0, USB 2.0, HDMI and RJ-45 Ethernet ports, all covered by two sliding aluminum covers. In addition, the mediaport is equipped with a fast inductive charger, thanks to which you can charge your smartphone without having to connect any cables.
The ERGOLINE series of mediaports is distinguished by an original design that will meet the needs of even the most demanding users. Made with attention to every detail, mediaport will perfectly fit into the workplace, interior showroom or conference room. SPS-S27B has a fast inductive charger - just place your phone on it and the battery will replenish itself. (the inductive charger should be powered using the installed USB cable - no adapter included)

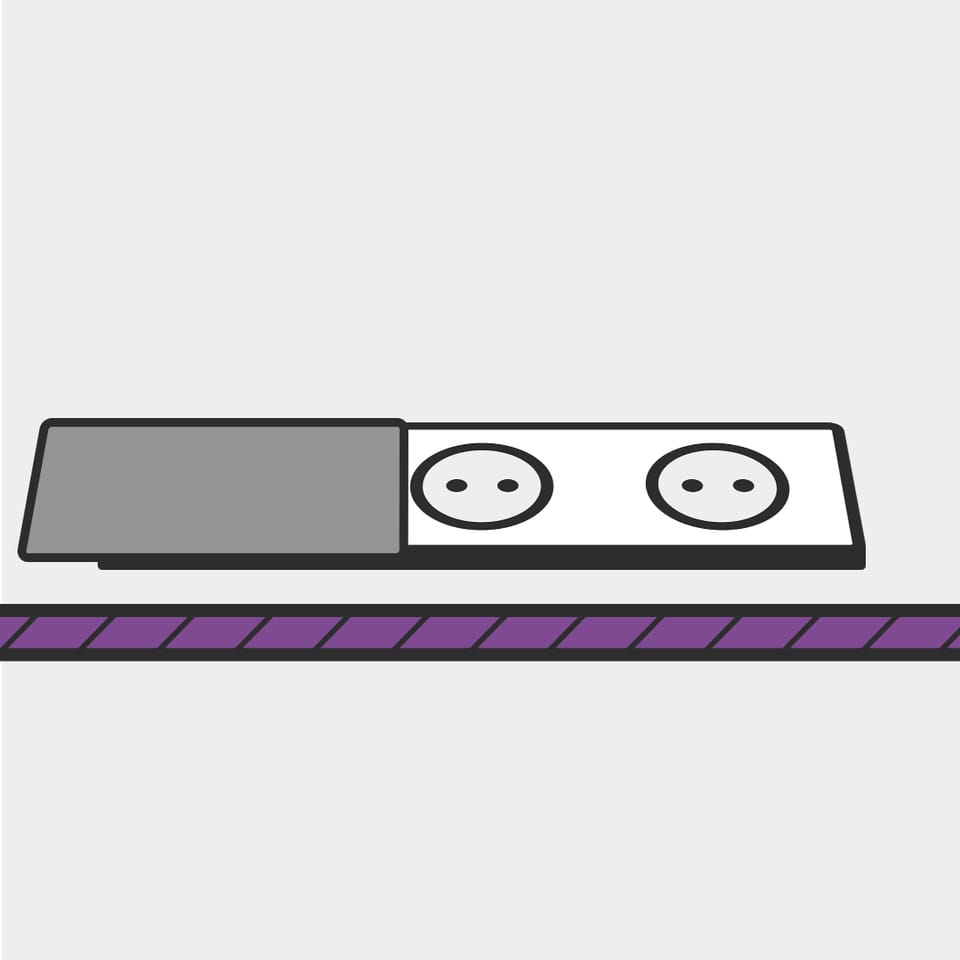

Installation of the sliding table top socket is very easy.
1. Cut a suitable hole in the countertop.
2. Place the mediaport in the cut hole.
3. Attach the device by sliding the plastic clips to lock.
- Cable length: 1.5 m
- Mains power: 230 V 50 Hz
- 2x French type socket 110-250 V (16 A)

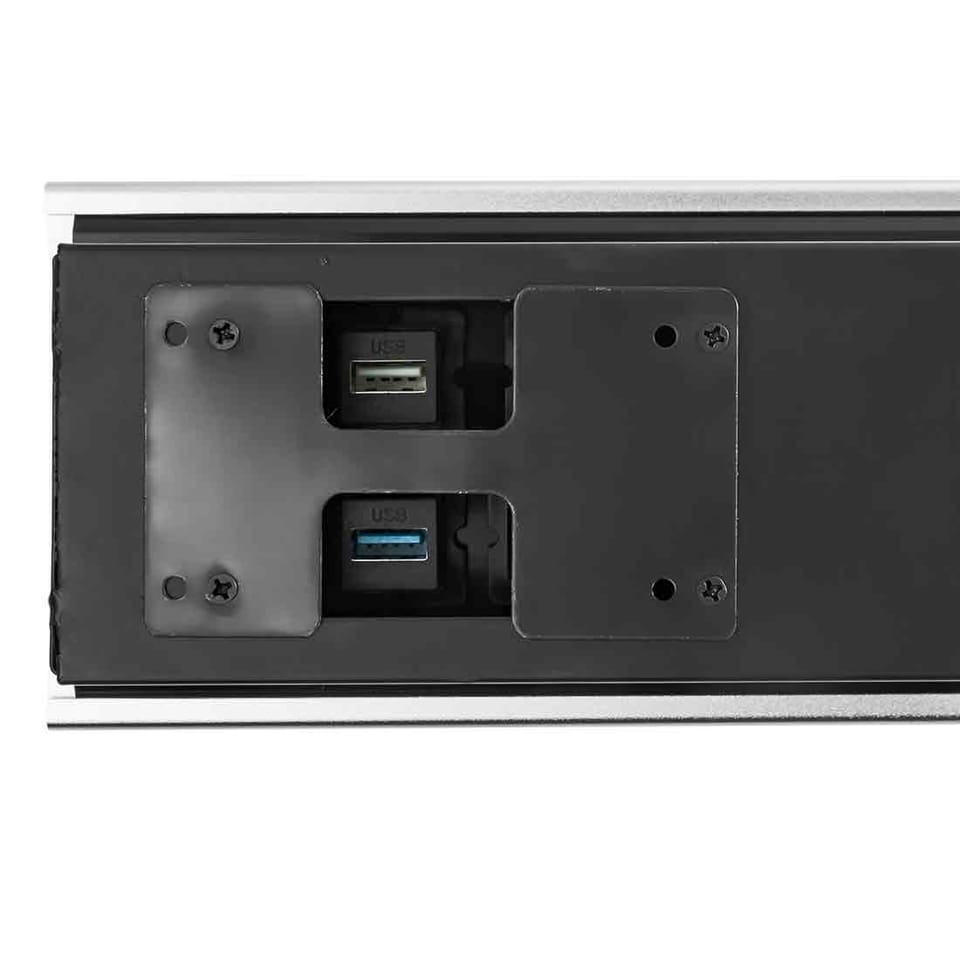

- 1 x USB 2.0 port
- 1 x USB 3.0 port
- 1 x HDMI
- 1x Ethernet CAT6 (RJ-45) port
- 1x fast induction charger (input 5 V / 2 A, 9 V / 1.8 A; output 5 W, 7.5 W, 10 W)
- Can dimensions: 32.8 cm x 7 cm x 5.8 cm (width / height / depth)
- External dimensions: 34.3 cm x 9.7 cm (when extended 54.2 cm x 9.8 cm)
- Suggested hole dimension in the tabletop: 332 mm x 70 mm
Declaration of conformity (Polish / English)
