Sonoff Zigbee 3.0 USB Dongle Plus - Zigbee Gateway

€26.03
Shipping from warehouse: ⁨I2⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Sonoff
Product code:
ZBDongle-E / 6920075777659

Specification

Component for:PC/Laptop
Connectivity technology:Wireless
Depth:16 mm
Height:16 mm
Host interface:USB
Interface:ZigBee
Internal:No
Networking standards:IEEE 802.15.4
Product colour:Green, Metallic
Quantity per carton:400 pcs.
Weight:5.8 g
Width:41 mm

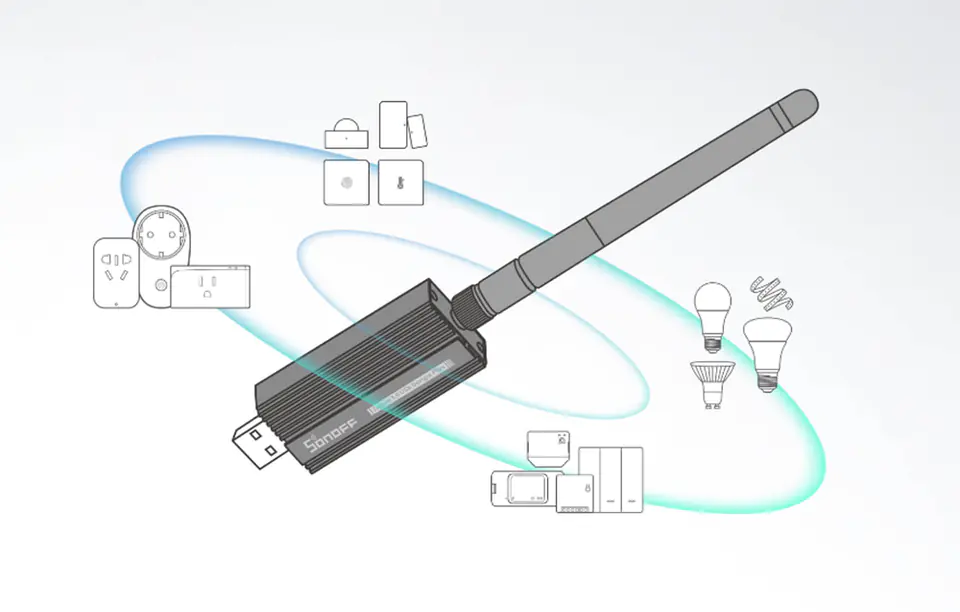

Sonoff Dongle-E can be used as a Zigbee gateway in Home Assistant, openHAB, Zigbee2MQTT or other open-source platforms to control all Zigbee devices locally. It allows you to connect up to 32 devices simultaneously and works more efficiently than CC2531 or ConBee 2. You no longer need to invest in Zigbee hubs of different brands, just a universal gateway — Dongle Plus!

You can use Dongle Plus as a Zigbee 3.0 gateway in open-source platforms to manage various devices of different brands or to flash router firmware to increase network coverage. You can also purchase a 1.5 m USB cable for longer signal range. The product works with such platforms as Home Assistant, openHAB, Zigbee2MQTT, etc. What's more, it supports Linux, Ubuntu, Raspbian, Windows and macOS.

Sonoff Zigbee 3.0 USB Dongle Plus - Zigbee Gateway

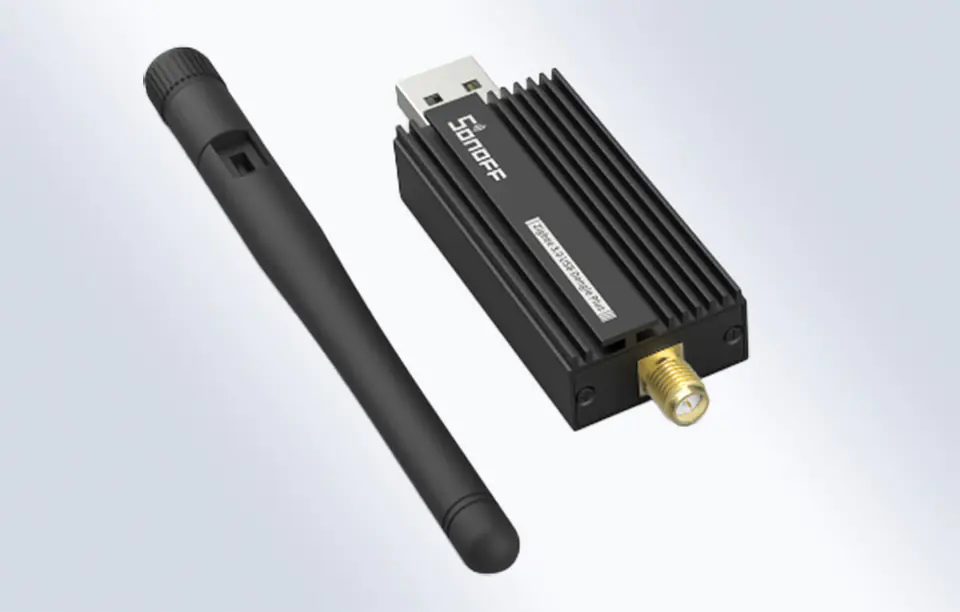

The product is made of aluminum alloy, which improves signal transmission. In addition, it eliminates interference from peripheral devices. It has an external SMA antenna – you can also adjust its position. What's more, the output gain of +20dBm results in 3x greater signal range.

Sonoff Zigbee 3.0 USB Dongle Plus - Zigbee Gateway

ProducerSonoff (disambiguation)
NameSonoff Zigbee 3.0 USB Dongle Plus - Zigbee Gateway
Input voltageDC 5V (100mA max)
Operating temperature-10°C ~ 40°C
WirelessRelated to Zigbee 3.0:
MaterialAluminum alloy
Dimensions75 x 25.5 x 13.5 mm

Sonoff Zigbee 3.0 USB Dongle Plus - Zigbee Gateway

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
