Sonoff THR320D is a 20 A relay that will be used in indoor swimming pools, wineries or terrariums. It will also work well for heating at home, irrigation system or greenhouses. The product works with temperature and humidity sensors. You can also create schedules from within the app and use Auto mode.
The Sonoff relay supports devices with high power consumption, for example, underfloor heating. In addition, the RJ9 4P4C connector allows you to connect the product to other equipment. Depending on the connected sensor, you can control the temperature, with the hermetic DS18B20 sensor, humidity (SI7021) or soil moisture, which is allowed by the MS01 sensor . The product also works with Home Assistant and IFTTT for greater freedom of use.
The product enables remote management of devices via the eWeLink application. From there, you can turn on/off the device no matter where you are. In addition, there is the possibility to set a timer or schedule, and 8 available programs will allow you to customize the operation of the THR320D to suit your needs and save money on electricity bills. The device is also compatible with Amazon Alexa and Google Assistant. In addition, thanks to LAN support, you can use the relay even when network access is temporarily unavailable.

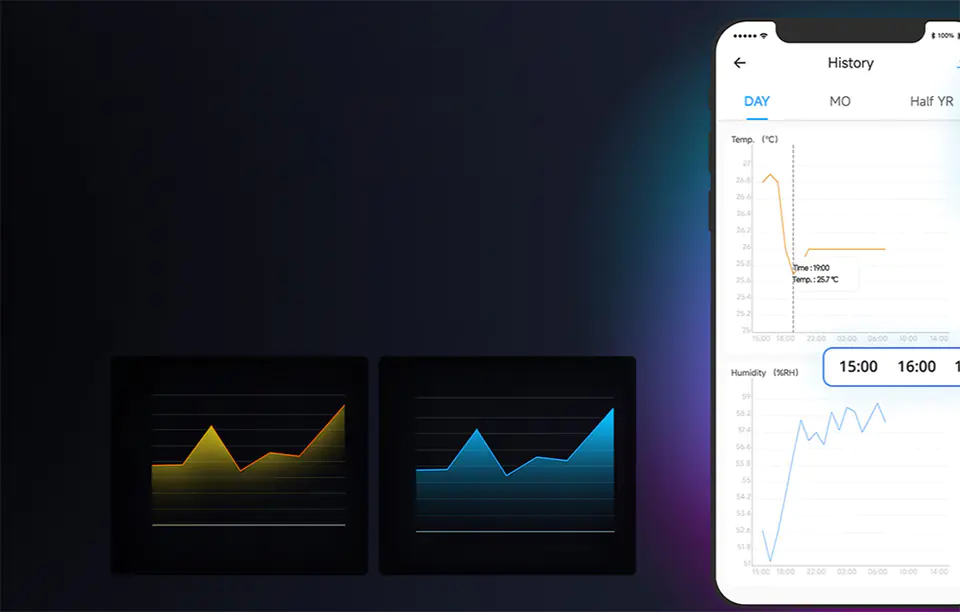

Sonoff intelligent relay monitors temperature and humidity in real time. If the equipment is turned on/off or the devices reach the value set by you, you will be notified via the app. You can also automate the product with smart devices, for example, with smart sockets or heaters. That's not all! The application also allows you to view the history of temperature and humidity in the form of a graph by hour, day and month. However, historical data from the last 6 months can be exported in xlsx format.

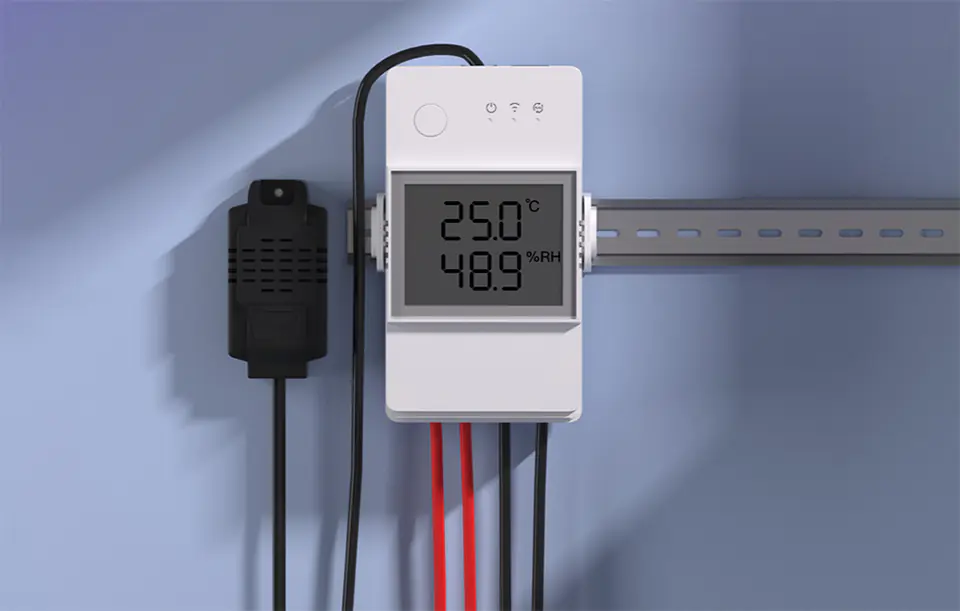

Sonoff THR320D is distinguished by a carefully thought-out design. The product has a large button with which you turn on/off the device. The included mounting rail allows you to easily attach the device in the desired place, and the cover located on the front ensures safety. In addition, an improved wiring system protects against short circuits.
For the production of the device used high quality materials that meet the requirements of UL and RoHS. It is made of a fire-resistant PC, and thanks to the carefully thought-out design, you can safely use it during adverse weather conditions, for example, storms. What's more, 4P4C RJ9 connector ensures stable and reliable connection.

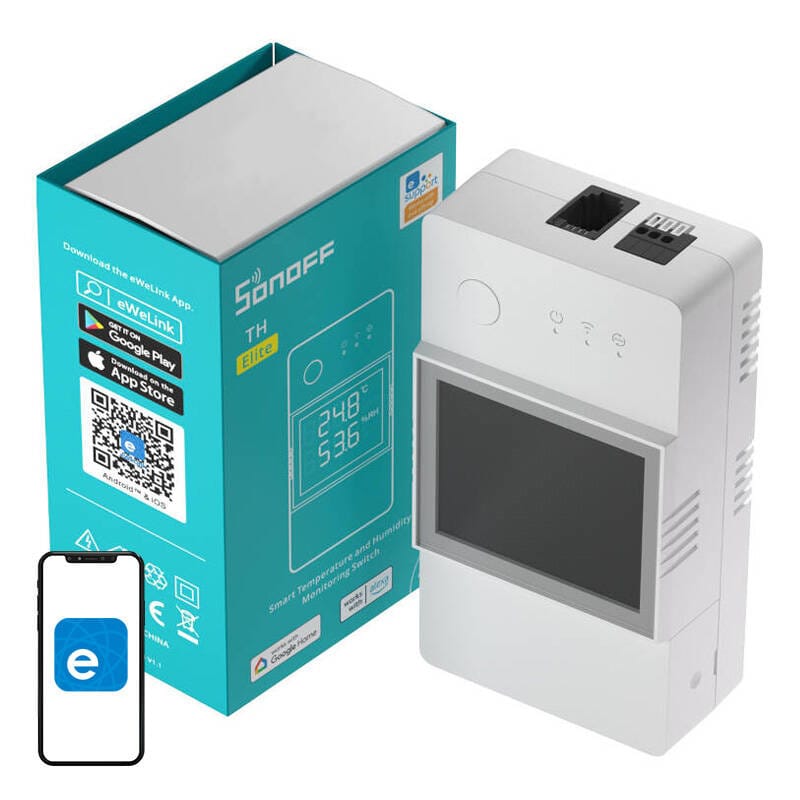

- Intelligent relay
- mounting rail
- Manual
| Producer | Sonoff (disambiguation) |
|---|---|
| Model | THR320D |
| Colour | white |
| Material | PC V0 |
| Tension | 100-240V ~50/60 Hz 20A max |
| WiFi | IEEE 802.11 b/g/n 2.4 GHz |
| Dimensions | 98 x 54 mm |
