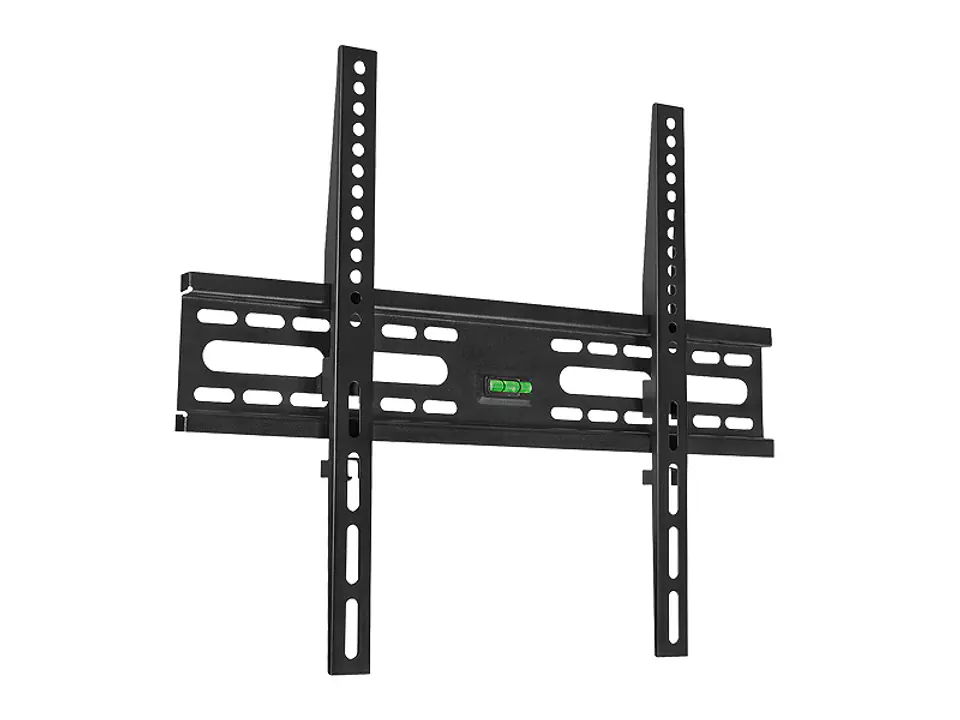

SOLID WALL MOUNT FOR TV FROM THE POLISH BRAND LTC
23" TO 55"
This wall mount can be used for TVs larger than 55 inches without problems. However, such a TV must meet the following conditions:
- Maximum mounting hole spacing: VESA 400x400
- Minimum mounting hole spacing: VESA 75x75
- TV WEIGHT: UP TO 45KG
ASSEMBLY AESTHETICS
The flat design of the wall mount allows you to keep the distance of the TV from the wall to a minimum. The whole mount is only 24mm, thanks to which - when completely hidden behind the TV - the TV looks like it is hanging on the wall by itself.

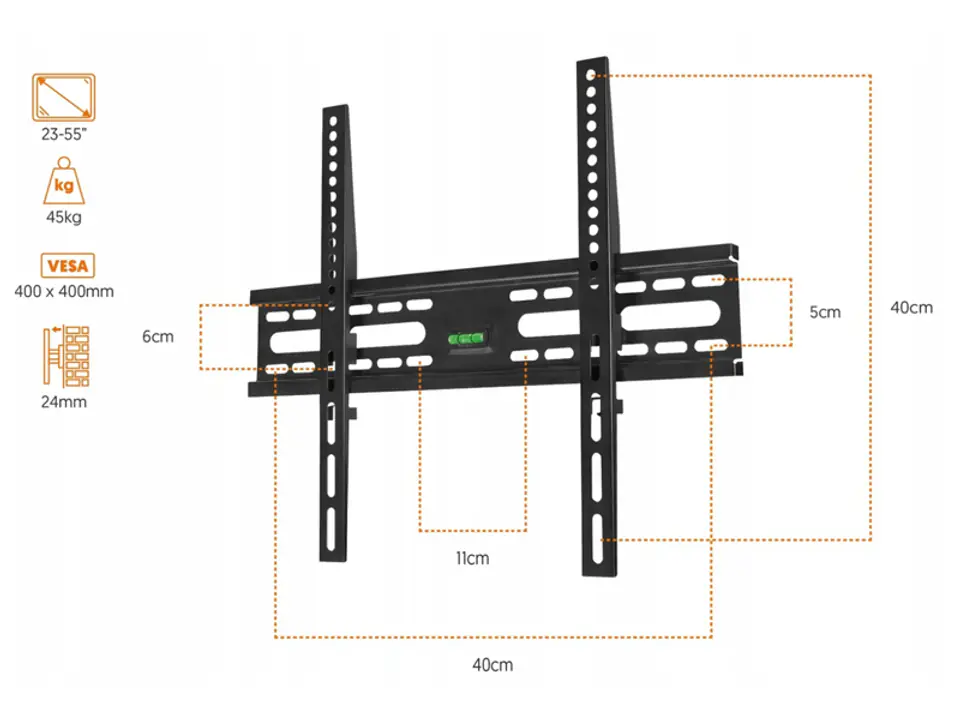

TECHNICAL SPECIFICATIONS:
- Fit TV: 23 - 55 inch
- Maximum load: up to 45 kg
- TV wall distance: 24 mm
- Built-in spirit level: YES
- Movable arms: Yes
- Color: Black powder coated

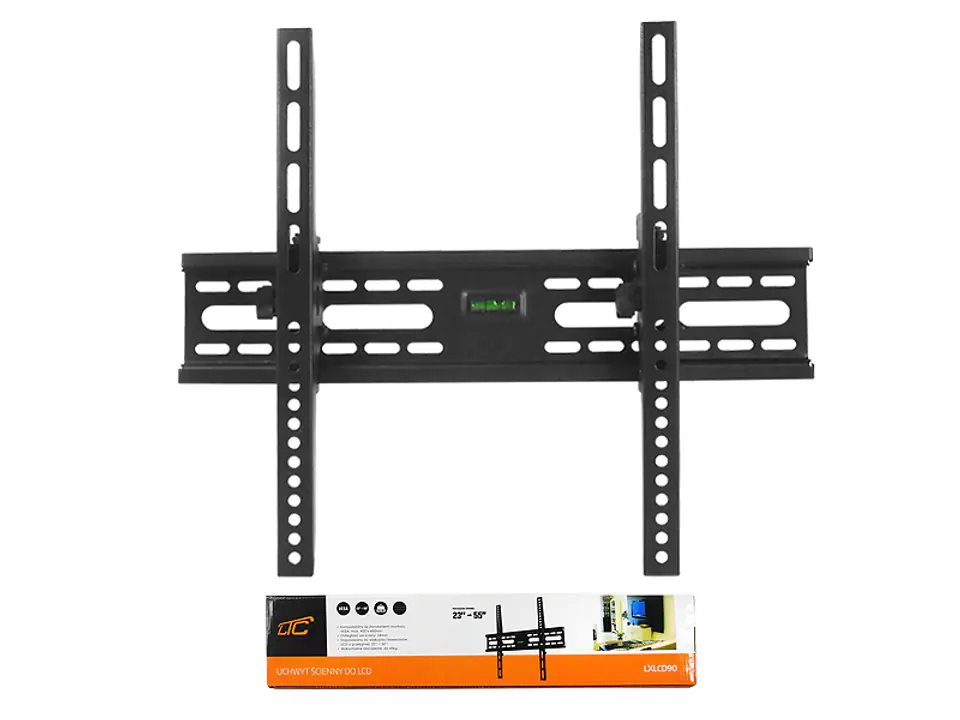

INCLUDED:
- Handle
- Installation instructions
- A set of bolts and nuts needed for assembly
- (receipt / invoice)
- Warranty card
The mounting pins and screws included in the kit do not guarantee correct installation on all types of walls.
The person assembling the bracket is responsible for selecting the type, number and size of mounting pins and screws.
Poor selection of pins and screws for the type of wall and weight of the TV or their incorrect installation may lead to tearing the handle out of the wall, which will result in damage to the TV, wall, environment and poses a risk to human health and life.
STANDARD WITH VESA (mounting hole spacing):
- VESA 75x75 (horizontal 75 mm x vertical 75 mm)
- VESA 100x100 (horizontal 100 mm x vertical 100 mm)
- VESA 200x100 (horizontal 200 mm x vertical 100 mm)
- VESA 200x200 (horizontal 200 mm x vertical 200 mm)
- VESA 200x300 (horizontal 200 mm x vertical 300 mm)
- VESA 200x400 (horizontal 200 mm x vertical 400 mm)
- VESA 300x200 (horizontal 300 mm x vertical 200 mm)
- VESA 300x300 (horizontal 300 mm x vertical 300 mm)
- VESA 400x200 (horizontal 400 mm x vertical 200 mm)
- VESA 400x400 (horizontal 400 mm x vertical 400 mm)
- And all intermediate, e.g. horizontal 366 x vertical 231
