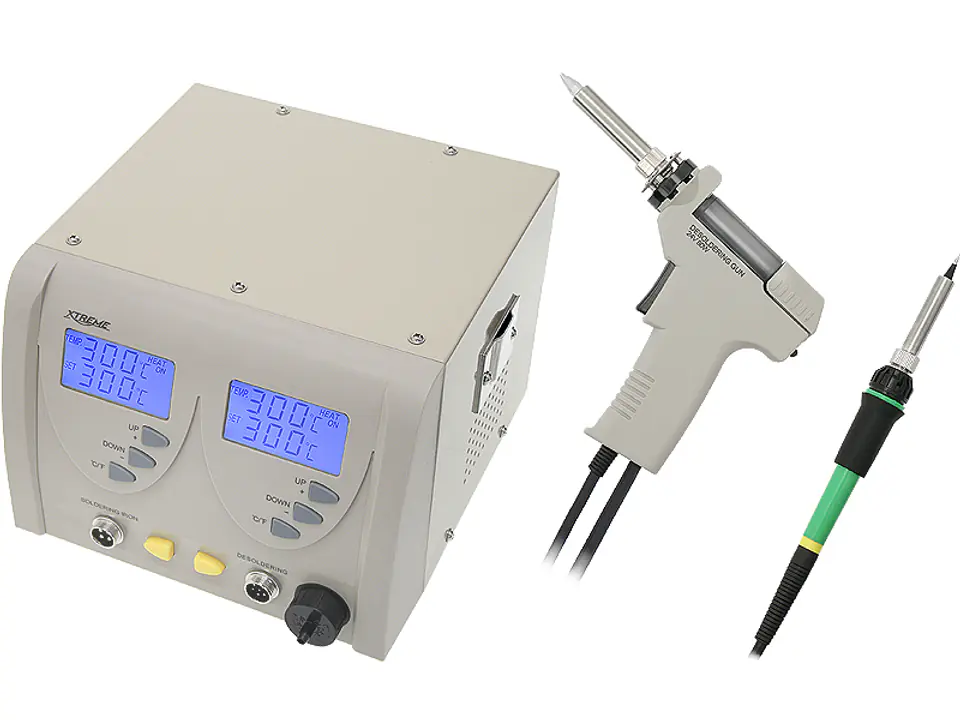

The PR-ZD-917 soldering station is a high-quality multifunctional device for soldering/soldering electronic components. It enables surface mounting of integrated circuits without the risk of damaging the print or components.
FEATURES:
- Interesting appearance, simple operation
- Rapid increase in temperature level

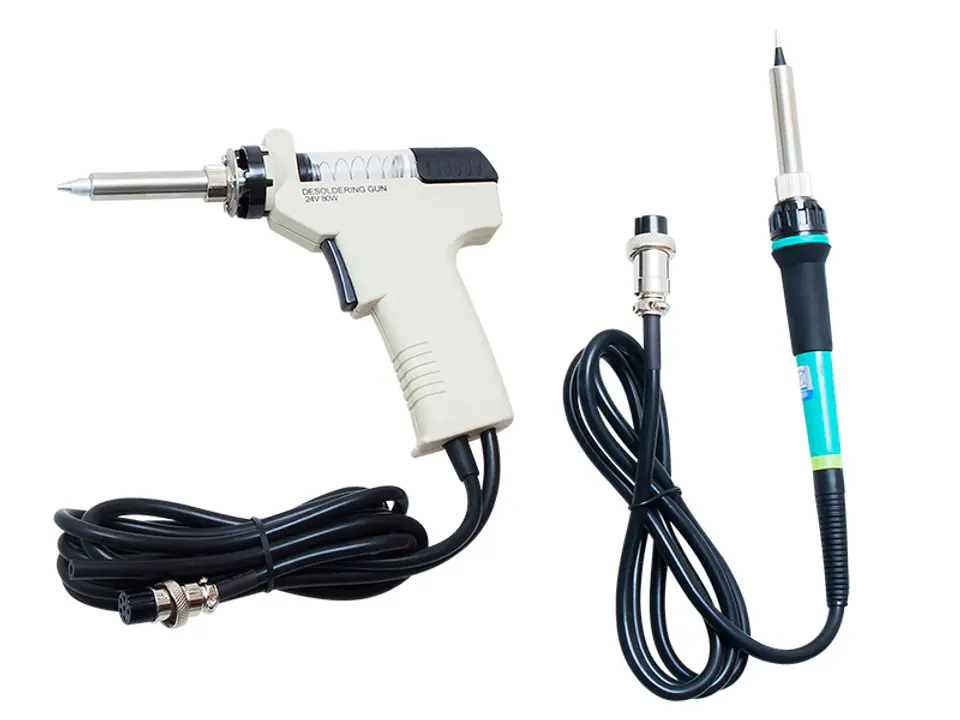

- Pistol handle with desoldering function allows easy and quick removal of tin residues from single-sided and double-sided printed circuit boards
- Thermostat function and digital temperature control
- Wide range of applications in the field of electronic equipment manufacturing, service repairs, soldering/soldering of electronic components, etc.
- Built-in sensor allows you to maintain a constant set temperature at the tip of the soldering tip
- Replaceable tips and soldering tips

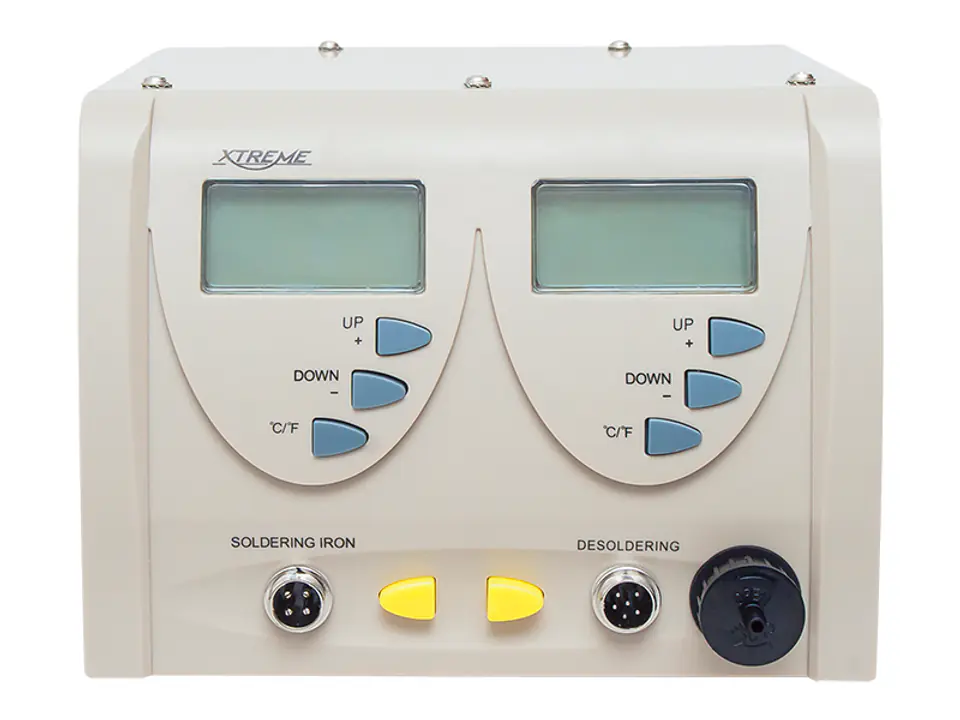

- Two LCD displays the set and current temperature (can be displayed in Celsius or Fahrenheit)
TECHNICAL DATA:
Soldering station:
- Power supply: 220~240V AC
- Power consumption: 60W+80W
- Fuse: 3.15A
Soldering iron with tip:
- Power supply: 24V AC
- Power: 60-130W
- Temperature: 160C~480C
- Heating element: ceramic insert
Desoldering heater:
- Voltage: 24V AC
- Vacuum: 600mm HG
- Power consumption: 80-130W
- Temperature: 160°C~480°C
- Heating element: ceramic insert
Consumables to fit the device:- heater ZD 88-415A 5372#
- heater ZD 88-552A 5396#
- tip 79-1416 5273#- tip 79-1426 5278#
