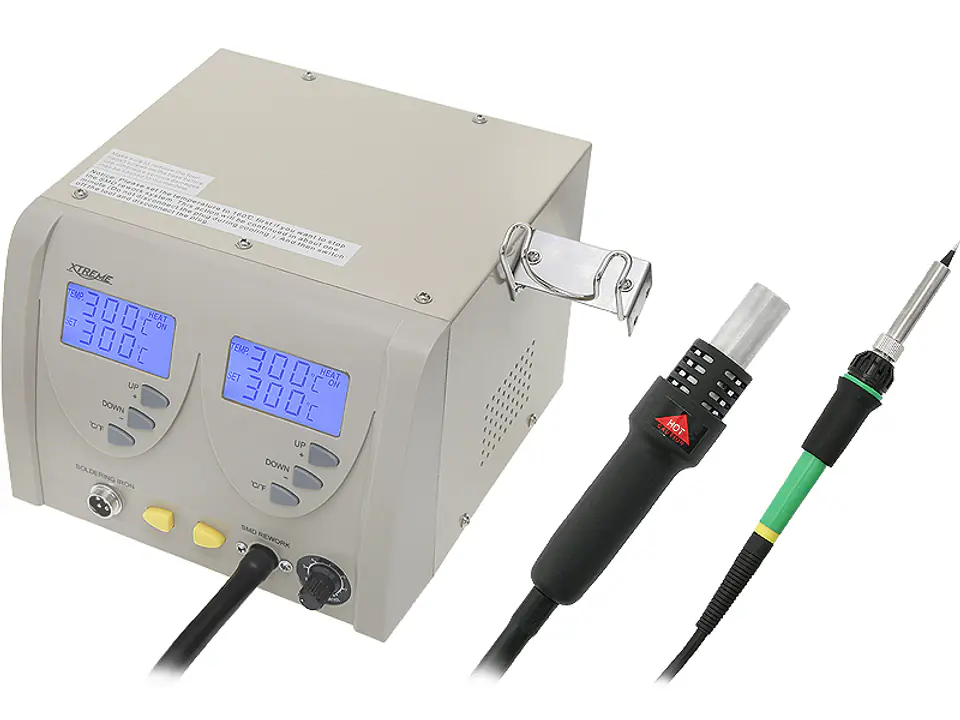

The PR-ZD-912 soldering station is a high-quality multifunctional device for soldering/soldering electronic components. It enables surface mounting of integrated circuits without the risk of damaging the print or components.
FEATURES:
- Interesting appearance, simple operation
- Rapid increase in temperature level
- Possibility to adjust the temperature of hot air in the range: 160C-480C
- Possibility to adjust the flow of hot air in the range: 3L-24L

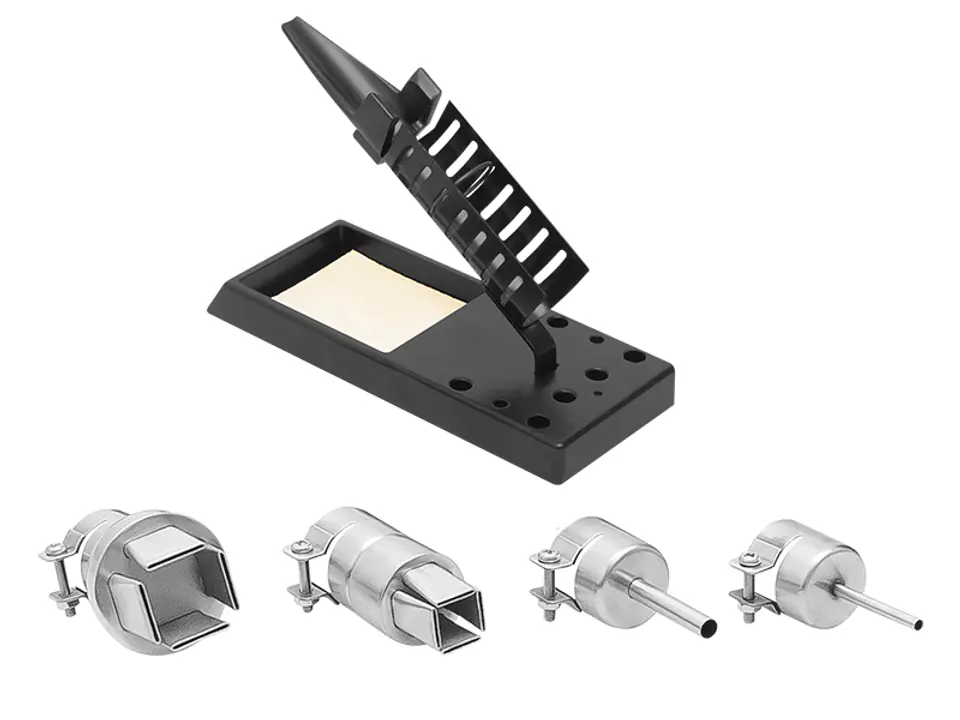

- A variety of available nozzles of different diameters ensures comfortable work in the field of soldering / soldering
- Thermostat function and digital temperature control
- Wide range of applications in the field of electronic equipment manufacturing, service repairs, soldering/soldering of electronic components, etc.
- Built-in sensor allows you to maintain a constant set temperature at the tip of the soldering tip

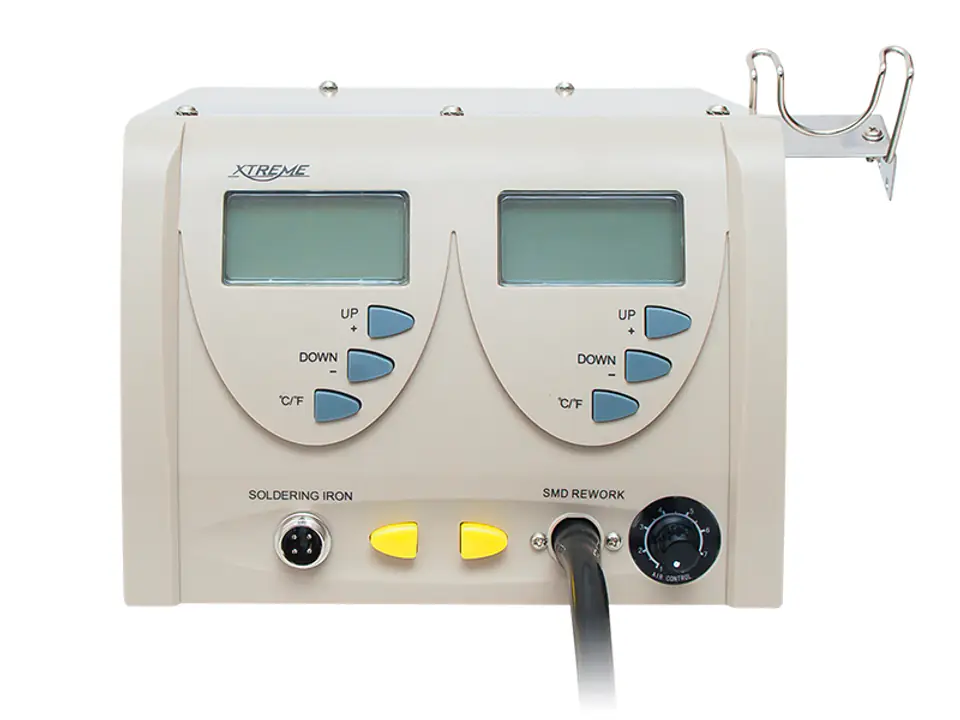

- Two LCD displays the set and current temperature (can be displayed in Celsius or Fahrenheit)
TECHNICAL DATA:
Soldering station:
- Power supply: 220~240V AC
- Power consumption: 60W+320W
- Fuse: 3.15A
- Air pump: diaphragm

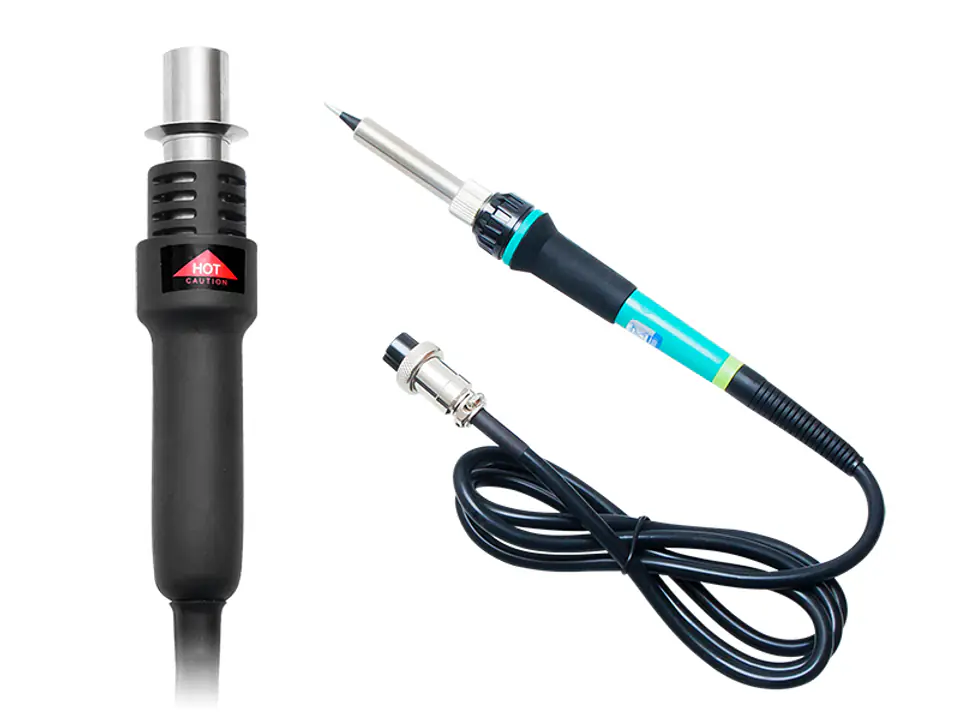

Soldering iron with tip:
- Power supply: 24V AC
- Power: 60-130W
- Heating element: ceramic insert
Hot air soldering iron:
- Voltage: 220~240V AC
- Capacity: 24L
- Power: 320W
- Temperature: 160C~480C
Consumables to fit the device:- heater for PR-ZD-939 5199#
- heater ZD 88-415A 5372#
- tip 79-1416 5273#- tip 79-1426 5278#- nozzle for station lut.na area 3901 52441#
- nozzle for lut.na station area 3902 52442#
- nozzle for lut.na station area 3903 52443#- nozzle for station lut.na area 3904 52444#
- nozzle for lut.na station area 3905 52445#
- nozzle for lut.na station area 3906 52446#
- nozzle for lut.na station area 3907 52447#
- nozzle for lut.na station area 3908 52448#
- nozzle for lut.na station area 3909 52449#- nozzle for station lut.na area 3910 52440#
Warranty to download here.
