Manufacturer Name: S-LS-4
Universal Soldering station of the German manufacturer STAMOS SOLDERING made of high quality, original components.
The device combines several functions necessary for professional soldering with electronic circuits such as SOIC, QFP, PLCC, BGA, SMD, etc. The device is fully digitally controlled and controlled by an advanced PID system providing very precise temperature control.

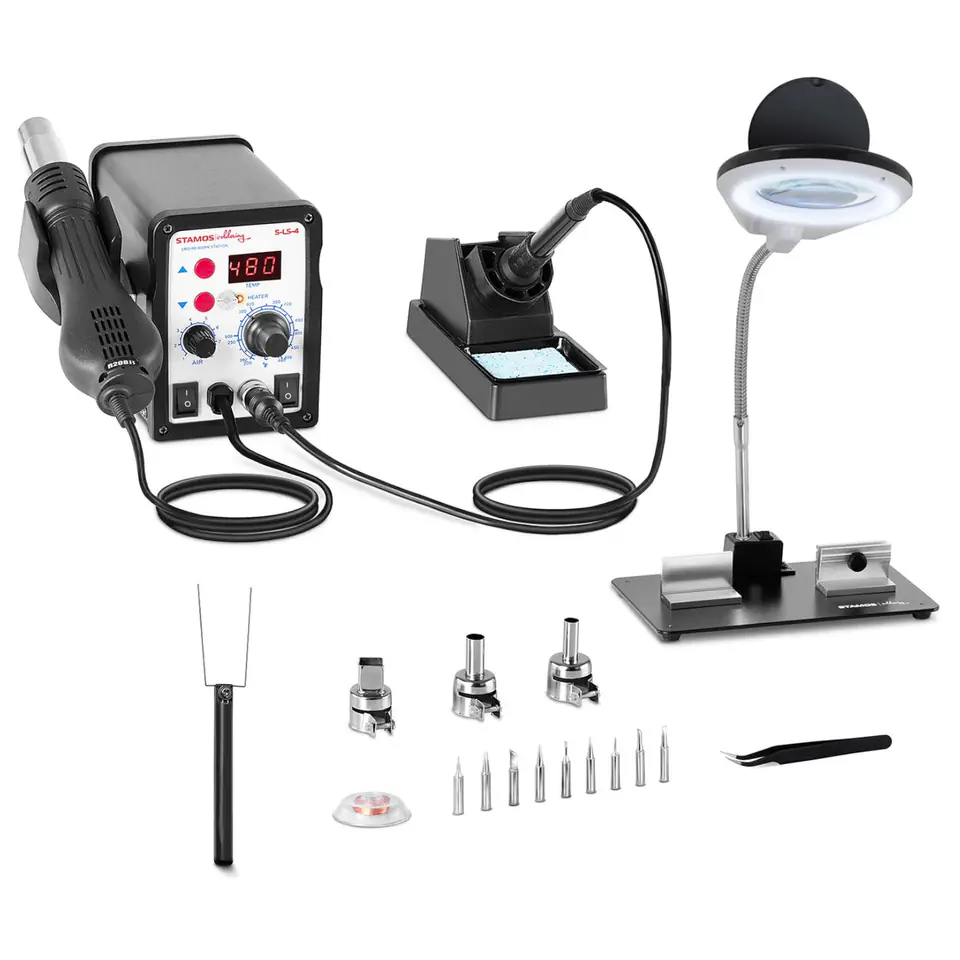

The integrated soldering station includes the following devices:

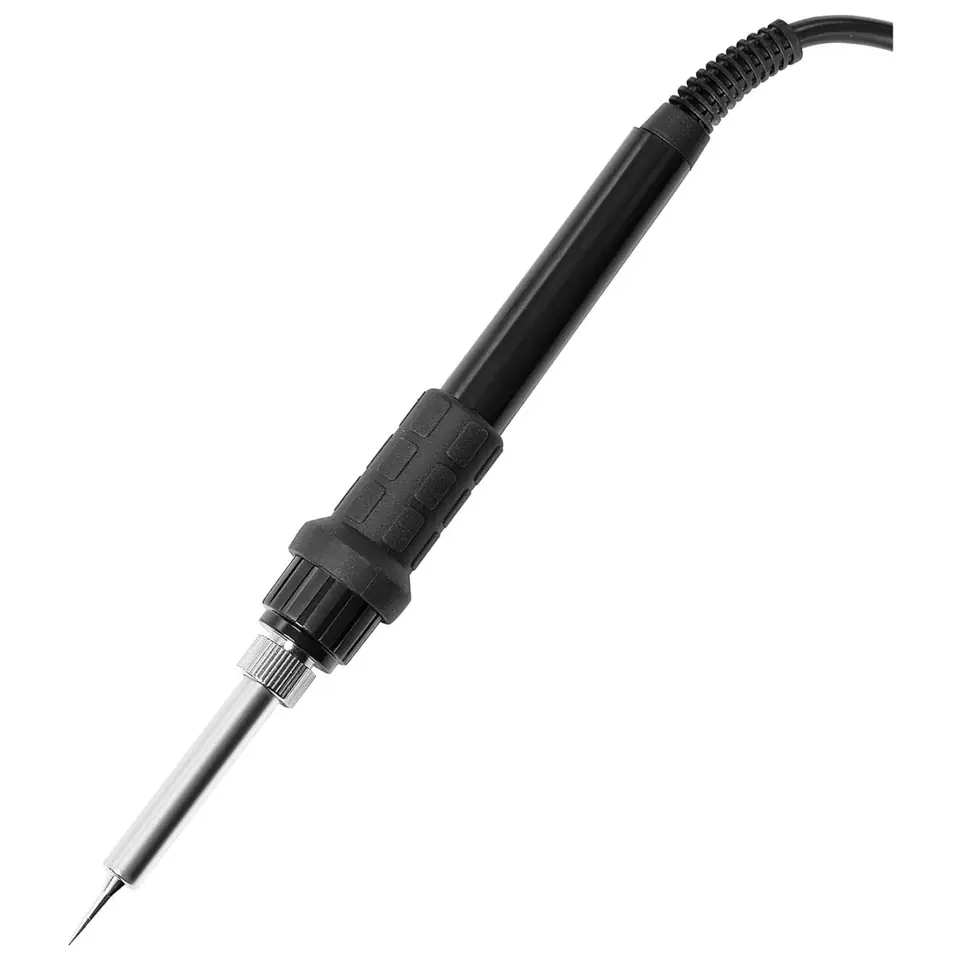

SOLDERING IRON - TIP FLASK with power 60W with protection protecting ESD Safe electronic systems
HOT AIR MODULE with an efficient 650W heater and a fan providing air flow of 120 l/min. The flask with hot air blowing has many applications, including:
- soldering and desoldering of surface-mounted components (SMD)
- heating and defrosting
- shrinking shrink sleeves
- dissolution of adhesives
- tanning paints
- plastic welding
- many other applications where a temperature of 100 to 450 C is necessary
Technical parameters:
- - Model - S-LS-4
- - Catalogue number - 6103
- - Article status - New
- - Voltage - 230 V / 50 Hz
- - Power - 700 W
- - Rated current - 6 A
- - Display - LED
- - Output power - 60 W
- - Temperature control range - from 200 to 480C
- - Output power - 650 W
- - Temperature control range - from 100 to 450C
- - Air flow velocity - 120 l / min
- - Power - 3 W
- - Light type - LED
- - Number of diodes - 40 pcs.
- - Magnification - 5x / 10x (diopters)
- - Light intensity - 8000 lx
- - Max. lamp height - 300 mm
- - Base dimensions - 200 x 125 x 3 mm
- - Dimensions (LxWxH) - 17.5 x 16 x 14 cm
- - Weight - 1.95 kg
- - Shipping dimensions (LxWxH) - 30.5 x 21 x 24 cm
- - Shipping weight - 4.15 kg

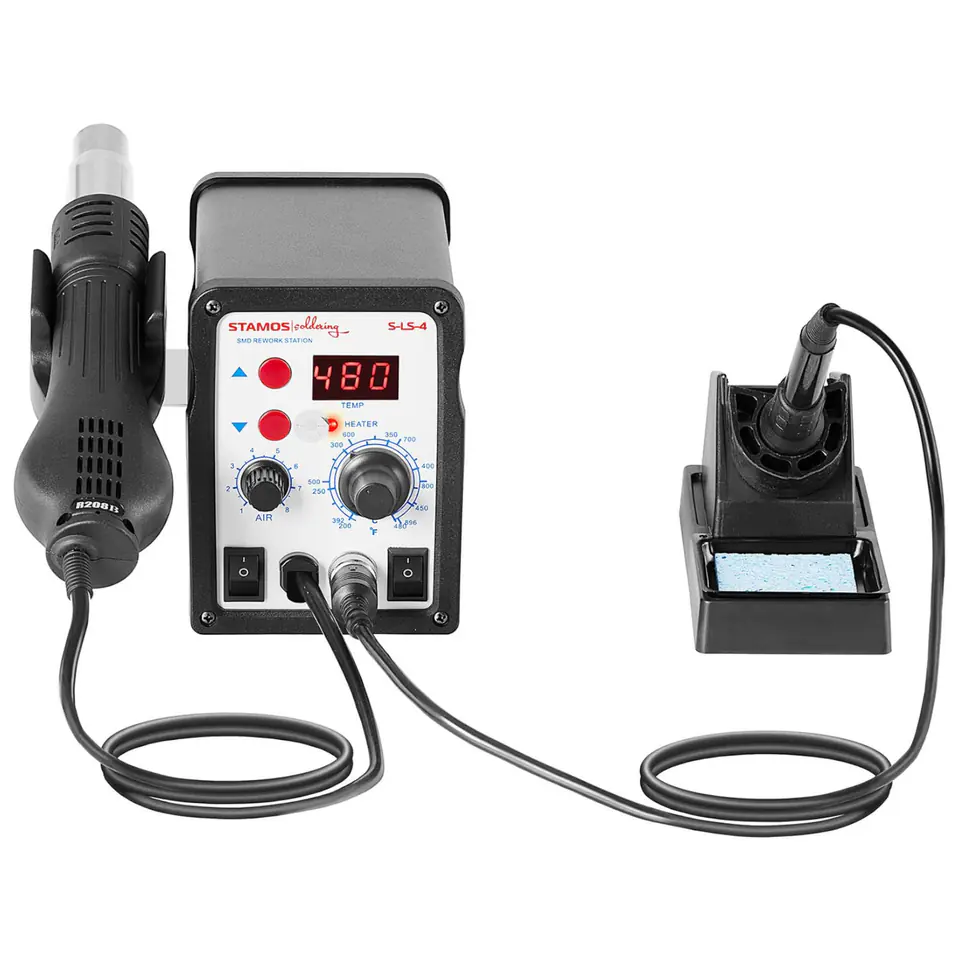

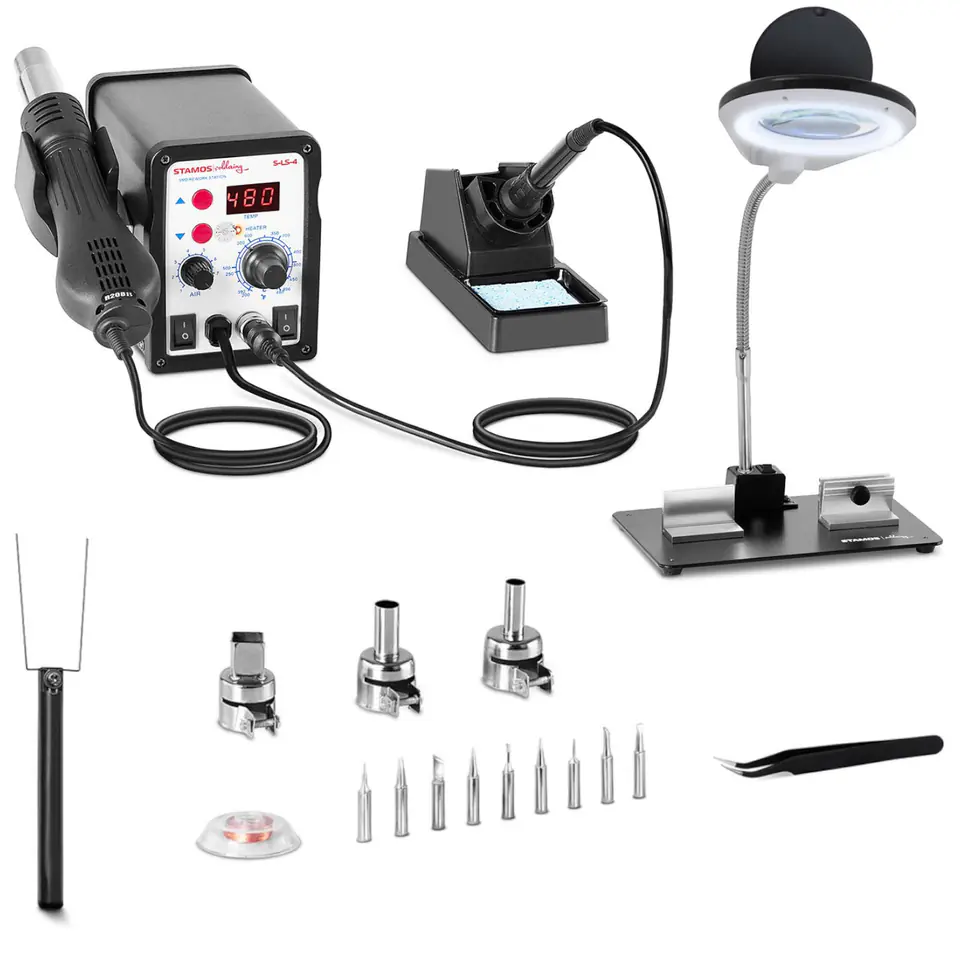

- - 2in1 soldering station (control module, tip soldering iron, HOT AIR module)

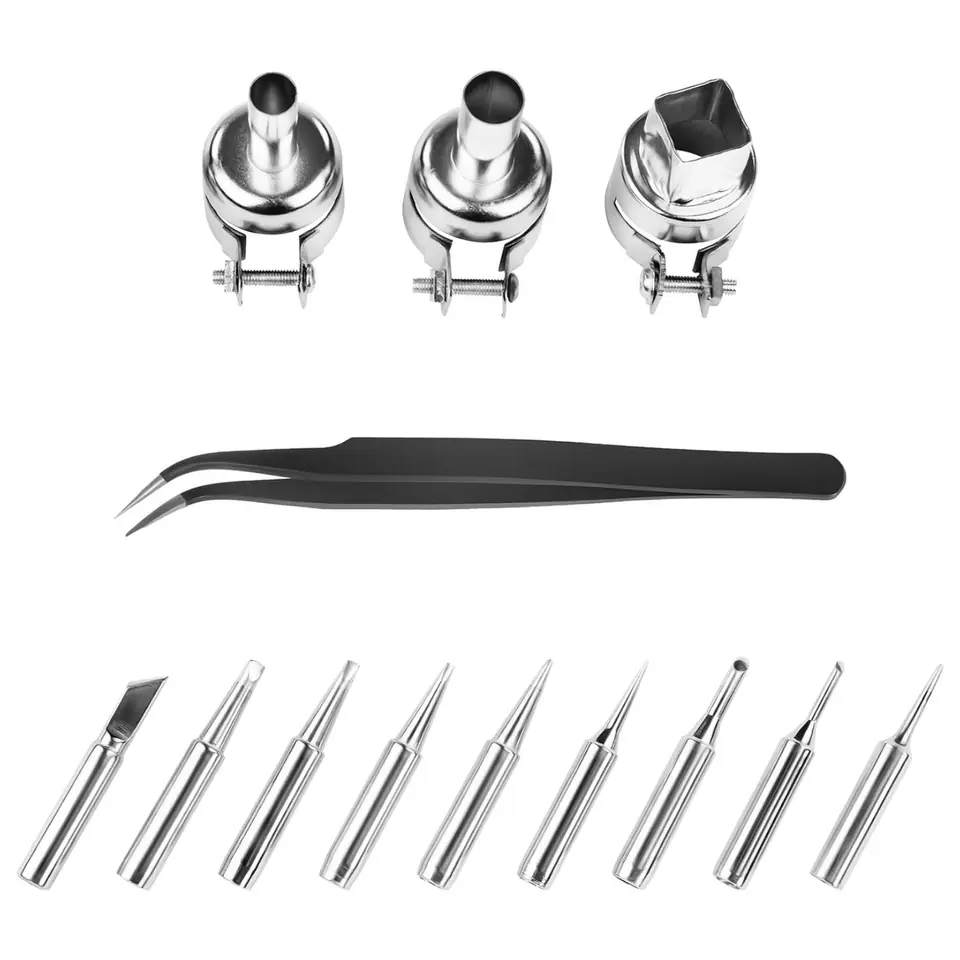

- - 9 soldering tips (except the one in the soldering flask)
- - 3 nozzles for hot air

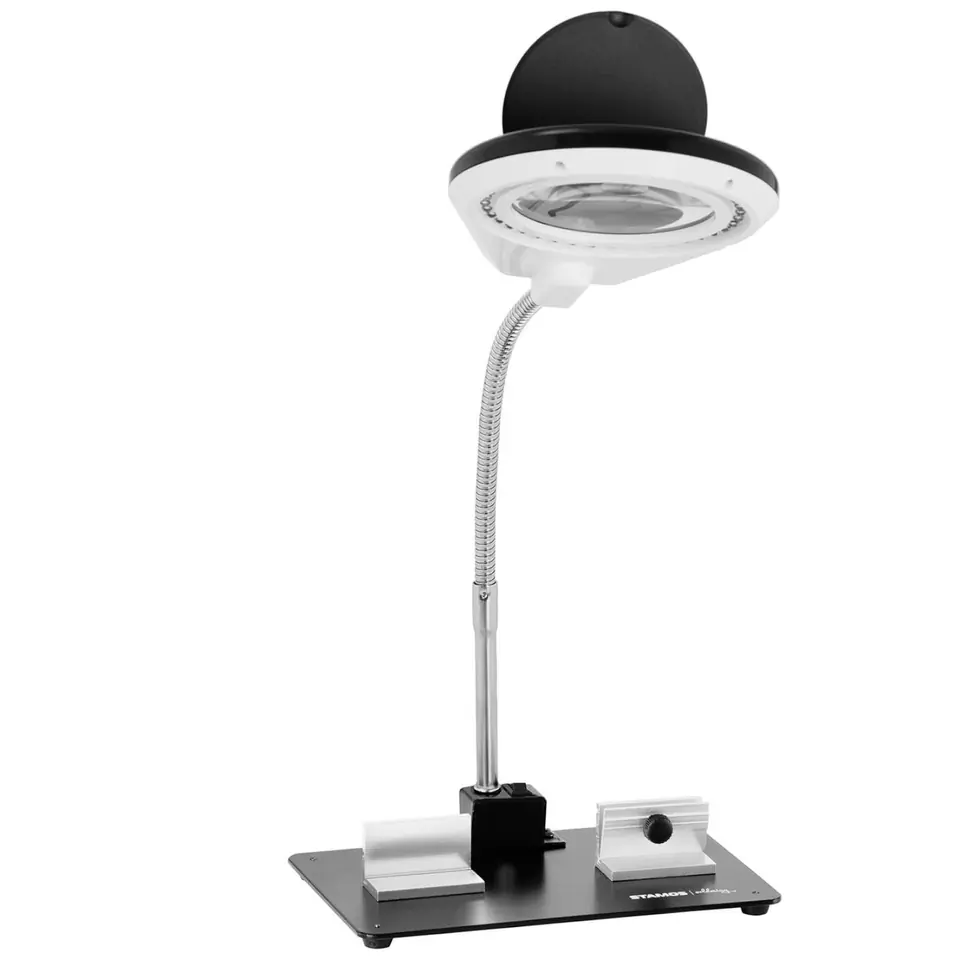

- - Magnifying glass with integrated lamp
- - Tweezers for gripping heated components

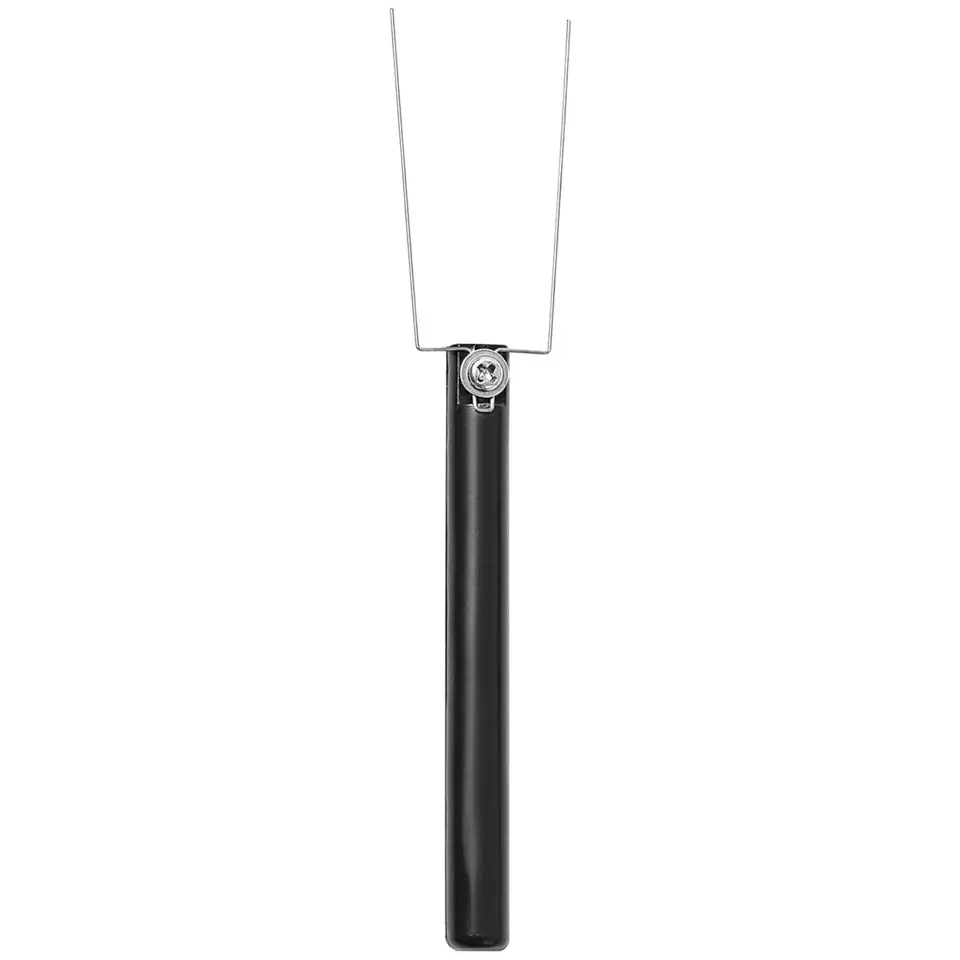

- - Component lift (so-called IC popper)
- - Tape for desoldering

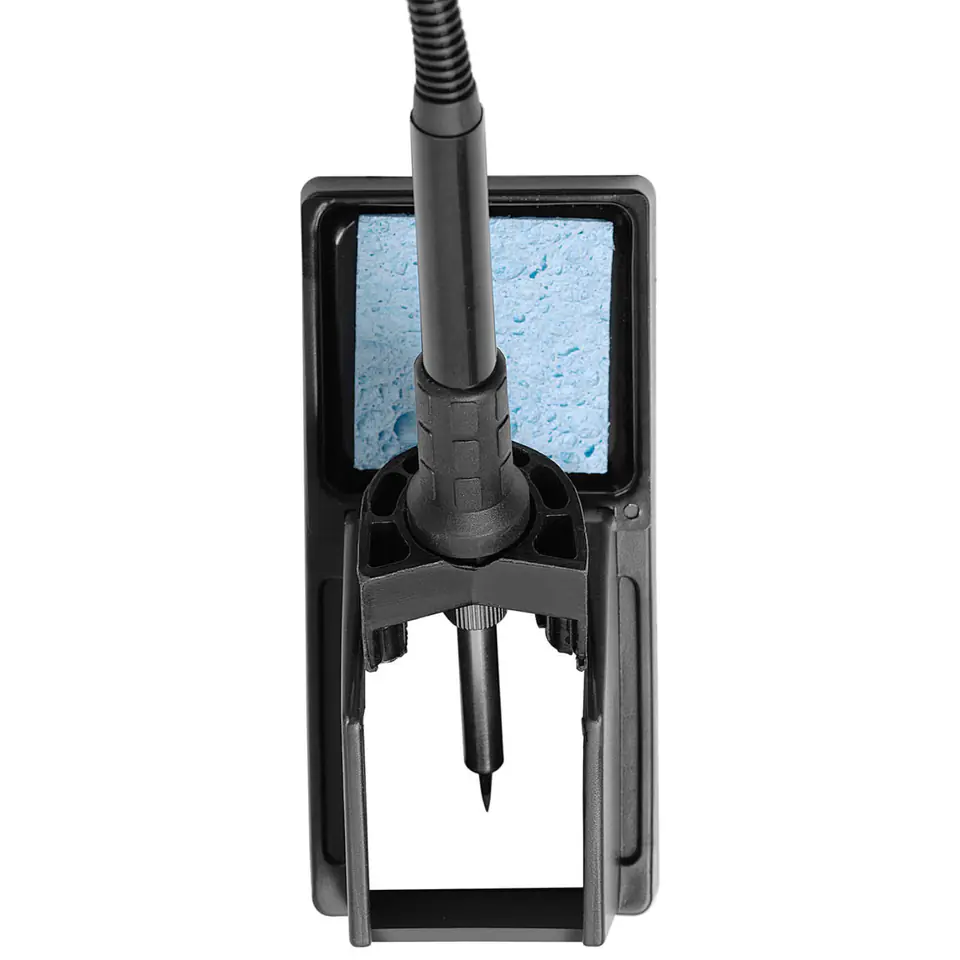

- - Stand with sponge for soldering stock
