Solar tool set MC4 PV E6108

A set of solid tools compatible with MC4 connectors and the most popular cabling used in photovoltaics.

The presented tools are ideal for creating photovoltaic installations. They allow you to perform all the necessary work related to the installation of connectors and connecting wires. They will ensure safety and speed of work.

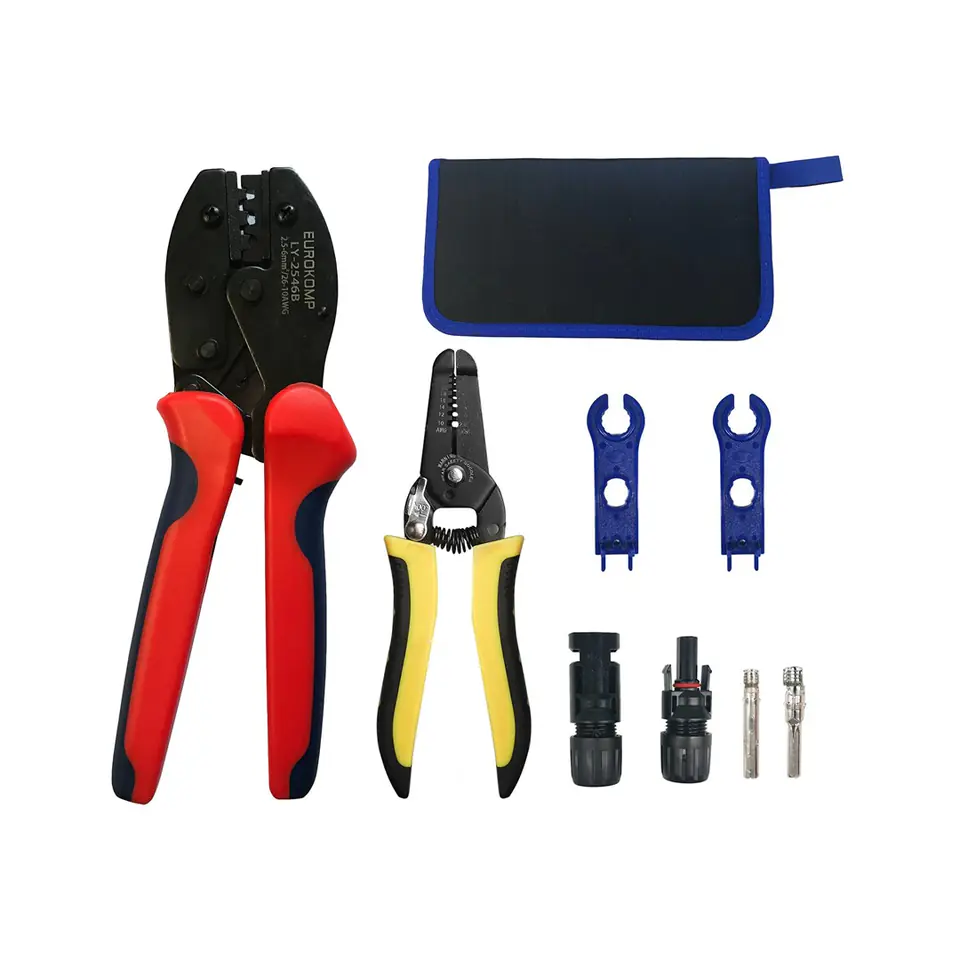

The set includes:

Crimping tool for MC4 connectors
Cable insulation stripper

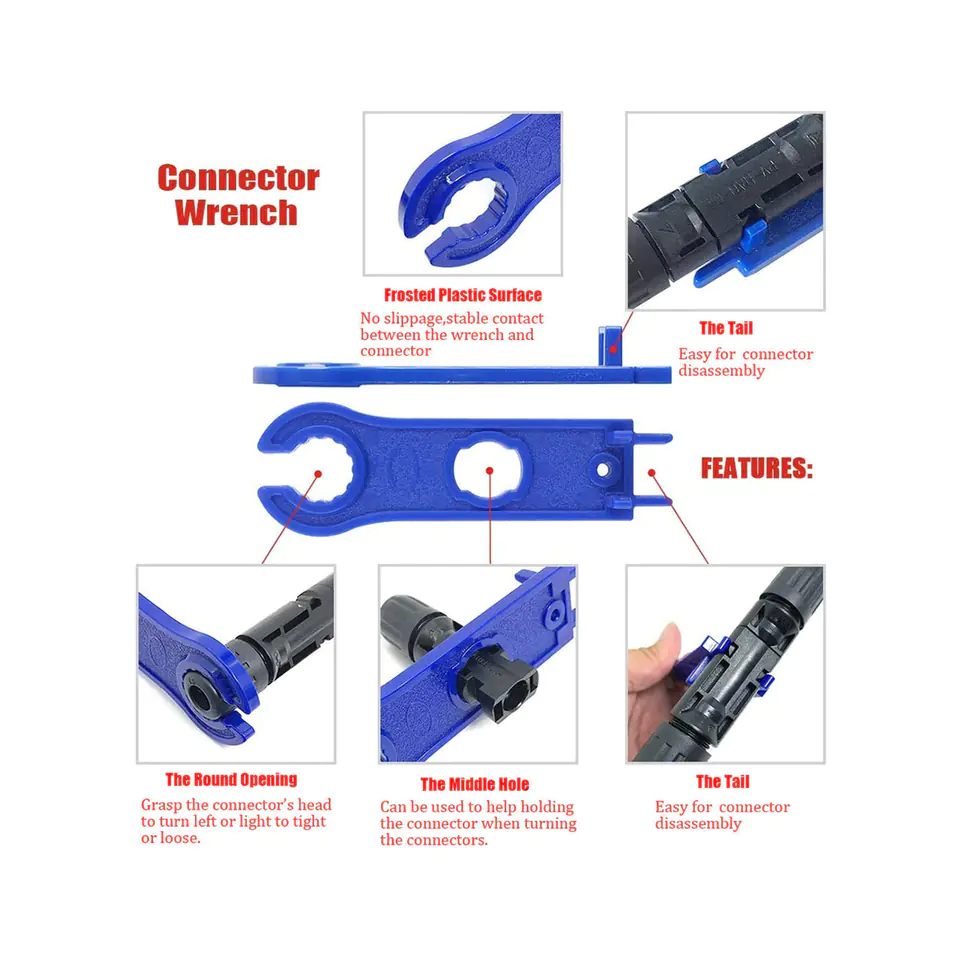

MC4 x 2 connector keys
Connectors type MC4 2pcs (socket + plug)
Storage and transport pouch

Crimping tool for MC4 solar connectors 2,5-6mm2

Manual press adapted for safe and efficient crimping of MC4 type solar connectors (both male and female) on copper, multi-wire wires. It has three independent working sockets.

Working Range: 2.5/4/6mm2
Material: tool steel
Length: 220 mm
Weight: 500 g
Ratchet clamping assist system (automatically released)
Hardened dies protected by screws against falling out
Comfortable handle for comfortable work
The clamping process requires little force

Cable stripper 0,9-5,5mm2

Pliers designed to remove insulation from single-core wires (wire, strand) or individual conductors of multicore cables.

Operating range: 0.9 - 5.5mm2 (18-10 AWG)
Material: tool steel
Length: 170 mm
Weight: 120 g
Rebound spring relieves the hand and makes work easier
Ergonomic handle guarantees comfort
Provides precise cutting, does not damage the conductor of the cable
Equipped with cutters,

Solar serial connectors type MC4 2pcs (socket + plug)

MC4 connectors (male and female) designed for use on solar cables. They enable professional joining of photovoltaic panels, ensuring a stable and safe connection.

Rated voltage: 1000 VDC
Maximum current: 30A
Contact Type: cylindrical connector ?4mm
Wiring cross-section: 4/6 mm2 (12/10 AWG)
Contact resistance: <0.5m?
Insulation material: PPO (polypropylene)
Cable connection: clamping
Safety class: II
Protection class: IP67 (connected)
Operating temperature: (-40°C) - (+85°C)

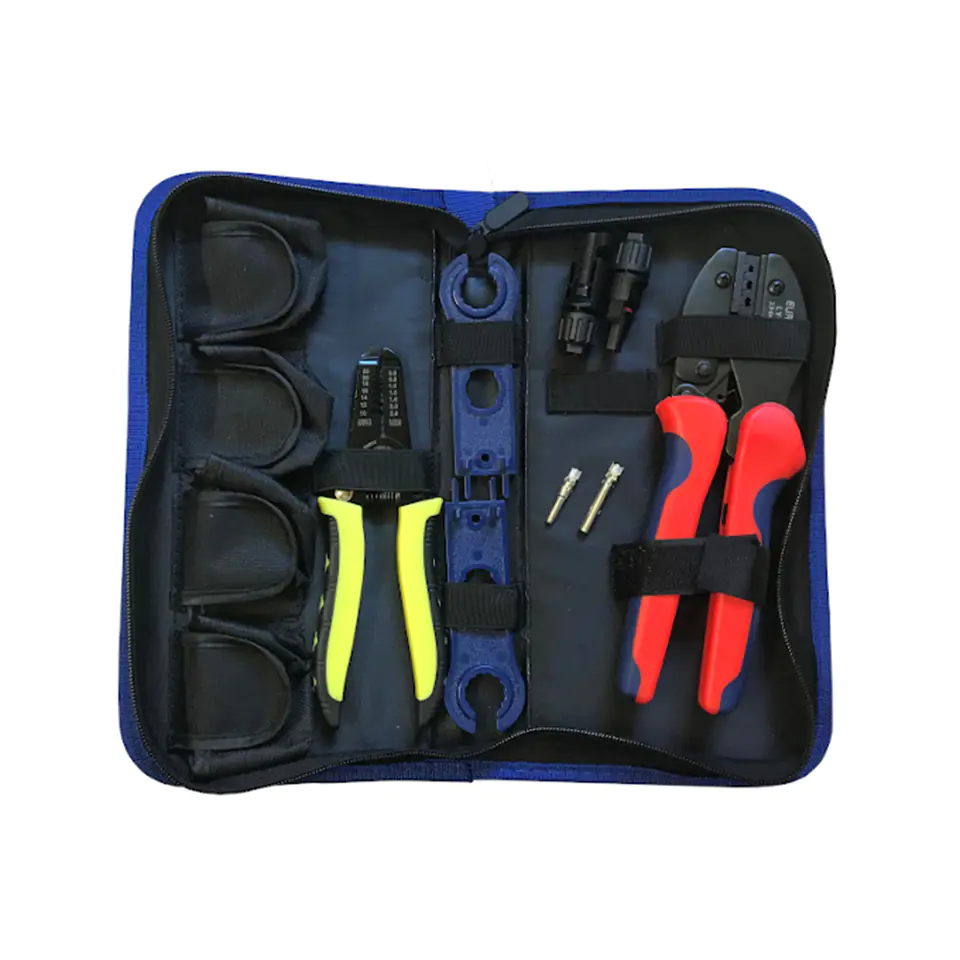

Practical pouch with 4 additional pockets

The case makes it easier to keep order, protects the tools against disassembly and damage.
