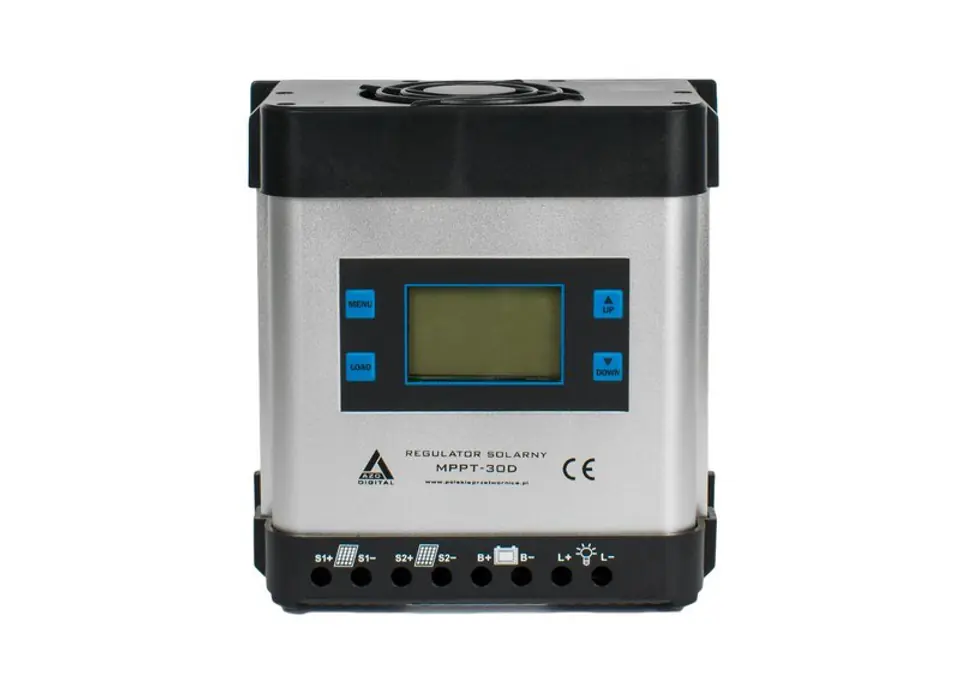

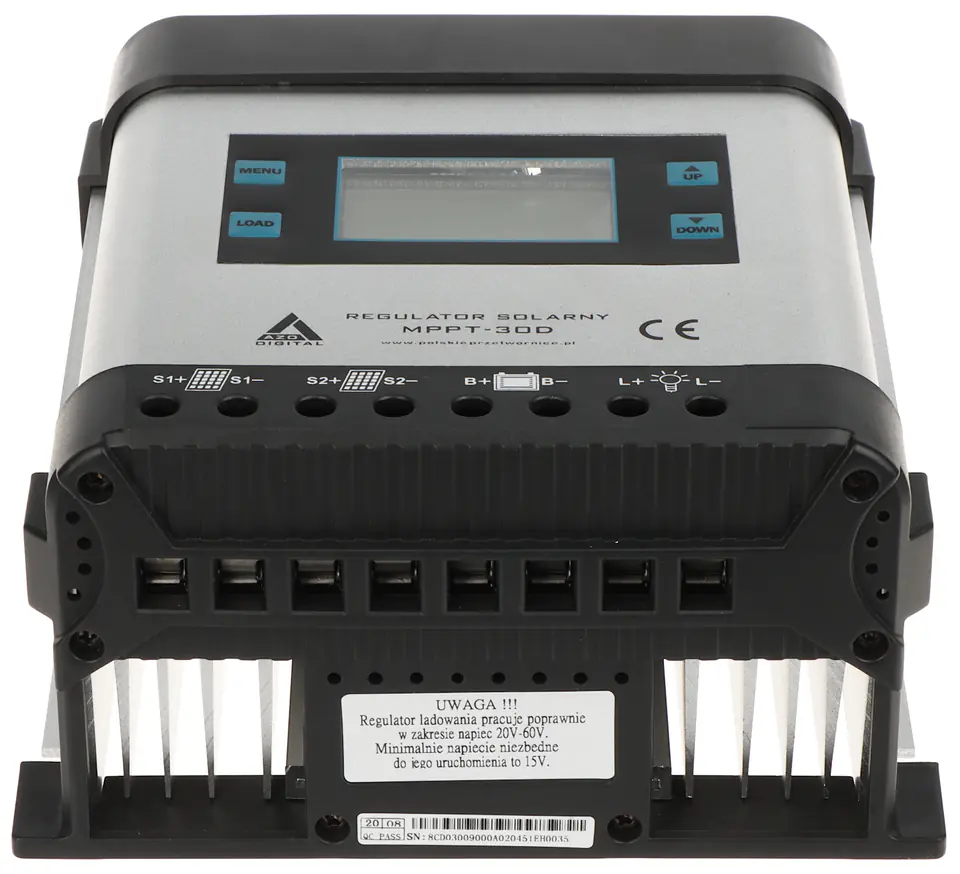

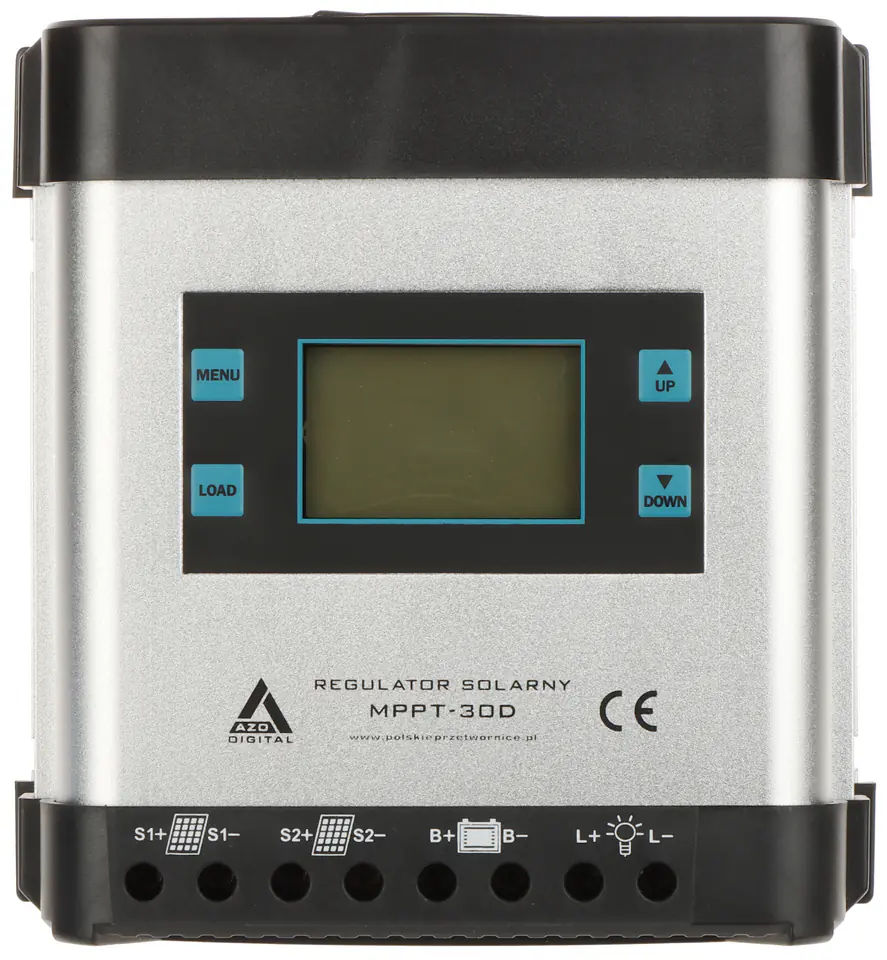

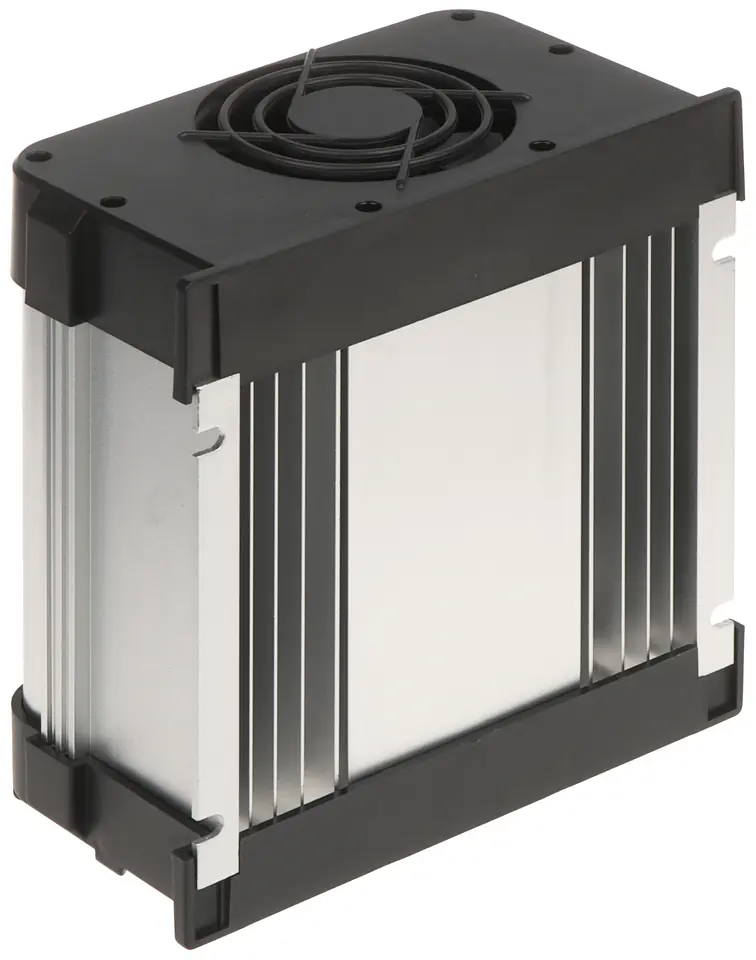

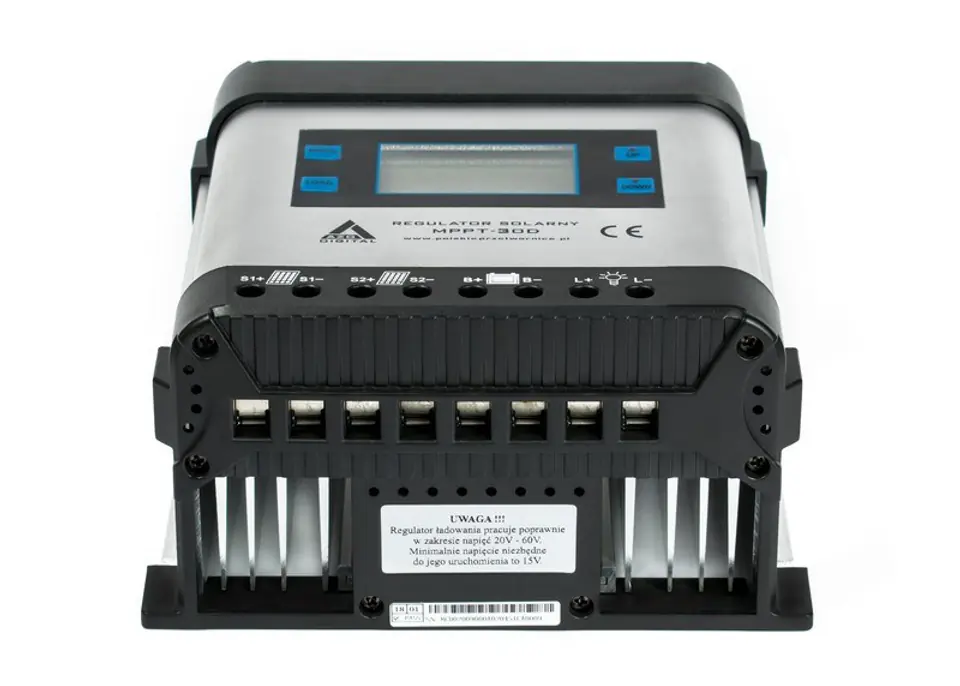

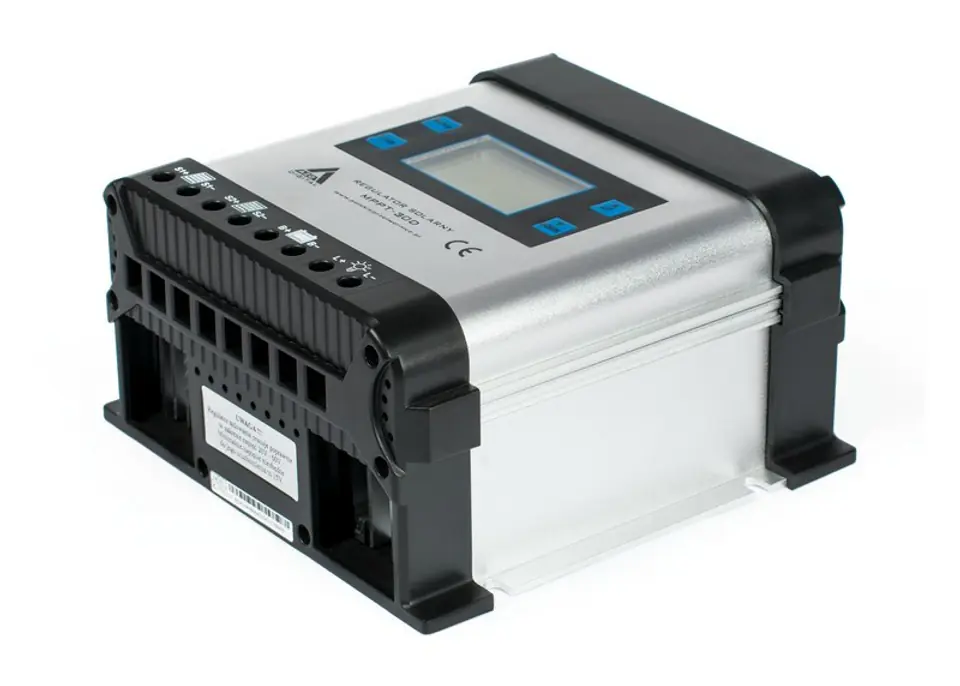

Solar MPPT charge controller AZO Digital 12/24 - 30A LCD display
€162.44
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- AZO DIGITAL
- Product code:
- AZO00D1179 / 5903332566280
Share this product:
Specification
| Built-in display: | LCD |
|---|---|
| Conductor cross section (max): | 16mm / 6AWG |
| Dc battery voltage: | 12 / 24 V |
| Depth: | 175 mm |
| Height: | 95 mm |
| Input voltage: | 12V: 20V-60V / 24V: 30V-90V (auto-detection) |
| International protection (ip) code: | IP21 |
| Maximum charging current: | 30 A |
| Mppt function: | Yes |
| Operating temperature (t-t): | -25 - 55 °C |
| Power current type: | DC |
| Power protection features: | Over voltage, Overheating, Overvoltage protection, Overcharge |
| Product colour: | White |
| Specific features: | Internal power consumption: <1mA (standby) / 15mA (operation) / 130mA (operation with connected load) |
| Supported battery type: | AGM / Gel |
| Temperature compensation: | 12V: 18mV/°C / 24V: 36mV/°C |
| Weight: | 1.54 kg |
| Width: | 175 mm |
