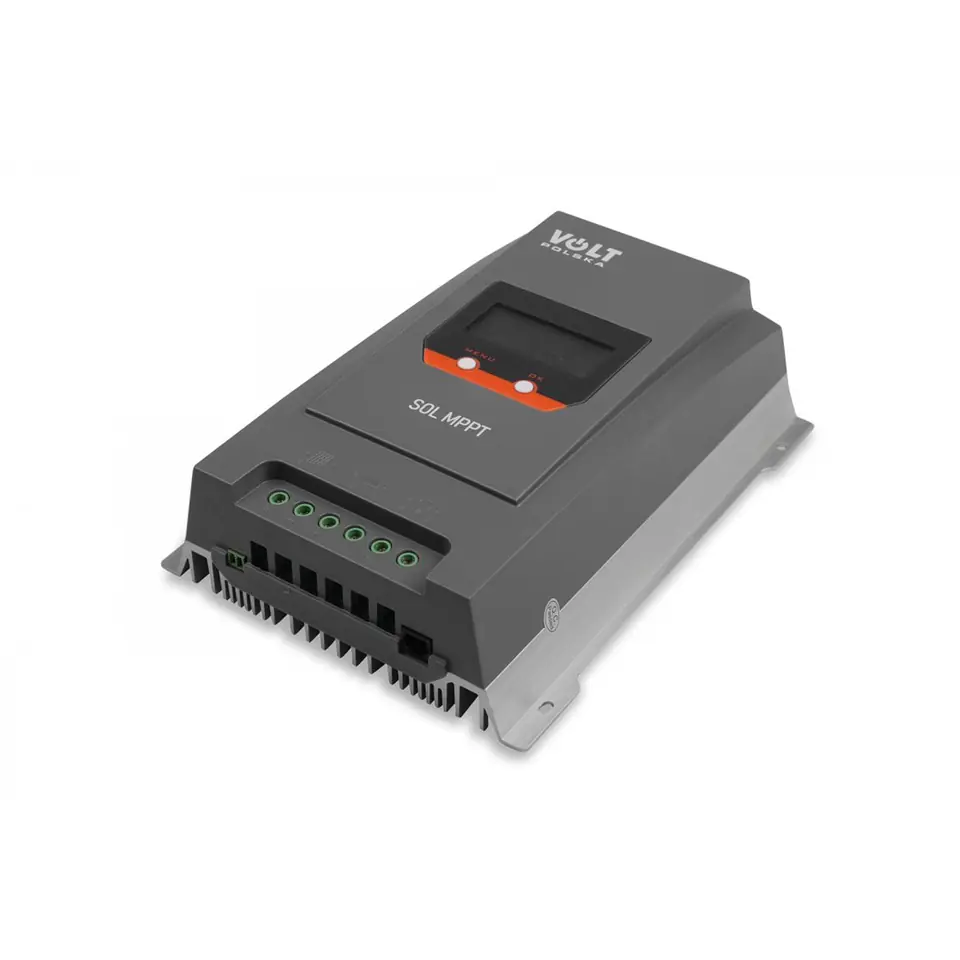

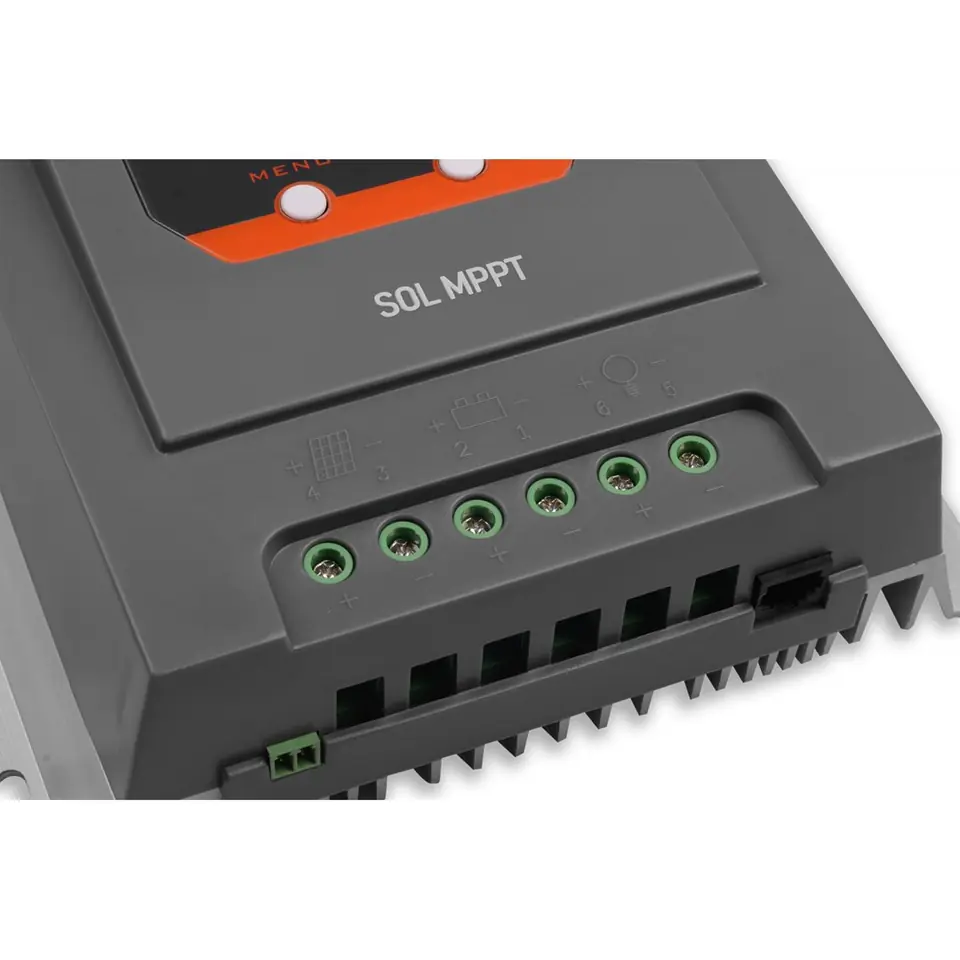

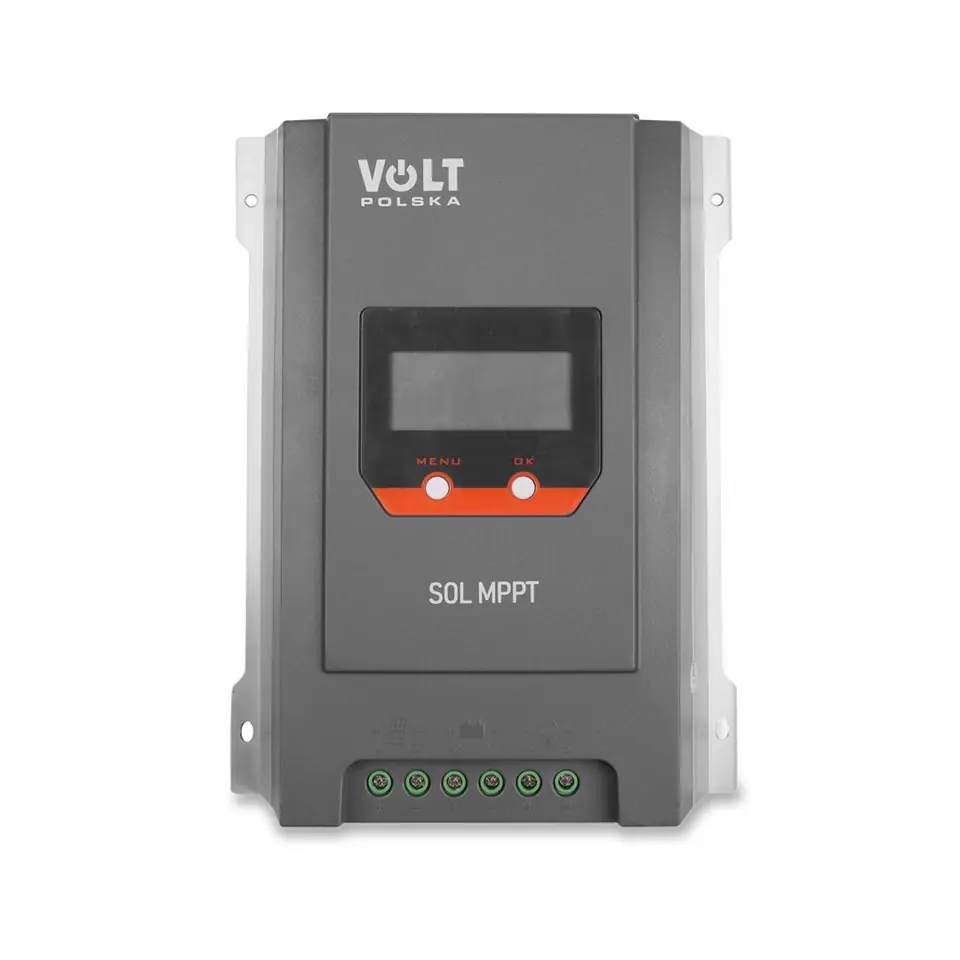

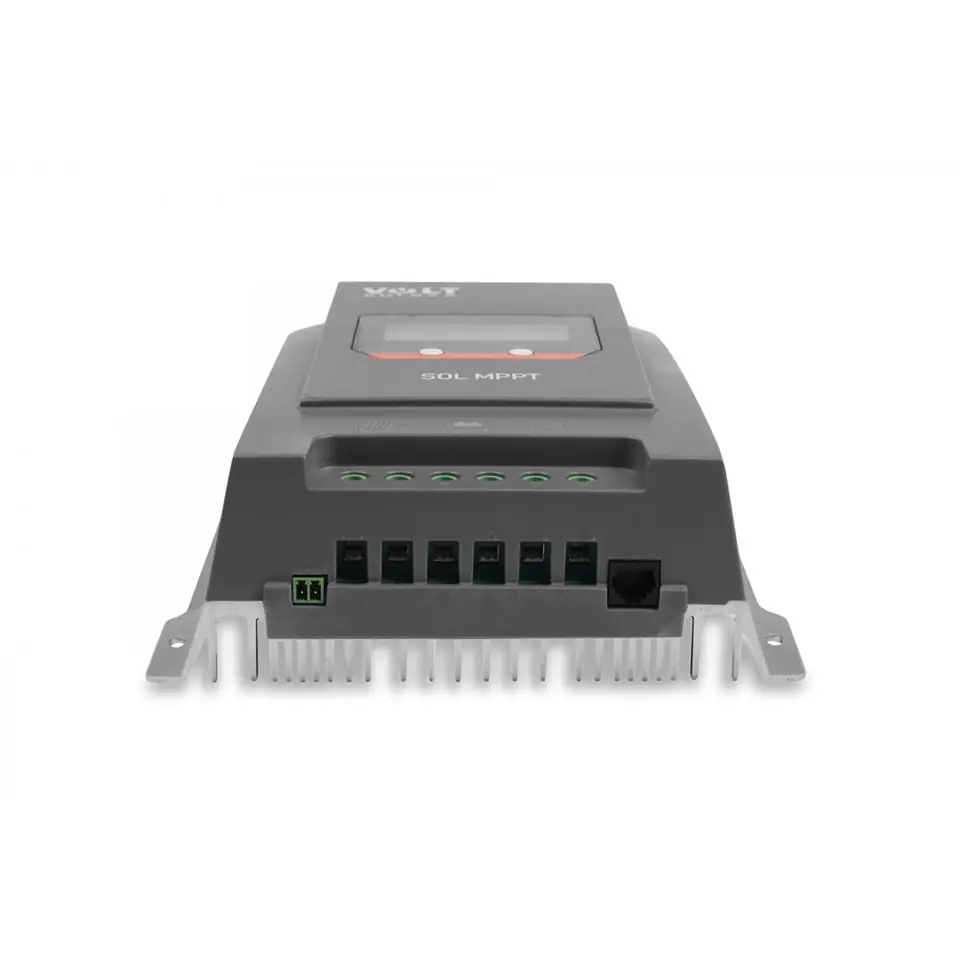

Solar controller SOL MPPT 40A 150V) 24/48V + LCD + BLUETOOT
€168.42
Shipping from warehouse: V4
Estimated shipping: Mon, Nov 18 - Mon, Nov 25
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- SOL MPPT 40 / 5904100450480
Share this product:
Specification
| Applications support: | Yes |
|---|---|
| Battery operation: | Yes |
| Bluetooth: | Yes |
| Boost voltage: | 28.0~29.6V/56.0~59.2V 25°C |
| Built-in display: | Yes |
| Charging mode: | MPPT |
| Control type: | Buttons |
| Dc battery voltage: | 24 / 48 V |
| Depth: | 89 mm |
| Disconnection of consumers at low voltage: | 21.6~23.6V/43.2~47.2V SOC1~5 |
| Display type: | LCD |
| Equalization voltage: | 28.¬¬0~30.0V/56.0~60.0V 25°C |
| Float voltage: | 26.0~29.0V/52.0~58.0V 25°C |
| Height: | 255 mm |
| International protection (ip) code: | IP32 |
| Maximum charging current: | 40 A |
| Overload protection: | 31.3~62.3 V |
| Own power consumption: | ≤8mA(12 V),≤12mA(24 V) |
| Permissible voltage of pv solar panels: | 150 V |
| Power protection features: | Overheating, Over power, Overvoltage protection, Overcharge |
| Product colour: | Grey |
| Reconnection voltage: | 22.8~25.6V/45.6~51.2V |
| Supported battery type: | AGM / Gel / LiFePO |
| Temperature sensor: | Yes |
| Weight: | 2.5 kg |
| Width: | 189 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
