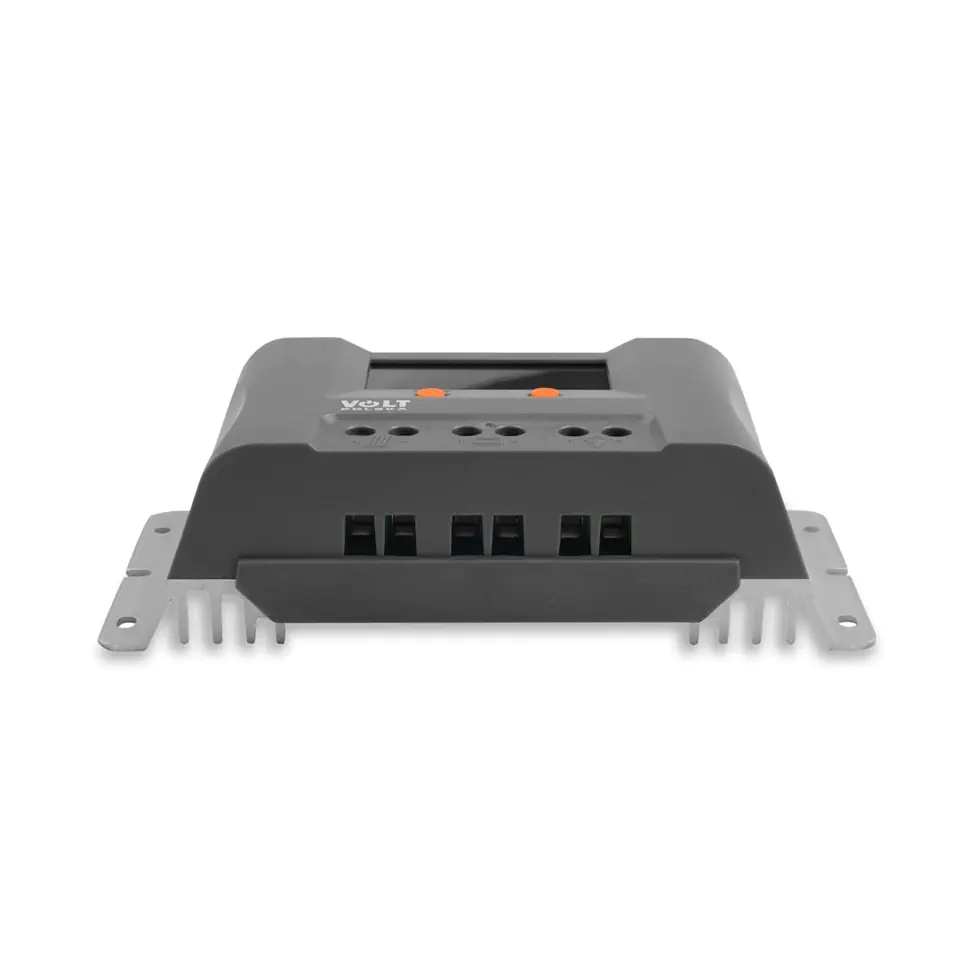

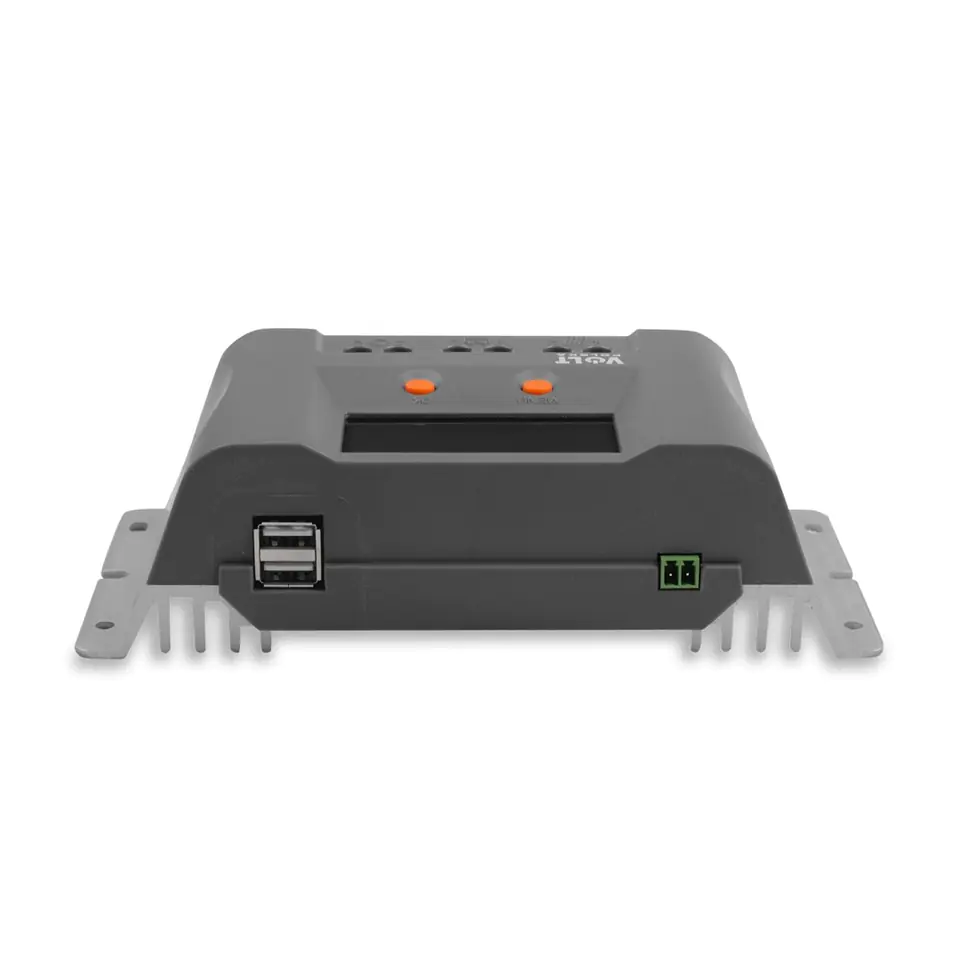

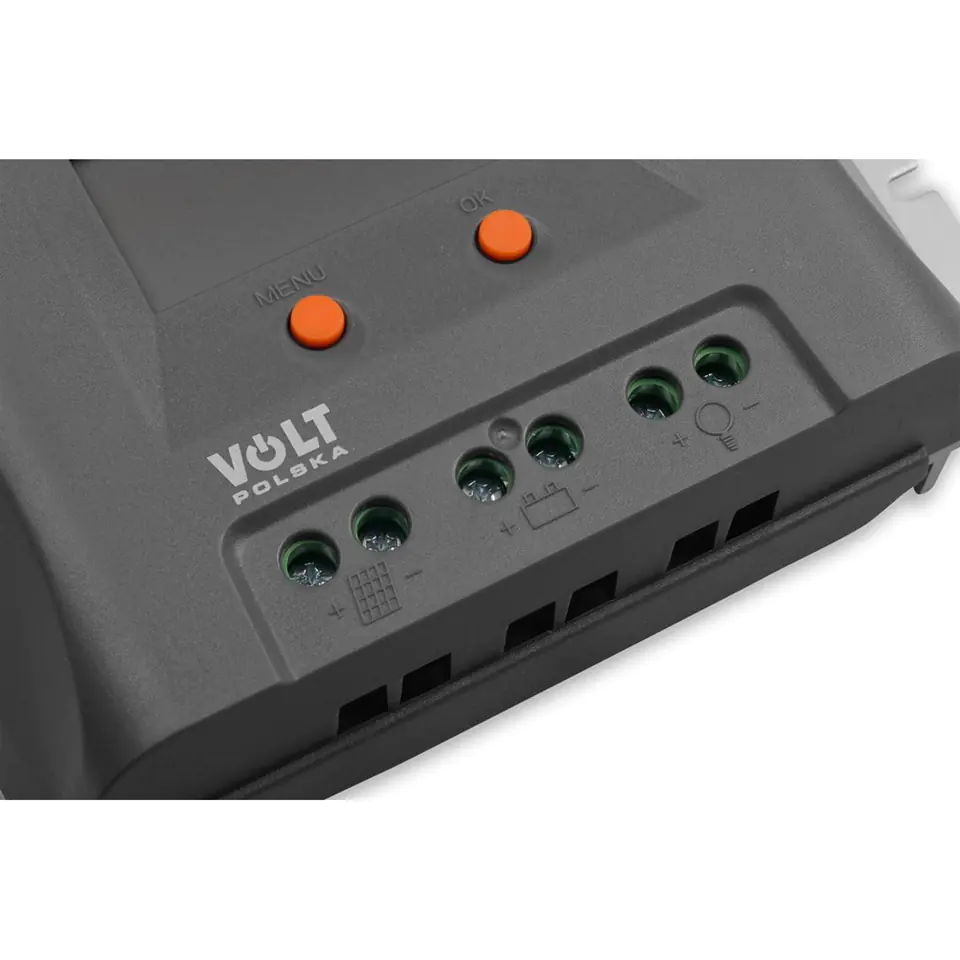

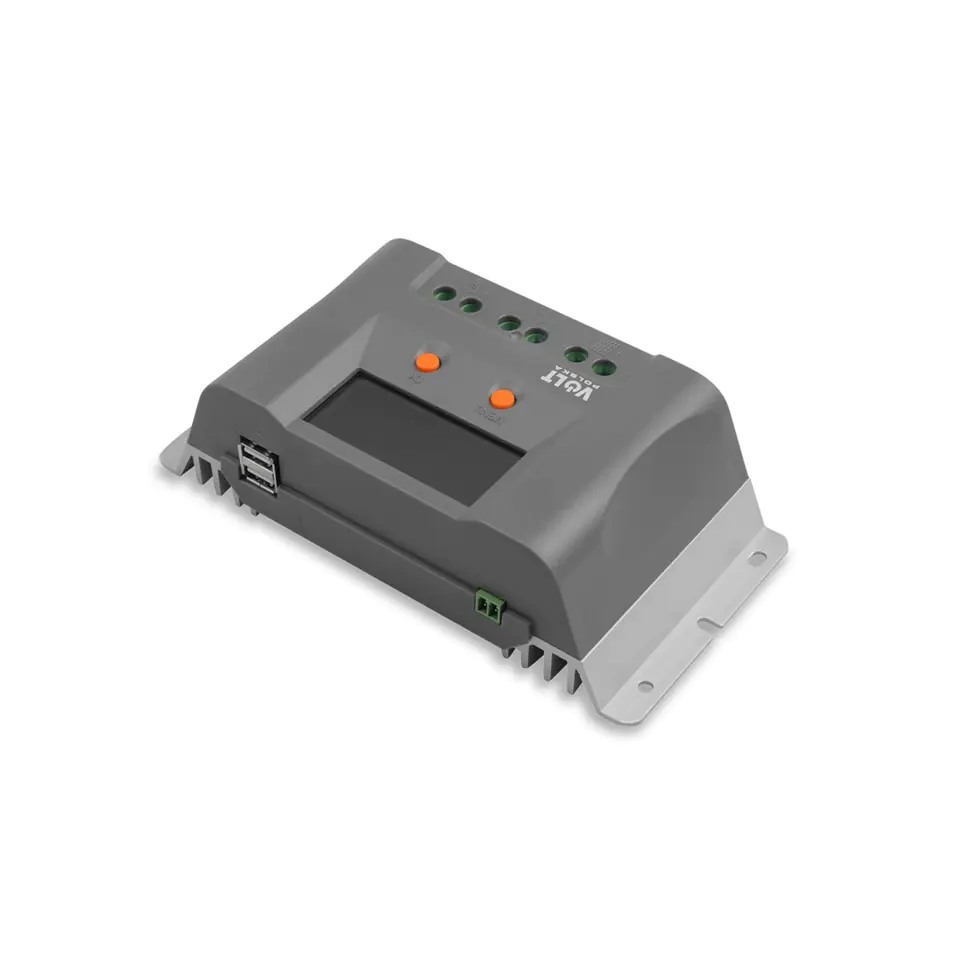

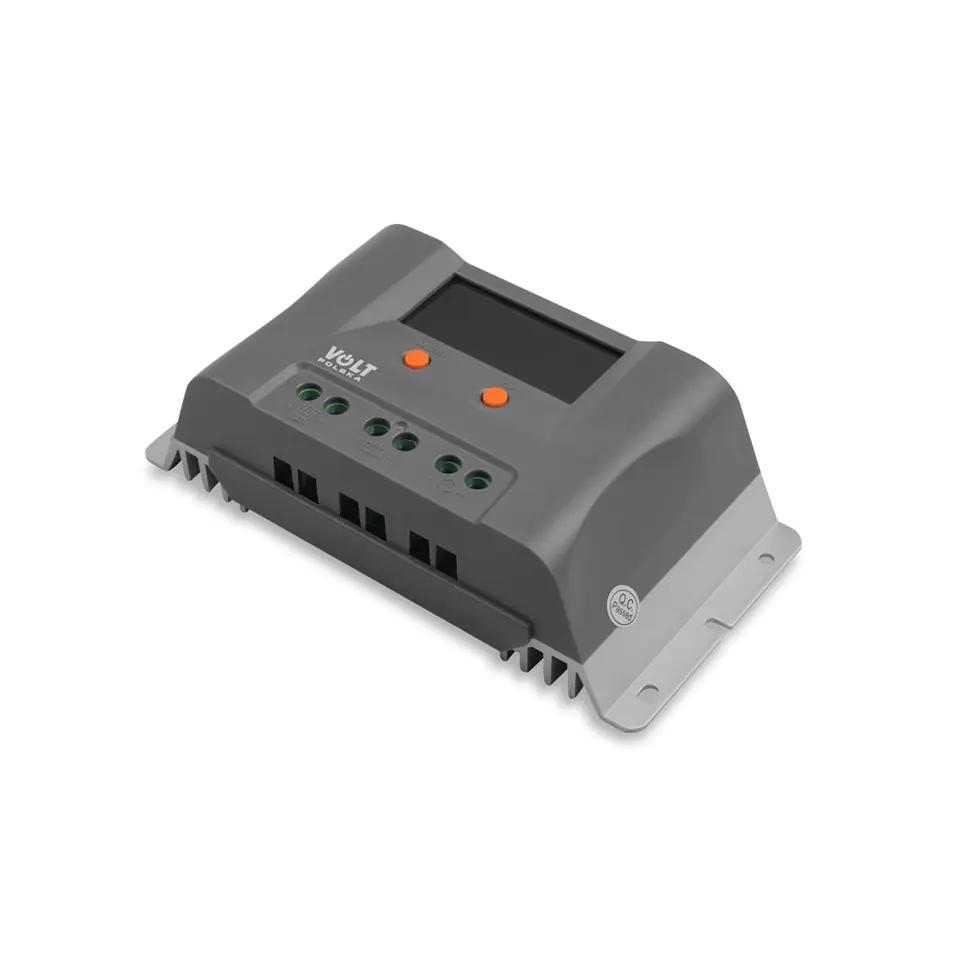

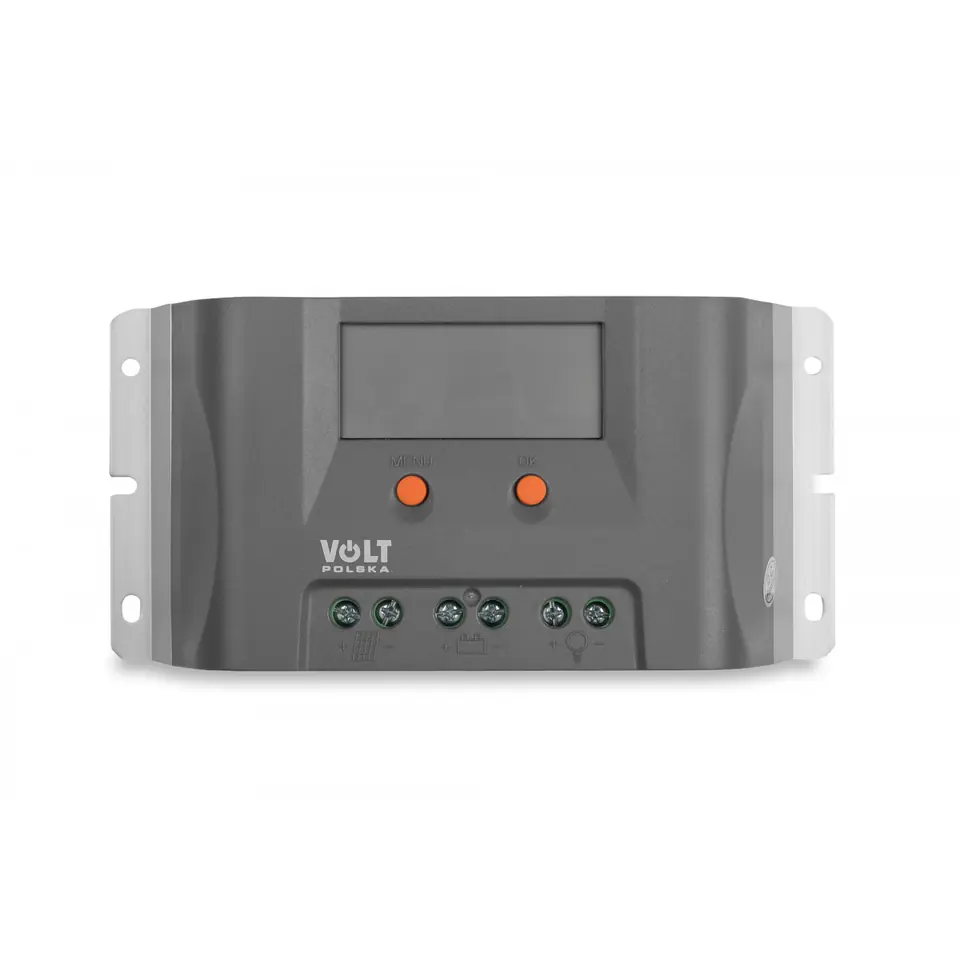

SOLAR CONTROLLER SOL MPPT 10A 50V) 12V + LC
€39.97
Shipping from warehouse: V4
Estimated shipping: Mon, Nov 18 - Mon, Nov 25
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 3IPSMPPT10 / 5903760240110
Share this product:
Specification
| Battery operation: | Yes |
|---|---|
| Bluetooth: | No |
| Boost voltage: | 14.5 / 29 V (at 25°C) |
| Built-in display: | Yes |
| Charging mode: | MPPT |
| Control type: | Buttons |
| Dc battery voltage: | 12 V |
| Depth: | 53 mm |
| Disconnection of consumers at low voltage: | 10.8~11.8 V |
| Display type: | LCD |
| Equalization voltage: | 14.8 / 29.6 V (at 25°C) |
| Float voltage: | 13.7 / 27.45 V (at 25°C) |
| Height: | 96 mm |
| International protection (ip) code: | IP32 |
| Maximum charging current: | 10 A |
| Mppt charging voltage: | 14.5 / 29 V (at 25°C) |
| Own power consumption: | 7mA |
| Permissible voltage of pv solar panels: | 50 V |
| Power protection features: | Overheating, Overvoltage protection, Over power, Overcharge |
| Product colour: | Gray |
| Reconnection voltage: | 11.6~12.8 V / 23.2~25.6 V |
| Supported battery type: | AGM / Gel / LiFePO |

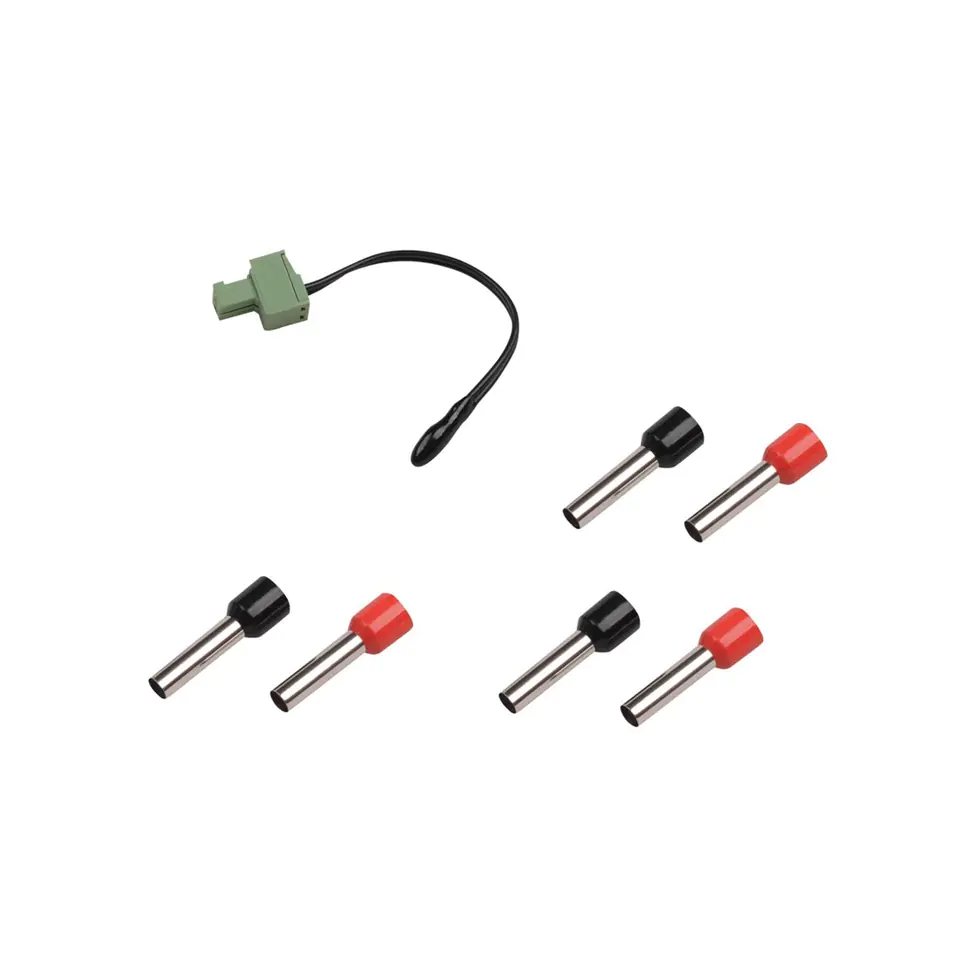

| Temperature sensor: | Yes |
| Weight: | 420 g |
| Width: | 189 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
