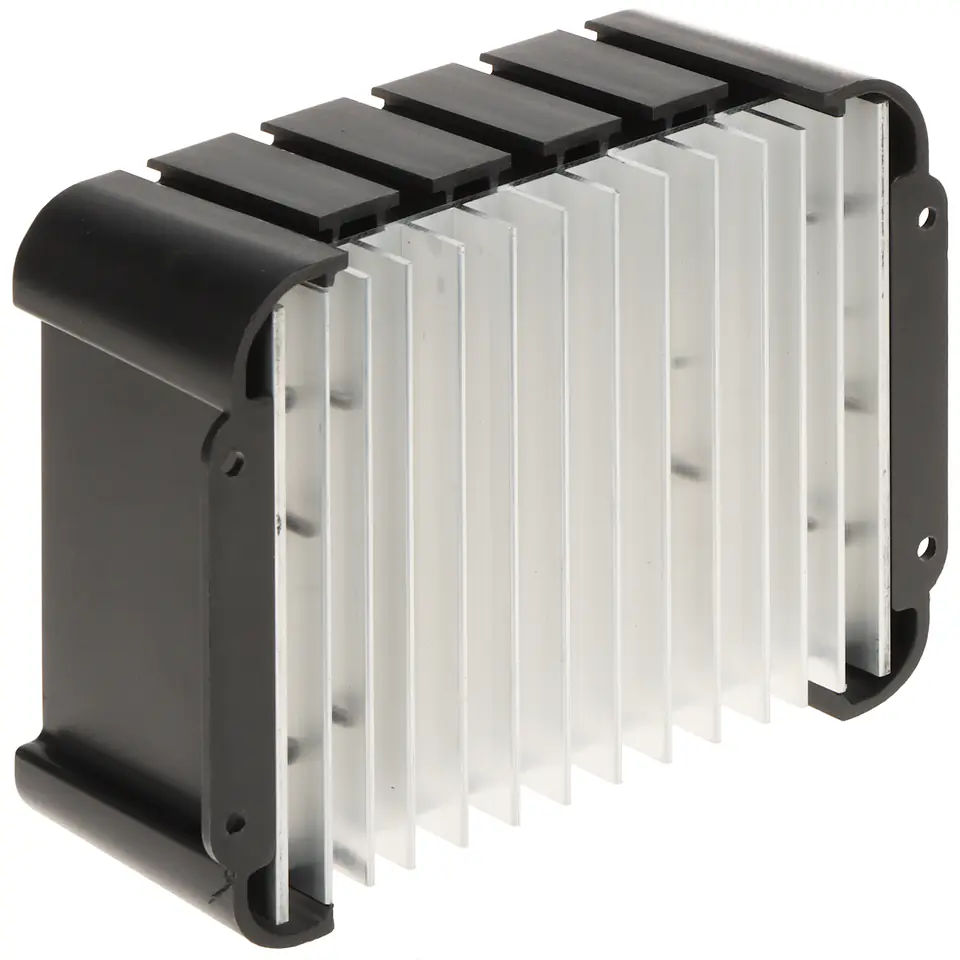

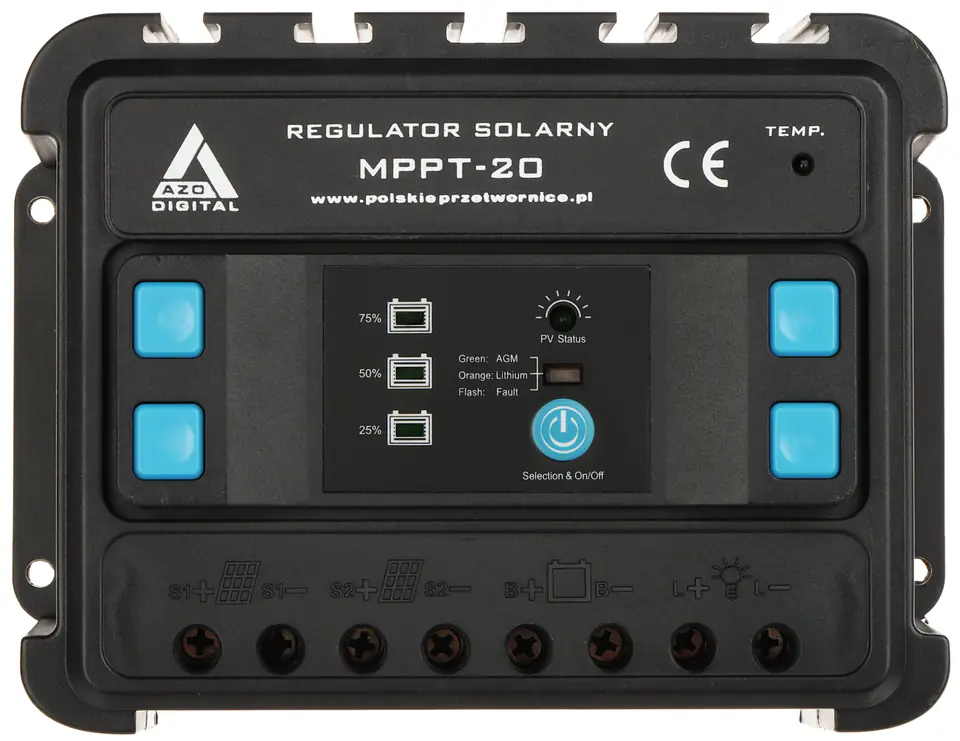

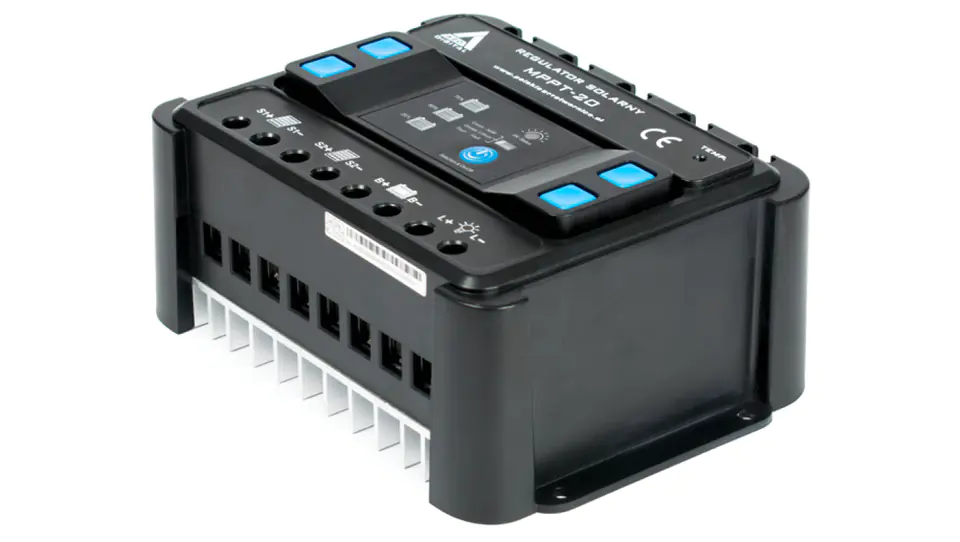

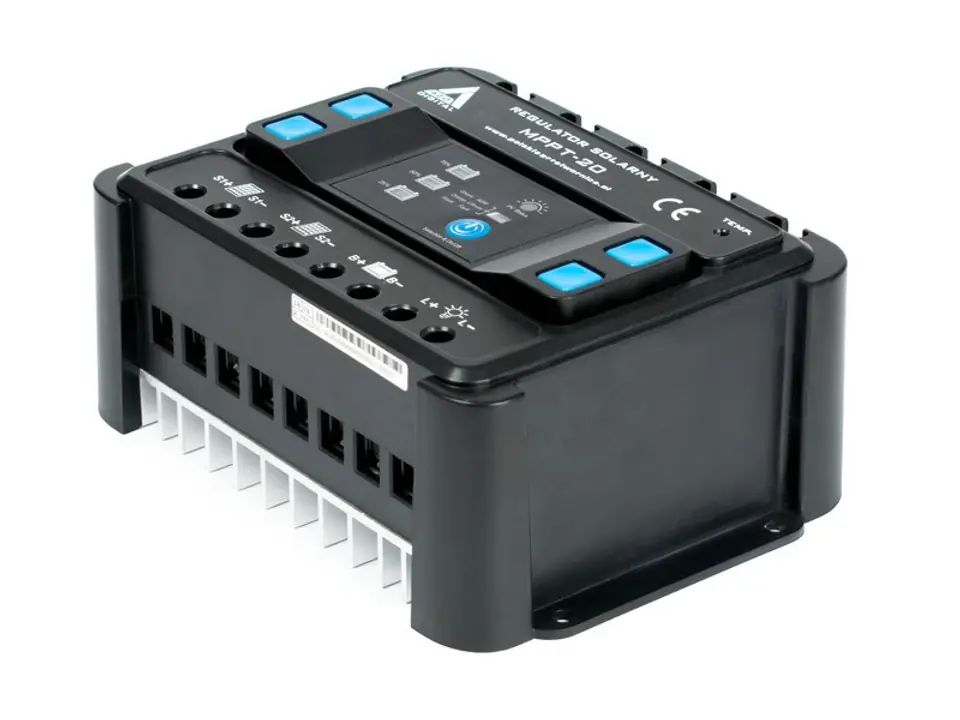

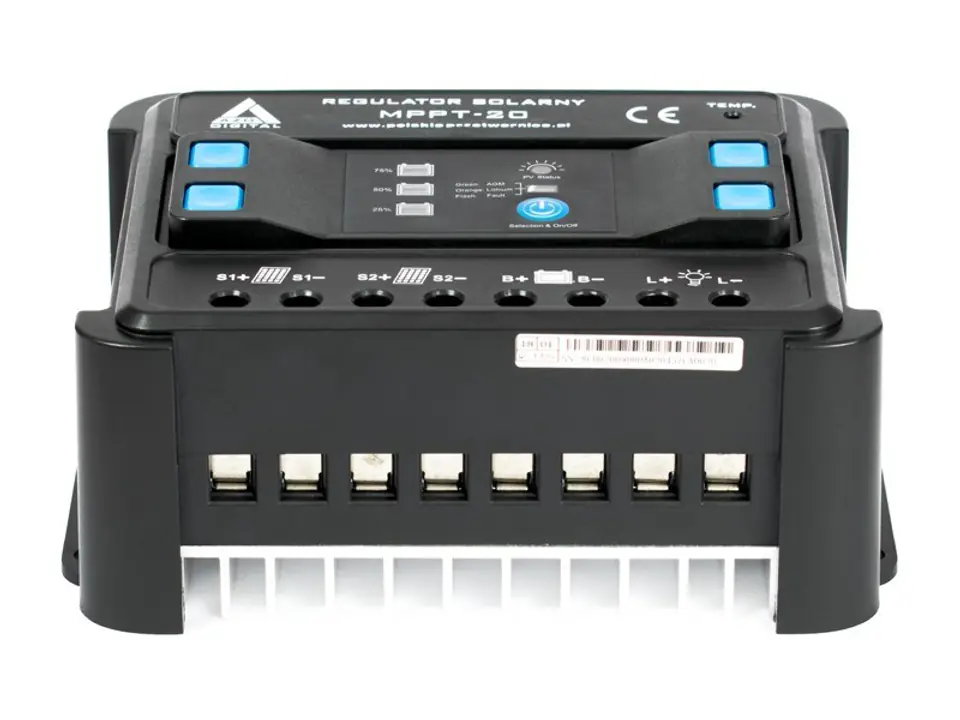

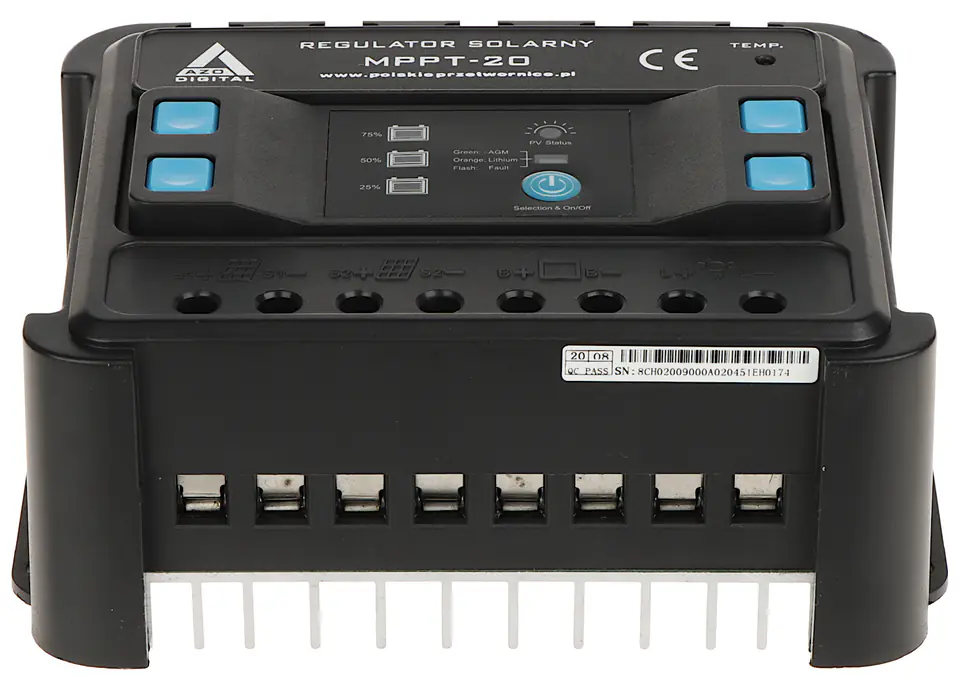

Solar Charge Controller MPPT 12/24 - 20A

€88.70
Shipping from warehouse: ⁨T2⁩
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
running out
Brand:
AZO DIGITAL
Product code:
AZO00D1107 / 5905279203884

Specification

Allowable voltage range:10 ... 40 V for 12 V battery - The range of the highest operating voltage of the panel set connected to one regulator input 20 ... 65 V for 24 V battery - Range of the highest operating voltage of the panel set connected to one regulator input
Built-in display:No
Conductor cross section (max):16mm / 6AWG
Dc battery voltage:12 / 24 V
Depth:172 mm
Height:72 mm
Input voltage:12V: 10V-40V / 24V: 20V-65V (auto-detection)
International protection (ip) code:IP21
Load current:.max. 20 amps
Maximum charging current:20 A
Mppt function:Yes
Operating temperature (t-t):-25 - 55 °C
Power current type:DC
Power protection features:Overheating, Overvoltage protection, Over voltage, Overcharge
Product colour:Black
Specific features:Internal power consumption: <40mA (standby) / 130mA (operation with load connected)
Supported battery type:AGM / Gel / LiFePO
Temperature compensation:12V: 18mV/°C / 24V: 36mV/°C
Type of adjustment:MPPT
Weight:0,8 kg
Width:127 mm

Photovoltaic panels are a clean and ecological source of electricityObtaining this energy, however, poses a number of challenges for device designersThe amount of energy produced by the panel is strongly dependent on the angle of incidence and the intensity of light falling on the surface of the cellsThis, in turn, leads to unstable power supply parameters at the output, because even shading a small part of the panel can cause a drastic reduction in efficiency

The optimal solution to the above-mentioned problems is the use of a set consisting of a photovoltaic panel, a battery and a charge regulatorSuch a set allows to ensure constant parameters of power supply to consumers, and also to store redundant energy for later use

The SCC-20A-MPPT solar controller allows you to connect panels connected to each other both in series and in parallel - remembering not to exceed the permissible values of current and voltage at the input of the device

MPPT (Maximum Power Point Tracking) regulators ensure an optimal level of use of electricity generated by the photovoltaic panelThanks to the technology that allows you to track the point of maximum power of the panel, MPPT devices charge batteries faster and more efficiently than cheaper PWMP controllersIn addition, MPPT controllers perform much better in worse lighting conditions (e.g. in the morning, evening, or when a part of the panel is temporarily shaded)

Remark! Solar regulators are adapted to work with photovoltaic panels. Do not use them with other power sources

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
