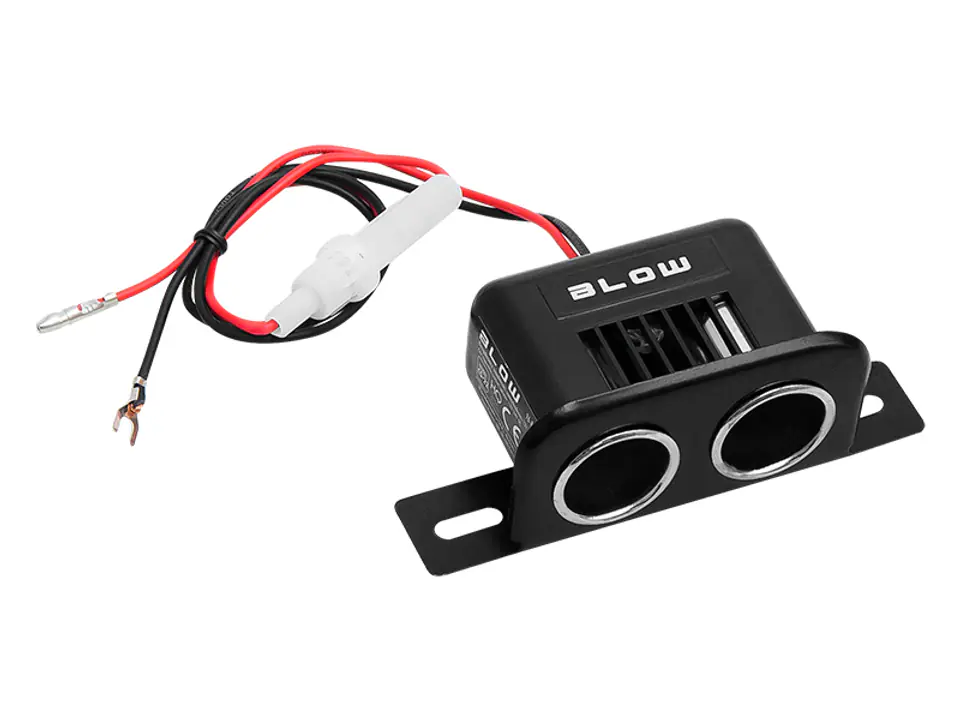

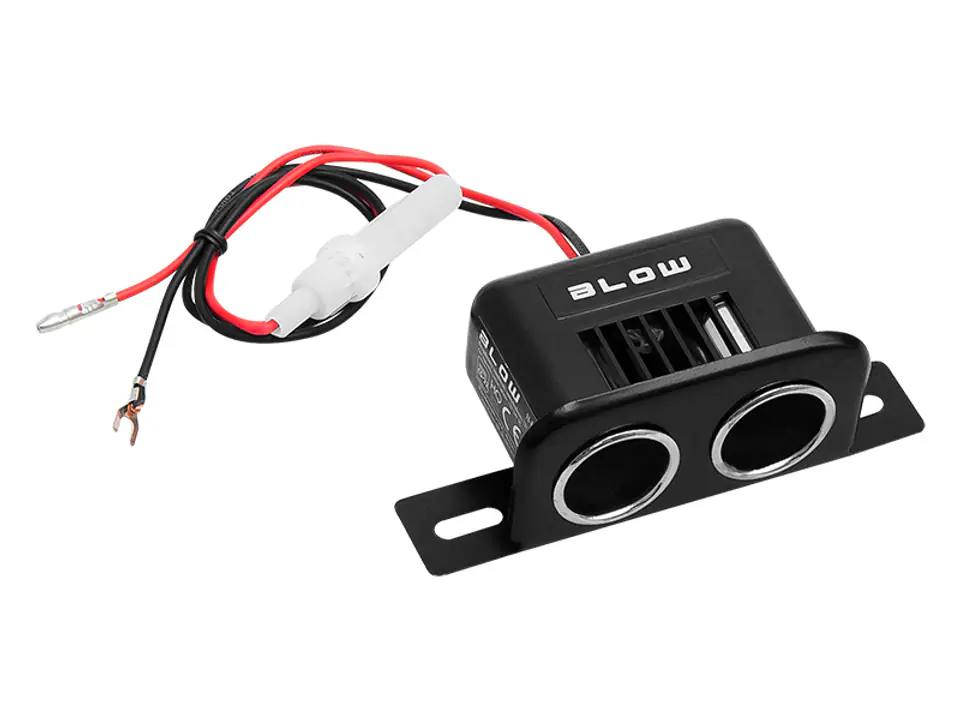

Car cigarette lighter splitter CS-22
Cigarette lighter splitter with fuse on wires terminated with fork connector and round male connector.
Product features:
- high quality of workmanship
- possibility to connect several devices at the same time
- compatible with 12V and 24V car installations
- thick resistant cable
- very easy to assemble
- screw mounting
- compact dimensions and modern design
Technical parameters:
- voltage: 12V/24V
- maximum output current: up to 10A
- protection: WTA glass tubular fuse Ø6 x 30 mm
- socket diameter: Ø21 mm
- socket housing size height width depth: 55 x 75 x 37 mm
- spacing of mounting holes: 70-95 mm
- cable length approx. 40 cm
- fork connector for M3 screw
- round male connector Ø3,5 mm

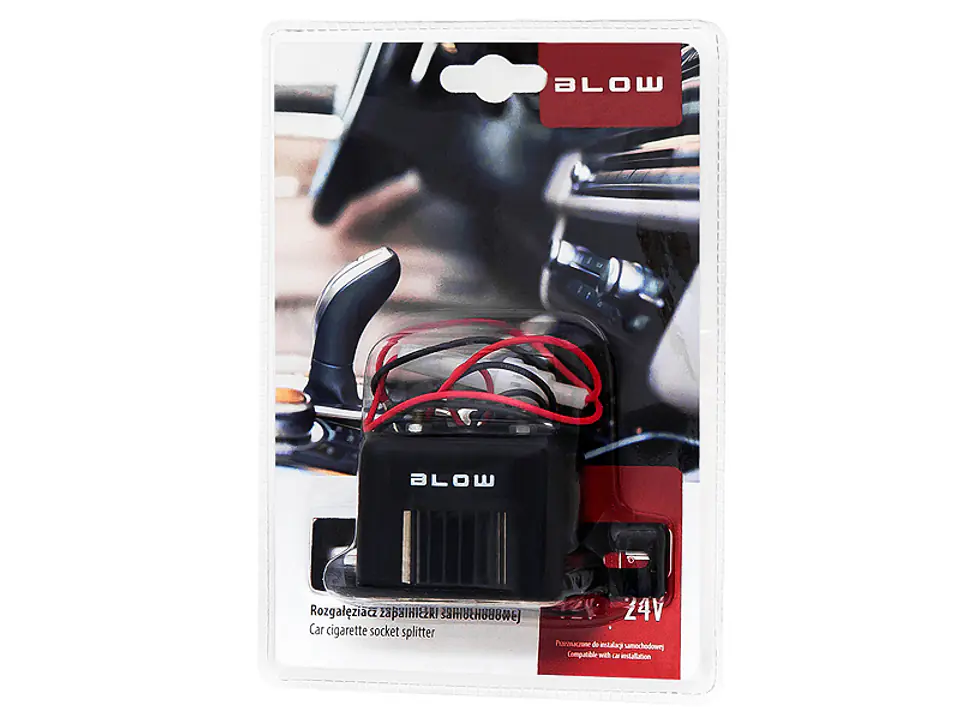

- packaging: blister with pendant
- package dimensions H x W: 195x140 mm
