Antenna amplifier for DVB-T/T2 and cable for two TVs Spacetronik SPA-EX2 47-694 MHz 20dB

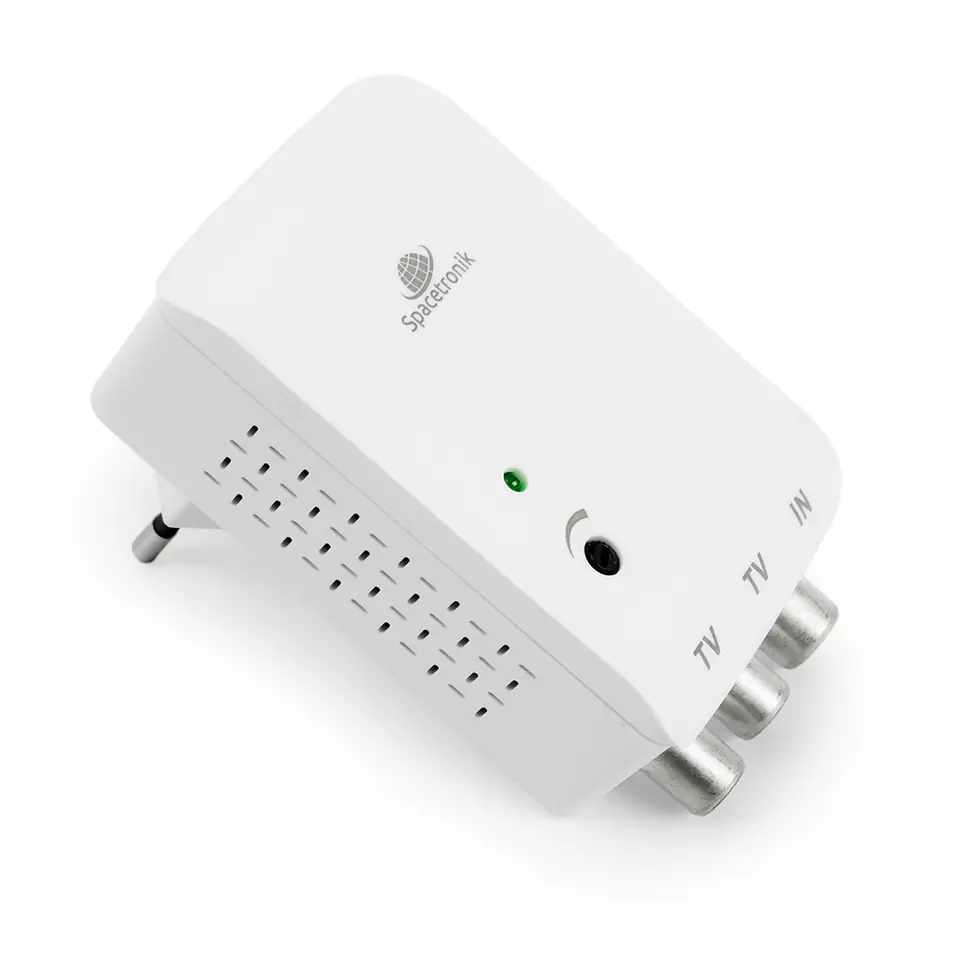

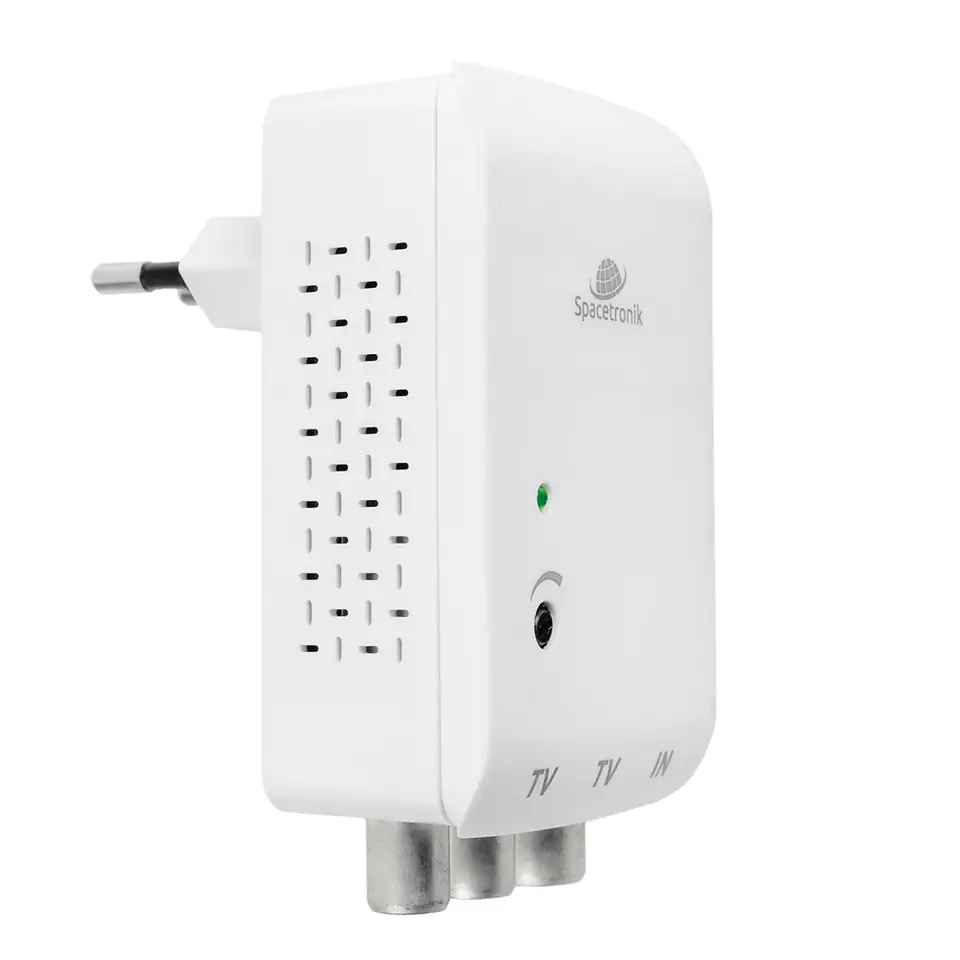

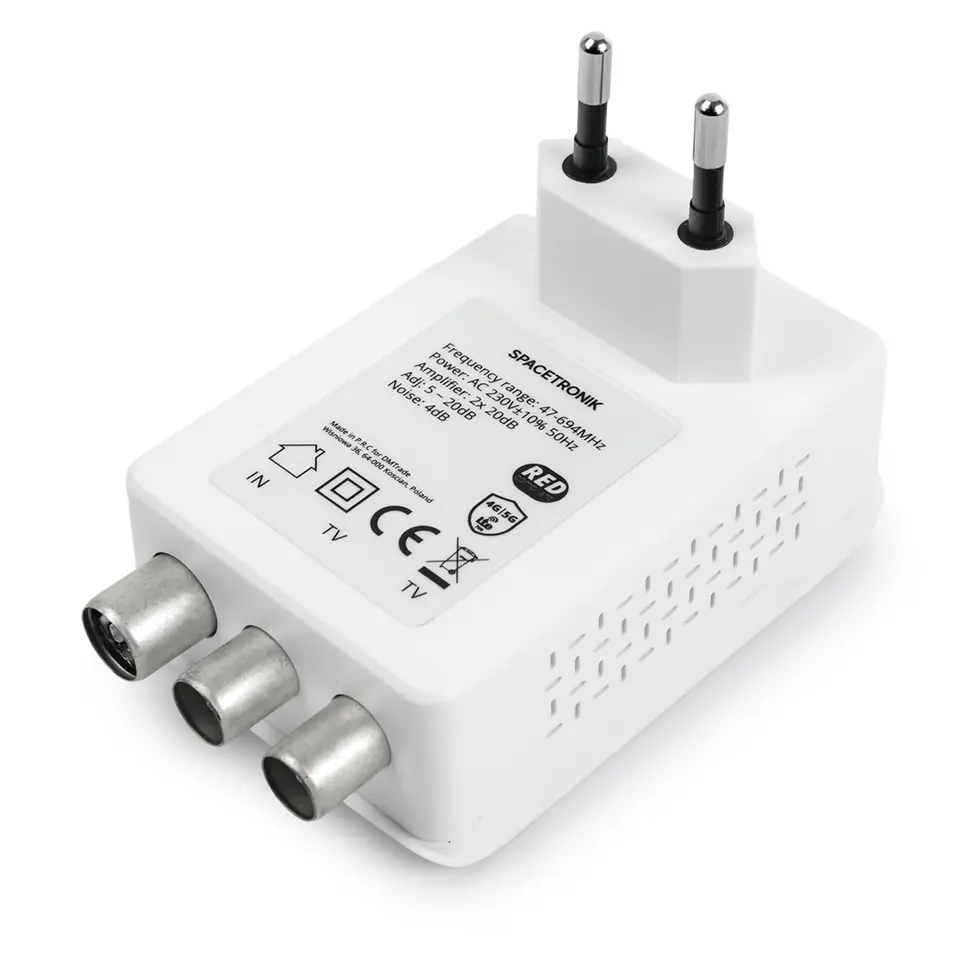

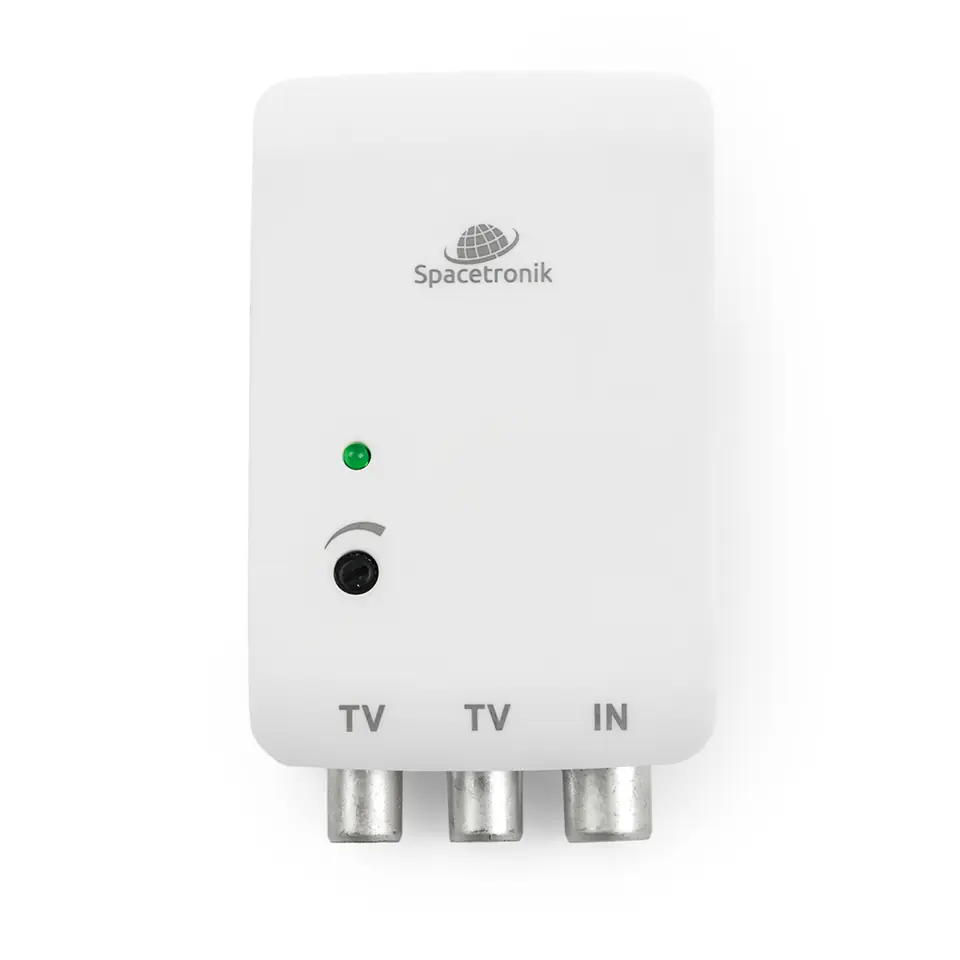

Spacetronik SPA-EX2 is an active antenna amplifier designed for TV signals.
This small amplifier has been designed and created for installations where the signal supplied from a subscriber outlet or TV antenna is too weak and should be quickly and easily amplified for this purpose.
Suitable for broadband systems, cable systems and terrestrial networks. For DVB-T/DVB-T2 signal amplification and FM/DAB radio connection, ideal for HDTV.
Ideal amplifier for connecting two devices, TVs or set-top boxes in antenna systems.
The basic feature of the amplifier is to work in the frequency range of 47 - 694 MHz. The biggest advantage of the amplifier is the built-in new generation LTE 5G 700 filter that eliminates all interference for the best signal reception.
Installation - Plug and play
Installing the amplifier is very simple and anyone can handle it. A special housing with a built-in power supply allows direct installation in an electrical outlet. IEC connectors easily and quickly allow you to connect the signal from an antenna outlet or directly from a TV antenna. Adjustable gain level with a potentiometer, which allows a gain adjustment range from 5 to 20dB. Connect the antenna signal to the amplifier and then to the outputs, the receiver and set the gain level that will guarantee the best image reception. The built-in splitter in our amplifier allows you to connect two TVs or set-top boxes.
Technical specification:- Band: 47 - 694 MHz
- LTE filter: 5G 700
- Input: IEC socket, output: 2x IEC plug
- Impedance: 75 Ohm
- Gain adjustment range: 5 - 20 dB
- Shielding ratio: >75dB (470MHz)
- Mains power supply: 230V AC 50Hz
- Weight: 105g
