Product Description:
- The CAM module can be used in receivers equipped with a DVB-CI interface.
- The module has undergone tests in many models of receivers from manufacturers from Europe, the Middle East, Australia and Asia.
- The module fully supports the Conax Integration Kit 5.0 standard.
- The module after inserting a decoding card with active authorization allows access to encrypted digital TV programs
Physical dimensions and electrical parameters:

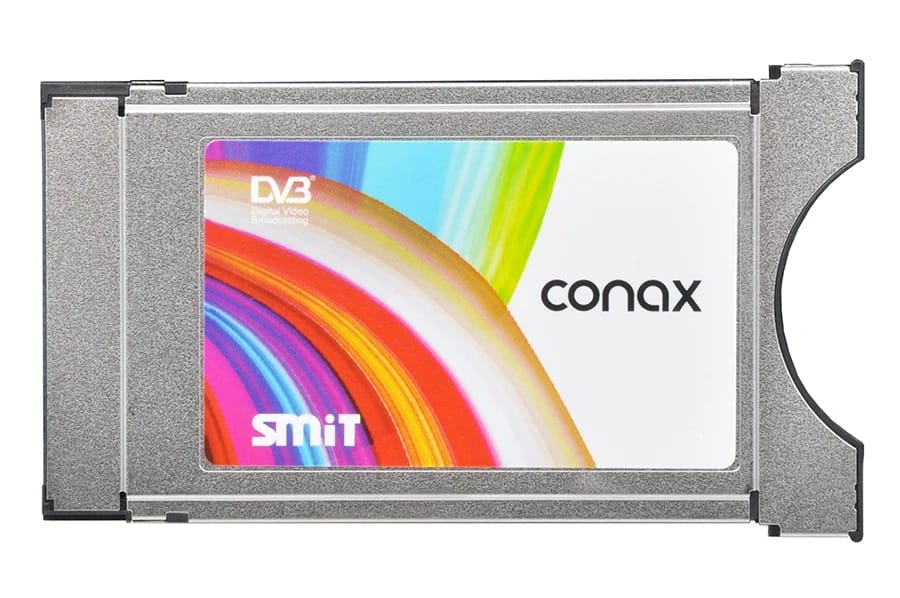

- PCMCIA TYPE II card (100mm x 54mm x 5 mm).
- 68 pin connector for PCMCIA slot.
- power supply 4.5 to 5.5 Volt.
- maximum current of 150 milliAmperes.
- total current consumption below 750 milliWatt.
Supported standards:
- compatible with DVB-CI standard (EN50221).
- compatible with ETR289 standard.
- compatible with ISO7816 T=0 protocol, Class A and Class B.
- compatible with RoHS Directive 2002/95/EC with subsequent amendments.
- compatible with the European CSA coding algorithm.
