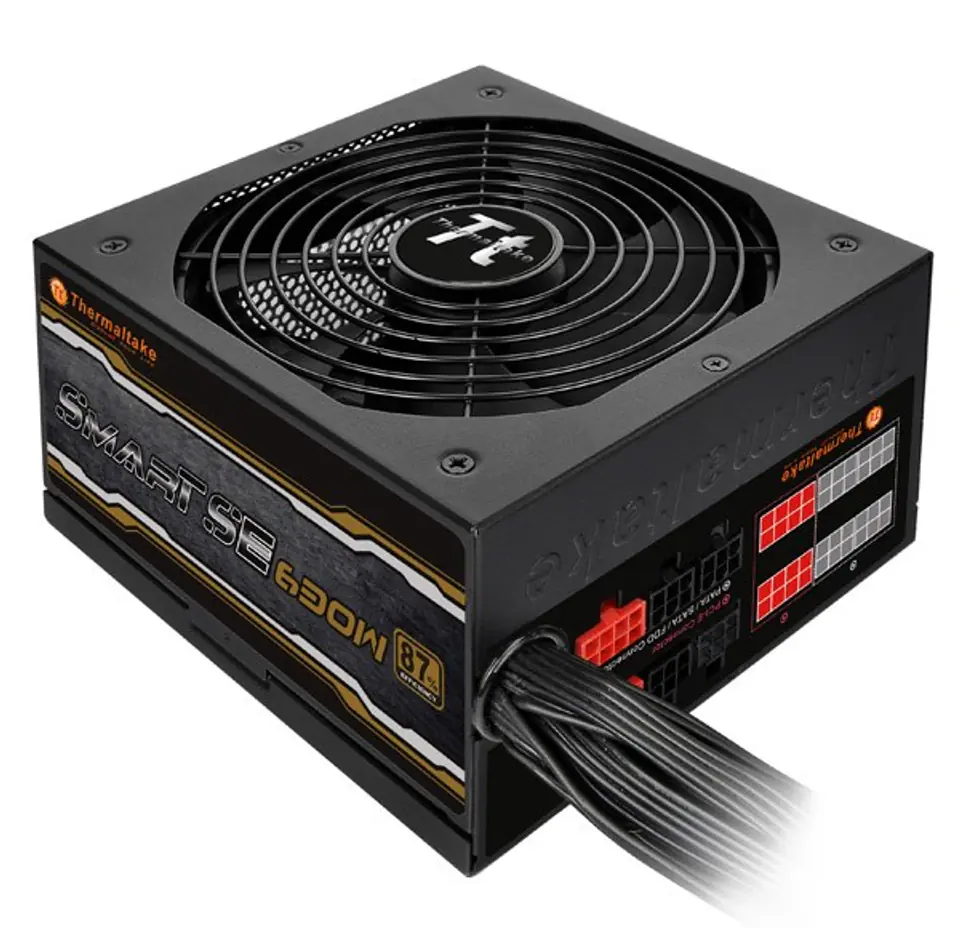

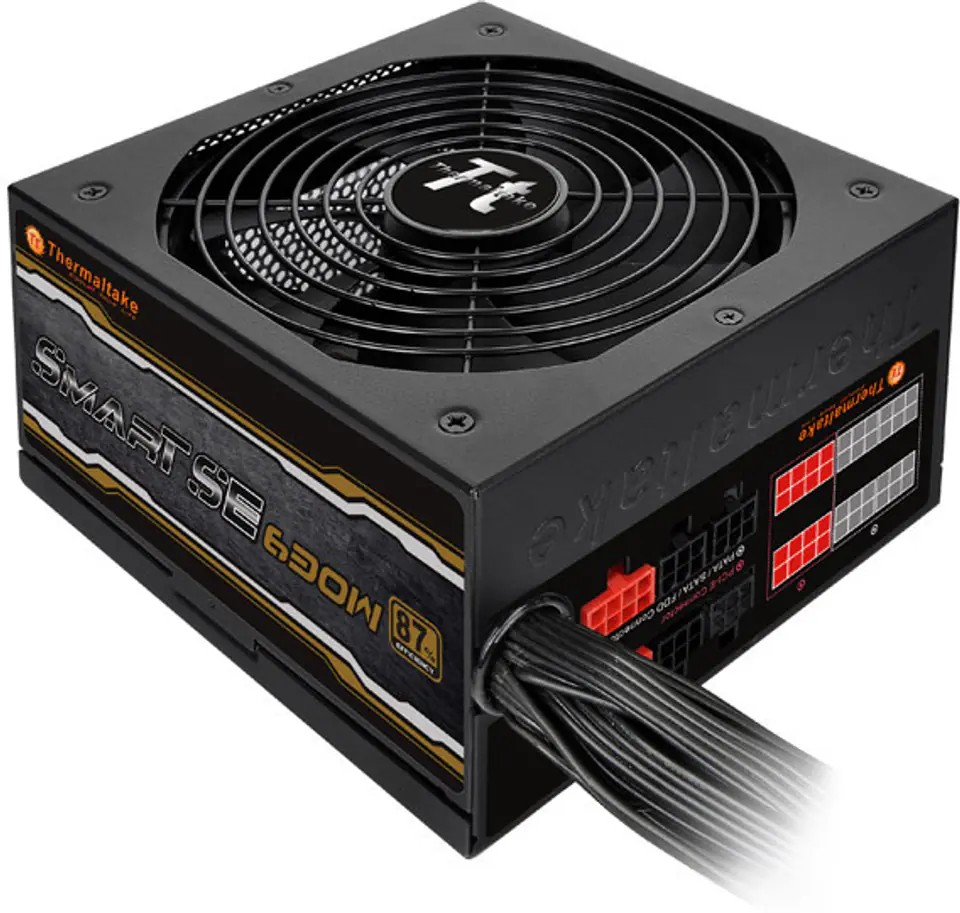

Thermaltake SPS-630MPCBEU
Smart SE 630W CM 87
630 Watt Bronze Power Supply:
Stabilizing power usage for daily bases
The latest presentation from Thermaltake in the essence of mainstream systems – the SMART SE Series PSU, a performance series of power supply units PSU that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 530 to 730W with semi-modular that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 stable demands.
87% Efficiency
Deliver up to 87% efficiency at 20-100% load under real world load conditions to cut down electric cost and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.

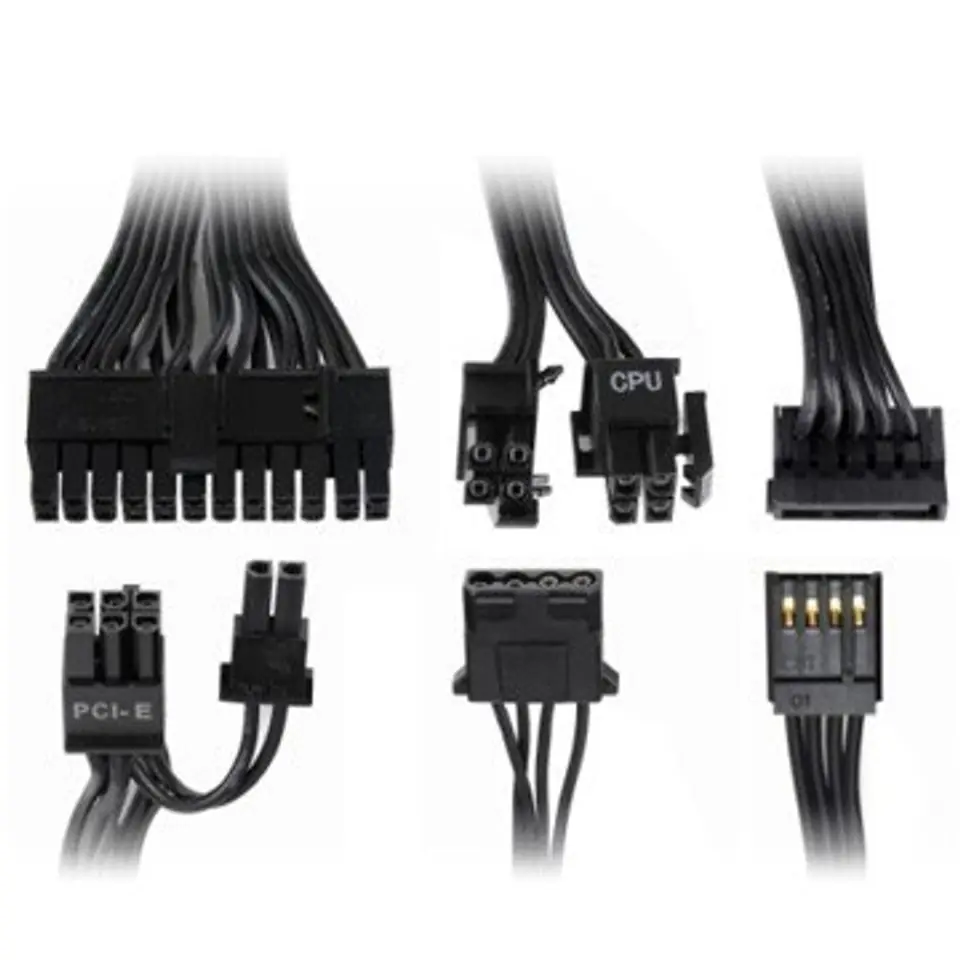

Flat & Low Profile Cable
All low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing. cable routing.

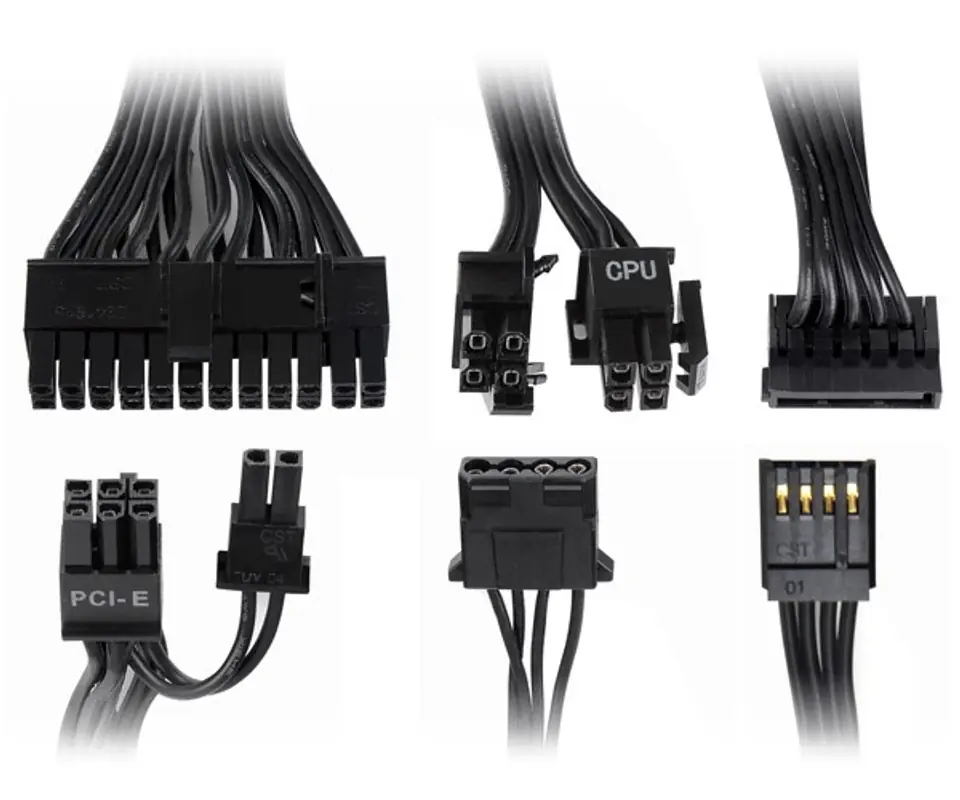

Modular cable
Customizing concept of Smart SE 530/630/730W enables user to maximize available power and make set-up easy. It is a semi-modular power supply that offered cable selection for users while powering system at a healthy voltage.

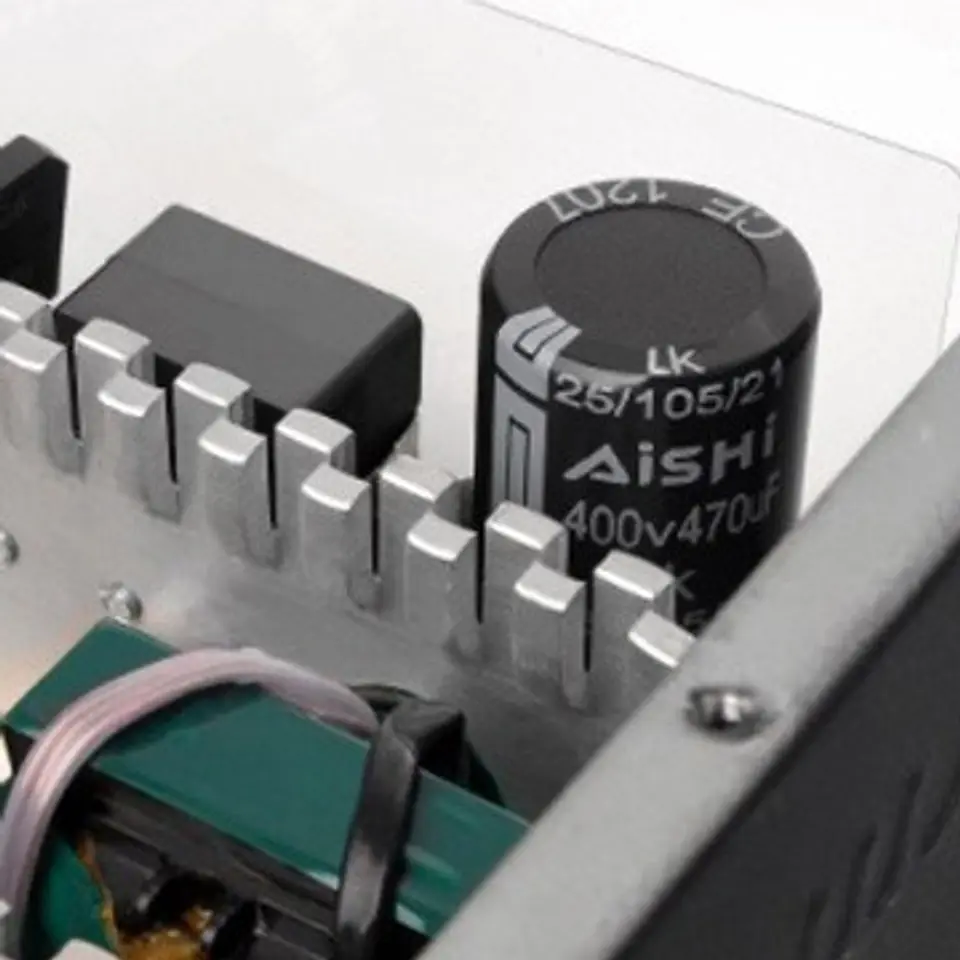

Top Quality made Capacitor
High quality main capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.

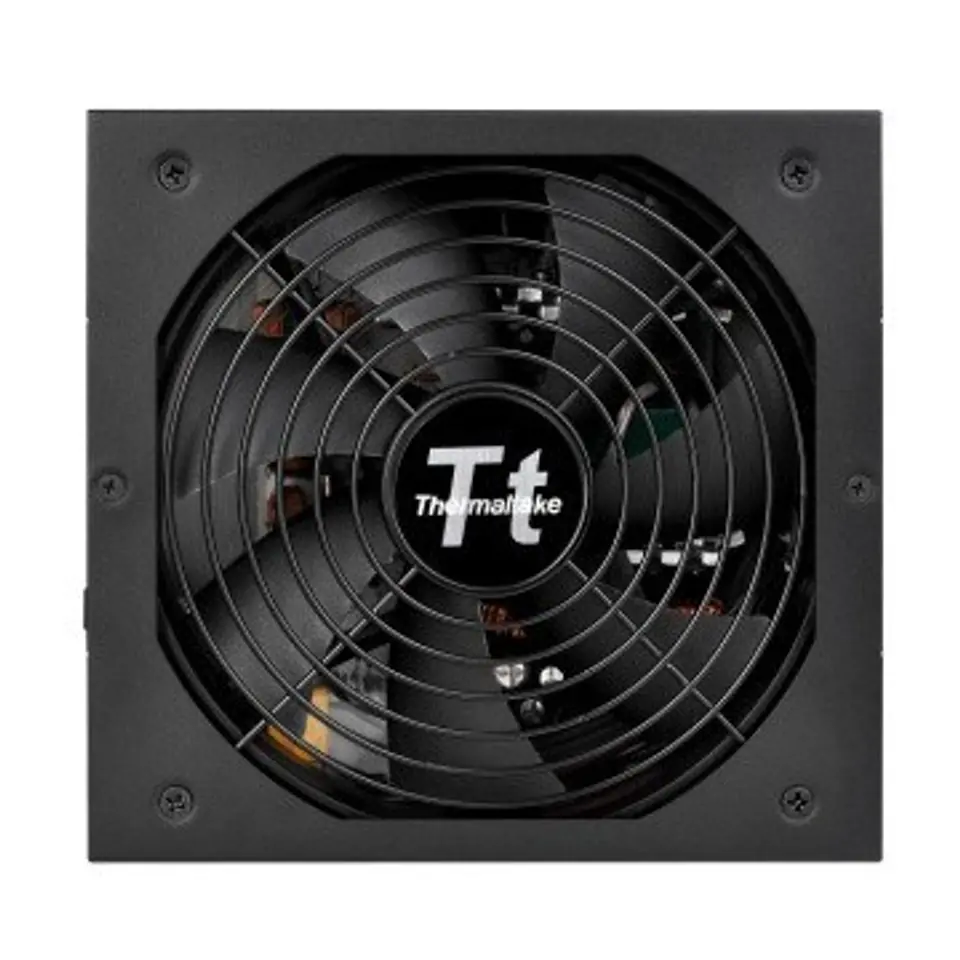

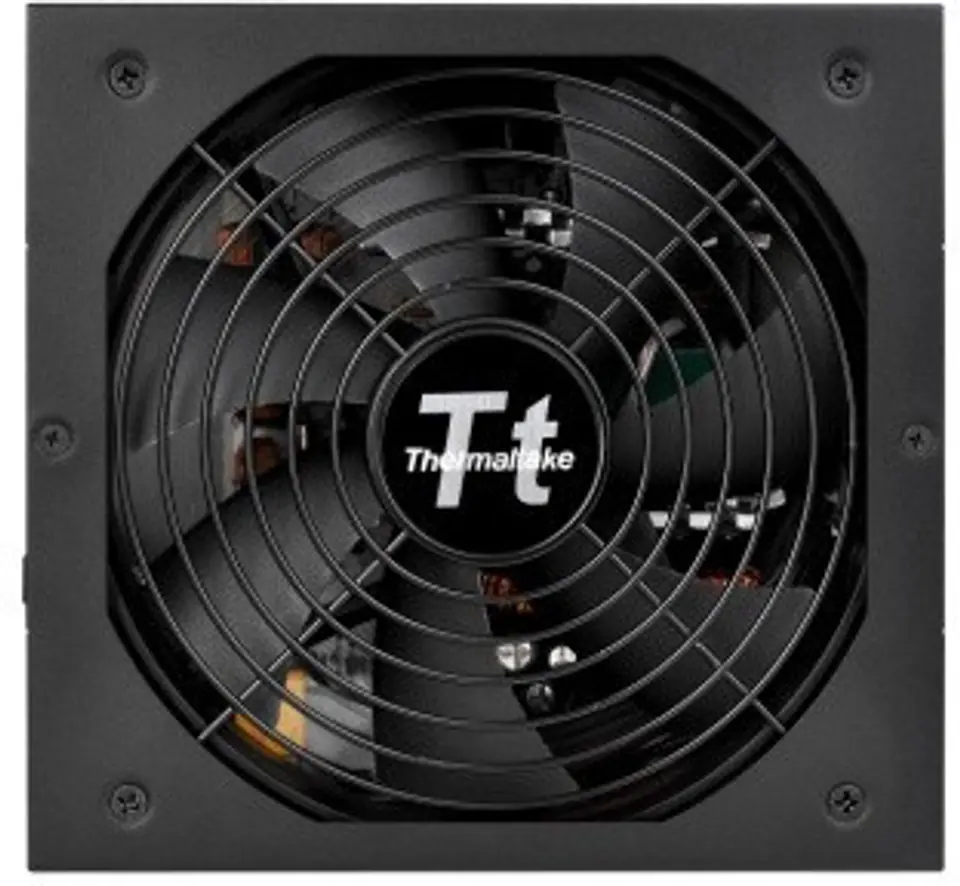

Smart Fan Control
Large 140mm cooling fan, built-in with intelligent temperature control device can automatically detect the power load for fan speed adjustment and maintain optimal mute performance.
Smart SE 630W Modular up to 87%, 2xPEG, 140 mm, Single Rail
€83.26
Shipping from warehouse: M7
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Thermaltake
- Product code:
- SPS-630MPCBEU / 4713157529909
Share this product:
Specification
| Ac input frequency: | 47 - 63 Hz |
|---|---|
| Ac input voltage: | 200 - 240 V |
| Atx version: | 2.3 |
| Cooling type: | Active |
| Depth: | 160 mm |
| Efficiency: | 87% |
| Eps version: | 2.92 |
| Fan diameter: | 14 cm |
| Fan location: | Top |
| Fan speed: | 1900 |
| Height: | 86 mm |
| Hold time: | 16 ms |
| Input current: | 4.5 A |
| Manual: | Yes |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | 0 - 35 °C |
| Pci express power connectors (6+2 pin): | 2 |
| Peak power: | 730 W |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power factor correction (pfc) type: | Active |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -20 - 70 °C |
| Total power: | 630 W |
| Width: | 150 mm |
