TECHNICAL DATA:
Charging voltage6 / 12 V
Charging current2A (6V) / 2/4A (12V)
Rated battery capacity Ah 15h (min/max)1.2—80Ah (6V), 14—100Ah (12V),
Maintenance charging up to 300Ah
Power55 W
Rated supply voltage230V 50Hz (1ph)
Degree of protectionIP65
Weight464g
Overall dimensions L x W x H178x80x43mm
Package dimensions L x W x H68x128x260 mm
USABLE FEATURES:

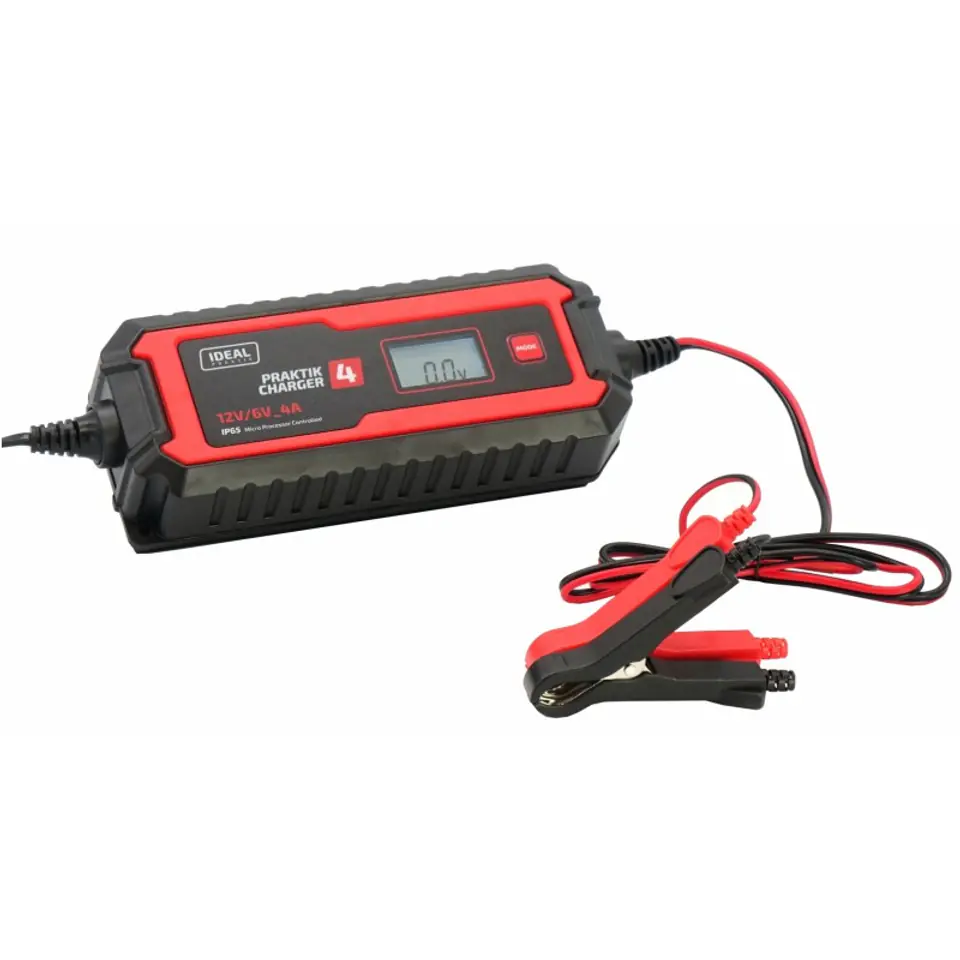

PRAKTIK CHARGER 4 is an electronic rectifier for charging 6 and 12 volt acid batteries:
WET (liquid - acidic)
GEL (gel)
MF (maintenance-free)
AGM (with fiberglass mat)
EFB (for start-stop vehicles)
The rectifier has a microprocessor control system, provides automatic shutdown when the required voltage is reached on the battery and automatic resumption of charging after a voltage drop on the battery.
With each switching on, the rectifier automatically sets the last saved parameters (helpful for repeated use and for power outages).
Cold battery charging function: optimizes charging at very low temperatures (low temperatures can adversely affect the chemical structure of battery components).
Charging voltage6 / 12 V
Charging current2A (6V) / 2/4A (12V)
Rated battery capacity Ah 15h (min/max)1.2—80Ah (6V), 14—100Ah (12V),
Maintenance charging up to 300Ah
Power55 W
Rated supply voltage230V 50Hz (1ph)
Degree of protectionIP65
Weight464g
Overall dimensions L x W x H178x80x43mm
Package dimensions L x W x H68x128x260 mm
USABLE FEATURES:
PRAKTIK CHARGER 4 is an electronic rectifier for charging 6 and 12 volt acid batteries:
WET (liquid - acidic)
GEL (gel)
MF (maintenance-free)
AGM (with fiberglass mat)
EFB (for start-stop vehicles)
The rectifier has a microprocessor control system, provides automatic shutdown when the required voltage is reached on the battery and automatic resumption of charging after a voltage drop on the battery.
With each switching on, the rectifier automatically sets the last saved parameters (helpful for repeated use and for power outages).
Cold battery charging function: optimizes charging at very low temperatures (low temperatures can adversely affect the chemical structure of battery components).
