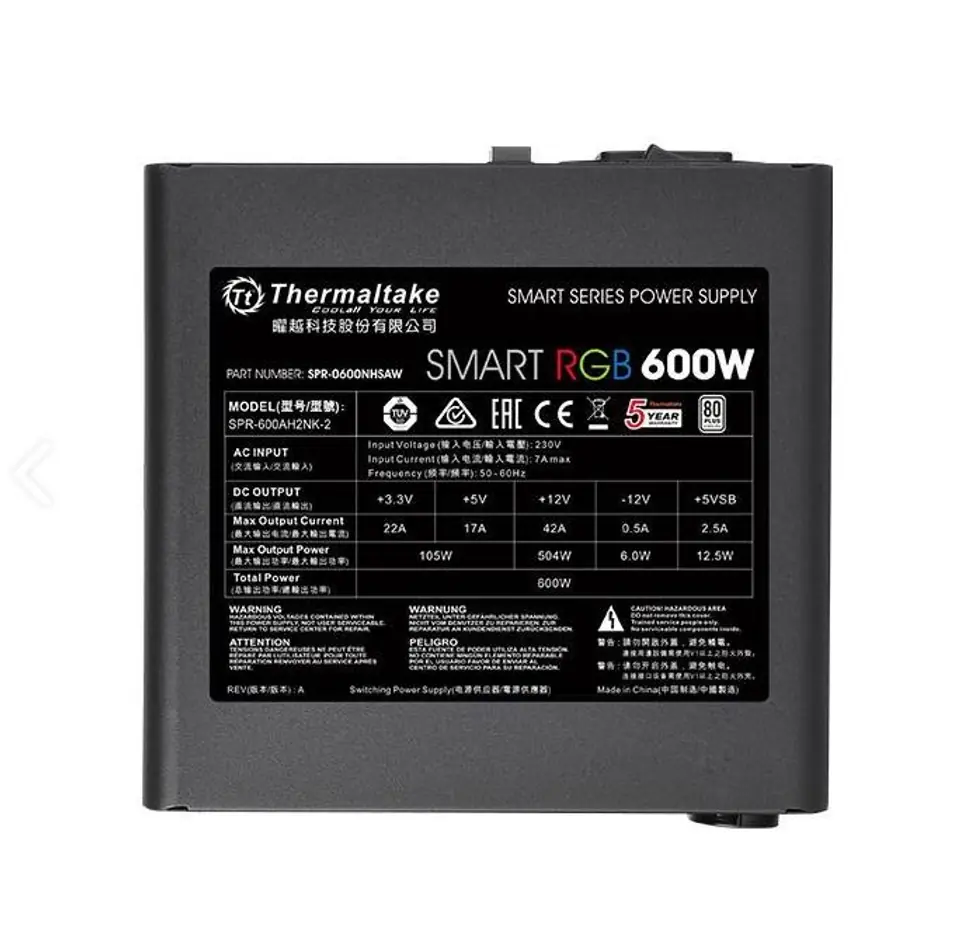

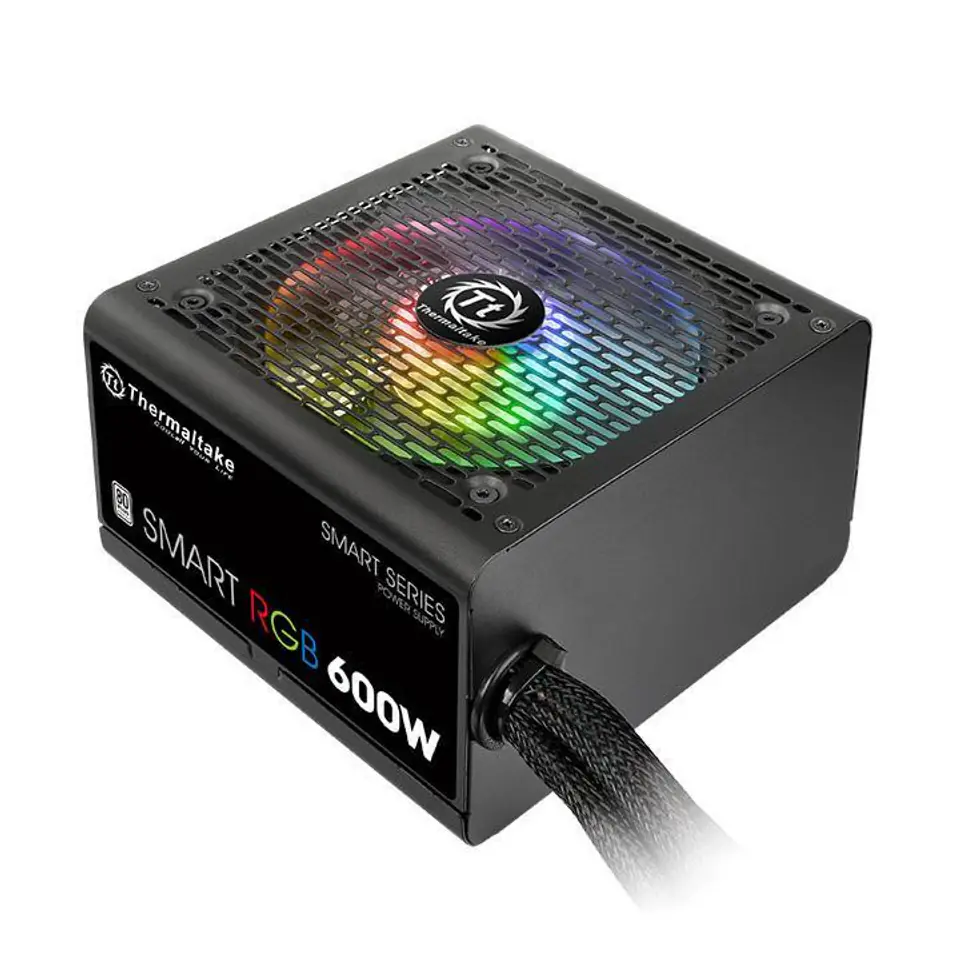

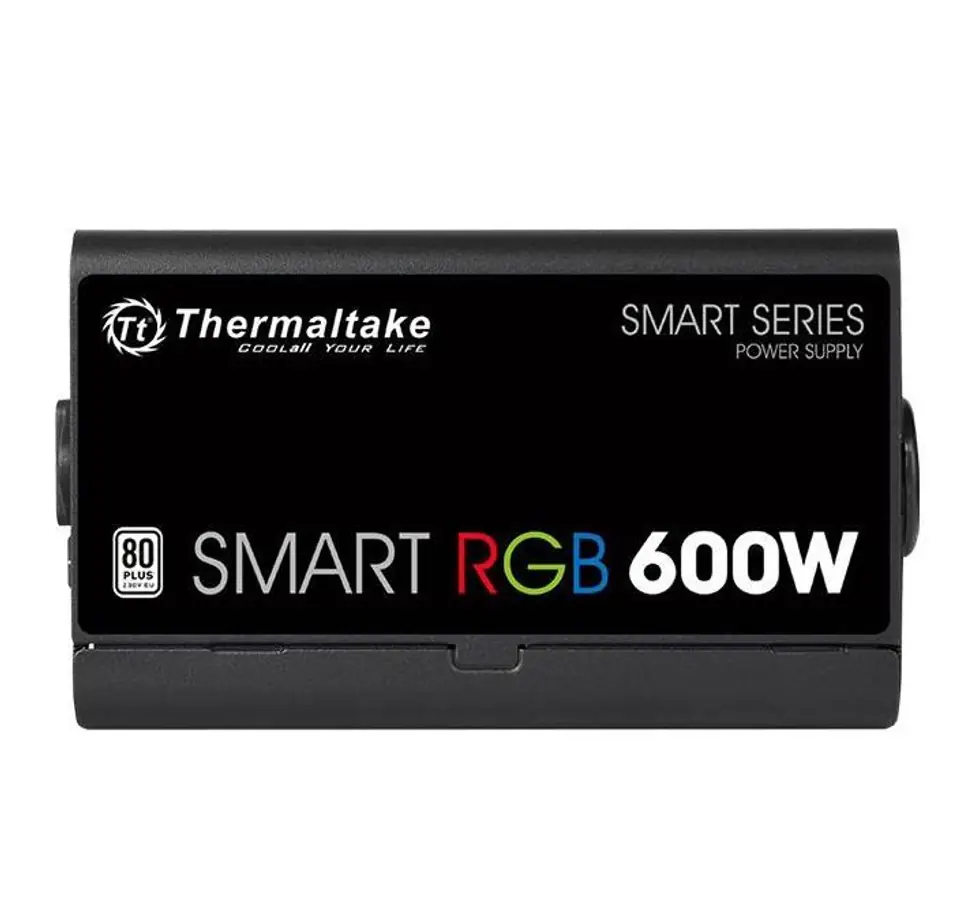

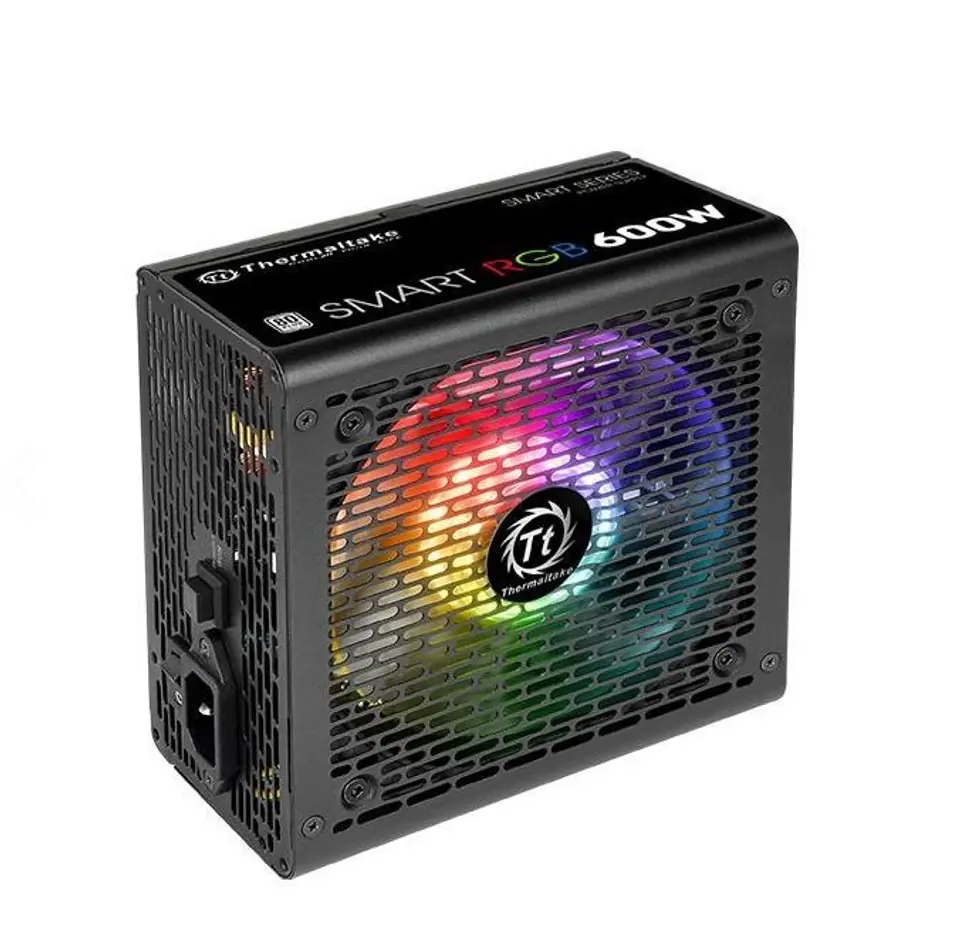

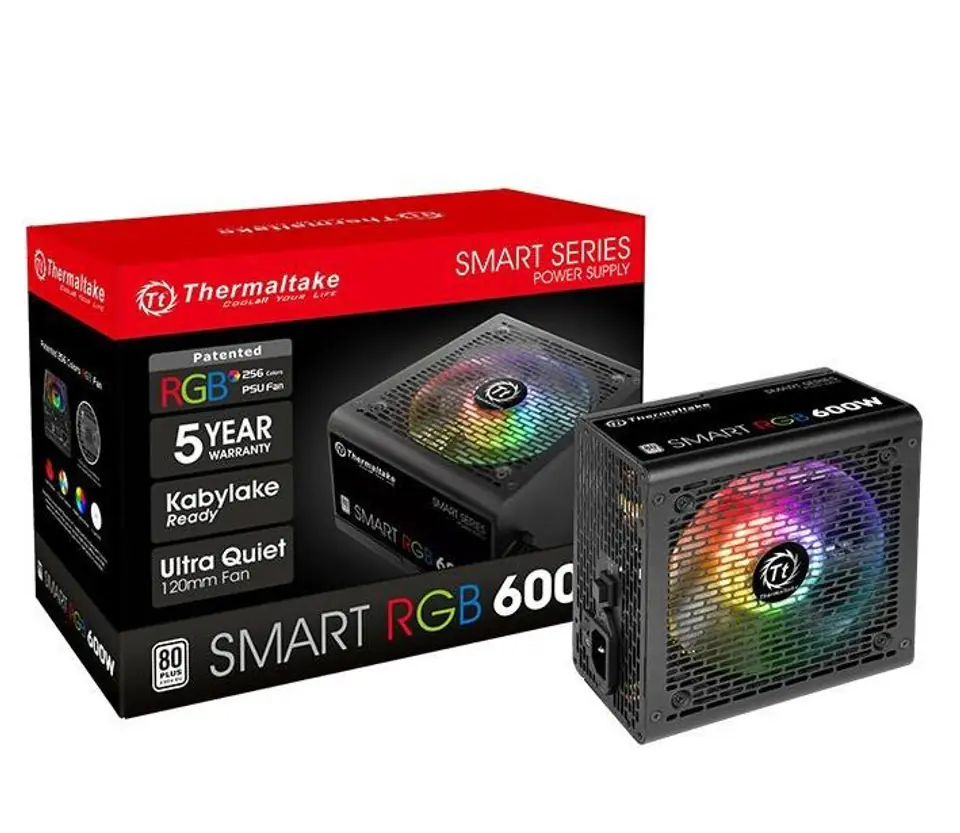

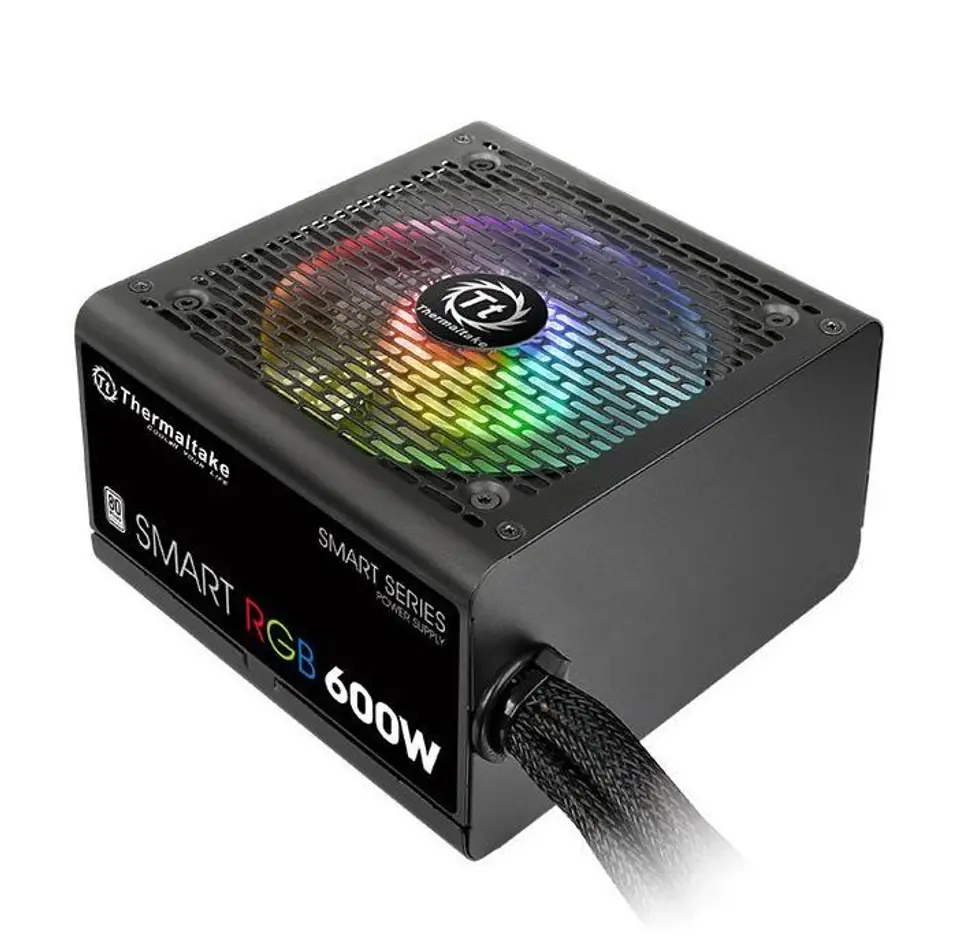

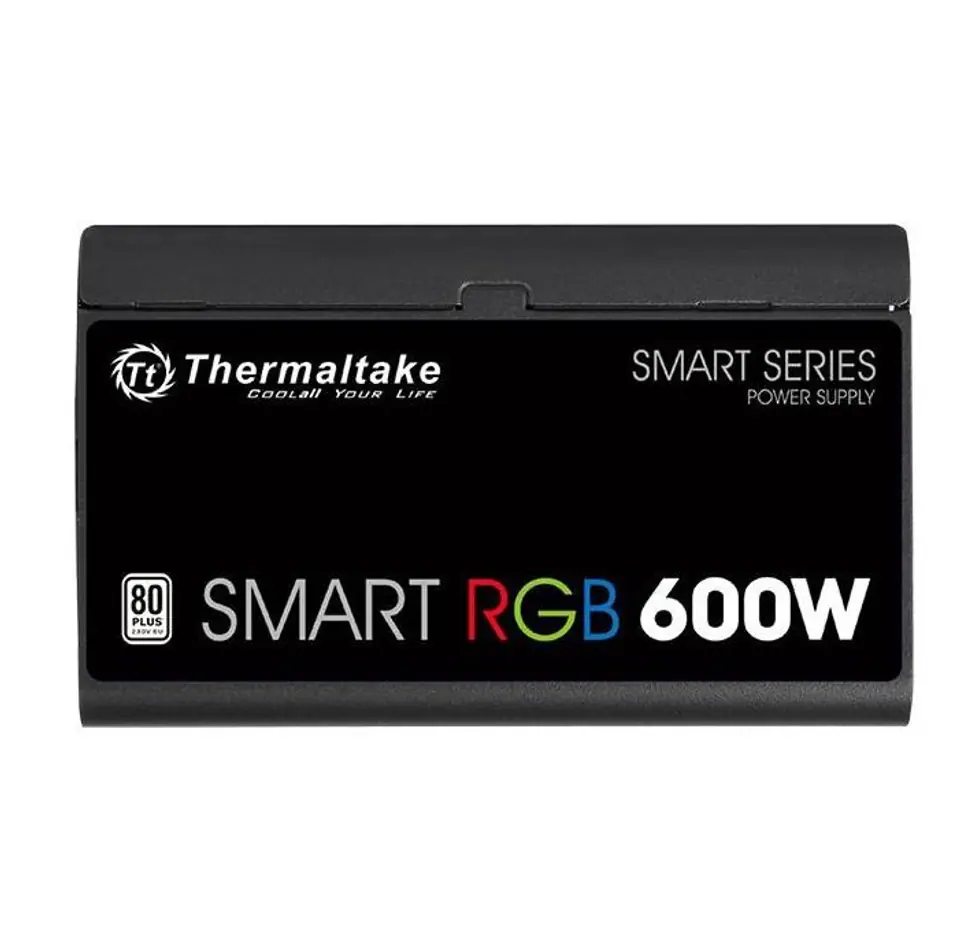

Smart 600W RGB (80+ 230V EU, 2xPEG, 120mm, Single Rail)
€75.95
Shipping from warehouse: M7
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Thermaltake
- Product code:
- PS-SPR-0600NHSAWE-1 / 4711246870468
Share this product:
Specification
| 80 plus certification: | 80 PLUS |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 230 V |
| Atx power connector (20+4 pin): | Y |
| Atx version: | 2.3 |
| Combined power (-12v): | 6 W |
| Combined power (+12v): | 504 W |
| Combined power (+3.3v): | 105 W |
| Combined power (+5v): | 105 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Cpu power cable length: | 55 cm |
| Cpu power connector (4+4 pin): | Y |
| Depth: | 140 mm |
| Efficiency: | 86% |
| Fan diameter: | 12 cm |
| Fan location: | Top |
| Floppy disk drive cable length: | 10 cm |
| Floppy disk drive connector: | Y |
| Floppy drive power connector: | 1 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Hold time: | 16 ms |
| Illumination: | Y |
| Illumination colour: | Multi |
| Input current: | 7 A |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v): | 42 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 17 A |
| Max output current (+5vsb): | 2.5 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 50 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Noise level: | 28.1 dB |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 5 |
| Operating relative humidity (h-h): | 20 - 85% |
| Operating temperature (t-t): | 5 - 40 °C |
| Package type: | Box |
| Pci express connector: | Y |
| Pci express power connectors (6+2 pin): | 2 |
| Peripheral (molex) power connectors (4-pin): | 4 |
| Power factor correction (pfc) type: | Active |
| Power good signal delay range: | 100 - 500 ms |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Safety: | CE/CB/TUV/ EAC |
| Storage relative humidity (h-h): | 10 - 95% |
| Storage temperature (t-t): | -40 - 55 °C |
| Total power: | 600 W |
| Width: | 150 mm |
