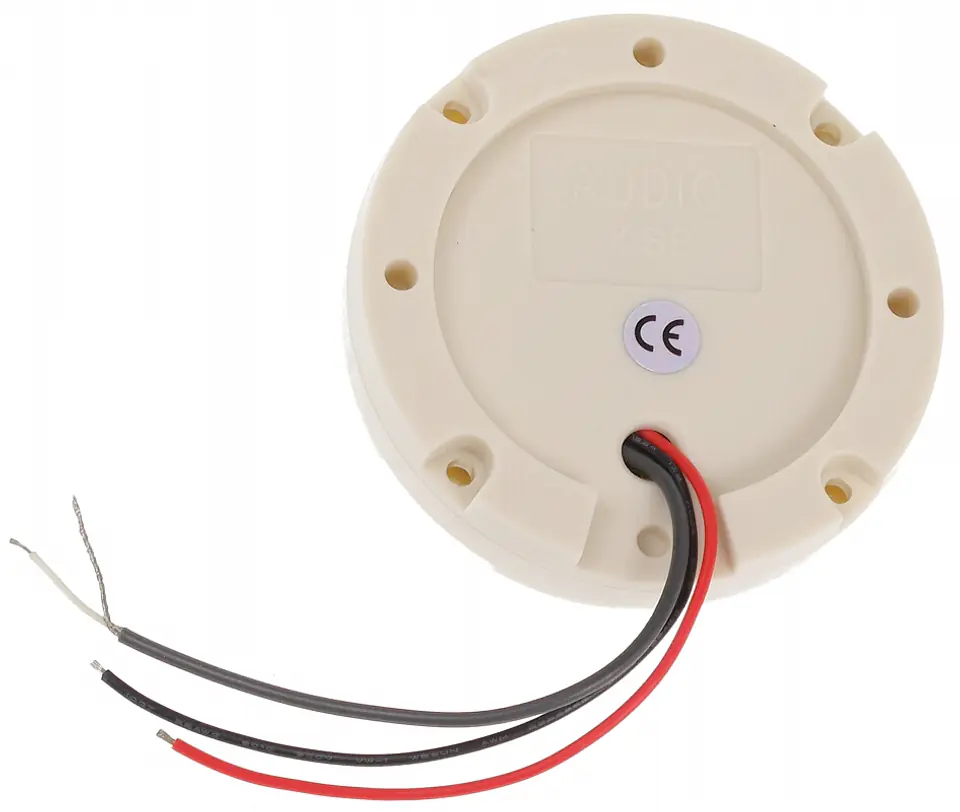

SM-15/DIGITAL is designed to listen to sounds from the environment and is adapted to work with recordersThe device has a microphone built into an aesthetic plastic housing, making it perfect for arranging virtually any room
SM-15/DIGITAL AUDIO MODULE
€1.91
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- SM-15/DIGITAL / 5902887021572
Share this product:
Specification
| Case:: | plastic |
|---|---|
| Current consumption:: | 18 mA |

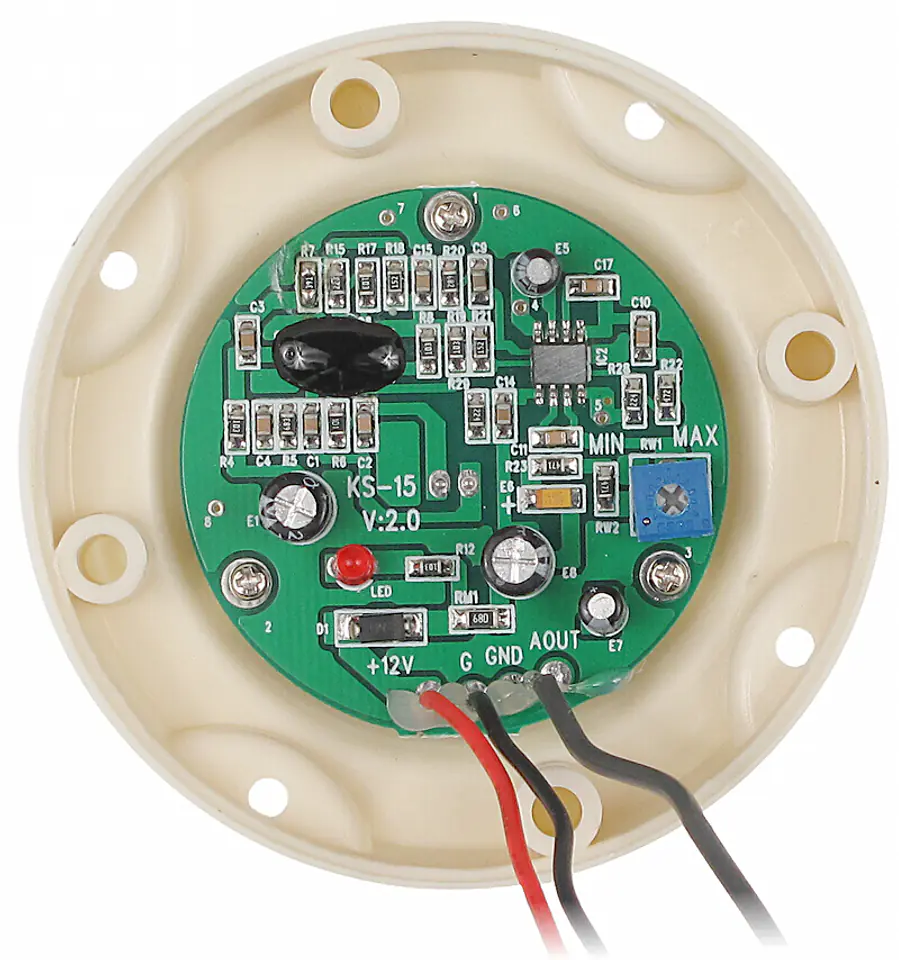

| Description of the wires:: | White - AUDIO Red - 12 V DC Black - GND |
| Dimensions:: | Ø 78 x 35 mm |
| Frequency:: | 200 Hz ... 10 kHz |
| Gain adjustment:: | 1x ... 500x |
| Output impedance:: | 600 Ω |
| Power:: | 6 ... 12 volts |
| Scales:: | 0.05 kg |
| Warranty:: | 2 years |
| Working area:: | 5 ... 150 m² |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
