Manufacturer no: 10061896

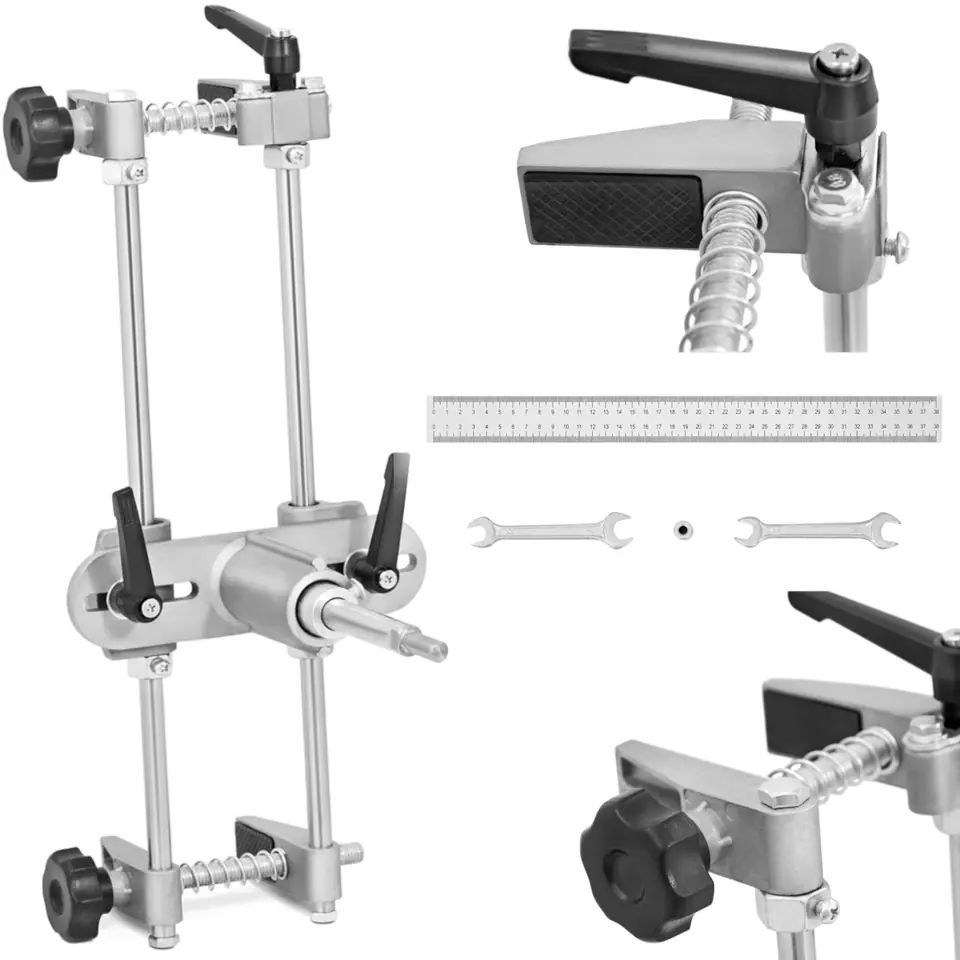

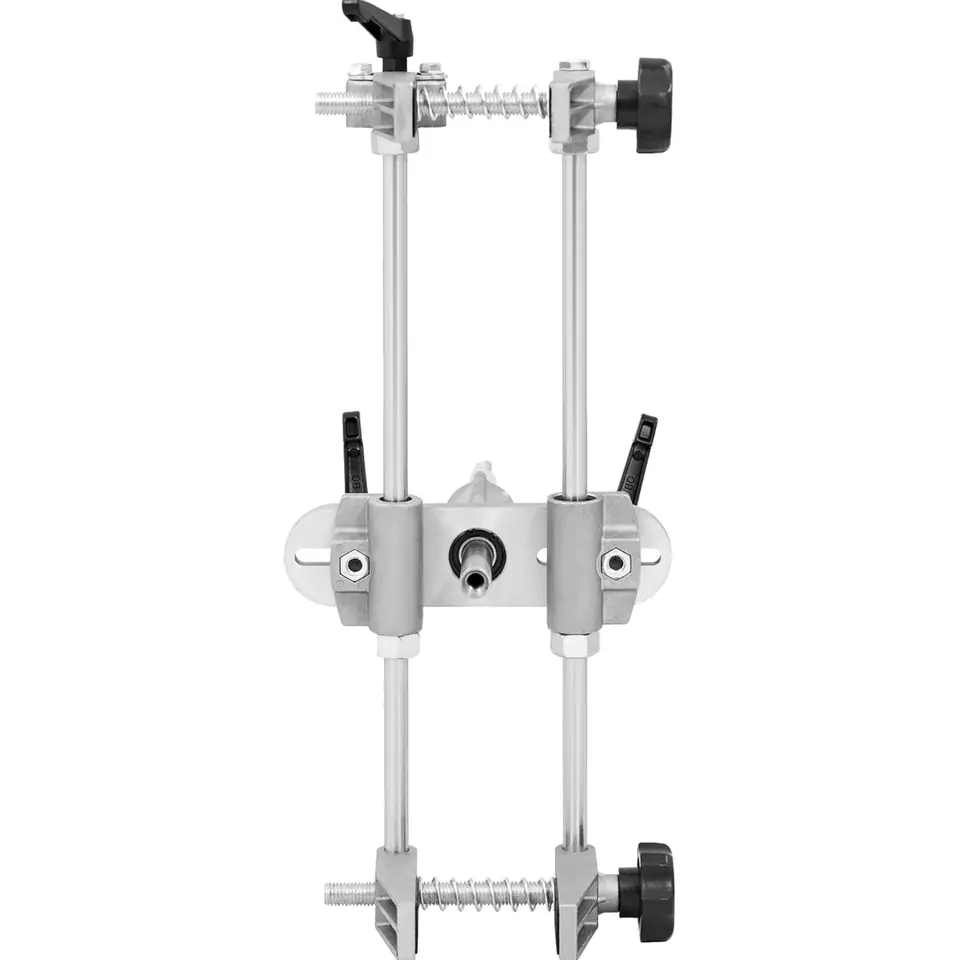

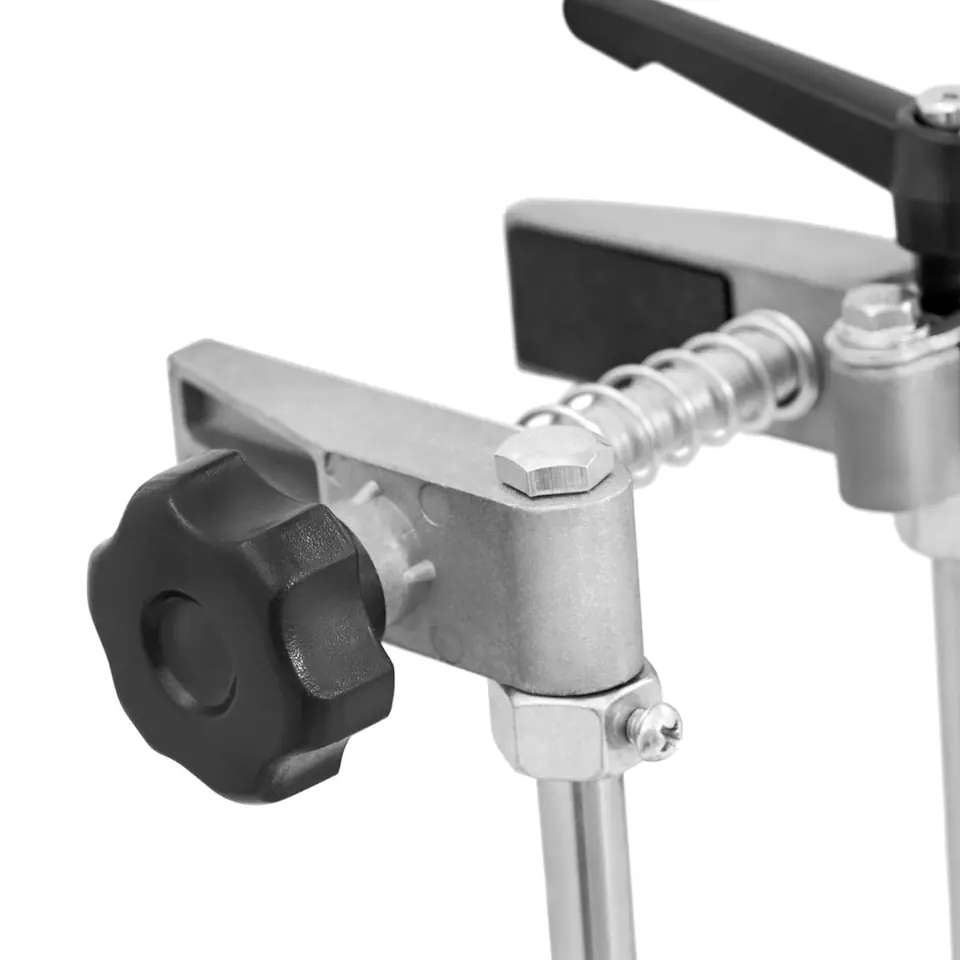

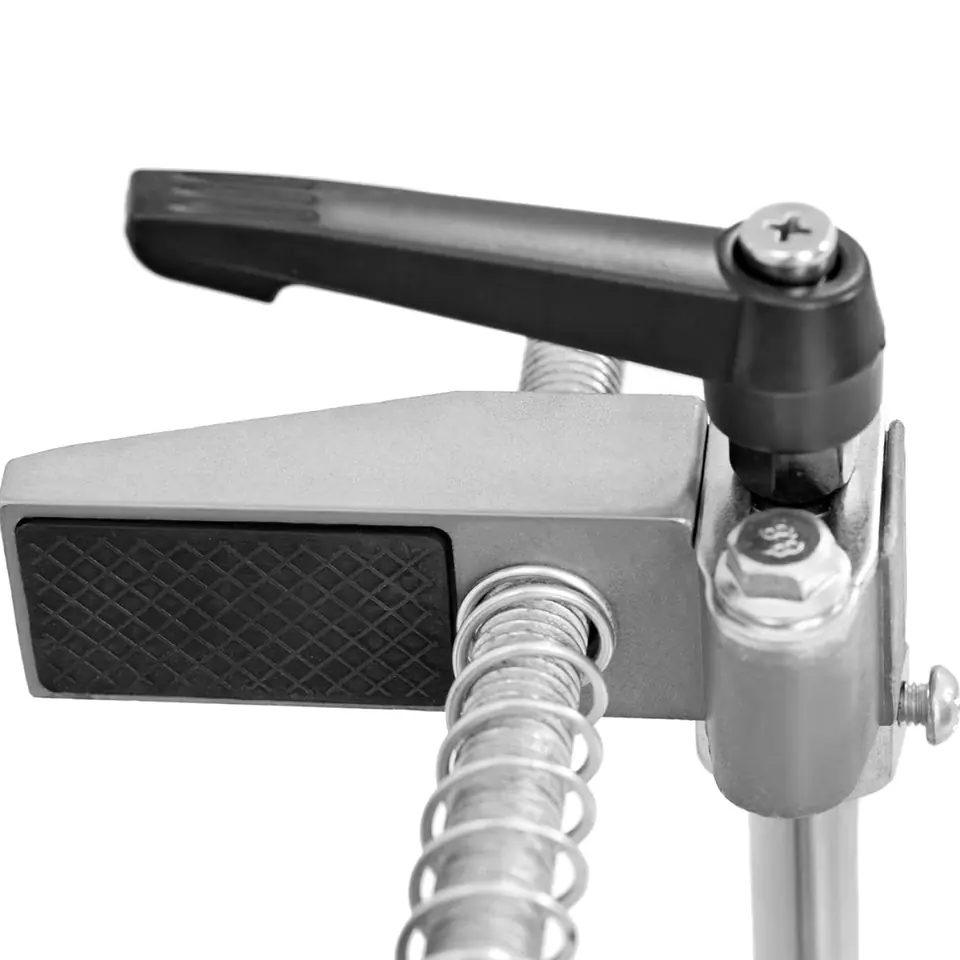

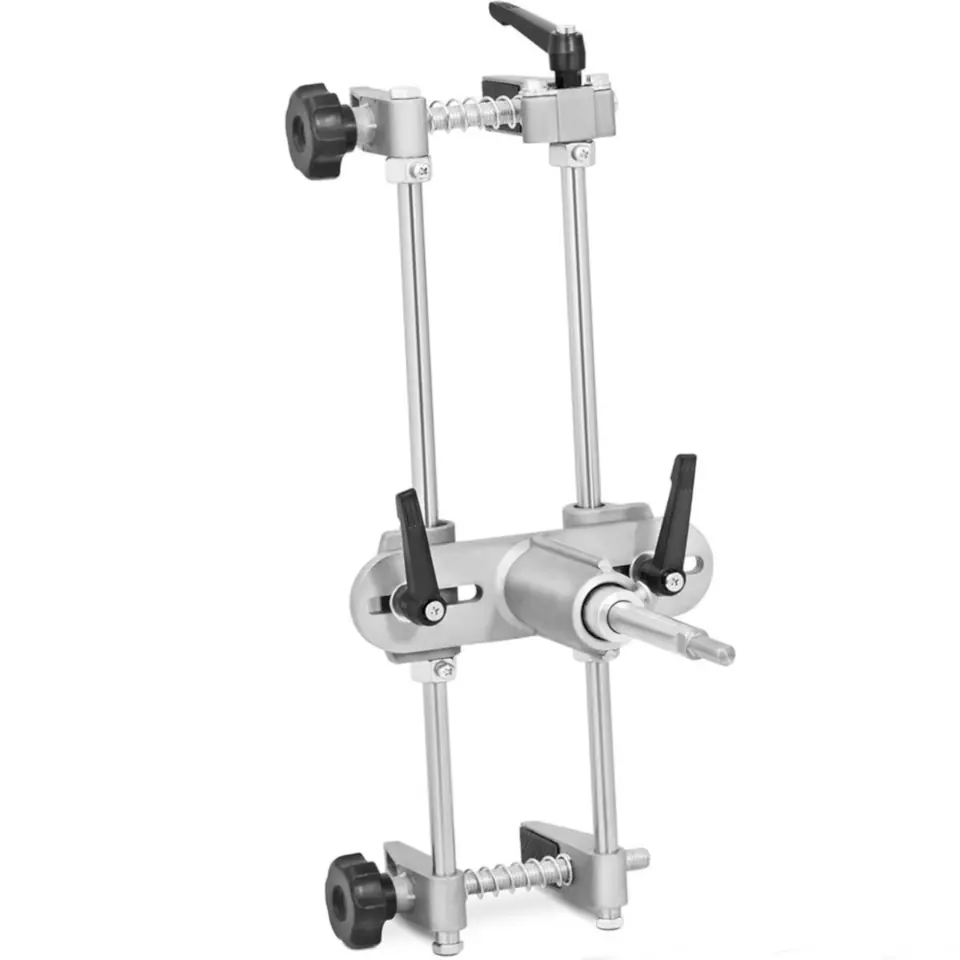

The MSW door slotting machine will allow you to mill exactly the holes for the locks. The large span and the included drilling heads allow for universal use of the equipment. The construction of the device is made of steel. It can be easily attached to the door with manual screws. The large span of 35-100 mm and 3 different cutters (18/22/24 mm) allow for universal use. For use with a drill with a chuck diameter of 10 mm. The maximum milling depth is 130 mm.
Product features:
- - Mills even recesses thanks to solidly mounted sliding rails and durable blades,
- - Made of durable steel,
- - Intuitive operation suitable also for beginners,
- - For standard drills and cordless drills,
- - Set with 3 heads adapted to doors of different thickness.
- - Model - MSW-MOR1
- - Catalogue number - 10061896
- - Article status - New
- - Milling cutter size [mm] - 18/22/24
- - Chuck diameter [mm] - 10
- - Clamping width [mm] - 35-100
- - Material - Steel
- -Max. chiselling depth [mm] - 130
- - Blade hardness [HRC] - YG8, HRA89

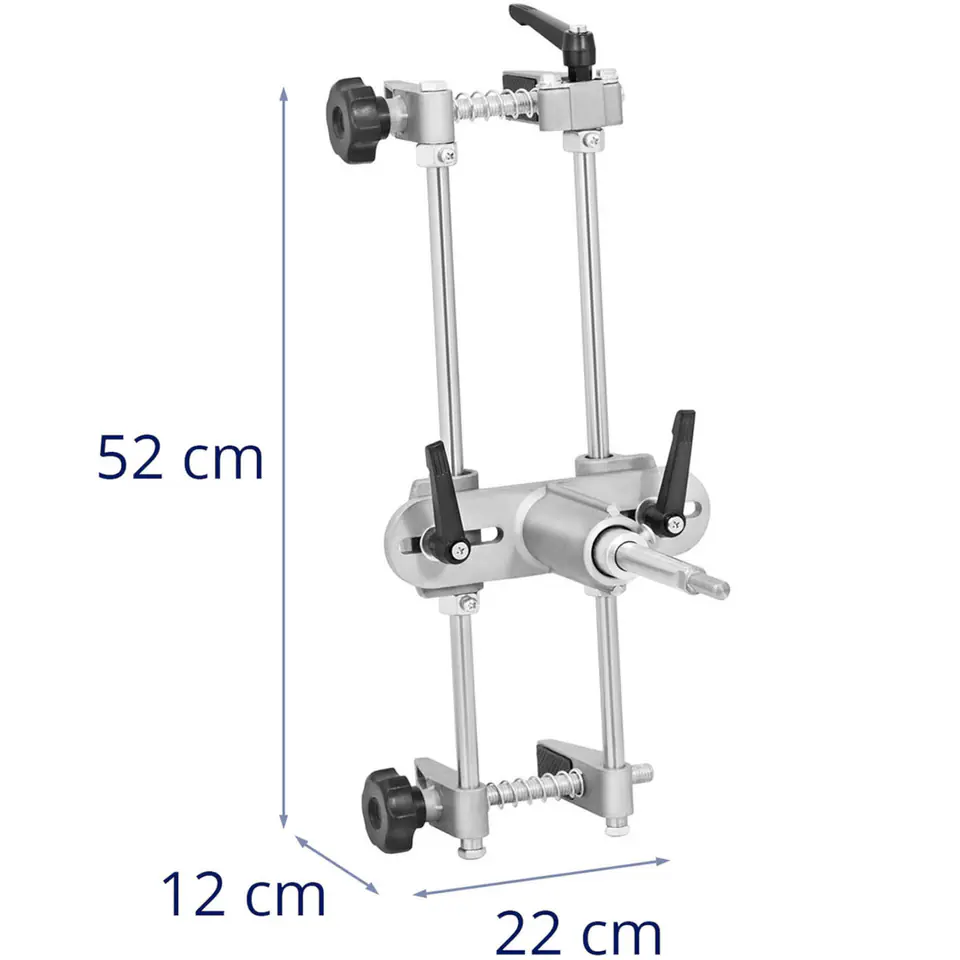

- - Dimensions (LxWxH) [cm] - 52 x 22 x 12
- - Weight [kg] - 2,9
- - Shipping dimensions (LxWxH) [cm] - 53 x 23 x 13
- - Shipping weight [kg] - 4,36
- - Zipper slotting machine

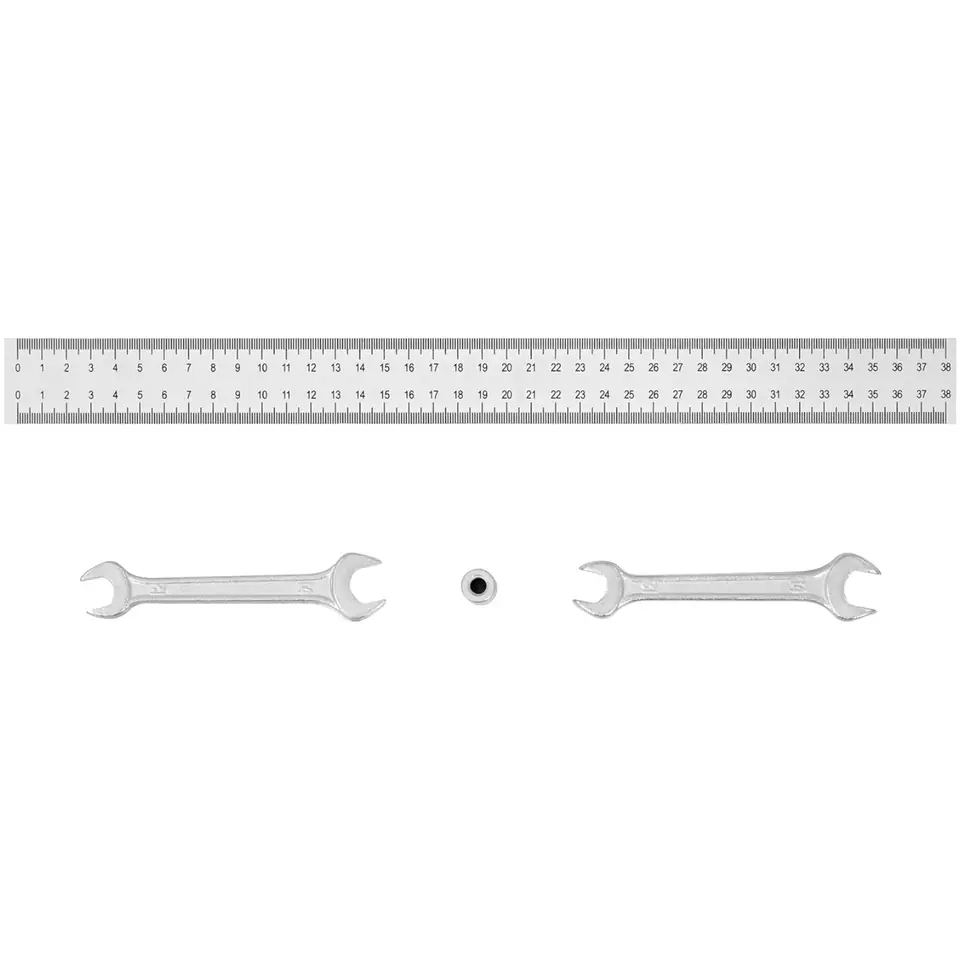

- - 2 wrenches (12/14 mm)
- - 3 drilling heads (18/22/24 mm)
- -Ruler
- -Manual
