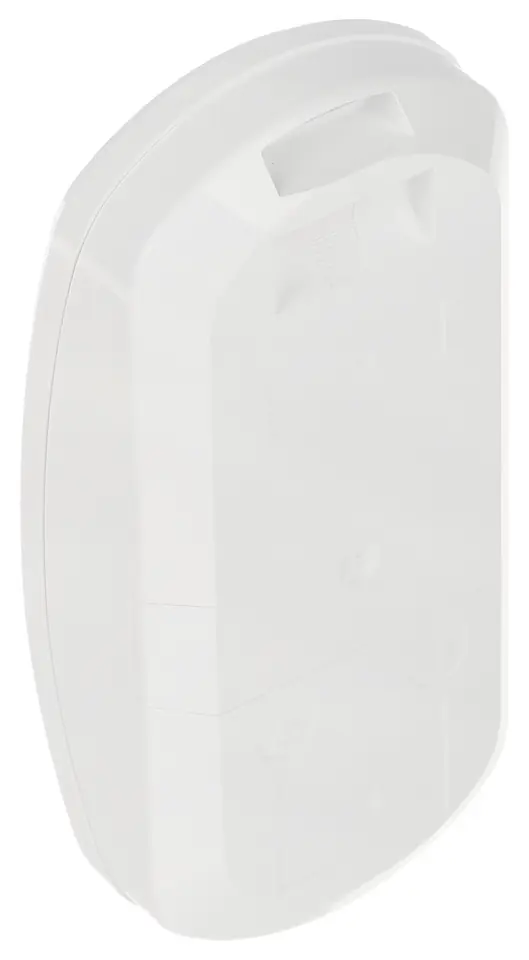

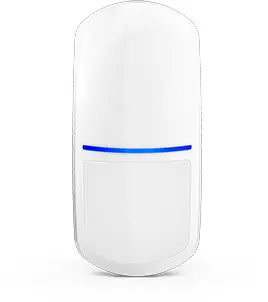

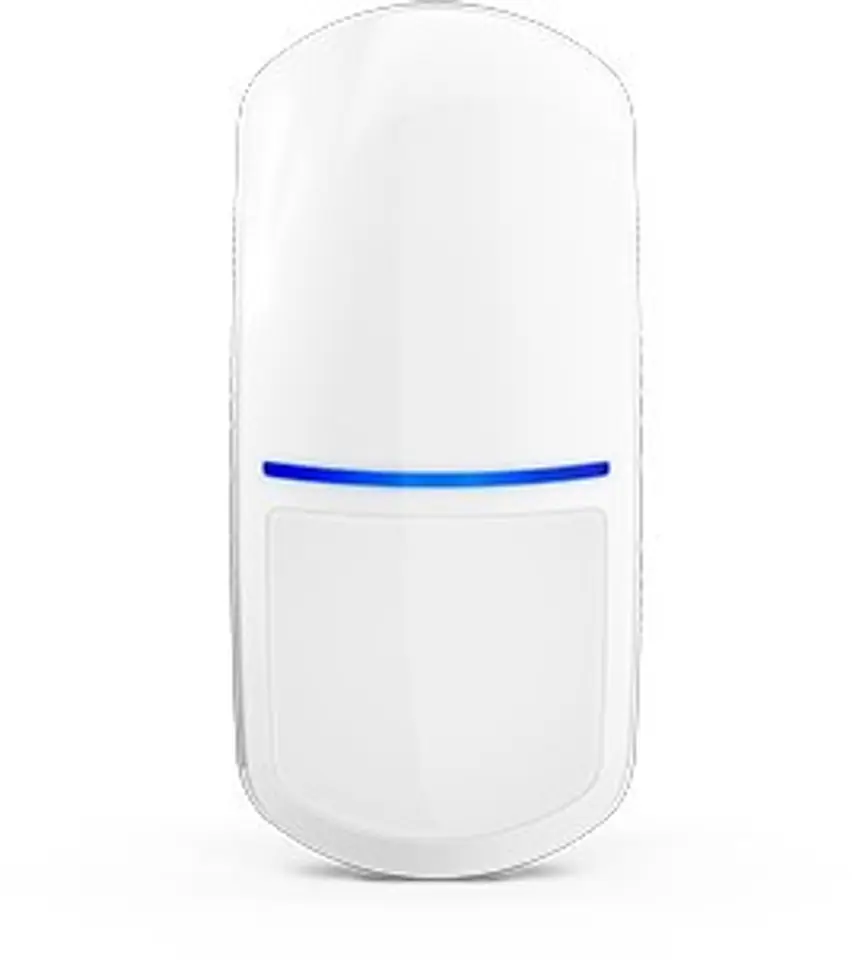

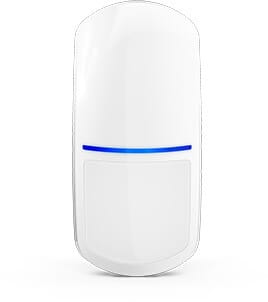

Digital Passive Infrared Detector

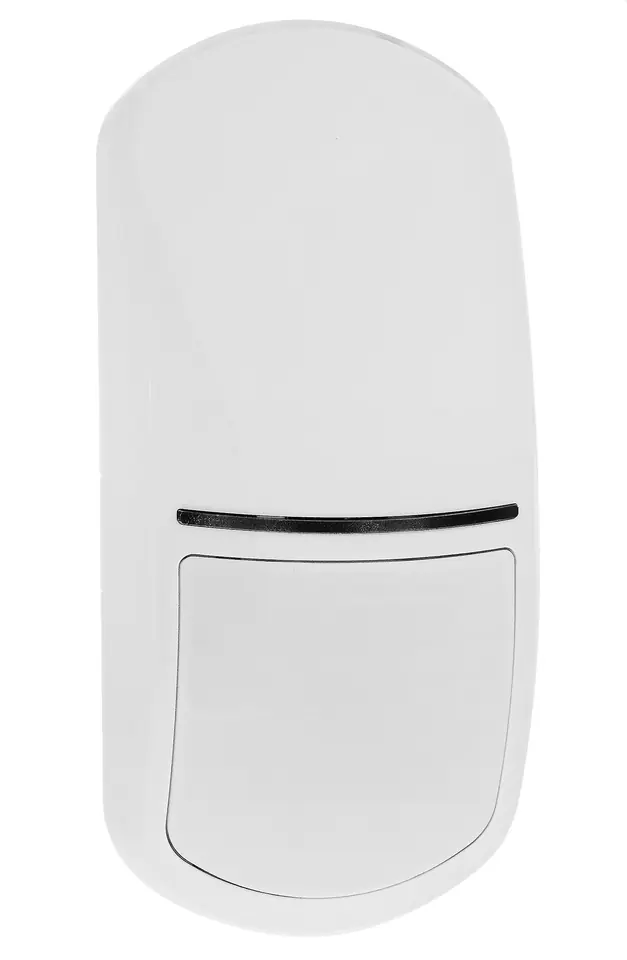

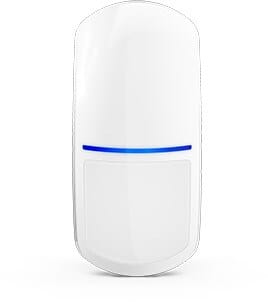

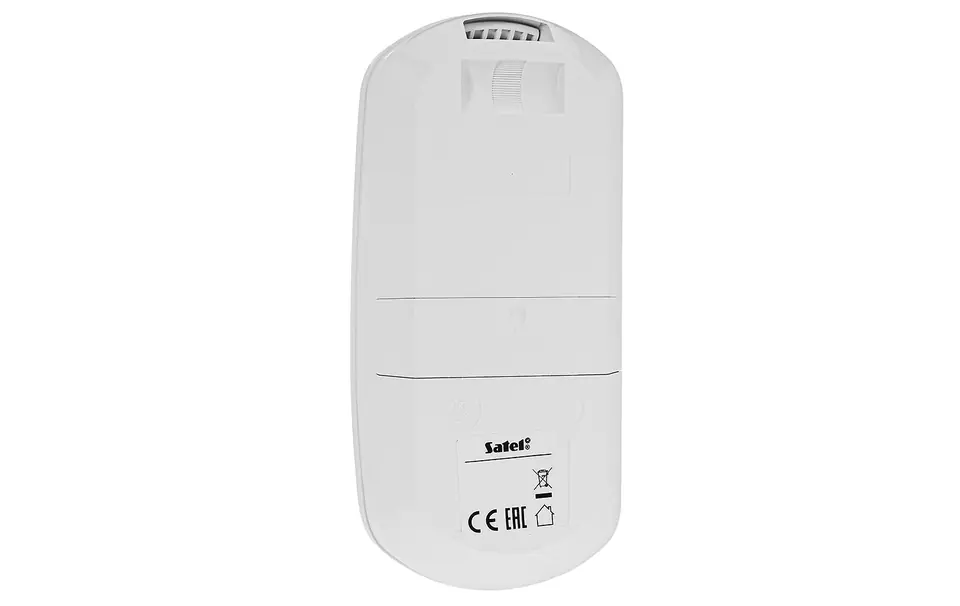

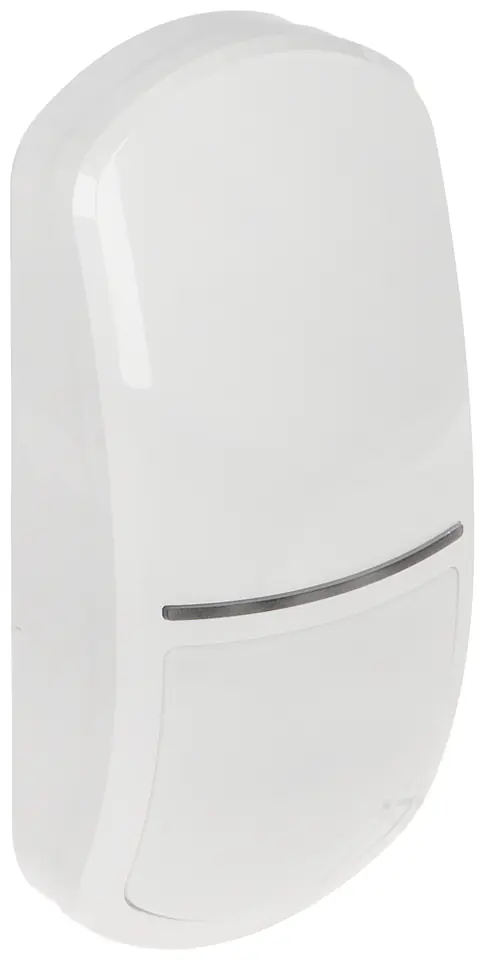

SLIM-PIR-PRO SATEL PIR DETECTOR
€45.20
Shipping from warehouse: H7
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Specification
Depth: | 137 mm |
---|---|
Detectable movement speed:: | 0.2 ... 3 m/s |
Detection angle: | 90° |
Detection distance: | 24 m |
Dimensions:: | 62 x 137 x 42 mm |
Height: | 42 mm |
Input voltage: | 12 V |
Installation height (max): | 2.4 m |
Manufacturer / brand:: | SATEL |
Maximum load on outputs:: | 40 mA / 24 VDC |
Operating relative humidity (h-h): | 0 - 93% |
Operating temperature (t-t): | -10 - 55 °C |
Operating temperature:: | -10 °C ... 55 °C |
Power consumption: | 82 mA |
Power source type: | DC |
Power:: | 12 V DC / 23 mA (max) |
Product colour: | White |

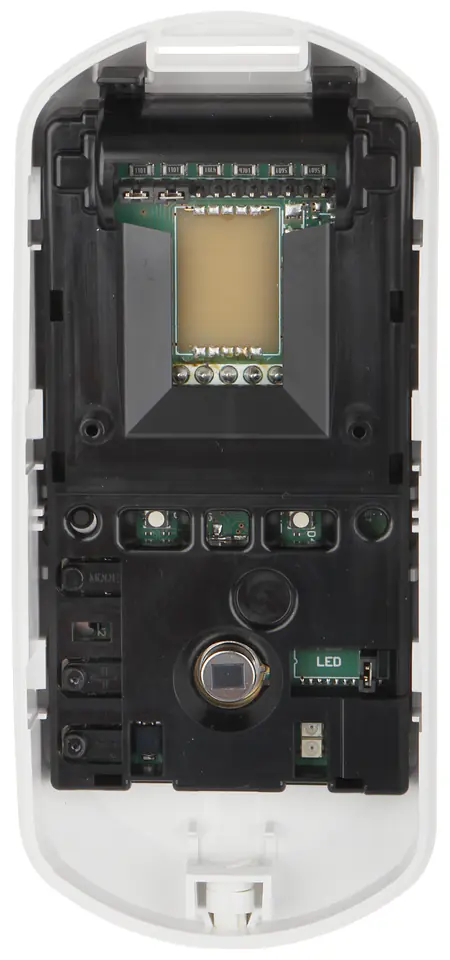

Pyroelement:: | Double |
Quantity per pack: | 1 pc(s) |

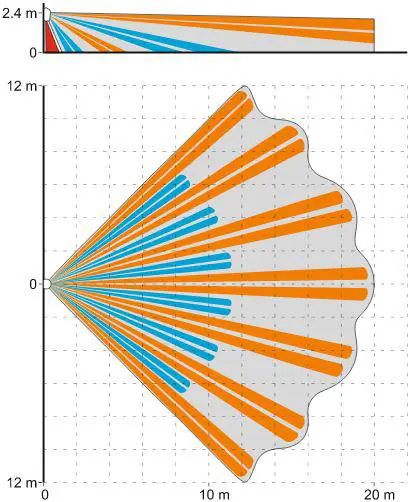

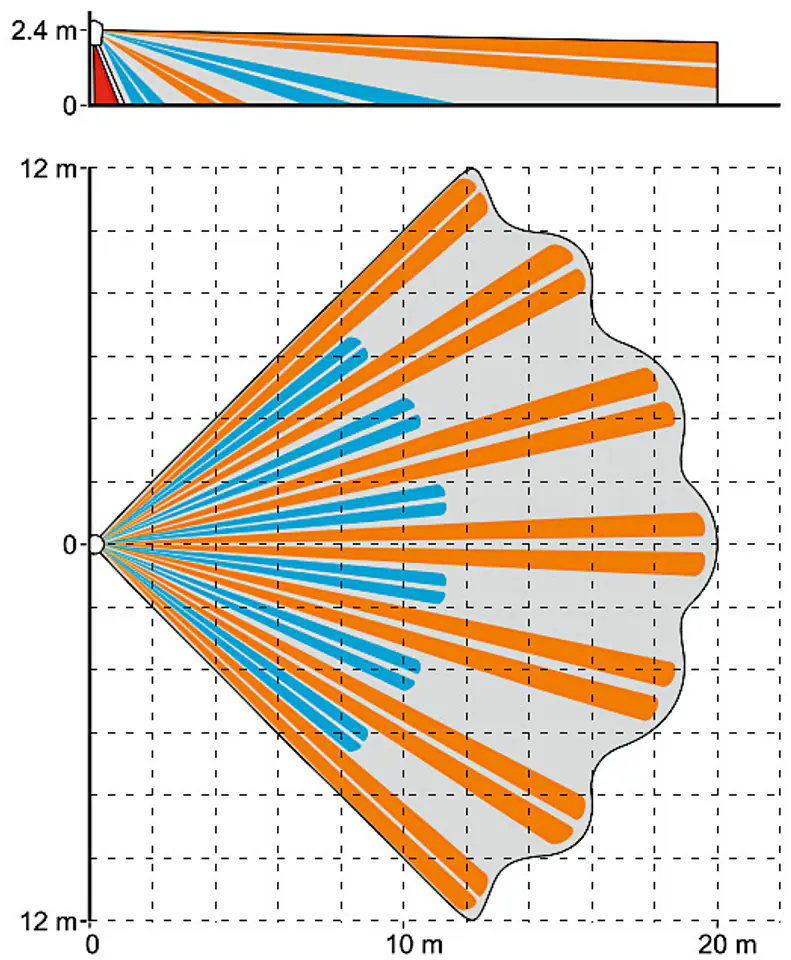

Range:: | 20 x 24 m, 90 ° |
Scales:: | 0.11 kg |

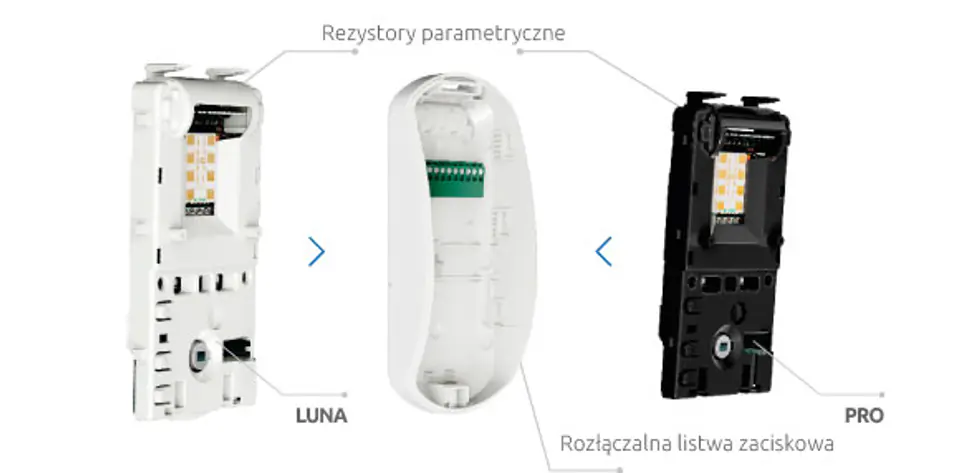

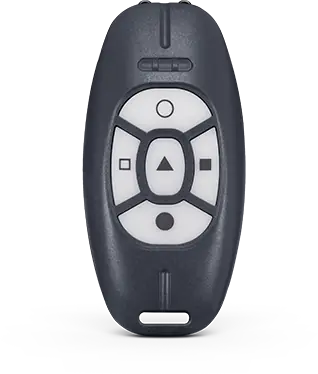

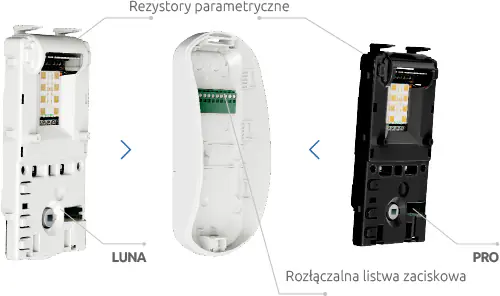

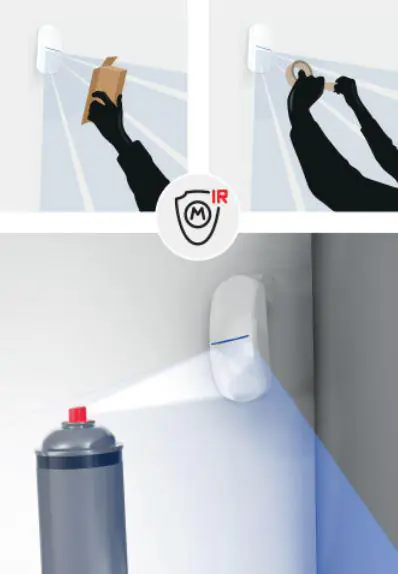

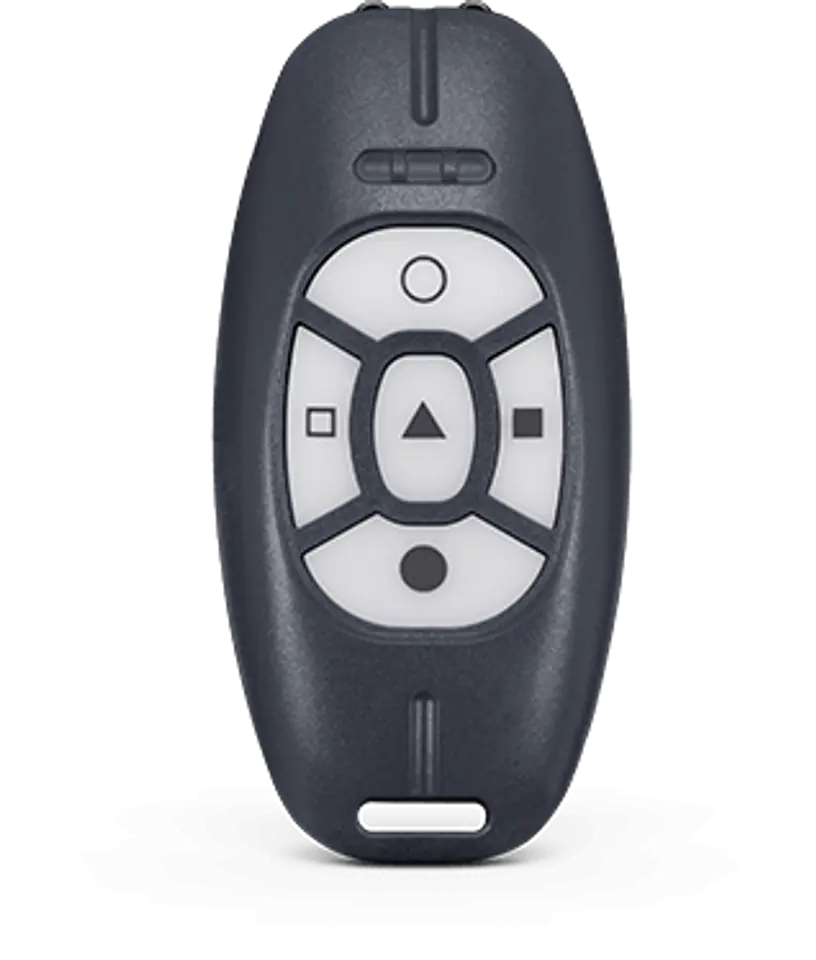

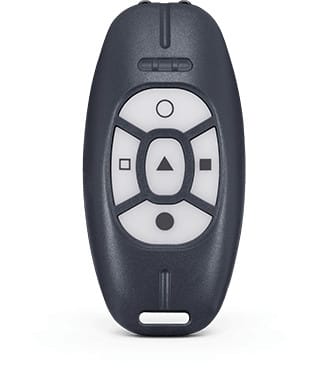

Selected features:: | Complies with EN 50131-2-4 @ Grade 3, Tamper detection - housing opening, detachment from the ground, Built-in parametric resistors 2EOL: 2 x 1.1kΩ, 2 x 4.7 kΩ, 2 x 5.6 kΩ, Remote on/off led indicator and choice of light color from 7 colors, Active IR anti-masking, Remote control (not included), Approach zone control |
Sensitivity adjustment:: | Can be set to 1 of 16 sensitivity levels |
Sensor type: | Passive infrared (PIR) sensor/Microwave sensor |
Sensor type:: | Passive infrared (PIR) |
Standby current: | 20 mA |
Use:: | Internal |
Violation signaling time:: | 2 sec |
Warranty:: | 5 years |
Weight: | 142 g |
Width: | 62 mm |
