Spacetronik SPS-S27S V2 sliding table top socket (silver)

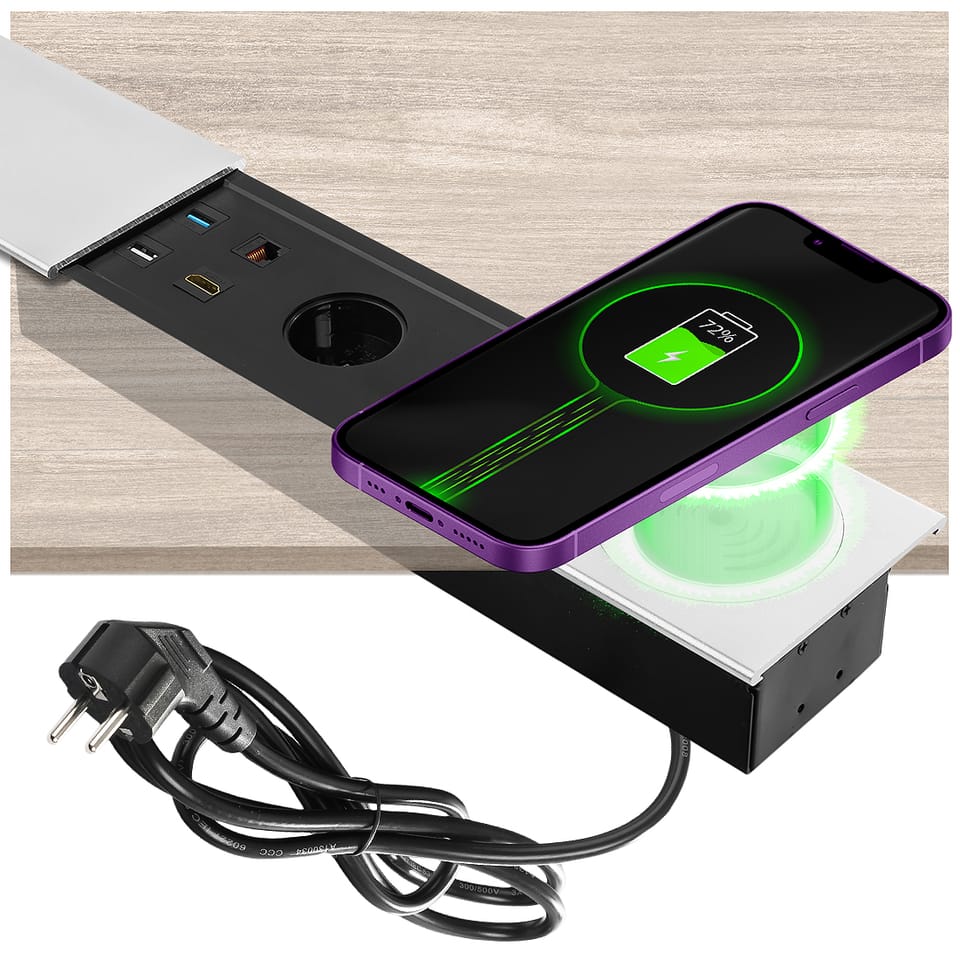

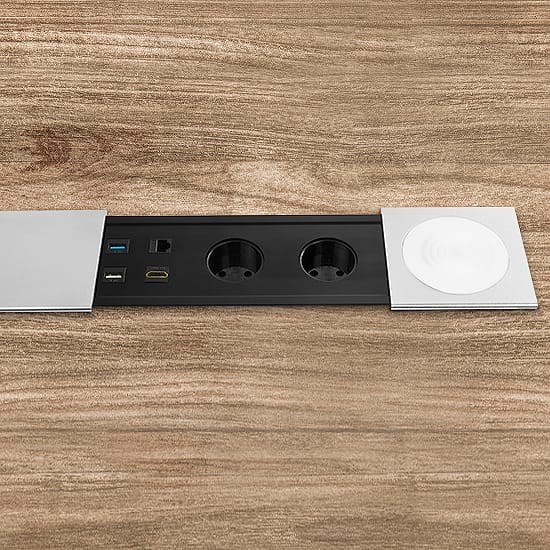

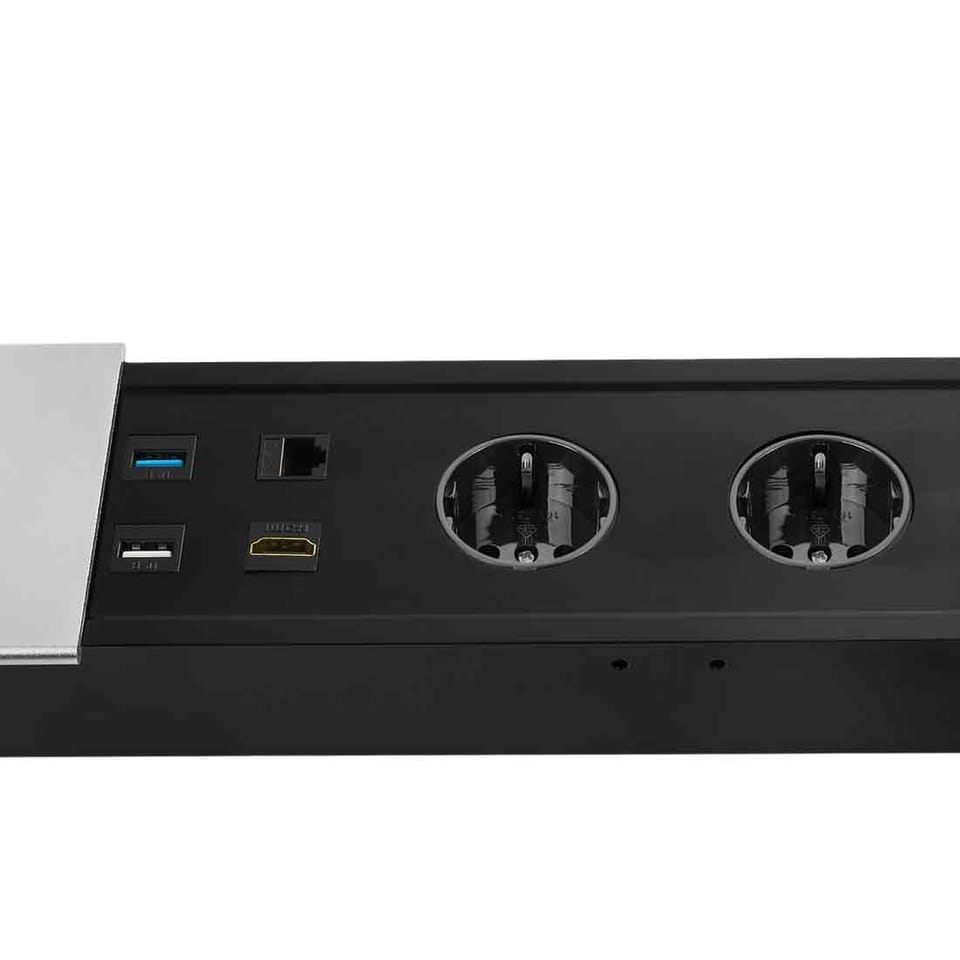

Mediaport Spacetronik ERGOLINE SPS-S27S V2 is a modern solution that is used in stores, showrooms, conference rooms, offices, as well as at home. Made of aluminum and high quality components. The product is designed for indoor installation in desks, countertops and tables. In addition to the standard power sockets (Schuko), it also has USB 3.0, USB 2.0, HDMI and RJ-45 Ethernet ports, all covered by two sliding aluminum covers. In addition, mediaport has been equipped with a fast inductive charger, thanks to which you can charge your smartphone without having to connect any cables.

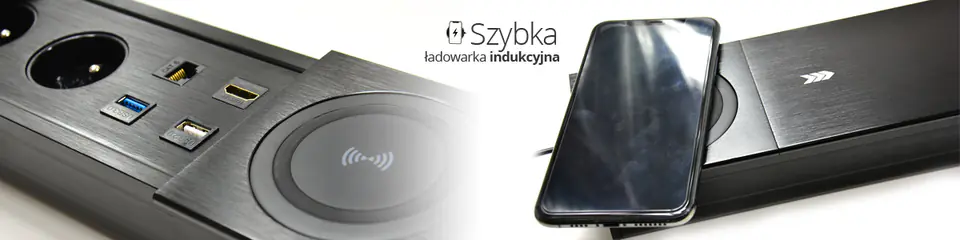

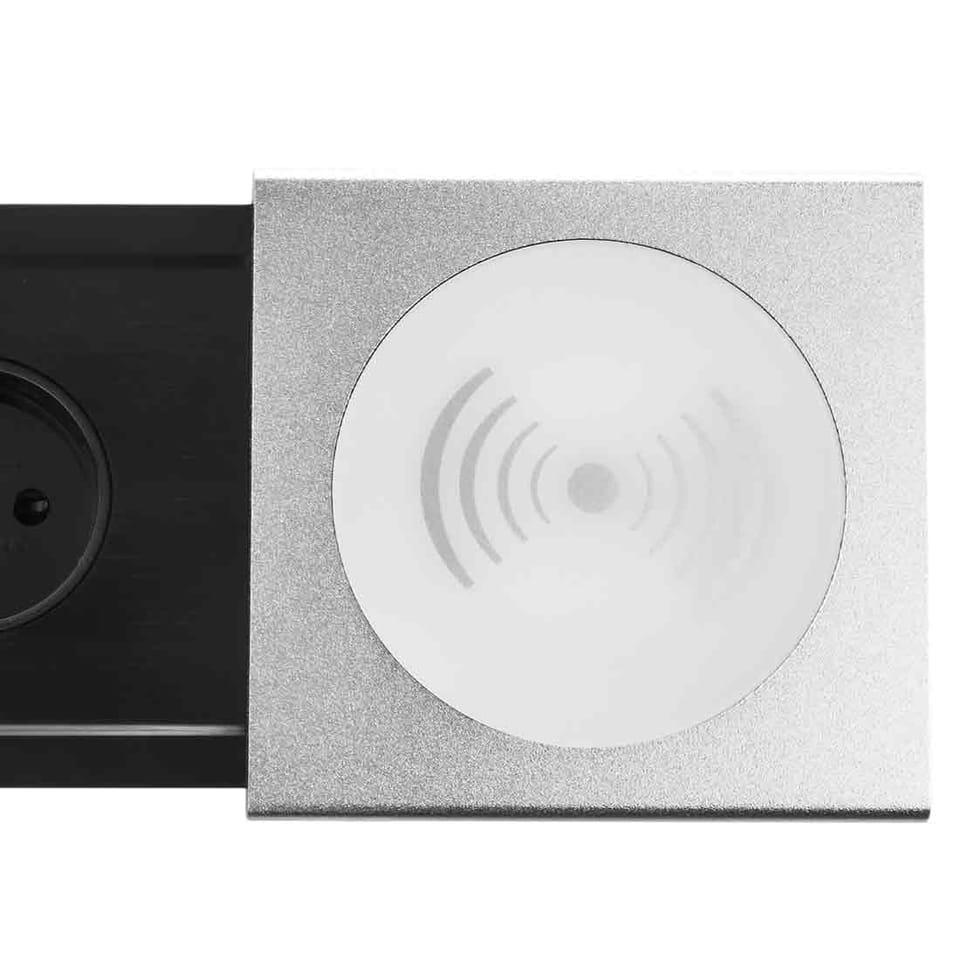

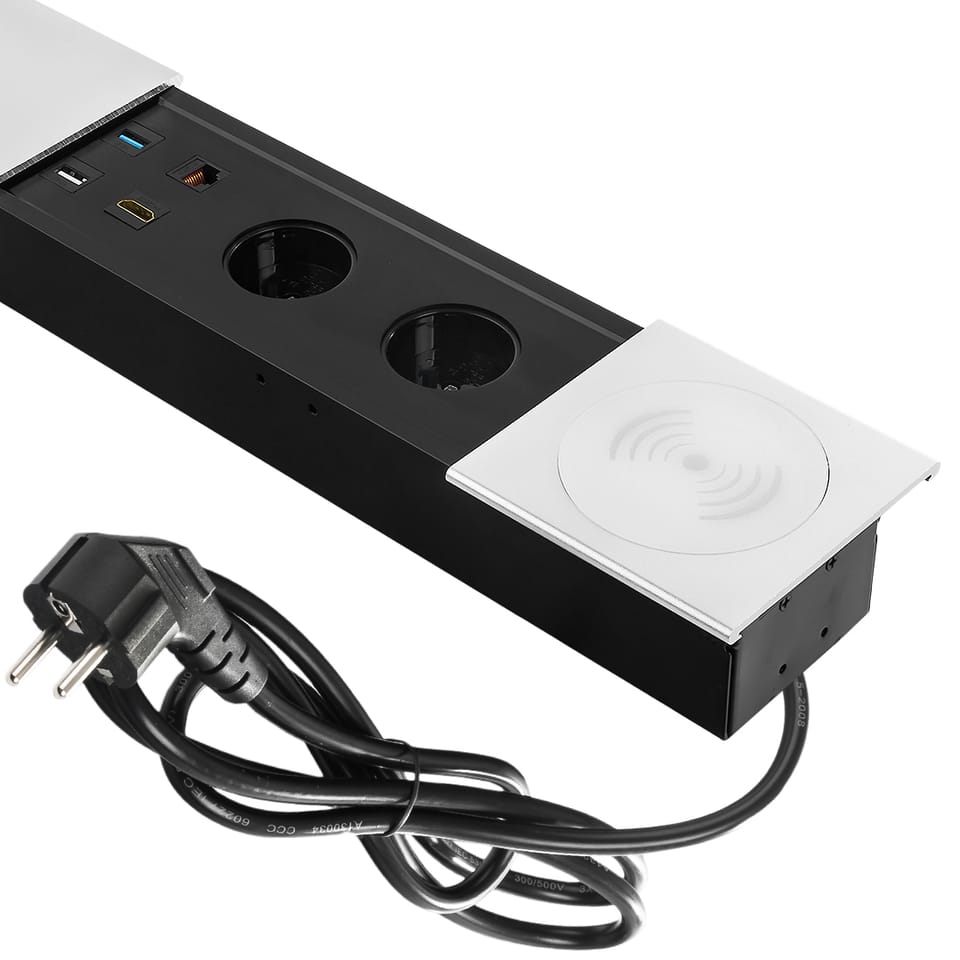

The Spacetronik series of mediaports is distinguished by an original design that will meet the needs of even the most demanding users. Made with attention to every detail, the mediaport will perfectly fit into the workplace, interior of the showroom or conference room. The SPS-S27S V2 has a fast inductive charger - just put your phone on it and the battery will replenish itself. (the inductive charger must be powered using the installed USB cable - no adapter included)
Installation of the sliding table top socket is very easy.
1. Cut a suitable hole in the countertop.
2. Place the mediaport in the cut hole.
3. Attach the device by moving the plastic clips to lock.

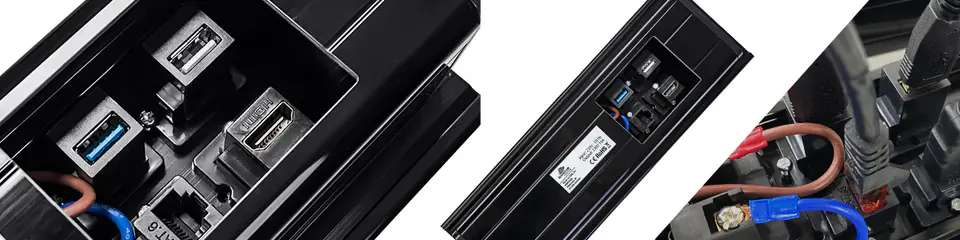

Remark! The product comes in the Keystone version (there are no cables in the set - inside there are sockets for connecting your own wires).
- Cable length: 1.5m
- Mains power supply: 230 V 50 Hz

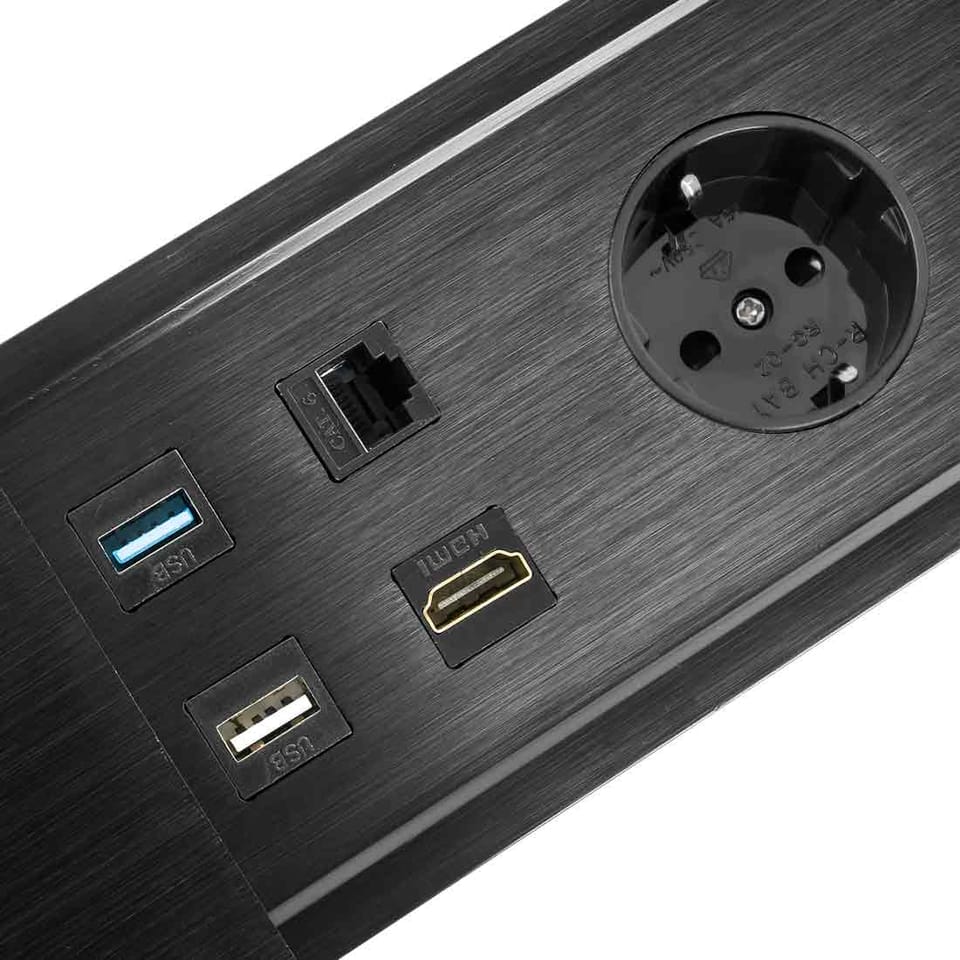

- 2 x Schuko socket (German) 110-250 V (16 A)
- 1 x USB 2.0 port
- 1 x USB 3.0 port
- 1 x HDMI port
- 1x Ethernet CAT6 (RJ-45) port
- 1x fast induction charger (5V/2A input, 9V/1.8A; 5W, 7.5W, 10W output)
- Can dimensions: 32.8 cm x 7 cm x 5.8 cm (width/height/depth)
- External dimensions: 34.3 cm x 9.7 cm (after extension 54.2 cm x 9.8 cm)
- Suggested tabletop hole dimension: 332 mm x 70 mm
Declaration of Conformity (Polish / English)
