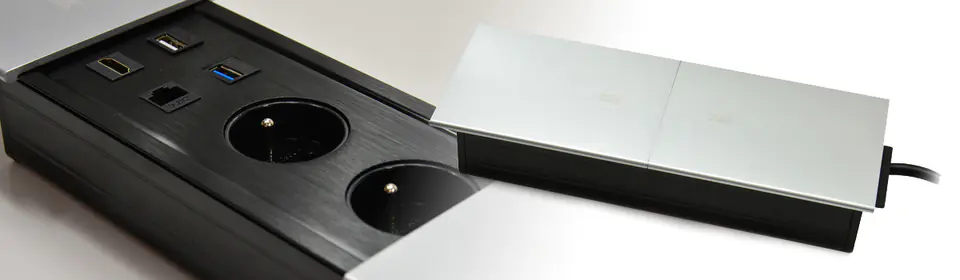

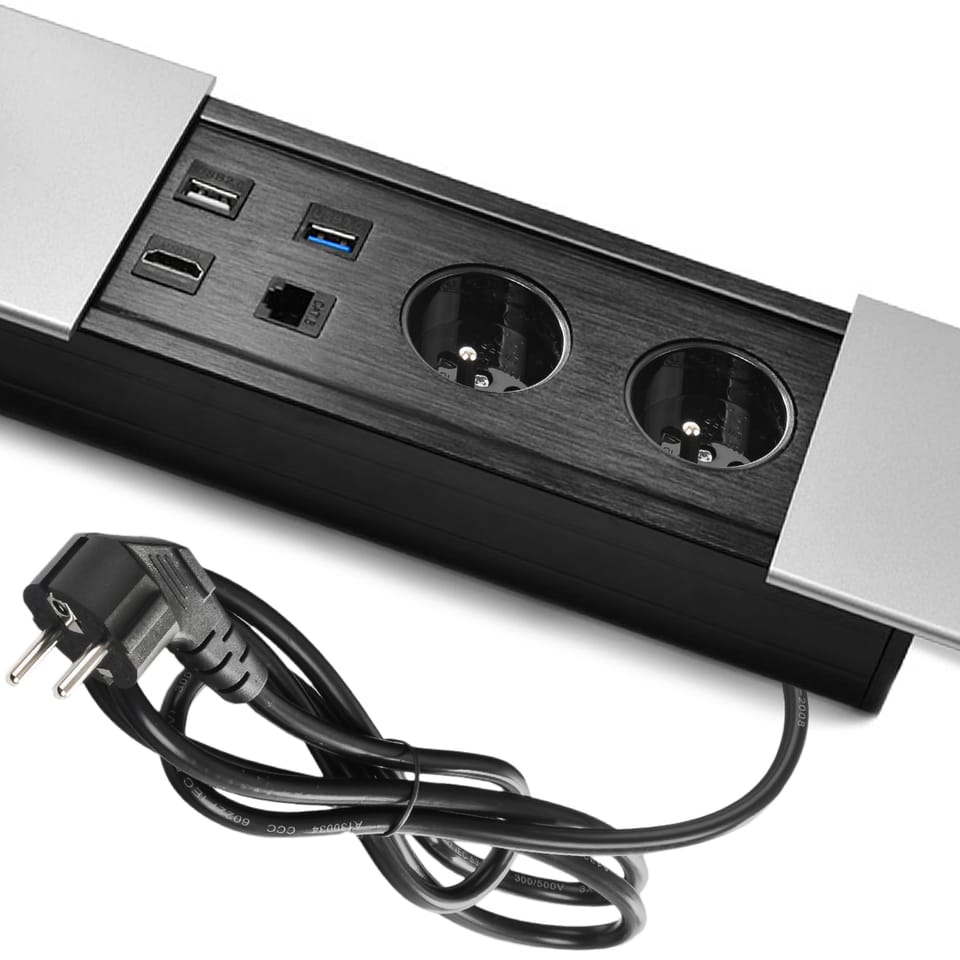

Sliding table top socket ERGOLINE SPS-S26S (silver)
Mediaport Spacetronik ERGOLINE SPS-S26S is a modern solution that is used in stores, showrooms, conference rooms, offices, as well as at home. Made of aluminum and high quality components. The product is designed for indoor installation in desks, countertops and tables, both in a vertical and horizontal position, providing access to sockets. In addition to standard power sockets, it also has USB 3.0, USB 2.0, HDMI and RJ-45 Ethernet ports, all covered by two sliding alumion covers.
The ERGOLINE mediaport series is distinguished by an original design that will meet the needs of even the most demanding users. Made with attention to every detail, the mediaport will perfectly fit into the workplace, interior of the showroom or conference room.
Installation of the sliding table top socket is very easy.
1. Cut a suitable hole in the countertop.
2. Place the mediaport in the cut hole.
3. Attach the device by moving the plastic clips to lock.
Remark! The product is available in the Keystone version (there are no cables included). To get inside the mediaport, you need to unscrew four screws on one side, pull off the side wall, and then remove the cover by moving it.
- Cable length: 1.5m
- Mains power supply: 230 V 50 Hz
- 2 x French-type socket 110-250 V (16 A)
- 1 x USB 2.0 port
- 1 x USB 3.0 port
- 1 x HDMI port
- 1x Ethernet CAT6 (RJ-45) port
- Can dimensions: 24.5 cm x 6.8 cm x 5.4 cm (width/height/depth)
- External dimensions: 26.3 cm x 9.8 cm (after extending 44 cm x 9.8 cm)
- Suggested tabletop hole dimension: 248 mm x 70 mm
