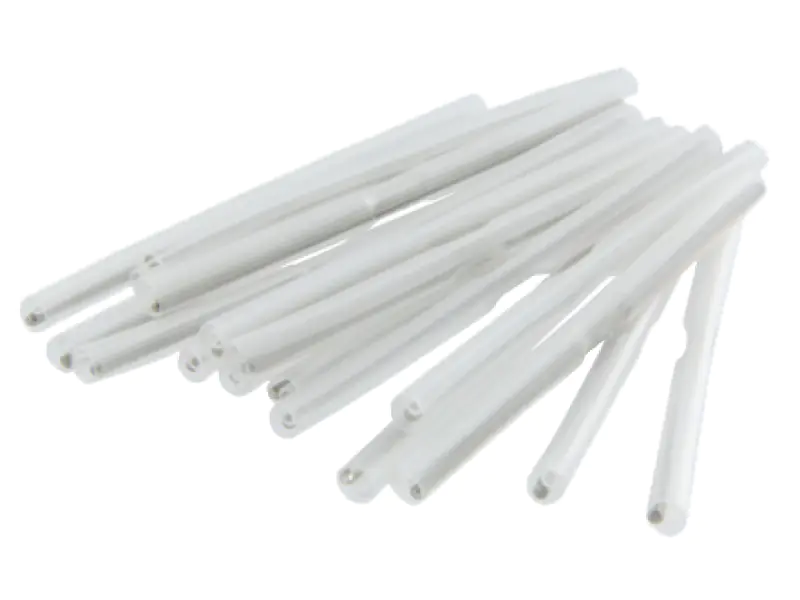

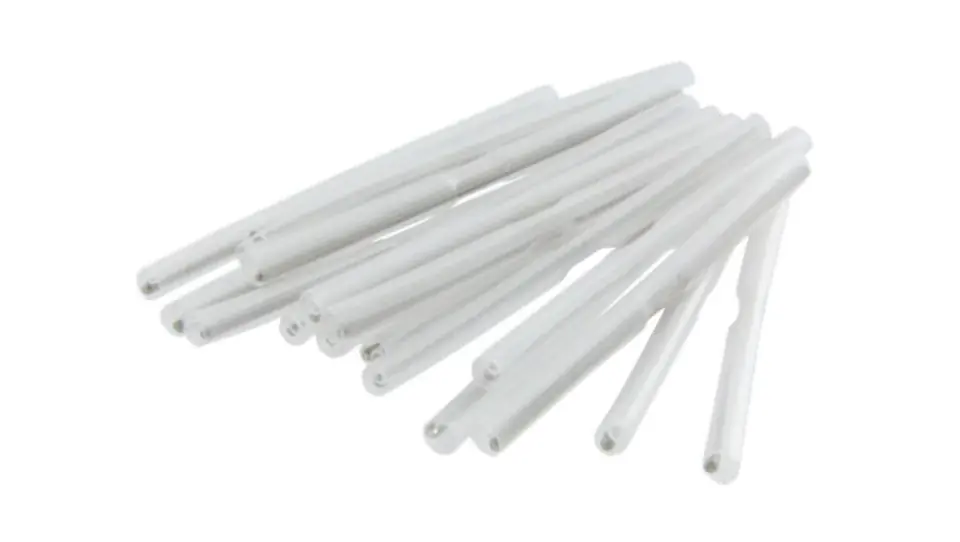

Fiber optic splice splice sleeves are tubes made of heat-shrinkable plastic. Equipped with a stiffening rod additionally strengthening the whole structure. They protect the connection against mechanical damage.
Technical Specifications
- Length: 45mm
- Outer diameter of the cover before recovery: 3mm +/- 0,5mm
- Outer diameter after recovery: 2mm +/- 0,2mm
- Diameter of the cover hole before recovery: 1,25mm
- Diameter of the reinforcing wire: 1,1mm
- Minimum shrinking temperature: 110 °C
- Maximum shrink time: 60 seconds
