Technical data:
Model: R255SMS-DBP-2PACK
Motor power: 2000 W
Supply voltage: 230V
Rotational speed (no load): 2600 rpm
Maximum cutting capacity at 0°: 300 x 80 mm
Maximum cutting capacity at 45° (angle) / diagonal 45°: 212 x 46 mm
Maximum cutting capacity at 45° (angle): 212 x 80 mm
Maximum diagonal cutting capacity 45°: 300 x 49 mm
Maximum thickness of cut sheet (mild steel): 6 mm
Unit dimension (LxWxH): 740 x 705 x 460 mm
Box Dimension (LxWxH): 570 x 545 x 385 mm
Machine weight: 17.1 kg
Package weight: 20.5 kg
Noise level (at load): 109.9 dB(A)
Noise level (no load): 96.9 dB(A)
Vibration level (under load): 3.463 m/s2
Laser class: 2
Laser Beam Source: Diode
Laser power: <1 mW
Beam length: 650 nm
Dial Diameter: 255mm
Dial mounting hole diameter: 25.4mm
Dial thickness: 2mm
Number of teeth: 28 z
Blade speed (unladen): 2600 rpm

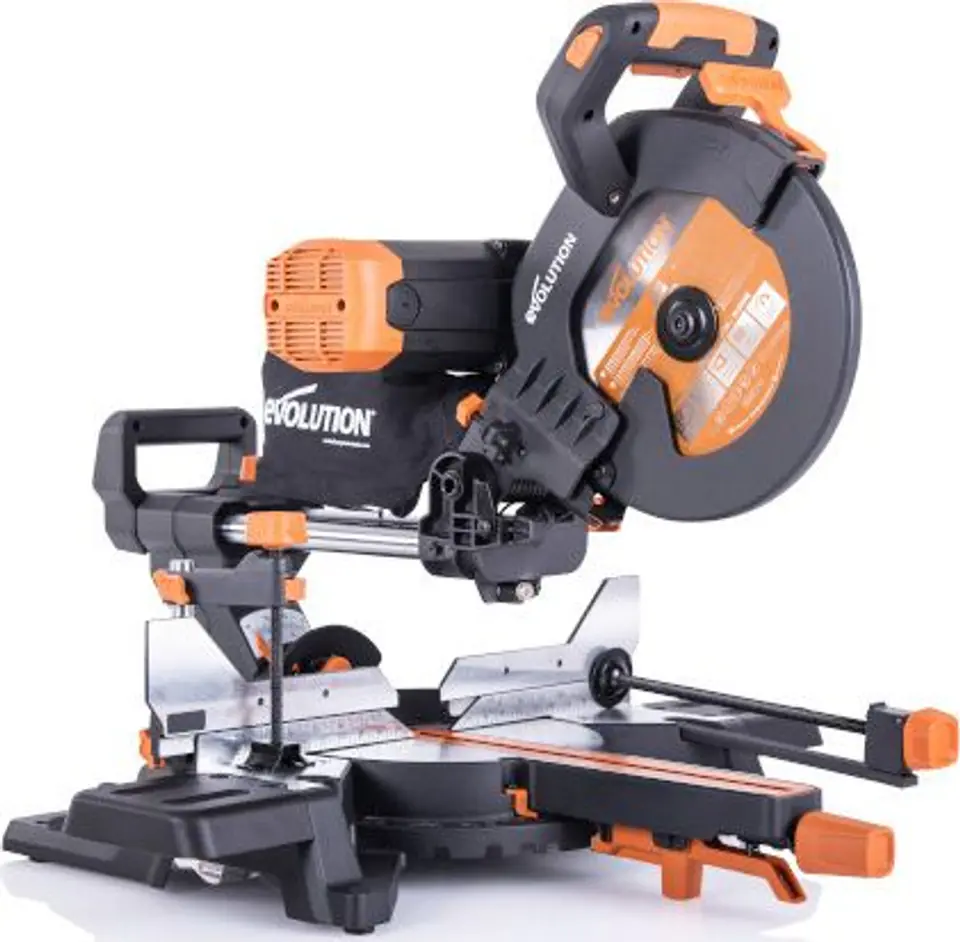

The most advanced in the offer of the English company Evolution Power Tools multi-purpose mitre saw R255 DB PLUS with a 255 mm disc, version for 2020.
The device is distinguished by the possibility of tilting the head both to the right and left in the range of 0° to 45°, a turntable moved to the right and left to 50° with a lock at 0°, 15°, 22.5°, 30°, 45°.
The diagonal saw guarantees a long cutting length of 300mm, is equipped with a soft start system, spindle lock for easy disc replacement and a reliable drive transmitted via a multi-groove belt.
A truly versatile mitre saw with guides designed for a wide range of materials using only one RAGE 255 mm disc.
Why should you limit yourself to cutting wood? Now you have a real choice. With the Evolution RAGE3-DB in combination with the unique Evolution RAGE 255 mm multi-purpose blade, you can easily cut materials such as:
- steel profiles,
- aluminium profiles,
- plastics,
- wood,
- wood with nails.
Go beyond the standard - choose Evolution Power Tools - RAGE series!
A diagonal saw with guides is a device that is extremely necessary in every workshop. It provides accuracy and high functionality for those materials for which this was not possible before. As in other power tools using RAGE® technology, the cutting process is fast, clean, burn-free and virtually no sparks when cutting steel profiles.
1 x Allen Key (M6 & M5)
1 x Multi-purpose cutting head mitre saw with GUIDES EVOLUTION R255 DB PLUS,
1 x Locking Knob
1 x Self-tapping screw
1 x Power Cable Locking Element
1 x Power Cable Winding Element
1 x Guide Guard (made of plastic)
1 x Evolution Multi-Purpose Dial 255mm 24zęby
1 x Evolution Wood Cutting Disc 255mm /40zęby
1 x Diagonal saw work table extension
1 x Rotatable mitre saw base
1 x Guides
1 x Power Cord Guide / Clamp
1 x Head Screws
1 x Laser Cover
1 x Transport handle
1 x Clamp
**
