Double power and mobility

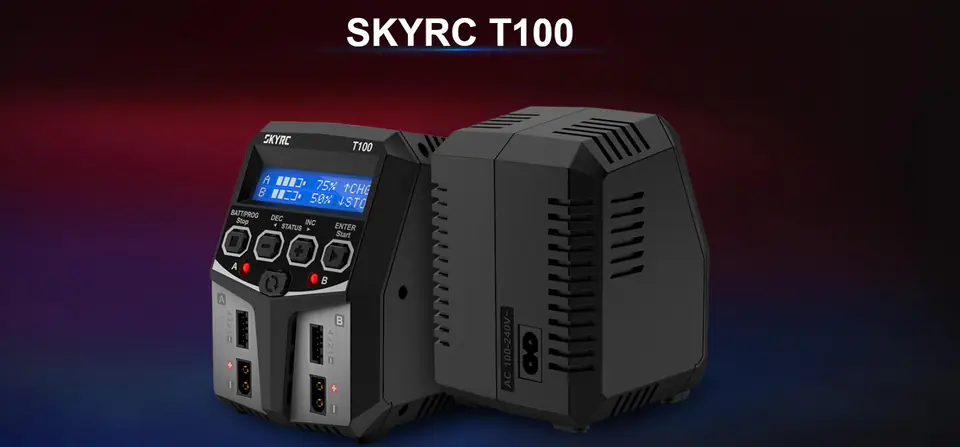

The SkyRC T100 charger is a dual-channel charger that is able to charge or discharge all the most common types of batteries. The clever design allows for trouble-free connection to the balancer ports and XT60 plug. The charger is small, but has as much as 100 watts of power, which allow you to charge the battery with 5 amps. The charger also has AGM and cold charging modes for charging lead-acid and AGM batteries at lower temperatures.

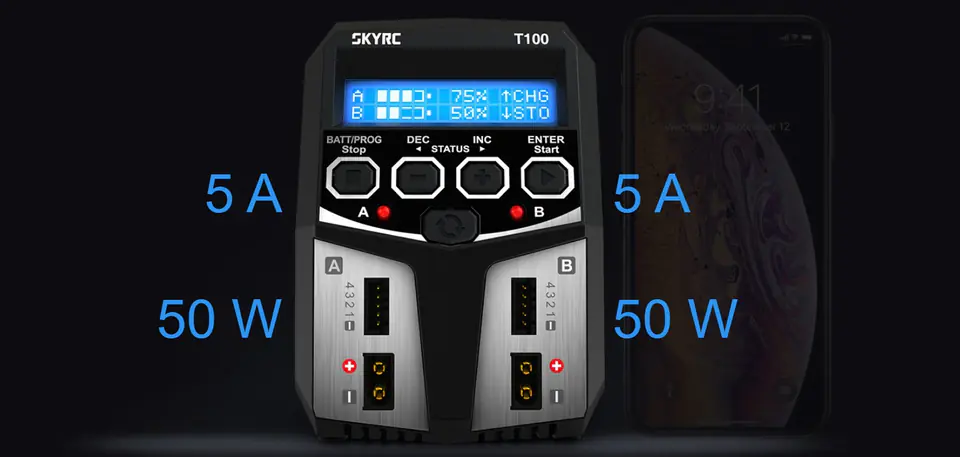

Two charging circuits

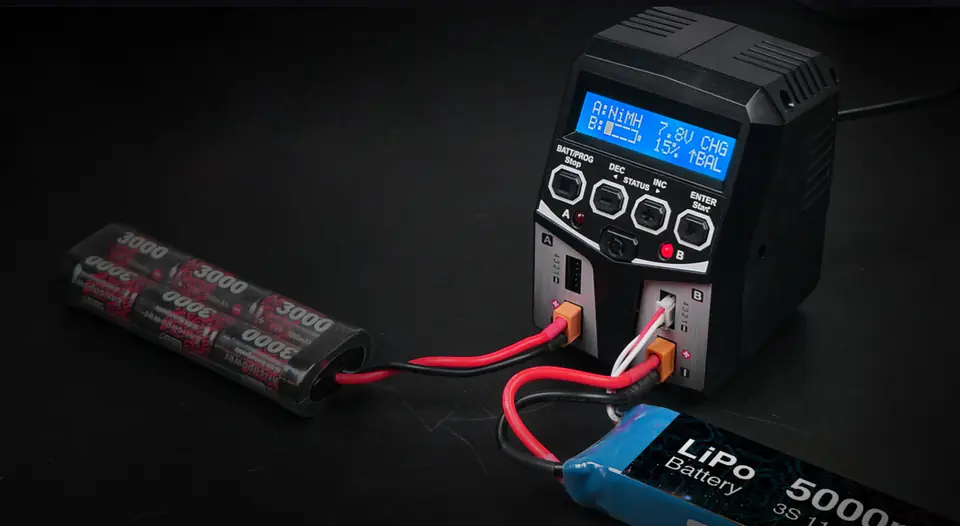

The T100 allows you to connect 2 batteries and intelligently and automatically charges them to their maximum capacity. Batteries can have different specifications and be of completely different types.

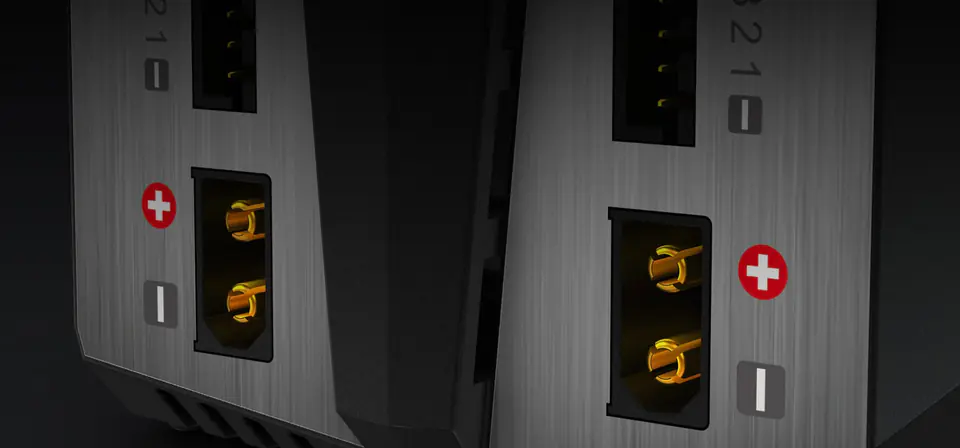

Universal plug XT60
The most popular XT60 plug has been built into the T100 charger, thanks to which we can easily connect and charge commonly used batteries. XT60 prevents the problem of reversed polarity and provides a very stable connection.

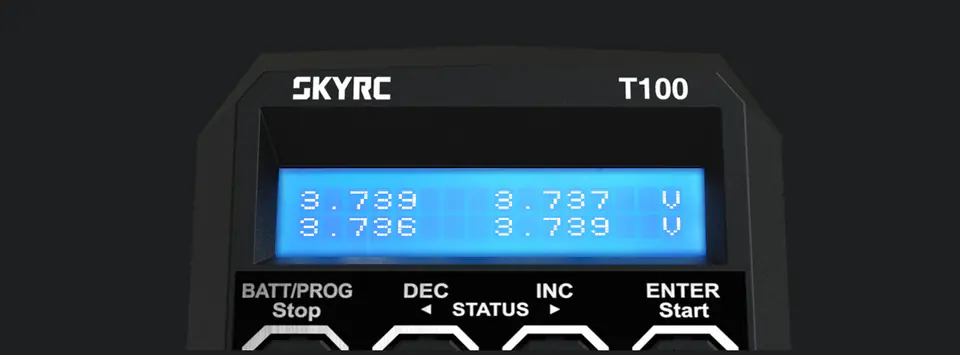

Improved voltage reading accuracy
The charger software has been highly optimized, allowing the battery voltage to be displayed up to 3 decimal places. With the T100, you will be in for the extraordinary precision of voltage measurement during the charging process.

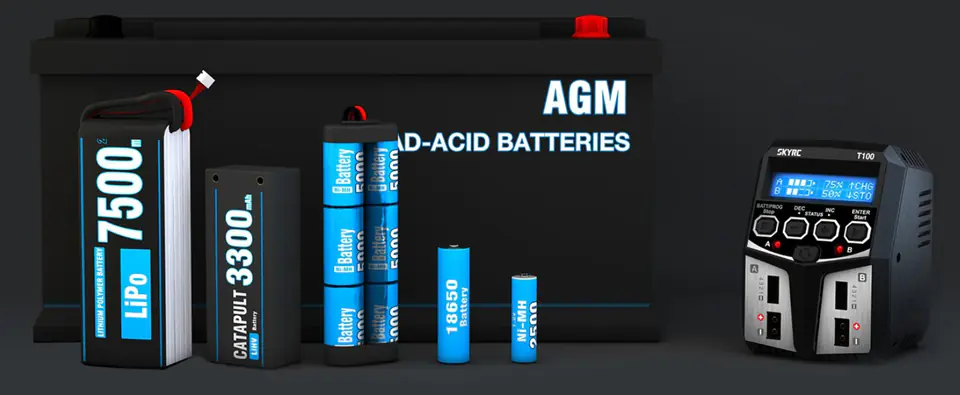

AGM and cold charge modes
AGM batteries are stronger and lighter than typical lead-acid batteries. Although both types of batteries share the same key components, their chemical structure makes them very different. For this reason, the T100 introduces an AGM battery charging mode. Never charge AGM batteries with a regular charger in Pb mode. In addition, the T100 introduces a COLD mode optimized for operation in cold temperatures.
Included
Specification
| Ładowarka T200 |
|---|
| Kabel zasilający |
| Zasilanie | AC 100-240 V |
|---|---|
| Moc ładowania | 100 W (50W x 2) |
| Moc rozładowania | 10 W |
| Typ akumulatora | LiPo/LiIon/LiFe/LiHV 2-4S, NiMH/NiCd 6-8S, Pb 6/12V |
| Pojemność akumulatora | LiPo/LiIon/LiFe/LiHV 100-50000 mAh, NiMH / NiCd 100-50000 mAh, Pb 100-50000 mAh |
| Prąd ładowania | 0,1 - 5 A |
| Prąd rozładowania | |
| Napięcie ładowania | LiPo: 4,18-4,25V/cela, LiIon: 4,08-4,2V/cela, LiFe: 3,58-3,7V/cela LiHV: 4,25-4,5V/cela, NiMH/NiCD - Detekcja Delta-Peak, Pb Normal: 2,4V/cela, Pb AGM: 2,45V, Pb Cold: 2,45V |
| Napięcie rozładowania | LiPo: 3,0-3,3V/cela, LiIon: 2,9-3,2V/cela, LiFe: 2,6-2,9V/cela LiHV: 3,1-3,4V/cela, NiMH/NiCD - 0,1-1,1V/cela |
| Balanser | 2-4S |
| Materiał obudowy | Plastik |
| Wymiary | 100 x 90 x 127 mm |
| Waga | 500 g |
| Wyłącznik czasowy | 1-170 minut |
| Temperatura pracy | 0℃-40℃ |
| Wyświetlacz | 2x16 LCD z podświetleniem |
| Zewnętrzne porty | Gniazdo balansera XH 2-4S, XT60 żeński |
