Power and capabilities
The power supply with an output power of 540W supports 12-18 V, has a built-in PFC which is an important aspect in all power supplies. eFuel is ideal for high-voltage and three-port chargers as well as other devices. The 100-240 V power supply range allows for universal use without the need to set up the DC port. High power and functional design allows you to take the power supply on the go and in the field.
Functionality

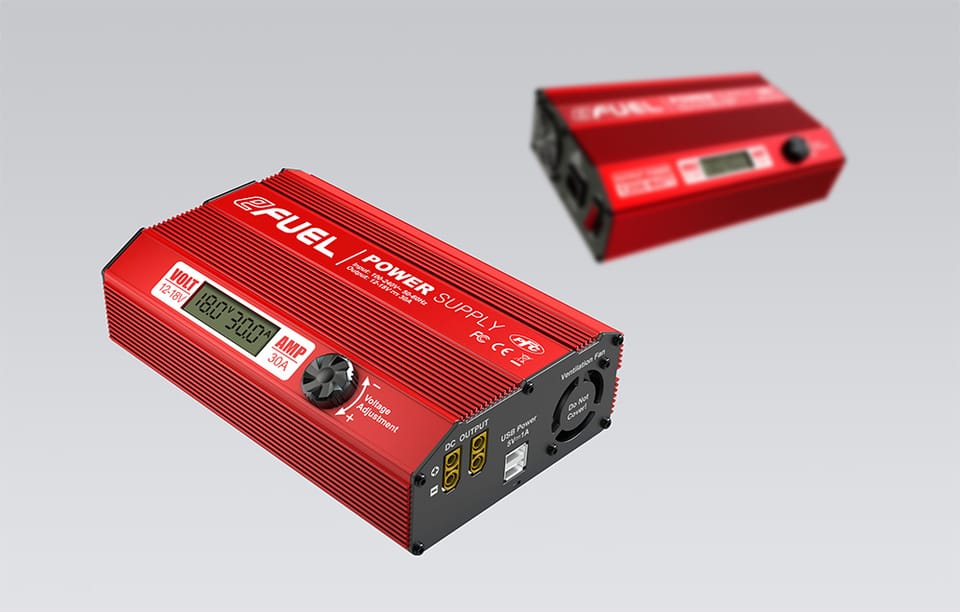

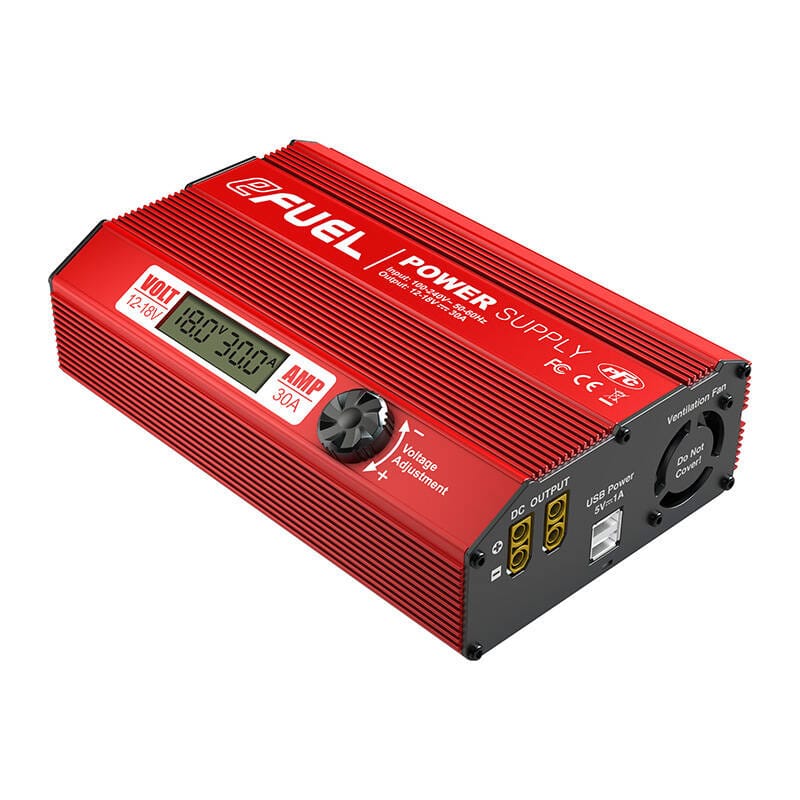

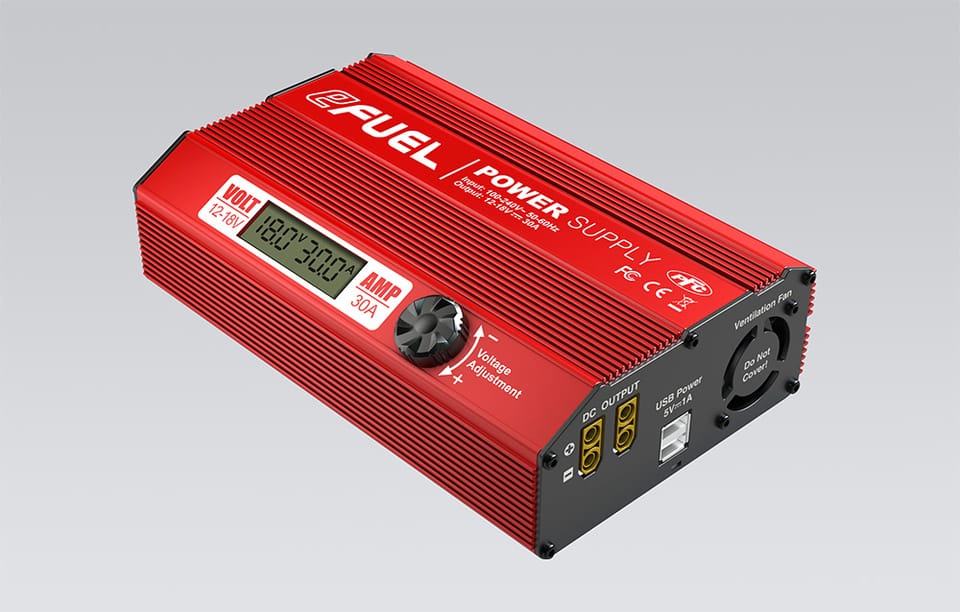

The dual DC port is powered up to 30 amps. Thanks to this solution, the power supply gives many power supply options. On the right side of the power supply there are also two USB ports for powering external devices (e.g. smartphone, MP3 player or tablet). In turn, on the left side there is the main power switch.
Simple operation

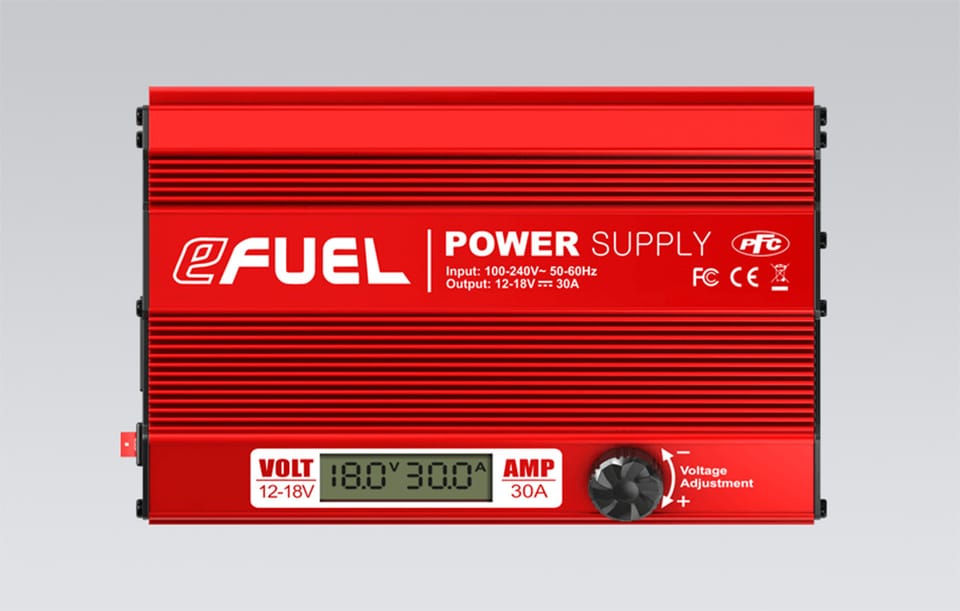

The eFuel model has a convenient knob for adjusting the voltage in the range of 12 - 18 V. In turn, a readable LCD screen displays the current output voltage and current, which greatly facilitates the operation of the power supply. Universal AC power supply 100 - 240 V makes it possible to use the power supply all over the world without the need for network adapters.
PFC input
Active PFC input means less interference when powered by AC power. It is a system responsible for the change/correction of the power factor value, i.e. the change of the phase shift angle between the current and the voltage. The phase shift between current and voltage causes the release of reactive power.
Multimedia
Other
| W zestawie | Specyfikacja |
|---|---|
| ZasilaczKabel zasilający | Napięcie 100-240 V/ACCzęstotliwość AC 50-60HzNapięcie wyjściowe 30 A ± 1AOchrona przed spięciem ≤31 A 500 MSInput Fuse 10 A FuseEkran LCD ±0.3VWydajność 89%Ochrona temperatury <65℃Waga 1,62 kgWymiary 218 x 139 x 59.5 mm |
