SkyRC e680
The SkyRC e680 charger allows you to charge and discharge LiPo, Li-Ion, LiFe, NiCd, NiMH, and PB batteries, as well as new generation LiHV batteries with a final voltage of 4.35 V. The device is able to charge batteries with a power of up to 80 watts and a charging current of up to 8 amps. In addition, the charger has the functions of measuring battery voltage and resistance, cold charging, power supply function, effective cooling system and much more.
DC Power Supply

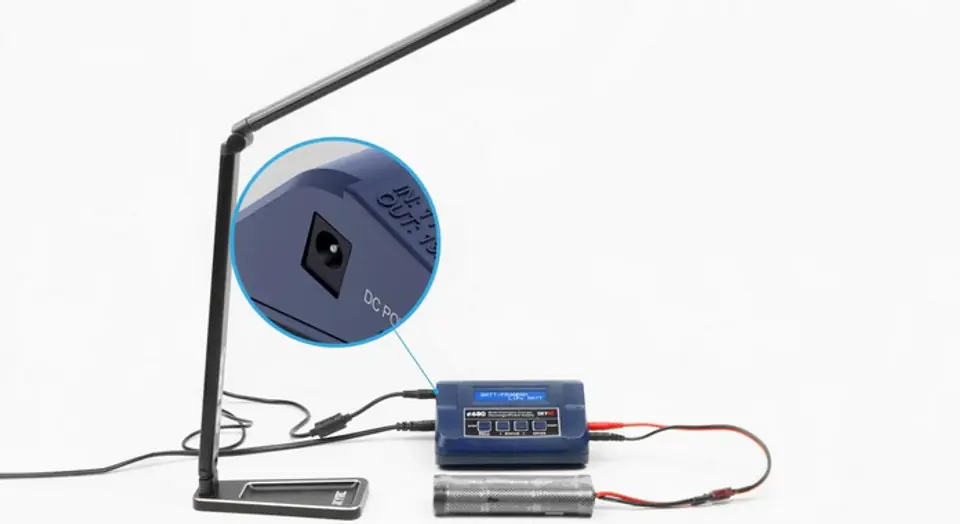

The SkyRC e680 charger has a built-in direct current (DC) power supply, producing an output voltage of 13.8 V with power from 10 watts to 80 watts. The function is especially convenient for drivers who want to power their DC devices, such as tire heater, workshop lamp, etc.
Charging PB batteries
SkyRC e680 is capable of charging gel batteries and rechargeable batteries made in AGM technology. What's more, the charger allows you to charge PB batteries at very low temperatures.
Thermal protection

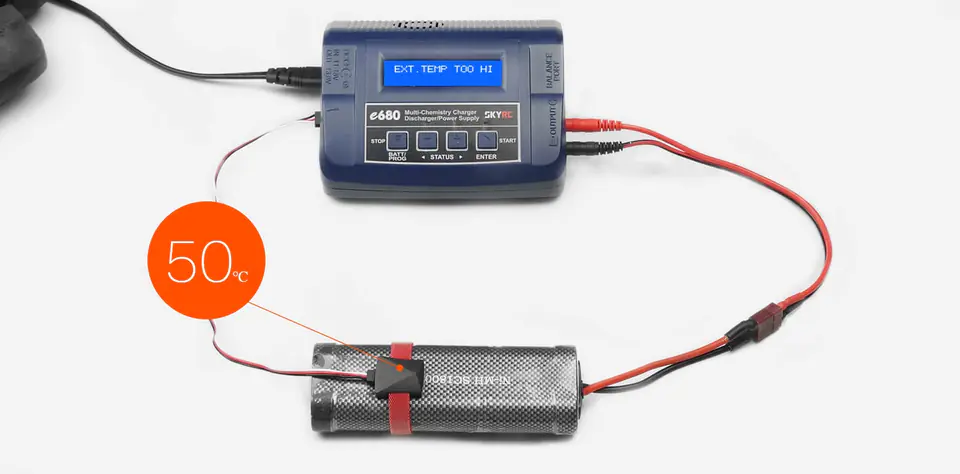

The internal reactions of the battery cause its temperature to rise. When the temperature reaches a set level, the charging/discharging process is interrupted. This feature is available when you connect your device to an optional temperature sensor, which can be purchased separately here.
Smart and efficient cooling

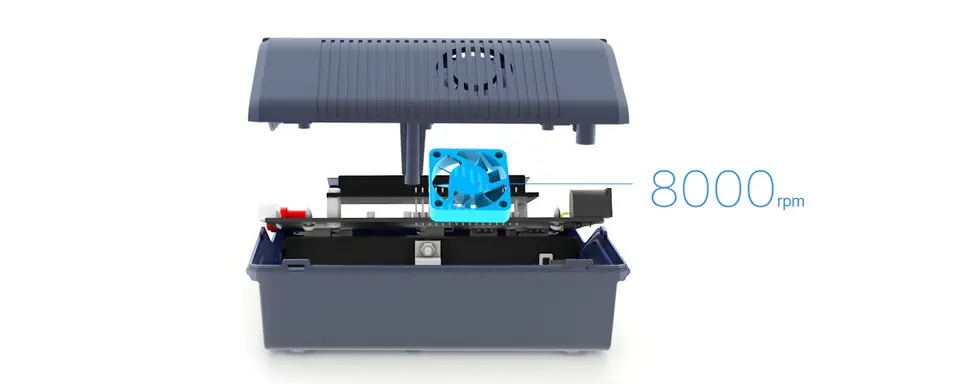

The temperature-controlled high-speed fan (8000 rpm) allows you to efficiently direct the airflow to the aluminum heatsink, effectively cooling the device.
Other
| W zestawie | Specyfikacja |
|---|---|
| Ładowarka e680Kabel zasilający ACKabel ładowania XT60Kabel DC z aligatorkamiAdapter balansera XH | Napięcie wejściowe: 11-18 V DC / 100-240 V ACWymiary: 135 x 110 x 60 mmWaga: 390 gMoc ładowania: 80 WMoc rozładowania: 10 WPrąd ładowania: 0,1 A - 8 A Prąd rozładowania: 0,1 A - 2 ATypy akumulatora: LiPo/LiHV/LiFe/LiIon 1-6S, NiMH, NiCd 1-15S, Pb 2-20S, DJI 3STryby pracy: ładowanie z balanserem, tryb przechowywania, tryb ładowania Wyłącznik czasowy: 1-120 minutPamięć: 10 profili ładowania/rozładowaniaTemperatura odcięcia: 20°C - 80°C (regulowana) |
