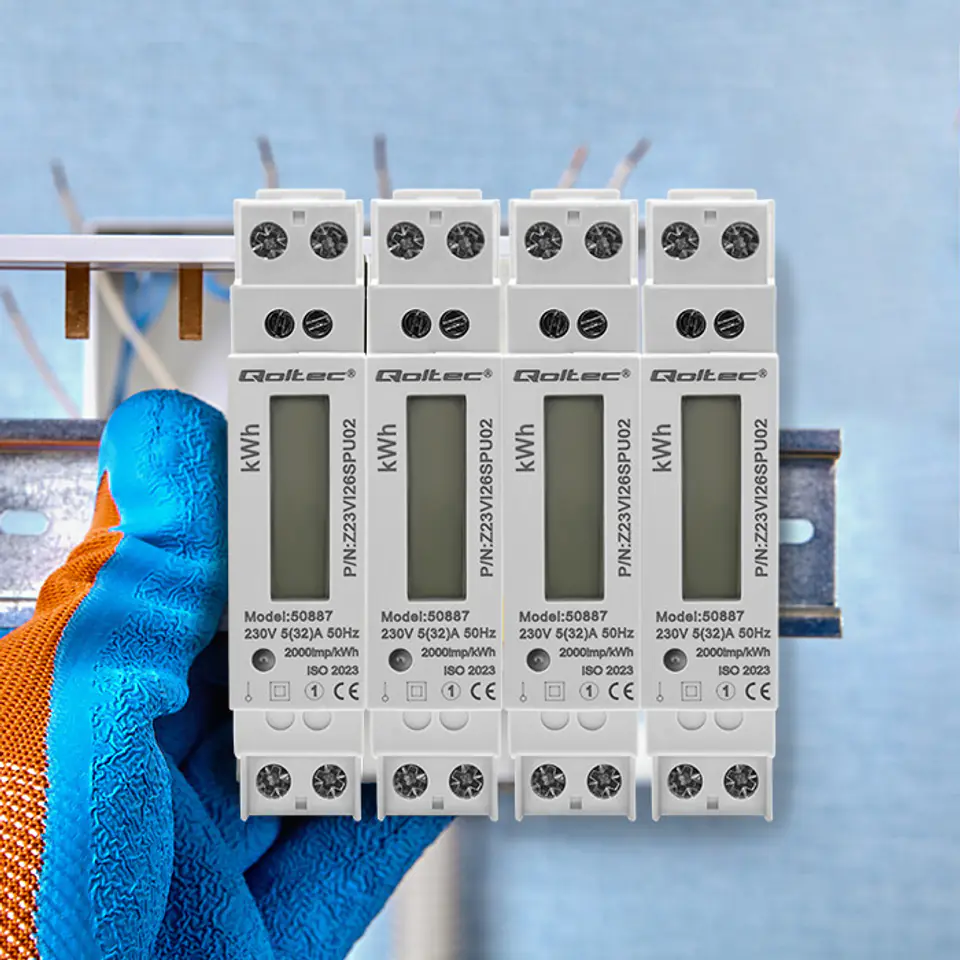

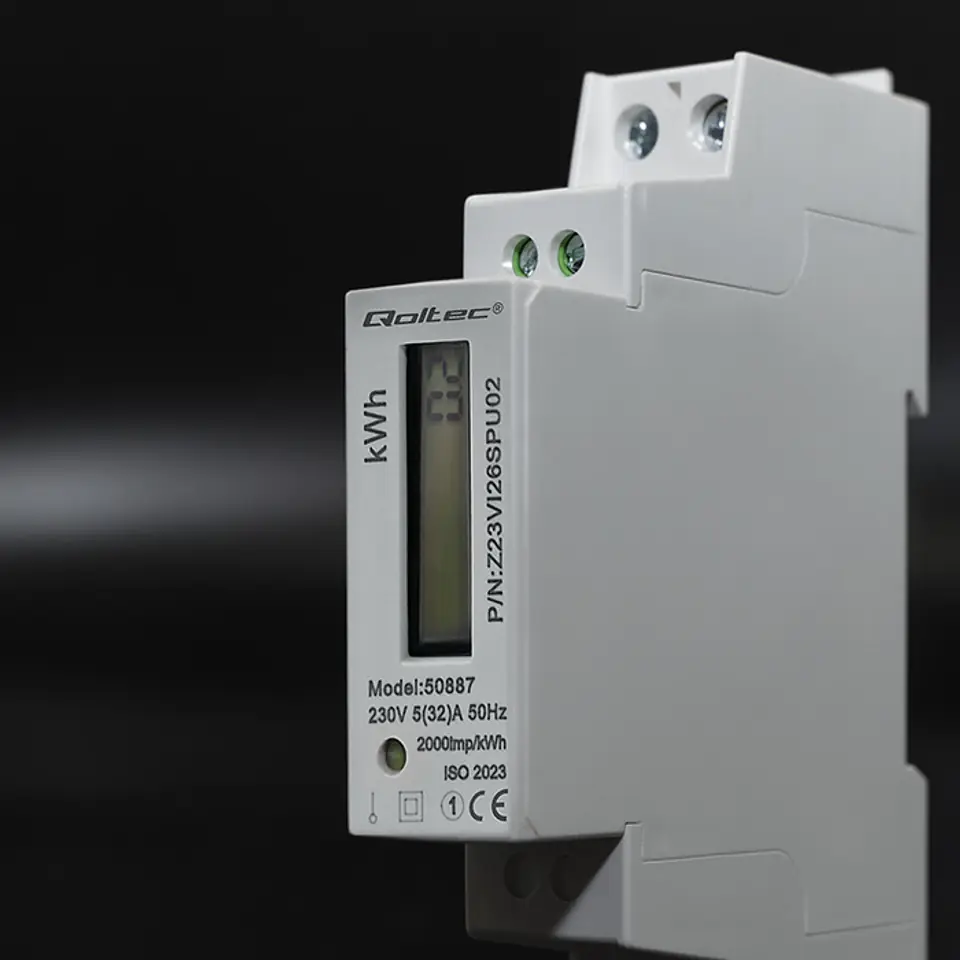

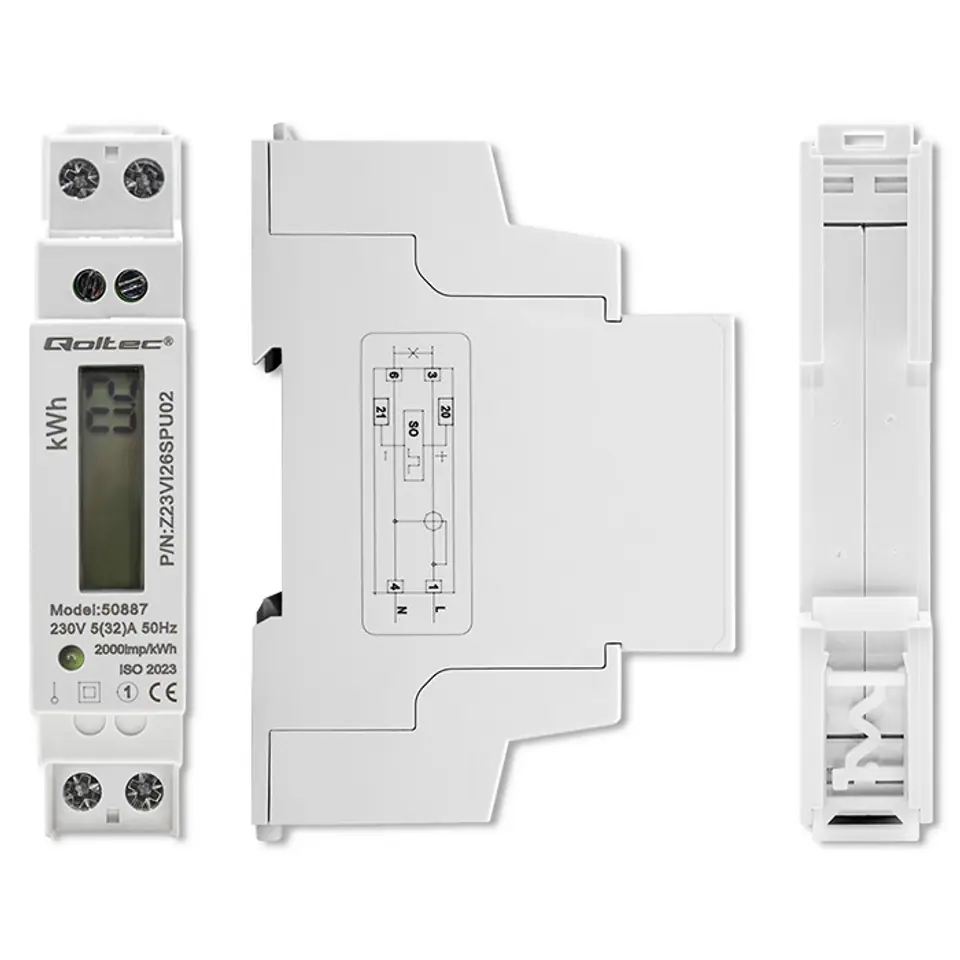

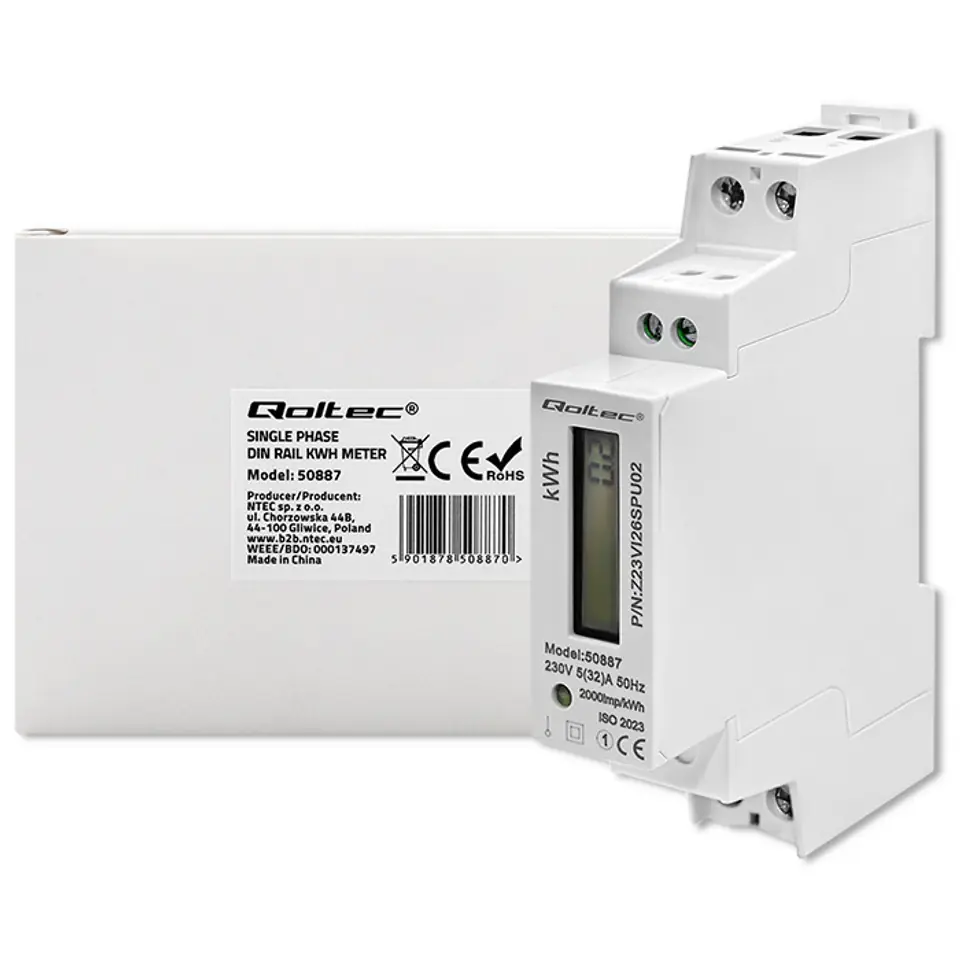

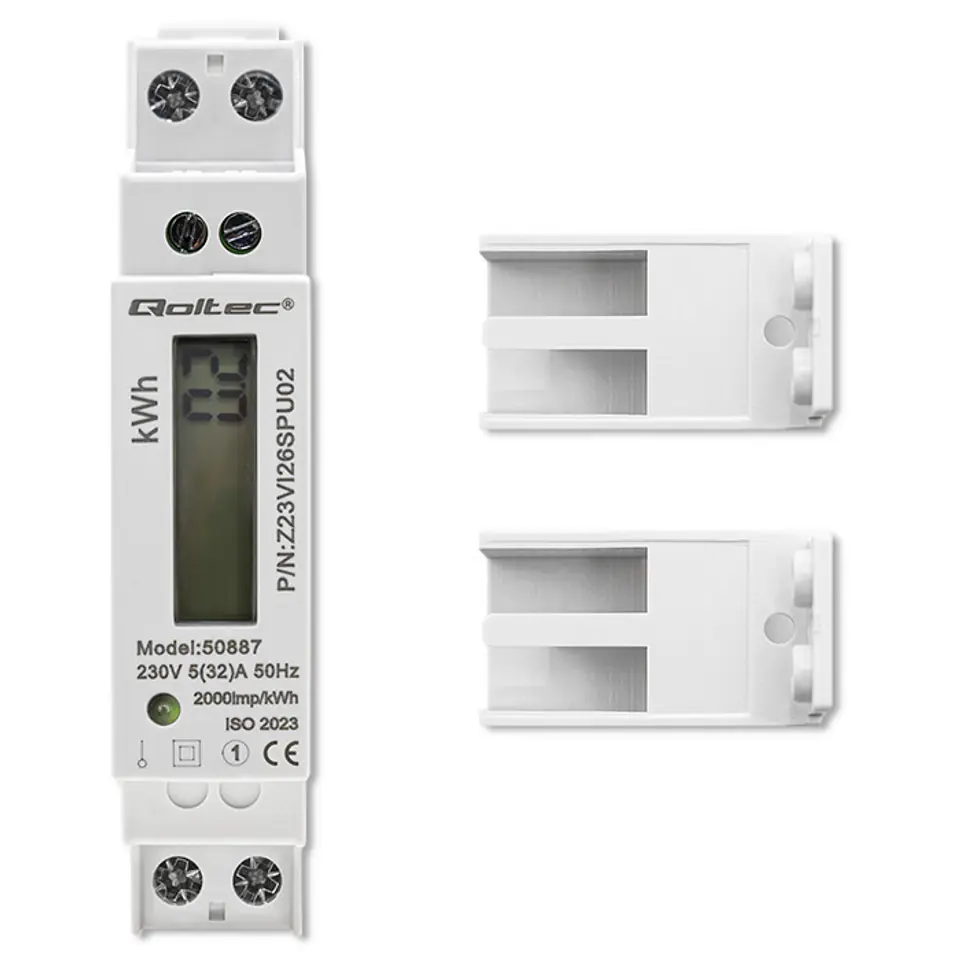

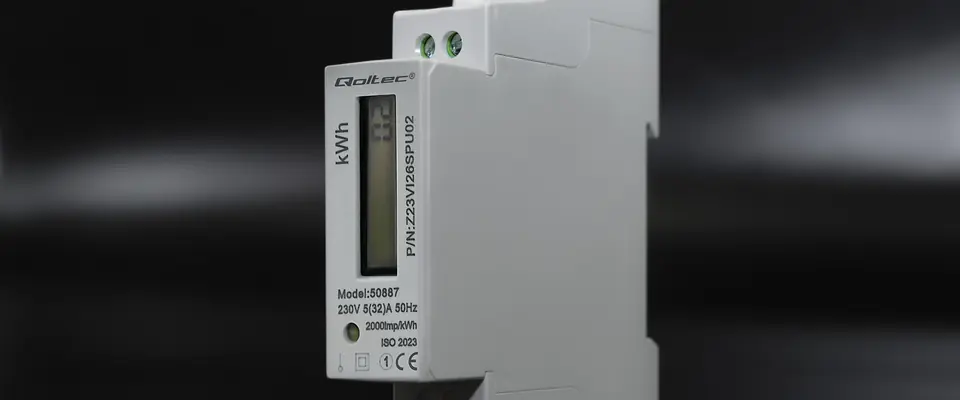

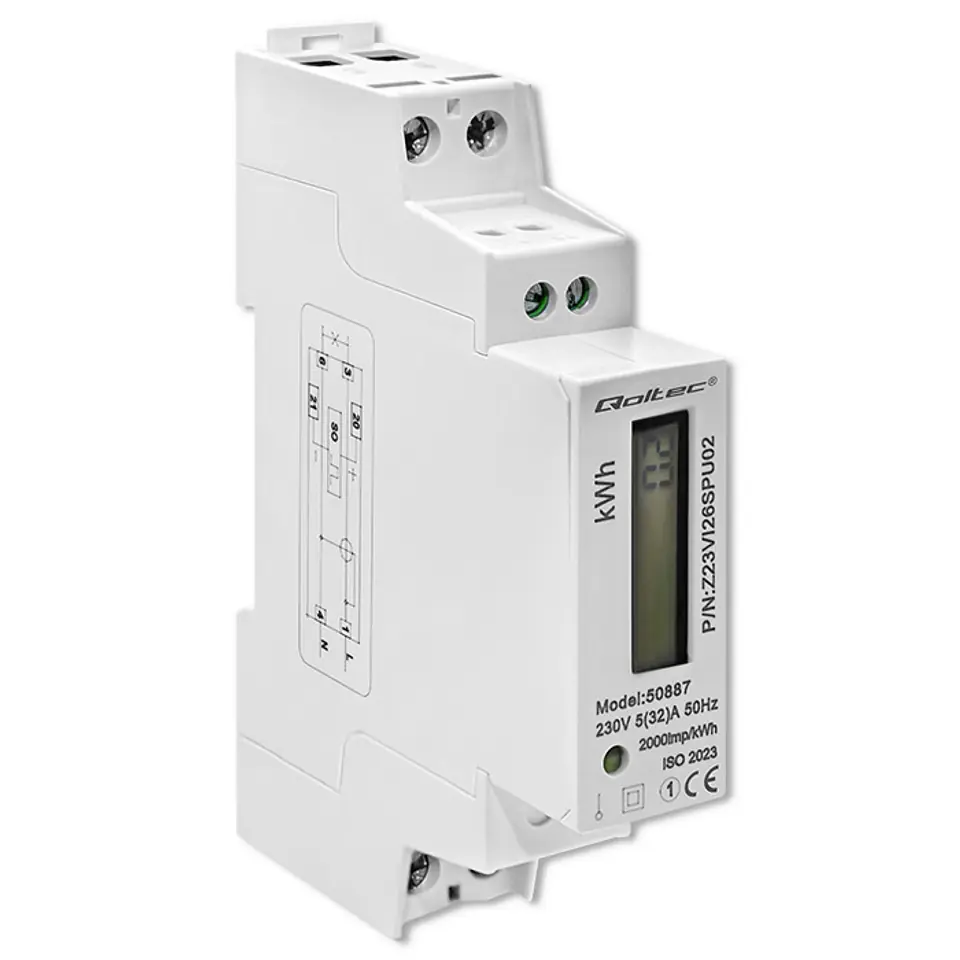

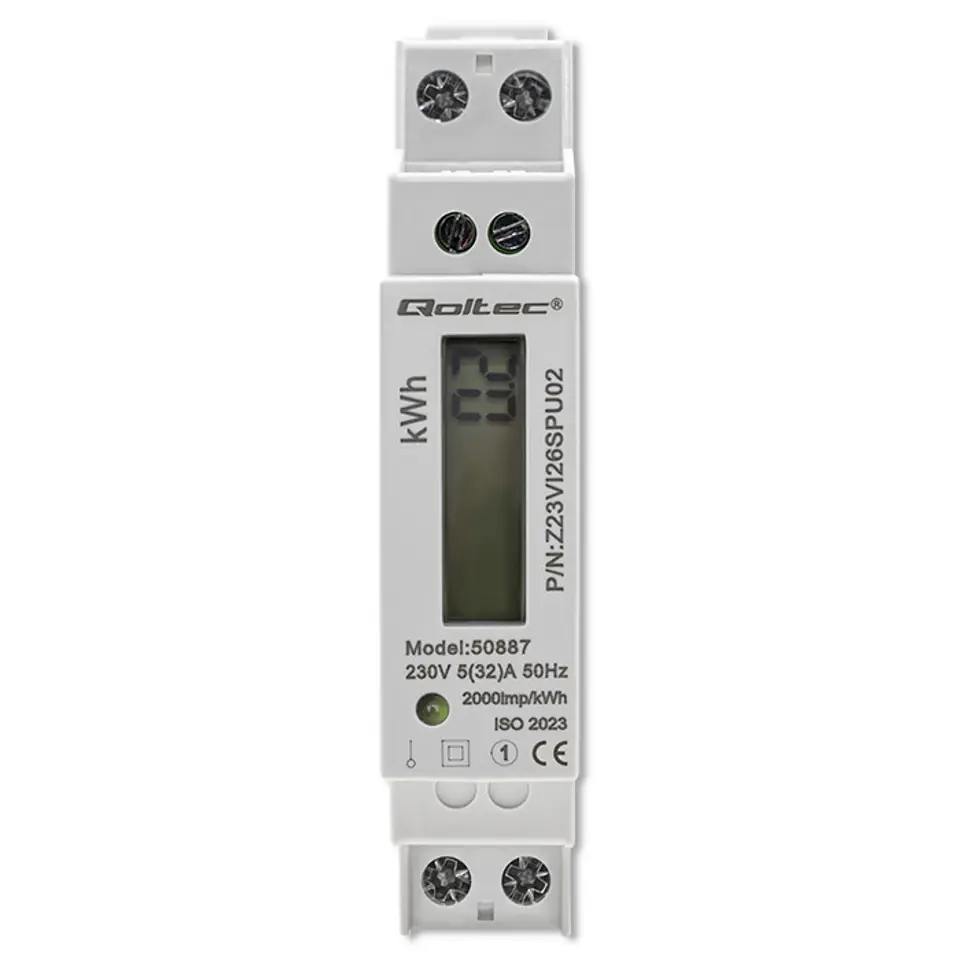

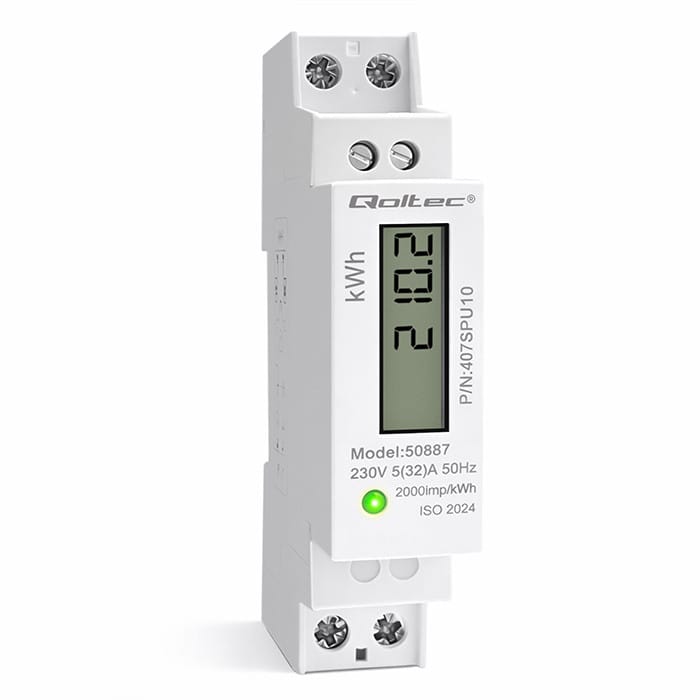

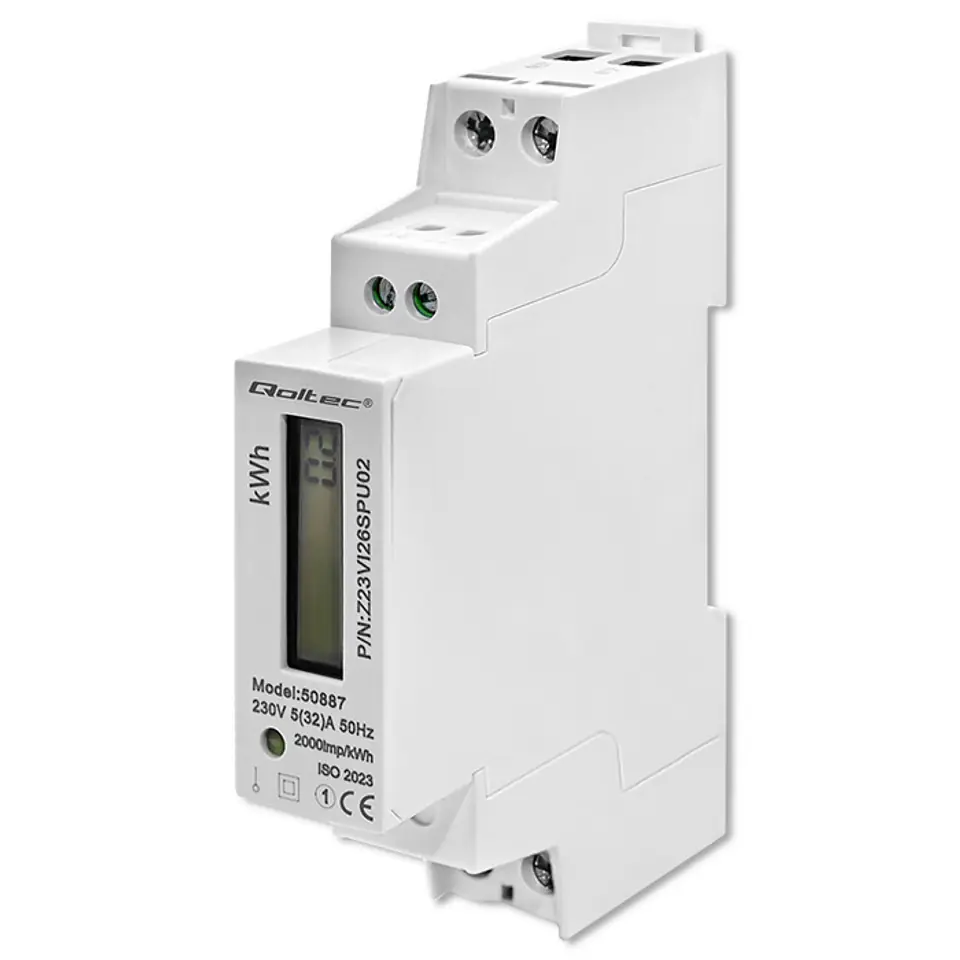

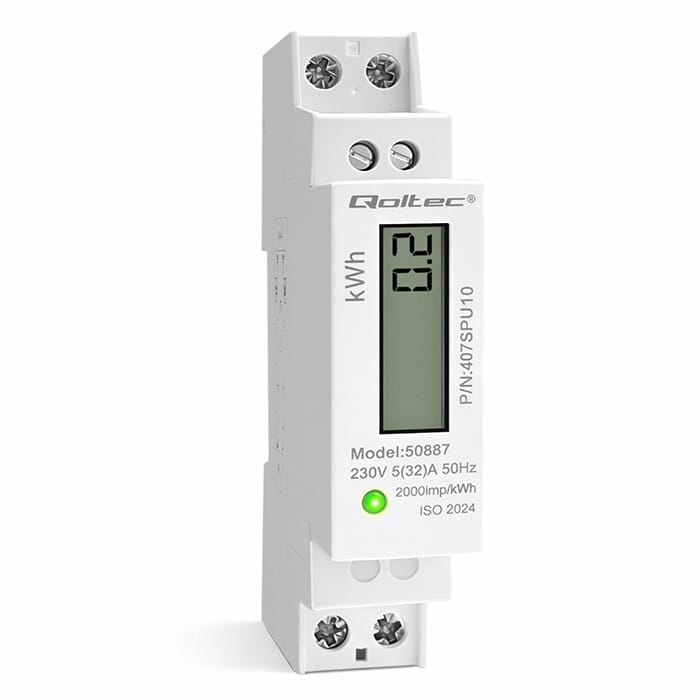

Investment in energy saving and controlThe electronic current consumption meter allows for real-time monitoring of the level of electricity consumption of single-phase consumers supplied with 230V AC at 50Hz. The device has an LED display which indicates energy consumption, the diode flashes with a frequency which depends on the energy consumed with a pulse constant of 2000imp/kWh. The LCD display, indicates the energy consumed converted from the number of pulses. The meter is designed for installation in switchgears on a DIN TH35 rail. An additional advantage of the product is its very easy operation and small size, which certainly facilitates installation.Convenient and precise monitoringThe Qoltec brand electricity consumption meter can be used in domestic installations as well as in industrial plants and any other facility. Product features:
- Single phase, single field,
- Unidirectional, counts energy regardless of the direction of flow,

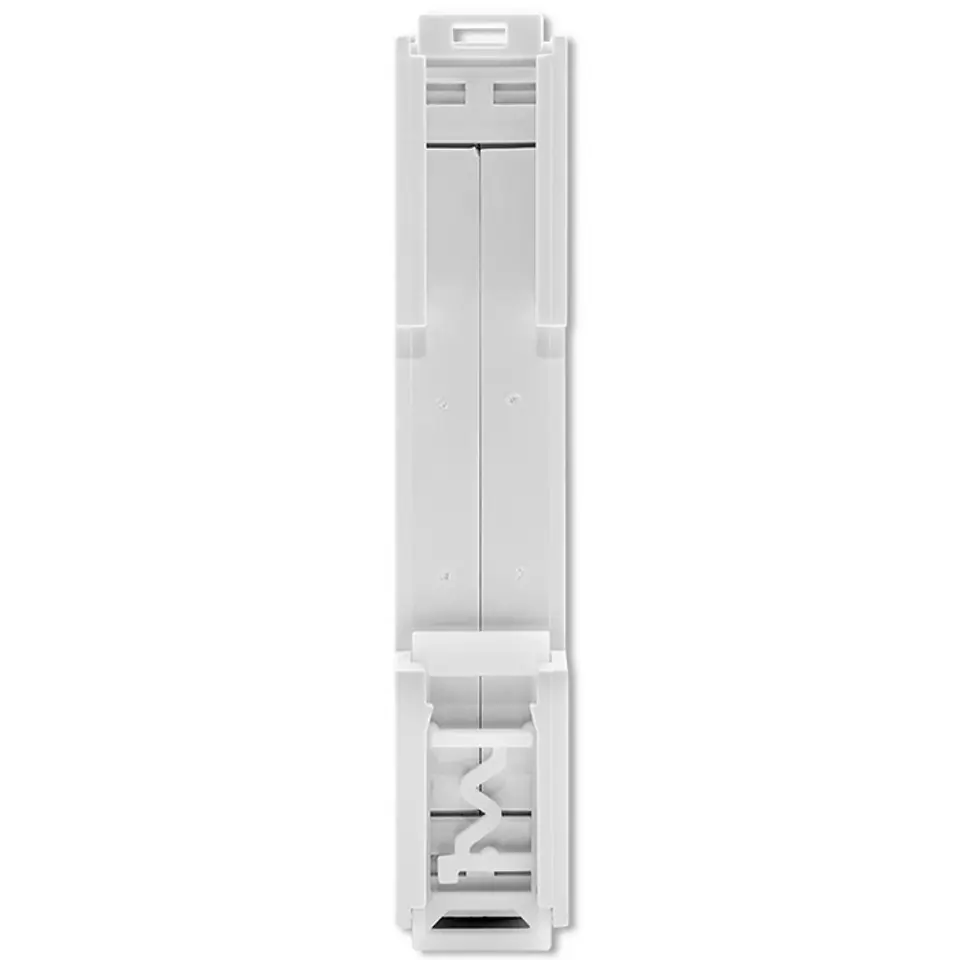

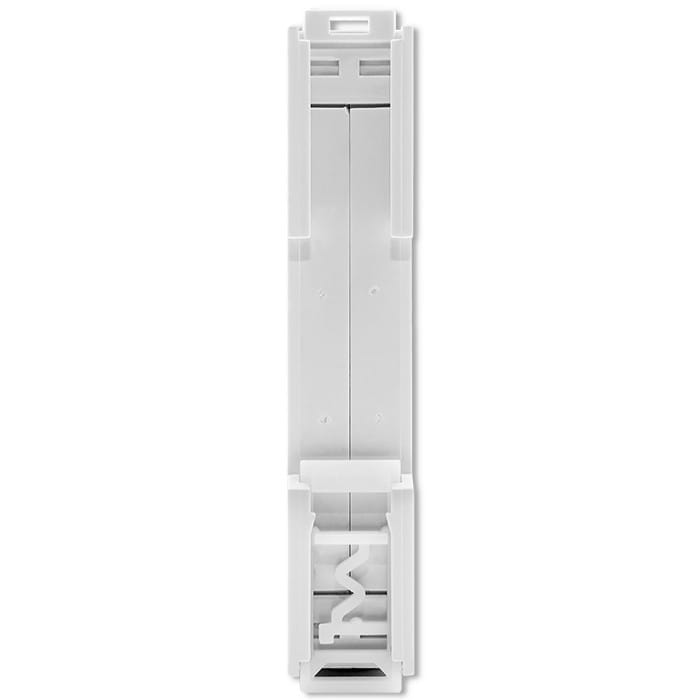

- Standard installation of the unit in a switchboard on a 35mm DIN rail,
- Energy consumption measurement displayed in kWh,
- Has LCD display, for monitoring measurements,
- Direct measurement is 5(32)A,
- Complies with IEC 62053-21 and DIN EN50022 standards,
- Accuracy class 1.0,
- The base current is 5A, the maximum current is 32A.
