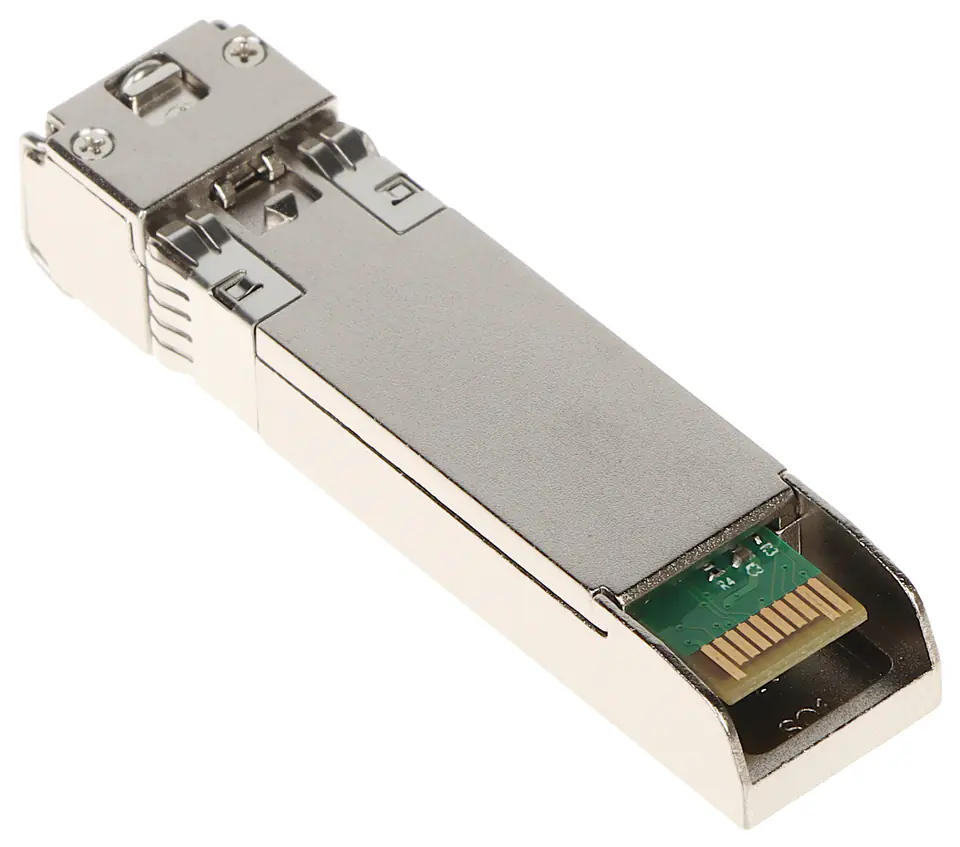

SINGLE-MODE MODULE SFP+20-1330/1270 ULTIMODE

€28.47
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
ULTIMODE
Product code:
SFP+20-1330/1270 / 5907634519470

Specification

Fiber type:Single-mode fiber
Light source / optical wavelength:Laser FP - 1330 / 1270 nm (Tx / Rx)
Maximum transmission range:20 km
Number of fibres needed:1
Operating temperature:0 °C ... 70 °C
Optical connectors:LC / PC
Power:3.3 volts DC
Producer / brand:ULTIMODE
Scales:0.02 kg
Selected features:BiDi/WDM transmission, Compatible with ULTIMODE, TP-LINK
Transfer:.max. 10 Gbps
Transmission protocols:IEEE802.3ae, SFF-8431 Rev.4.1, SFF-8472 Rev.4.4
Warranty:2 years

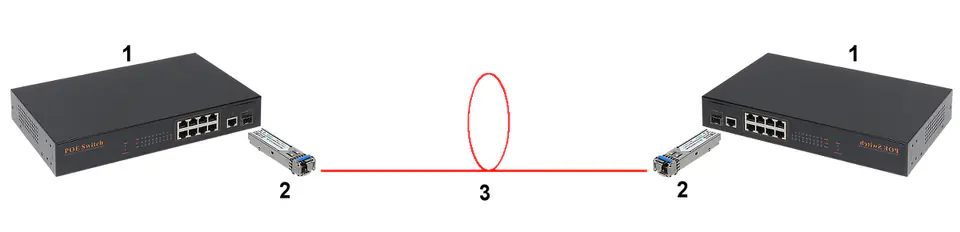

Optical modules compliant with the SFP (Small Form-factor Pluggable) / SFP+ standard are devices that convert electrical signals into optical and optical into electricThe use of media converters with the possibility of replacing SFP modules is particularly beneficial due to their versatility, e.g. in the case of changing the network configuration, instead of replacing the entire device or adding new media converters, it is enough to choose the appropriate SFP module. The modules work with most switches and routers with SFP socket

Remark! SFP+20-1330/1270 requires SFP+20-1270/1330 to work with

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
