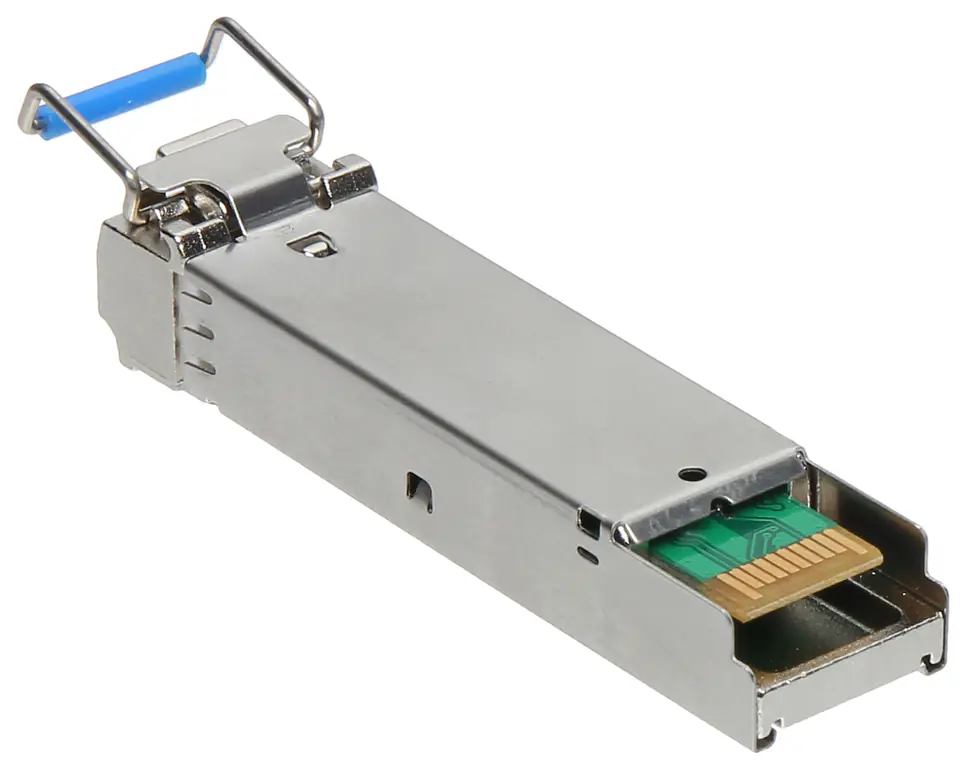

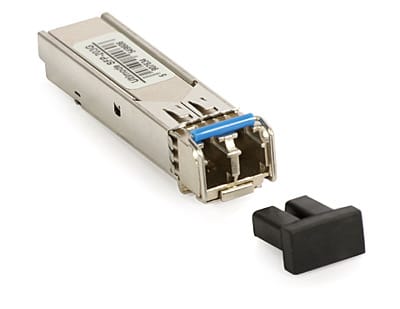

SINGLE-MODE MODULE SFP-203G

This product is not available
Availability:
expected delivery
Product code:
SFP-203G / 5907634549606

Specification

Fiber type::8.3/125 μm, 8.7/125 μm, 9/125 μm, 10/125 μm - Single-mode fiber
Light source / optical wavelength::Laser FP / 1310 nm
Maximum transmission range::20 km
Number of fibers needed::2
Operating temperature::0 °C ... 70 °C
Optical connectors::2 x LC/PC
Power::3.3 VDC
Receiver sensitivity::≥ -22 dB
Scales::0.018 kg
Transfer::Max. 1.25 Gbps
Transmission protocols::IEEE 802.3z 1000Base-FX
Transmitter power::-8 ... -3 dB
Warranty::2 years

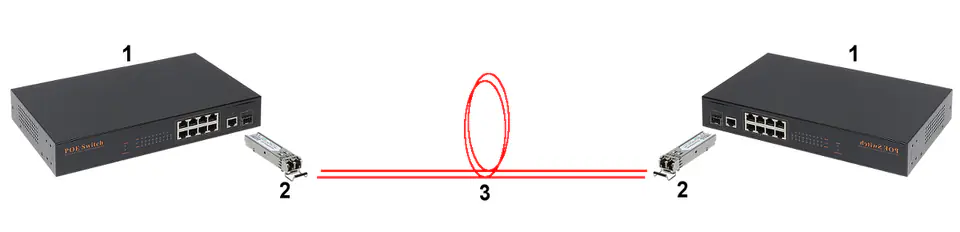

Optical modules compliant with the SFP (Small Form-factor Pluggable) standard are devices that convert electrical signals into optical and optical into electricalThe use of media converters with the possibility of replacing SFP modules is particularly beneficial due to their versatility, e.g. in the case of changing the network configuration, instead of replacing the entire device or adding new media converters, it is enough to choose the appropriate SFP module.

Modules work with most switches and routers with SFP socket

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
