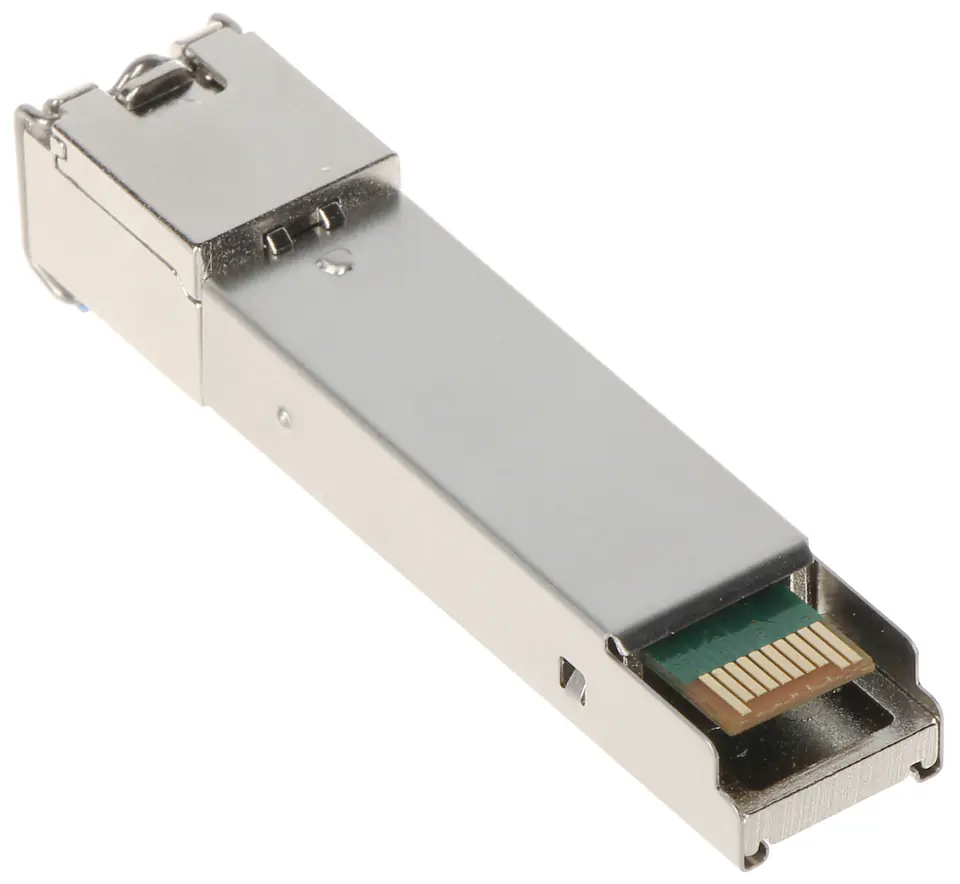

SINGLE-MODE MODULE GTS-SFP-35G

€11.33

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: GTS-SFP-35G / 5902887056369

Specification

Fiber type::	8.3/125 μm, 8.7/125 μm, 9/125 μm, 10/125 μm - Single-mode fiber
Light source / optical wavelength::	Laser FP - 1310 / 1550 nm (Tx / Rx)
Maximum transmission range::	20 km
Number of fibers needed::	1
Operating temperature::	0 °C ... 70 °C
Optical connectors::	SC / PC
Power::	3.3 VDC
Receiver sensitivity::	≥ -22 dB
Scales::	0.024 kg
Selected features::	WDM Optical Wavelength Multiplication Technology (Tx 1310nm / Rx 1550nm)
Transfer::	Max. 1.25 Gbps
Transmission protocols::	IEEE 802.3z 1000Base-FX
Transmitter power::	-8 ... -3 dB
Warranty::	2 years

Optical modules compliant with the SFP (Small Form-factor Pluggable) standard are devices that convert electrical signals into optical and optical into electricalThe use of media converters with the possibility of replacing SFP modules is particularly beneficial due to their versatility, e.g. in the case of changing the network configuration, instead of replacing the entire device or adding new media converters, it is enough to choose the appropriate SFP module. Modules work with most switches and routers with SFP socket

Remark! GTS-SFP-35G requires GTS-SFP-53G to work

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
