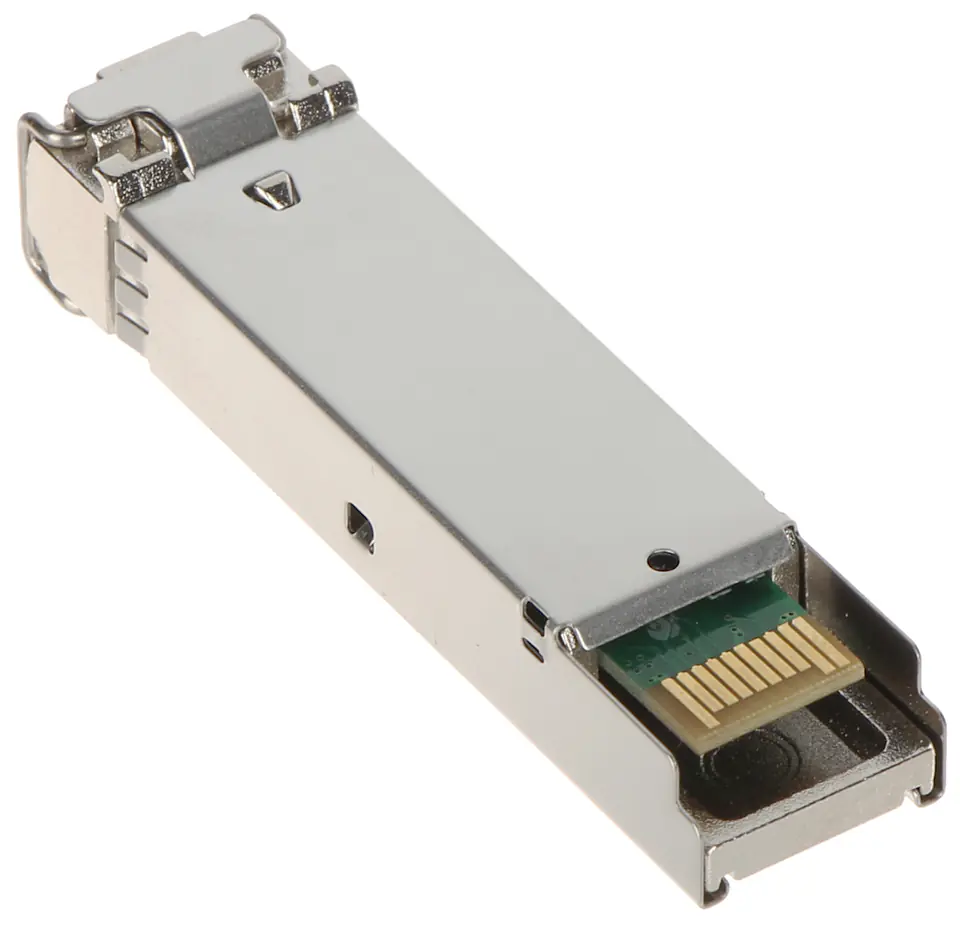

SINGLE-MODE MODULE GTS-SFP-2LCG

€9.09
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Dec 30 - Tue, Dec 31
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
GTS-SFP-2LCG / 5902887056352

Specification

Fiber type:8.3/125 μm, 8.7/125 μm, 9/125 μm, 10/125 μm - Single-mode fiber
Fiber type::8.3/125 μm, 8.7/125 μm, 9/125 μm, 10/125 μm - Single-mode fiber
Light source / optical wavelength:Laser FP / 1310 nm
Light source / optical wavelength::Laser FP / 1310 nm
Maximum transmission range:20 km
Maximum transmission range::20 km
Number of fibres needed:2
Number of fibres needed::2
Operating temperature:0 °C ... 70 °C
Operating temperature::0 °C ... 70 °C
Optical connectors:2 x LC / PC
Optical connectors::2 x LC / PC
Power:3.3 volts DC
Power::3.3 volts DC
Receiver sensitivity:≥ -22 dB
Receiver sensitivity::≥ -22 dB
Scales:0.017 kg
Scales::0.017 kg
Transfer:.max. 1.25 Gbps
Transfer::.max. 1.25 Gbps
Transmission protocols:IEEE 802.3z 1000Base-FX
Transmission protocols::IEEE 802.3z 1000Base-FX
Transmitter power:-8 ... -3 dB
Transmitter power::-8 ... -3 dB
Warranty:2 years
Warranty::2 years

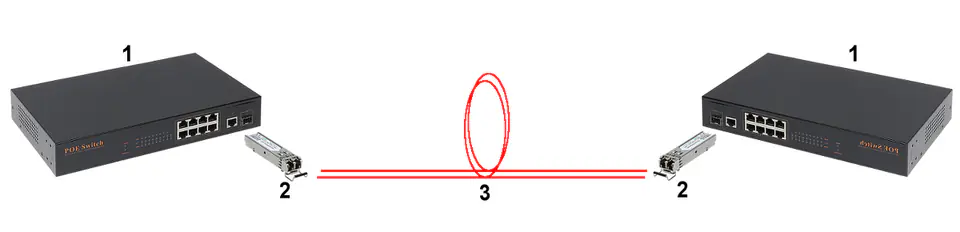

Optical modules compliant with the SFP (Small Form-factor Pluggable) standard are devices that convert electrical signal into optical and optical signal into electricThe use of media converters with the possibility of replacing SFP modules is particularly beneficial due to their versatility, e.g. in the case of changing the network configuration, instead of replacing the entire device or adding new media converters, it is enough to choose the appropriate SFP module.

The modules work with most switches and routers with SFP socket

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
